- Sku: DH-PFB302S
- Vendor: SecurityAustralia

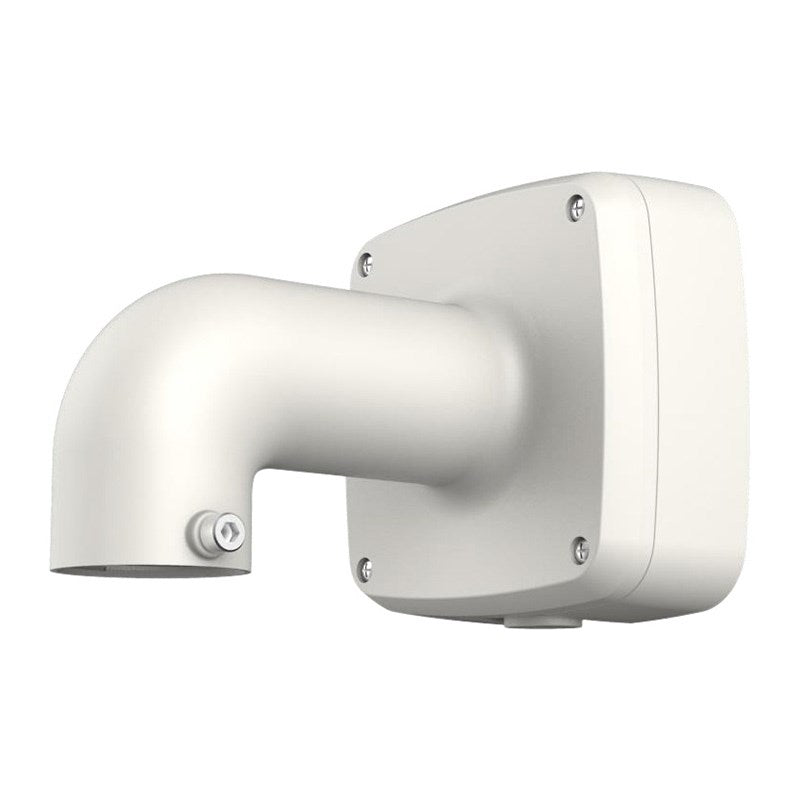

Dahua DH-PFB302S Wall Bracket with Integrated Junction Box
The DH-PFB302S delivers a clean, weather-resistant mounting solution for installers who want concealed cabling and a professional finish on outdoor camera deployments. The integrated IP66-rated junction box keeps wiring connections fully enclosed and protected from dust and heavy rain, eliminating the need for a separate back box. Constructed from aluminium alloy, it supports cameras up to 4kg and suits a wide temperature range from -40°C to 60°C.
Why This Model
- Integrated junction box: Cable connections are enclosed within the bracket itself, keeping terminations protected and out of sight for a neater, more professional installation.
- IP66 weather rating: The sealed enclosure withstands direct water jets and full dust ingress, making it suitable for exposed outdoor walls in Australian conditions.
- 4kg load capacity: Handles the weight of most standard dome and bullet cameras, with a G3/4" pipe thread entry that suits common conduit runs.
| Model | DH-PFB302S |
| General | |
| Material | Aluminum |
| Dimension (W x H x D) | 134.0mmx133.5mmx187.5mm (5.28”x5.25.”x7.38”) |
| Pipe thread | G3/4” |
| Weight | 0.7kg(1.54lb) |
| Load bearing | 4.0kg(8.82lb) |
| Color | White |
| Protection | IP66 |
| Operating temperature | -40ºC ~60ºC(-40℉~140℉) |
| Humidity | 0~90% RH |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
Dahua DH-PFB302S Wall Bracket with Integrated Junction Box
Model: DH-PFB302S
Who This Is For
When clean cable management and weather protection are the priority, the Dahua DH-PFB302S Wall Bracket with Integrated Junction Box is the mounting solution installers reach for. Designed for outdoor camera installations where exposed cabling is either impractical or unacceptable, this bracket combines a sturdy aluminium wall arm with a built-in IP66-rated junction box in a single compact unit. Cables are routed through the bracket and terminated inside the protected enclosure, keeping connections dry and the finished install looking professional. At 0.7 kg and rated to carry up to 4 kg, it suits a wide range of compatible turret, bullet, and dome cameras. The -40°C to 60°C operating range makes it viable in both harsh Australian summers and cold-climate installations. Installers fitting cameras to rendered brick, weatherboard, or masonry walls will find the 134 x 133.5 x 187.5 mm footprint and G3/4" pipe thread a practical fit for standard conduit runs.
What This Bracket Actually Does
Integrated Junction Box
Rather than a separate back box or exposed conduit entry, the junction box is built directly into the bracket body. Cable connections are made inside the enclosure before the camera mounts, keeping terminations out of the weather and out of sight.
IP66 Weather Protection
The IP66 rating means the junction box enclosure resists dust ingress completely and withstands heavy rain. This matters on exposed eave and fascia mounts where driving rain can work into poorly sealed cable entries over time.
Aluminium Alloy Construction
The bracket is manufactured from aluminium alloy rather than plastic or pressed steel. This provides corrosion resistance in coastal or high-humidity environments while keeping the overall bracket weight to 0.7 kg, making single-person installation practical.
G3/4" Pipe Thread Entry
The G3/4" threaded conduit entry allows standard electrical conduit to be connected directly to the bracket. This enables fully enclosed cable runs from the wall surface up into the junction box without any exposed cable between the conduit and the camera.
4 kg Load Capacity
Rated to carry up to 4 kg, the bracket accommodates most standard Dahua turret, bullet, and dome cameras without issue. Always verify the specific camera's weight against this rating before specifying - particularly for heavier bullet or PTZ housings.
Who Buys This Model
- Residential CCTV installers: Fitting cameras to brick or weatherboard homes where a neat, paint-ready white bracket with concealed cable entry is expected by the client rather than exposed conduit runs.
- Commercial property installers: Mounting cameras on rendered render or masonry external walls where the G3/4" conduit entry allows a clean run from the cable chase directly into the sealed junction box.
- Installers working in coastal or high-humidity zones: The aluminium construction and IP66 enclosure provide long-term corrosion resistance compared to standard plastic back boxes in salt-air environments.
- Builders and electrical contractors: Specifying a single bracket-and-junction-box component for rough-in stages reduces the number of separate parts on site and ensures the camera rough-in is weatherproof before cameras are fitted at completion.
Honest Assessment
The DH-PFB302S does one thing well: it combines the wall bracket and cable junction box into a single clean unit rated for genuine outdoor exposure. The IP66 enclosure, aluminium build, and -40°C to 60°C operating range are practical advantages over cheaper plastic alternatives, particularly in exposed or coastal locations. The G3/4" pipe thread entry makes this a clean choice when conduit is being run rather than surface cable. Available through Security Australia, this bracket suits Dahua camera installations where a professional finish and proper cable protection are both requirements rather than optional extras. Where it will not help: it is not a pole mount, a corner mount, or a ceiling drop bracket. If the installation surface is a round pole, a corner wall junction, or requires the camera to hang below a ceiling soffit on a drop arm, a different mounting accessory type will be needed. The 4 kg load limit also rules out heavier PTZ housings.
Before You Buy
Installer Note: The G3/4" pipe thread is a British Standard parallel thread (G-series), not an NPT thread. If you are connecting Australian-standard electrical conduit fittings, confirm your conduit adapter is G3/4" compatible before purchase. The bracket dimensions are 134 x 133.5 x 187.5 mm - check this against any recess or cavity in the mounting surface to ensure the back plate sits flush against the wall without fouling.
Quick Fit Check
- Good match if: You are mounting a Dahua turret or bullet camera on an external masonry or timber wall and need a sealed, IP66-rated cable termination point at the bracket rather than a separate back box.
- Good match if: The installation requires conduit from the wall surface into the camera mount - the G3/4" threaded pipe entry connects standard conduit directly to the junction box for a fully enclosed cable path.
- You may need a different model if: The camera exceeds 4 kg, the mounting surface is a round pole or corner junction, or you need a ceiling drop arm configuration - a different Dahua accessory bracket type will suit those scenarios better.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need a wall bracket and weatherproof cable junction box in a single component - particularly where conduit entry via G3/4" thread and IP66 cable protection are both requirements.
- You may need a different model if: The camera must be mounted on a pole, ceiling, corner wall, or requires a long drop arm - separate pole mount brackets or ceiling drop mount accessories from the Dahua accessory range will suit those surface types better.
- Pairs well with: Dahua outdoor turret cameras, bullet cameras, or dome cameras within the 4 kg weight limit, used with compatible PoE NVR systems where a neat, weatherproof cable entry is required at the camera position.
Common Questions
-
Will this bracket work with any Dahua camera or only specific models?
It works with any Dahua camera that uses a compatible wall mount base and weighs 4 kg or less. The bracket is a universal wall arm with integrated junction box rather than a camera-specific part. Before specifying, confirm the mounting base dimensions of your chosen camera are compatible with the bracket's mounting plate, and verify the camera weight does not exceed the 4 kg load rating. -
Is the IP66 rating on the junction box only, or does it cover the entire bracket assembly?
The IP66 protection rating applies to the bracket assembly as a whole, including the junction box enclosure. IP66 means complete protection against dust ingress and resistance to heavy water jets from any direction. This makes the DH-PFB302S suitable for fully exposed outdoor positions including eave ends, fascia boards, and external walls directly exposed to weather. -
Does this bracket support conduit entry for enclosed cable runs?
Yes. The bracket includes a G3/4" threaded pipe entry that accepts a standard conduit fitting. This allows cable to run from the wall surface through conduit directly into the sealed junction box with no exposed cable at the bracket. Confirm your conduit fittings are G3/4" compatible, as G-series thread is a British Standard parallel thread and is not directly interchangeable with NPT fittings. -
What is the maximum camera weight this bracket can support?
The rated load bearing capacity is 4.0 kg. Most standard Dahua turret, bullet, and compact dome cameras fall well within this limit. Heavier housings such as large stainless-steel bullet cameras or PTZ units may exceed this rating - check the camera's published weight before specifying the DH-PFB302S for those applications. -
Will this bracket hold up in extreme heat or cold?
Yes. The DH-PFB302S is rated for operation between -40°C and 60°C. This covers both extreme Australian summer conditions and cold-climate installations. The aluminium alloy construction also resists the thermal expansion and contraction cycling that can cause cracking in plastic brackets over time in high-UV outdoor environments. -
Is this bracket available in colours other than white?
No. The confirmed specification for the DH-PFB302S lists white as the only available colour. If the installation requires a different finish, field painting with appropriate exterior metal primer and paint is an option, though this is a site decision rather than a factory option. Check with Security Australia if colour matching to a specific camera finish is a project requirement.
