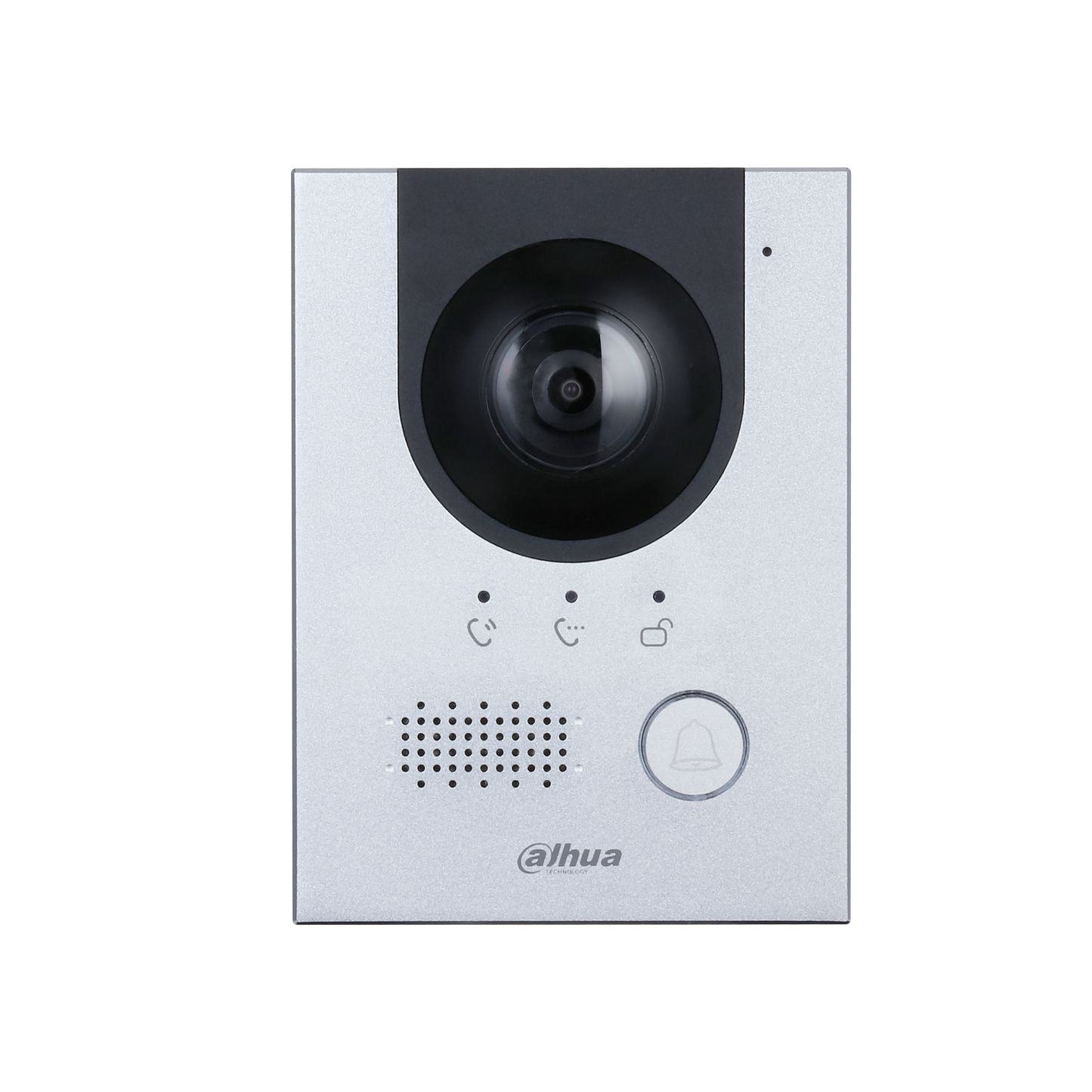

Dahua DHI-VTO2202F-P-S2 2MP Villa Outdoor Station

$290.00 AUD
$255.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

2-wire IP Villa Door Station

The 2-wire IP Villa Door Station VTO2202F-P-S2 from Dahua is a versatile and secure solution for residential access control. It features a 2 MP wide-angle camera that provides clear video for identifying visitors, even in low-light conditions, thanks to its infrared night vision. The door station supports two-way audio communication with noise suppression and echo cancellation, ensuring clear conversations.

Key Features

  • Anodized aluminum front panel.
  • CMOS low illumination 2MP HD colorful 160° fisheye camera.
  • Video intercom function.
  • Access control function that supports two locks.
  • Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
  • Compatible with 2-wire interface & RJ45 interface.
  • IK07 & IP65 rated.
  • Supports H.265.
  • Supports surface and flush mount.
  • PoE (Power over Ethernet) enabled.

Code/SKU: VTO2202F-P-S2
Quick Specs:

  • Camera: 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
  • Field of View: Horizontal: 168.6°; Vertical: 87.1°; Diagonal: 176.7°
  • Focal Length: 1.9 mm
  • WDR: 120 dB
  • Noise Reduction: 3D NR
  • Video Compression: H.265

Specifications

System

Main Processor

Embedded processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera

Field of View

Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°

Focal Length

1.9 mm

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265

Video Resolution

50Hz:

Main Stream (720P@25 fps), sub stream (1080P@25 fps)

60Hz:

Main Stream (720P@30 fps), sub stream (1080P@30 fps)

Video Frame Rate

25 fps

Video Bit Rate

256 Kbps to 4 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression, digital noise reduction

Audio Bit Rate

16 KHz, 16 Bit

Status Indicator Light

3

Port



RS-485 Port

1

Alarm Output

1

Power Output

1-ch 12 VDC 100mA

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

One RJ45 10M, 100M network port

Storage

Micro SD card (up to 64GB)

General

Appearance color

Silver

Power Supply

Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE

Power Adapter

Optional

Installation

Flush, surface mount

Certifications

CE; FCC; UL

Accessory

Flush/surface mount

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IK07; IP65

Operating Temperature

–30°C to +60°C (–22°F to 140°F)

Operating Humidity

10%–90% (RH, non-condensing)

Operating Altitude

0 m–3000 m

Power Consumption

≤ 12W

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.4 kg (0.88 lb)

Documentation

vto2202f_quick-start-guide_v1.0.01.pdf
dhi-vto2202f-p_datasheet_20191228.pdf
dahua_villa_intercom_1_vth_x_1vto_setup1_04ce2dc5-83e6-434a-ad27-d4a2fcf2ce4e.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DHI-VTO2202F-P-S2 2MP Villa Outdoor Station

$290.00 AUD
$255.00 AUD

The 2-wire IP Villa Door Station VTO2202F-P-S2 from Dahua is a versatile and secure solution for residential access control. It features a 2 MP wide-angle camera that provides clear video for identifying visitors, even in low-light conditions, thanks to its infrared night vision. The door station supports two-way audio communication with noise suppression and echo cancellation, ensuring clear conversations. It is compatible with both 2-wire and IP systems, making it adaptable for various installation environments.

The VTO2202F-P-S2 includes a built-in card reader, allowing for convenient keyless entry with IC cards. It also supports remote unlocking and integration with the Dahua app, providing users with control from their smartphones. The device is weather-resistant with an IP65 rating, ensuring durability in outdoor conditions. Its sleek design enhances the aesthetic appeal of any villa or residential building. Additionally, it supports SIP protocol for integration with third-party devices, offering flexible communication options. Overall, this door station is an excellent choice for enhancing security and convenience in modern homes.

Features

  • Anodized aluminum front panel.
  • CMOS low illumination 2MP HD colorful 160° fisheye camera.
  • Video intercom function.
  • Access control function that supports two locks.
  • Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
  • Compatible with 2-wire interface & RJ45 interface.
  • IK07 & IP65 rated.
  • Supports H.265.
  • Supports surface and flush mount.
  • PoE (Power over Ethernet) enabled.
