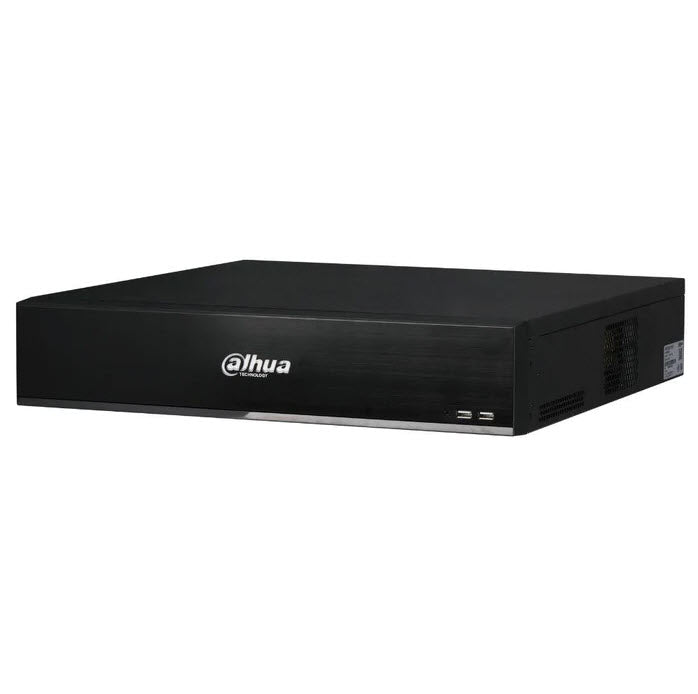

Dahua DHI-NVR5864-I/L 64 Channel Network Video Recorder: 16MP(4K) AI

Model: DHI-NVR5864-I/L

Who This Is For

Property managers specifying centralised recording infrastructure for large commercial, industrial, or multi-site installations will find the Dahua DHI-NVR5864-I/L built to handle exactly that workload. This is a 64-channel, 2U rack-mount NVR designed for environments where a single recorder must manage high camera counts, run AI analytics across multiple streams simultaneously, and retain footage across 8 internal HDDs. It suits situations where security teams need more than raw recording - the unit runs face recognition across up to 4 live video streams, perimeter protection across 12 channels, and video metadata extraction for people and vehicles across 4 channels, all on-device. Think shopping centres, universities, logistics hubs, hospitals, and large strata complexes where a central monitoring room feeds from dozens of cameras and investigators need to locate footage fast using AI-assisted search rather than scrubbing through hours of timeline.

What This NVR Actually Does

Who Buys This Model

• Security integrators building large commercial installations: The 64-channel capacity, dual Gigabit ports, and rack-mount 2U form factor make this a practical head-end recorder for shopping centres, commercial towers, and logistics facilities where camera counts exceed what a mid-tier NVR can handle.
• Facilities with access control cross-reference requirements: The face recognition engine with 20 databases and 200,000-image capacity suits organisations that need to match recorded faces against staff, visitor, or watchlist databases - hospitals, universities, and secure corporate campuses.
• Investigation-heavy environments: Operations teams at retail chains, transport hubs, and strata management offices who regularly need to locate specific people or vehicles across hours of footage benefit directly from the AI metadata search and SMD Plus filtering.
• IT managers specifying redundant infrastructure: RAID 0/1/5/10 support, dual network ports, and up to 128 concurrent user access means this unit suits organisations where the NVR sits within a managed network environment with uptime and data integrity requirements.
• Mixed-brand camera environments: Sites with an existing mix of Axis, Sony, Samsung, Pelco, or Dahua cameras looking to centralise recording under a single intelligent head-end without replacing all edge devices.

Honest Assessment

The DHI-NVR5864-I/L is a well-specified head-end recorder for large installations where on-device AI matters. The combination of 64 channels, 8 HDD bays with RAID support, face recognition across 20 databases, and SMD Plus perimeter filtering in a single 2U unit is genuinely difficult to match at this form factor. The recording bandwidth of 320Mbps (reducing to 160Mbps when AI functions are active) is worth planning around - a full 64-channel deployment running perimeter protection and face recognition simultaneously will require careful bitrate management per camera to stay within the AI-mode bandwidth ceiling. This unit does not include built-in PoE ports, so camera power must be delivered via a separate PoE switch or injector infrastructure. For smaller installations under 16 channels, a lower-channel WizMind NVR would be more cost-appropriate. The DHI-NVR5864-I/L is stocked by Security Australia and suits integrators and facilities managers who need AI analytics at scale without deploying a separate server.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 33 or more cameras at a commercial site and need on-device perimeter protection, face recognition, and video metadata search without a separate AI server - the 64-channel capacity and WizMind AI engine handle this in a single rack-mount unit.
• Good match if: Your organisation requires RAID-protected storage with up to 80TB raw capacity (8 drives x 10TB) and simultaneous access for up to 128 users across a managed network - the dual Gigabit ports and RAID 0/1/5/10 support address both requirements.
• You may need a different model if: Your camera count is under 32 channels or your site does not require on-device AI analytics - a lower-channel NVR from the Dahua range would deliver the same recording quality at a more appropriate price point for the application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-device face recognition with 20-database capacity, SMD Plus perimeter filtering across 12 channels, and video metadata search across a 64-channel deployment - all within a single 2U rack-mount unit without a separate AI processing server.
• You may need a different model if: Your site requires fewer than 32 channels or has no need for on-device AI analytics - a lower-channel NVR from the Dahua WizMind or standard range will handle recording at a more proportionate cost for the installation scope.
• Pairs well with: Dahua WizMind AI cameras (for full perimeter protection, face detection, and metadata output), a managed Gigabit PoE switch for camera power delivery, and a surveillance-grade HDD set sized to your retention period and channel count.

Common Questions

1. Does the DHI-NVR5864-I/L have built-in PoE to power cameras directly?

   No. The DHI-NVR5864-I/L has no built-in PoE switching. It provides 2 Gigabit Ethernet ports for network connectivity only. All cameras connected to this NVR must be powered via a separate managed PoE switch or individual PoE injectors. Plan switch port count, total PoE wattage budget, and rack space as separate line items for any deployment using this recorder.

2. Will AI features like face recognition and perimeter protection work on all 64 channels at the same time?

   No, not all simultaneously across all channels. Perimeter protection runs on up to 12 channels, face recognition on up to 4 video stream channels (or 16 picture-stream channels with compatible FD cameras), and video metadata on up to 4 channels concurrently. Additionally, enabling AI functions reduces total recording bandwidth from 320Mbps to 160Mbps, which must be factored into bitrate planning across all connected cameras.

3. How does the face recognition AI search work in practice?

   You can search up to 8 target face images simultaneously, each with an independently adjustable similarity threshold. The NVR compares captured face images against up to 20 databases holding a combined 200,000 enrolled faces. Each database can be assigned to specific camera channels independently, so a staff database can apply to entry cameras while a watchlist database applies to public-area cameras. Stranger Mode adds the ability to alert on any face that does not match an enrolled database - useful for after-hours access zones.

4. What RAID configurations are supported and what do they mean for storage planning?

   RAID 0, 1, 5, and 10 are all supported across the 8 HDD bays. RAID 0 maximises usable capacity (up to 80TB with 8 x 10TB drives) with no redundancy. RAID 1 mirrors pairs of drives, halving usable capacity but protecting against a single drive failure. RAID 5 requires a minimum of 3 drives and provides single-drive fault tolerance with better capacity efficiency than RAID 1. RAID 10 combines mirroring and striping across a minimum of 4 drives. Choose based on whether storage capacity or data integrity is the priority for the installation.

5. Does this NVR work with non-Dahua cameras?

   Yes. The DHI-NVR5864-I/L supports ONVIF 2.4, SDK, and CGI interoperability, and specifically lists Axis, Sony, Samsung, Panasonic, Pelco, Arecont, and Canon among confirmed third-party brands. Basic recording and motion detection will function with ONVIF-compliant cameras from other brands. However, WizMind AI features including SMD Plus, perimeter protection classification, face recognition, and video metadata extraction require compatible Dahua AI cameras to generate the necessary metadata streams.

6. What are the display output options and can two monitors run simultaneously?

   Yes. The unit provides 2 HDMI outputs and 1 VGA output. HDMI2 supports up to 4K (3840x2160) resolution and can run up to a 36-split multi-screen layout. HDMI1 and VGA output at up to 1920x1080. The 2 HDMI outputs can operate simultaneously, which is useful for control rooms running a primary operator display alongside a secondary overview screen or video wall input.

7. How does the on-device AI perimeter protection differ from standard motion detection on this NVR?

   Standard motion detection on this unit triggers on any pixel change within up to 396 configurable zones (22x18 grid), which generates high false-alarm rates from lighting changes, animals, and foliage movement. Perimeter protection with SMD Plus adds a secondary classification step - after a motion event is detected, the NVR's AI engine verifies whether the triggering object is a human or a vehicle before generating an alarm. This classification stage runs on-device across up to 12 channels, significantly reducing nuisance alerts without requiring any changes to camera configuration. Each channel supports up to 10 independent IVS rules (tripwire and intrusion zones) simultaneously. The result is that alarm outputs, email notifications, and PTZ activations are tied to confirmed human or vehicle detections rather than generic motion events. Security Australia customers deploying this unit in outdoor or perimeter applications will find the false-alarm reduction is one of its most practical operational advantages at scale.
