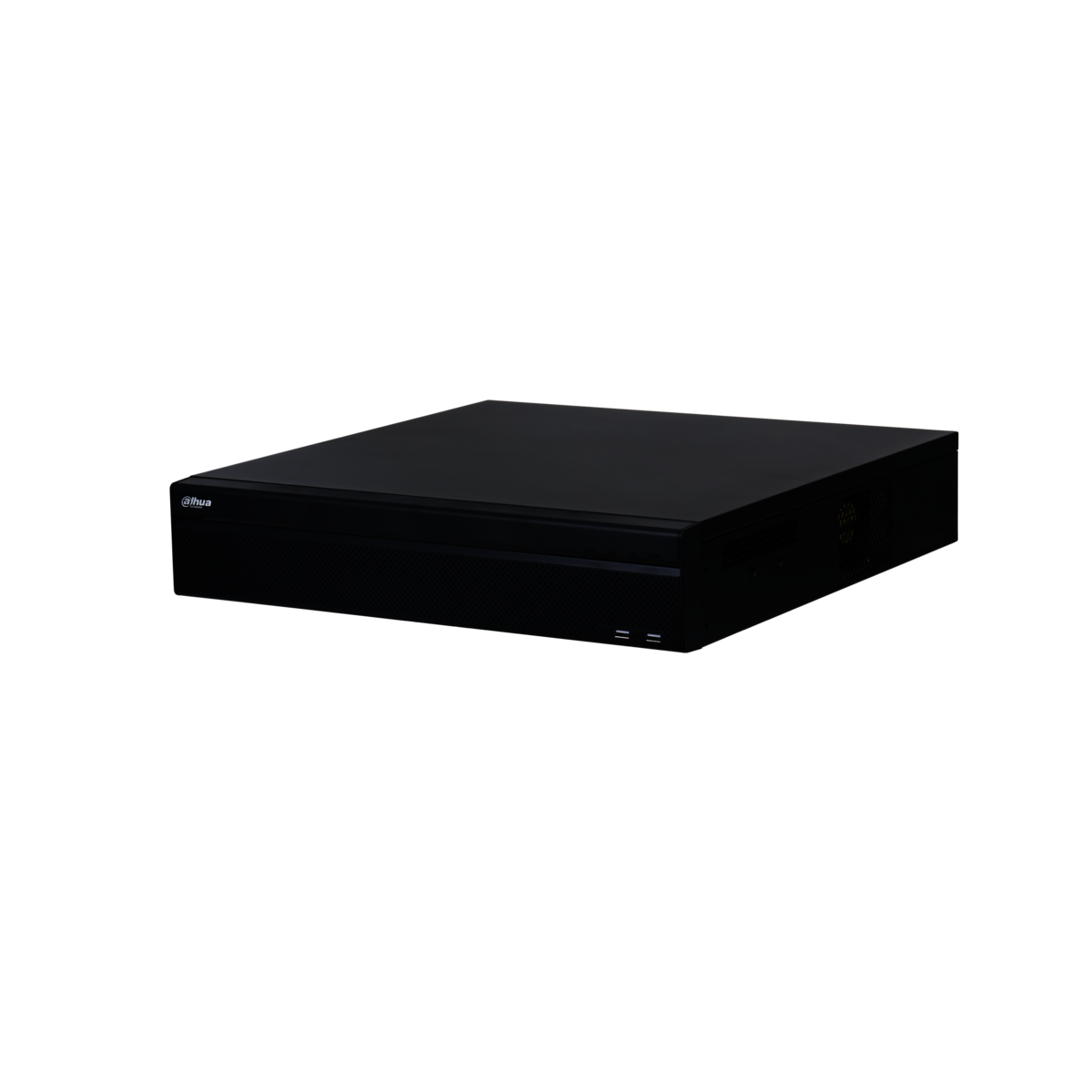

Dahua DHI-NVR5864-AI/ANZ-PRO 64CH 2U 4K & H.265 Wizmind Network Video Recorder NVR
- Sku: DHI-NVR5864-AI-ANZ-PRO
- Vendor: SecurityAustralia
The DHI-NVR5864-AI/ANZ-PRO delivers enterprise-grade AI video management for large-scale surveillance deployments requiring serious channel capacity. This 64-channel WizMind NVR supports 4K resolution and H.265+ compression, making it a strong fit for facilities that need to balance high image quality with efficient storage use. With AI-powered features including perimeter protection, face recognition, and vehicle detection built into the platform, it gives security teams the tools to act on footage rather than simply archive it. The 2U rack-mount form factor keeps it practical for control room and server room installations where space and cable management matter.
Why This Model
- 64-channel capacity: Supports large camera counts across a single recorder, reducing the hardware footprint and management complexity for multi-building or campus-wide deployments.
- WizMind AI analytics: Onboard face recognition, perimeter intrusion detection, and vehicle detection mean security staff receive actionable alerts rather than spending hours reviewing raw footage after an incident.
- 4K and H.265+ support: Handles 4K camera streams while H.265+ compression cuts storage consumption significantly compared to older codecs, protecting investment in high-resolution infrastructure.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DHI-NVR5864-AI-ANZ-PRO
Who This Is For
When large-scale AI analytics across a multi-camera network is the priority, the Dahua Wizmind NVR5864-AI ANZ-PRO is the recorder built for the job. Supporting 64 channels and carrying the Wizmind AI engine, this 2U rack-mount unit is designed for integrators and security managers who need to run intelligent analytics - face recognition, perimeter protection, and Smart Motion Detection Plus - simultaneously across an enterprise-grade camera network without compromising recording bandwidth or storage capacity. It suits hospitals, universities, logistics facilities, large retail precincts, and multi-site operations where a single recorder needs to handle diverse camera mixes at resolutions up to 32MP, with RAID redundancy to keep footage protected. The ANZ-PRO firmware variant is configured for Australian and New Zealand deployments, making it the appropriate choice for local integrators specifying Dahua Wizmind systems on large commercial and institutional projects.
What This NVR Actually Does
64-Channel Recording at Scale
Manages up to 64 IP cameras from a single 2U rack unit. Supports resolutions up to 32MP, meaning you can mix 4K, 8MP, and other camera types across the same system without needing separate recorders or complex bridging hardware.
Wizmind AI Engine
Runs Dahua's Wizmind AI analytics on-board, including face recognition, perimeter protection, and SMD Plus. These filter genuine intrusion events from background noise at the recorder level, reducing false alarm load on operators managing large camera counts.
H.265+ Compression
H.265+ encoding reduces storage consumption significantly compared to H.264 at equivalent image quality. Across 64 channels running 24/7, this directly impacts how many HDDs you need and how long footage is retained before overwriting.
Up to 16 HDD Bays with RAID
Accommodates up to 16 internal hard drives and supports RAID 0, 1, 5, 6, and 10 configurations. RAID redundancy protects recorded footage against individual drive failure - a critical requirement on sites where continuous evidence retention matters.
Dual HDMI and VGA Outputs
Provides 2 HDMI and 2 VGA outputs for simultaneous connection to multiple monitors or video walls. Useful in control rooms where operators need different camera views displayed across separate screens at the same time.
Who Buys This Model
- Security Integrators on Enterprise Projects: Specifying a single 2U rack recorder to manage 64 channels of mixed-resolution cameras across a hospital, university campus, or large commercial building.
- Logistics and Warehouse Operators: Facilities running high camera counts across loading docks, yard areas, and internal aisles who need on-board perimeter protection analytics to trigger alerts without relying on camera-side processing alone.
- Control Room Managers: Operations requiring multiple monitor outputs from a single recorder - using dual HDMI and dual VGA to drive simultaneous views for operators working across different display stations.
- IT and Facilities Teams Requiring Storage Redundancy: Organisations that cannot afford undetected drive failure causing footage loss, and need RAID 5 or RAID 6 protection built into the recorder itself rather than added externally.
Honest Assessment
The NVR5864-AI ANZ-PRO handles genuinely demanding recording environments well. The combination of 64 channels, up to 16 HDD bays, RAID support, and an on-board Wizmind AI engine puts it in a class suited to enterprise deployments where scale, redundancy, and analytics matter simultaneously. H.265+ compression is a practical advantage when calculating long-term storage across a full 64-channel load. Where it will not serve you: this is not a PoE recorder - cameras connect via network switch, so infrastructure planning needs to account for that separately. It is also overkill for sites running fewer than 32 cameras, where a smaller channel-count NVR from the same Wizmind range would be more cost-effective. This unit is available through Security Australia and suits integrators building out professional-grade systems rather than smaller standalone installations.
Before You Buy
No Built-In PoE: The NVR5864-AI is a non-PoE recorder. All 64 camera channels connect via your network infrastructure. You will need a managed PoE switch (or multiple switches) sized to your camera count and power budget. Factor this into rack space, switching capacity, and cabling runs before finalising the design.
HDD Sourcing and RAID Initialisation: This unit supports up to 16 HDDs, but drives are not included. Use surveillance-rated drives (CMR, not SMR) for continuous write environments. If you are enabling RAID 5 or RAID 6, allow time during commissioning for the array to initialise across the installed drive set before the system goes live - this can take several hours on a full complement of large-capacity drives.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need 64 channels, on-board Wizmind AI analytics, RAID storage redundancy, and multiple simultaneous display outputs in a 2U rack form factor for a demanding commercial or institutional site.
- You may need a different model if: Your site runs fewer than 32 cameras - a 32-channel Wizmind NVR from the same series will cover the requirement at lower cost and with a smaller rack footprint. Alternatively, if built-in PoE is essential to your design, a PoE-equipped NVR is the more appropriate product type.
- Pairs well with: Managed PoE switches (to power and connect cameras to the recorder), Wizmind-series AI cameras (to extend AI classification to the camera edge), and surveillance-rated NAS or SAN storage if footage retention beyond 16 HDDs is required.
Common Questions
-
Does this NVR have built-in PoE ports to power cameras directly?
No. The NVR5864-AI does not include built-in PoE. It is a standalone recorder that connects to cameras via your existing network infrastructure. Camera power needs to be supplied through a separate managed PoE switch. This is standard for 2U rack-mount recorders at this channel count, as integrating 64 ports of PoE into the same chassis is impractical - the switching layer is handled externally. -
Will this NVR run AI analytics across all 64 channels at the same time?
Yes, within the limits of the Wizmind AI engine's concurrent processing capacity. The on-board AI supports perimeter protection, SMD Plus, and face recognition, though the number of channels on which deep AI analytics can run simultaneously depends on the analytics type and camera resolution. Confirm concurrent AI channel limits with the project specification before committing analytics-heavy deployments across the full 64 channels. -
What RAID levels does the NVR5864-AI support, and what does that mean for drive failure?
It supports RAID 0, 1, 5, 6, and 10. RAID 5 tolerates 1 drive failure without footage loss; RAID 6 tolerates 2 simultaneous drive failures. For sites with strict evidence retention requirements, RAID 6 across a full drive complement is the appropriate configuration. RAID 0 offers no redundancy and should only be used where performance is prioritised and footage loss from a single drive failure is acceptable. -
Does the ANZ-PRO firmware variant make any practical difference to configuration or features?
Yes. The ANZ firmware is configured for Australian and New Zealand deployments, which affects default regional settings, compliance with local standards, and compatibility with the Dahua ecosystem as distributed in this market. Using a non-ANZ firmware variant on Australian infrastructure can create issues with software integration and support. For local commercial projects, the ANZ-PRO version is the correct unit to specify. -
How much storage can this NVR hold across 16 HDDs?
Total capacity depends on the individual drive size you install. With 16 x 8TB surveillance-rated drives, raw capacity reaches 128TB before RAID overhead is applied. In a RAID 5 configuration with 16 drives, usable capacity is approximately 112TB. Actual retention duration across all 64 channels varies significantly based on camera resolution, frame rate, H.265+ compression efficiency, and the ratio of motion-triggered versus continuous recording. -
Is the power supply redundant on this unit?
Yes. The NVR5864-AI ANZ-PRO includes a redundant dual power supply. This means the recorder continues operating if one power supply fails, which is a standard requirement for mission-critical surveillance infrastructure in hospitals, data centres, and 24/7 monitored facilities. This feature is stocked as part of the Security Australia Dahua Wizmind range and is not a field-add option - it is built into the unit.
