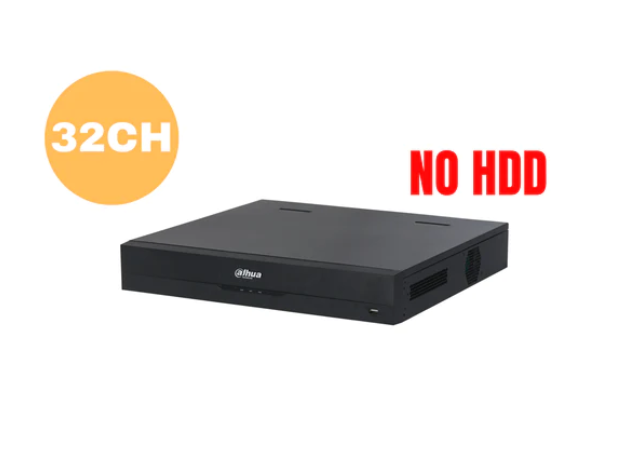

Dahua DHI-NVR5432-16P-AI/ANZ 32 Channel Wizsense AI NVR No HDD

Model: DHI-NVR5432-16P-AI/ANZ

Who This Is For

For integrators and security managers who need a high-channel AI recorder that goes beyond basic motion detection, the Dahua NVR5432-16P-AI/ANZ is built for 32-camera deployments where smart analytics are central to the brief - not an add-on. With 16 onboard PoE ports reducing switch infrastructure on mid-size installations, and AI processing handled directly by the recorder across face detection, perimeter protection, and SMD Plus filtering, this unit suits commercial buildings, schools, healthcare facilities, and multi-tenancy sites where the camera mix includes both standard and AI-capable devices. The 1.5U rack form factor fits a standard 19-inch cabinet, and with 4 HDD bays available, storage can be scaled to the retention requirements of the site. It ships without drives, so storage planning is done to spec rather than defaulting to a fixed capacity.

What This NVR Actually Does

Who Buys This Model

• Commercial Integrators: Specifying a single-rack recorder for 20-32 camera installations in offices, retail complexes, or commercial buildings where perimeter rules and SMD Plus filtering are part of the brief.
• School and Campus Security Teams: Sites requiring face detection at entry points and perimeter protection across grounds, where the recorder-side AI handles standard cameras and WizSense cameras feed advanced analytics.
• Healthcare Facility Managers: Monitoring environments with high foot traffic where people counting, crowd distribution heat maps, and face attribute logging are needed for operational as well as security purposes.
• Multi-Site Security Managers: Head-end installations needing remote access via web interface, RAID-supported storage redundancy, and a broad analytics suite without deploying multiple single-function appliances.
• Carpark and Transport Operators: Facilities connecting ANPR-capable cameras where vehicle density monitoring, ANPR metadata, and vehicle classification need to be aggregated through a single recorder platform.

Honest Assessment

The NVR5432-16P-AI/ANZ earns its place in commercial and institutional installations through a genuine AI processing architecture - not marketing terminology applied to basic motion detection. The split between recorder-side AI (usable with any camera) and camera-passthrough AI (unlocked with WizSense-capable cameras) gives installers meaningful flexibility when camera budgets vary by zone. The face database capacity, SMD Plus filtering, and perimeter rule depth are sufficient for most enterprise environments without requiring a separate AI server appliance. The 16 onboard PoE ports cover a common deployment scenario cleanly, and H.265+ keeps storage footprint manageable at 32 channels. Where this recorder will not serve well is in deployments requiring city-scale analytics aggregation, thermal camera integration, or more than 4 HDD bays of local storage without supplemental NAS. For standalone camera-only needs or smaller sub-16 channel systems, other models in the range available through Security Australia will be a better fit for the budget.

Before You Buy

Quick Fit Check

• Good match if: You are installing 17-32 cameras at a commercial or institutional site and need onboard AI analytics - face detection, perimeter protection, and SMD Plus - without deploying a separate analytics server.
• Good match if: Your camera mix includes both standard IP cameras and WizSense-capable AI cameras, and you need a single recorder that handles both recorder-side processing and camera-side analytics passthrough across 32 channels.
• You may need a different model if: Your installation is under 16 channels, in which case a lower-channel NVR from the WizSense range would be more cost-appropriate - options are available at securityaustralia.com.au to match the channel count to your system size.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation runs 17-32 channels and requires genuine recorder-side AI - perimeter protection, face detection, and SMD Plus filtering - without needing every camera to be an AI model.
• You may need a different model if: Your deployment is under 16 channels, or you need more than 4 HDD bays of local storage onboard - a lower-channel NVR or a higher-bay enterprise recorder would be a better fit for those scenarios.
• Pairs well with: WizSense IP cameras (for camera-side AI passthrough on up to 16 channels), surveillance-grade SATA HDDs, and a managed PoE switch for the 16 non-PoE camera channels.

Common Questions

1. Does this NVR include hard drives?

   No. The DHI-NVR5432-16P-AI/ANZ ships with no HDDs installed. It has 4 HDD bays accepting standard 3.5-inch surveillance-grade SATA drives. You will need to select drives based on your channel count, recording resolution, and required retention period before the unit is operational for recording.

2. Will this NVR run AI analytics on any camera, or only Dahua WizSense models?

   It depends on which AI function you need. Recorder-side AI - face detection on 2 channels, perimeter protection on 4 channels, and SMD Plus on 8 channels - processes the video stream directly and works with any compatible IP camera connected to the NVR, regardless of whether the camera has onboard AI. Camera-side AI analytics (including ANPR, people counting, heat map, and crowd distribution) requires a WizSense or IVS-capable camera to perform the detection and pass the metadata through to the recorder.

3. How does the face recognition database work on this recorder?

   The recorder supports up to 20 separate face databases with a combined capacity of 20,000 face images at 2.5GB total storage. Each face entry can include name, gender, birthday, address, credential type, and credential number. When running face detection by recorder on 2 channels, the unit processes up to 12 face images per second per channel. When AI-capable cameras handle detection across up to 16 channels and pass the face data to the recorder for recognition, throughput reaches 16 face images per second across those channels combined.

4. What is the difference between SMD Plus by recorder and SMD Plus by camera on this unit?

   Both perform the same function - classifying motion events as human or motor vehicle and suppressing false alarms from environmental triggers like rain, leaves, and lighting changes. The difference is where processing occurs. SMD Plus by recorder handles this on 8 channels using the NVR's own processor, which works with standard cameras. SMD Plus by camera runs the classification on the camera itself and reports results to the NVR, supported on up to 16 channels when using compatible WizSense cameras. Camera-side processing reduces the load on the recorder and allows the full 16-channel count to benefit simultaneously.

5. Does this NVR work with third-party IP cameras, or is it Dahua-only?

   It supports third-party cameras via standard ONVIF and RTSP protocols for basic recording across all 32 channels. AI analytics by recorder (perimeter protection, SMD Plus, face detection) will function on third-party camera streams as the NVR processes the video directly. Camera-side AI analytics passthrough - including ANPR metadata, people counting, and heat mapping - requires Dahua WizSense or compatible cameras using the appropriate SDK integration. Security Australia stocks compatible cameras across resolution and feature tiers for mixed-brand system planning.

6. What is the maximum bandwidth this NVR can handle, and will 32 high-resolution cameras saturate it?

   The maximum bandwidth is 384 Mbps incoming, recording, and outgoing. At 32 channels recording at continuous 4MP H.265+ (a common commercial resolution), total bandwidth will typically sit well within this limit - H.265+ at 4MP averages approximately 4-6 Mbps per channel, putting 32 channels at roughly 128-192 Mbps under typical conditions. Channels recording at 12MP or using H.264 without smart compression will consume significantly more bandwidth per channel, so the recording resolution and compression format chosen during NVR configuration directly affects how close the system runs to the 384 Mbps ceiling.

7. How does the AI by recorder perimeter protection work, and what IVS rules can be configured?

   The recorder-side perimeter protection runs on 4 channels simultaneously, with up to 10 independent IVS rules configurable per channel - giving a total of 40 rules across those 4 positions. IVS rules for WizSense NVRs typically include tripwire (line crossing in one or both directions), intrusion detection (entry into a defined zone), and fast moving detection. Each rule can be drawn as a custom zone on the camera image and linked to alarm outputs, push notifications, or recording triggers. This architecture means a single high-priority camera position - a main gate or loading dock, for example - can carry multiple independent detection zones covering different areas of its field of view simultaneously.

8. Will this NVR work for an ANPR application, and what does it actually store from plate reads?

   Yes, for ANPR it requires ANPR-capable cameras connected to the NVR, as the plate recognition is handled by the camera rather than the recorder. The NVR supports ANPR as part of its AI by camera metadata passthrough on up to 16 channels. What the recorder stores and makes searchable includes the plate number string, vehicle type classification, timestamp, and associated video snapshot at the time of the read. The recorder does not perform ANPR processing itself - the camera does the recognition and sends structured metadata to the NVR for logging and intelligent search. Confirm that the ANPR cameras selected are on Dahua's compatibility list for this recorder to ensure full metadata integration rather than video-only recording.

Downloads & Resources

No downloads available for this product.
