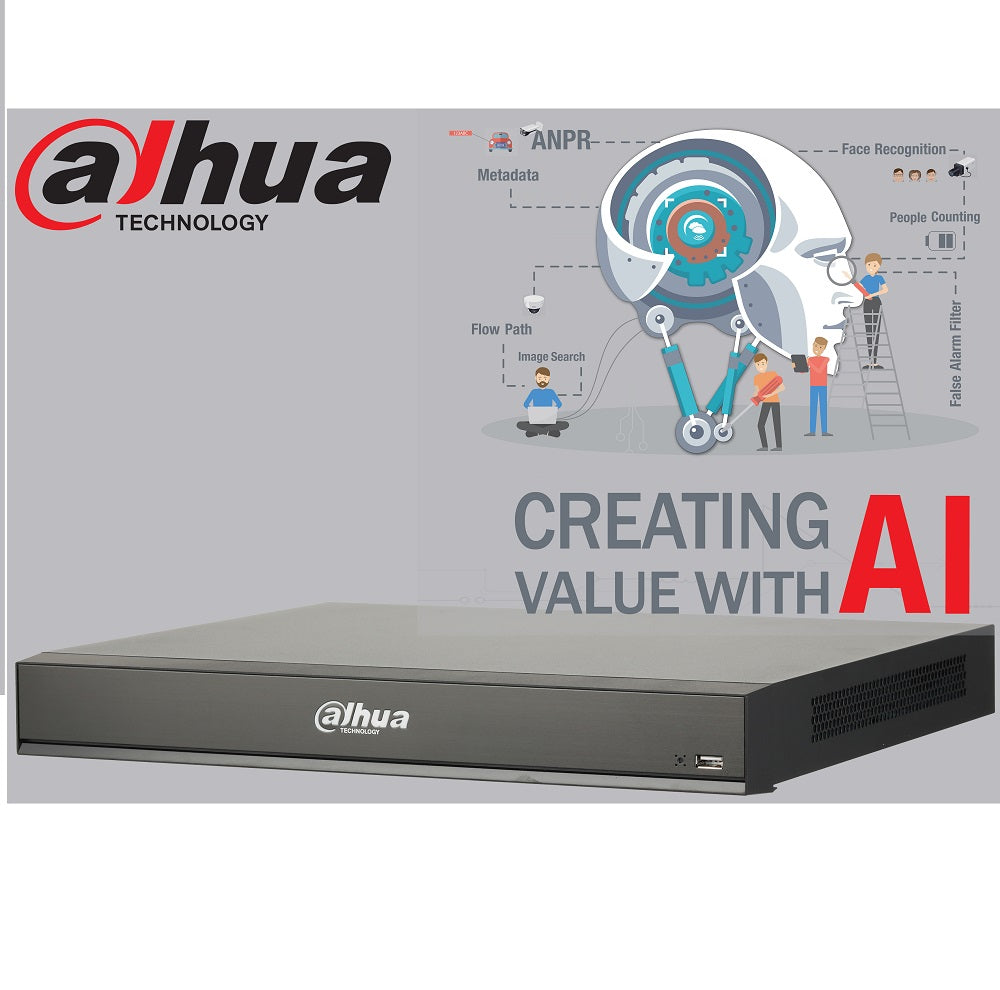

Dahua DHI-NVR5216-16P-I 16Channel 1U AI Network Video Recorder NO HDD

Model: DHI-NVR5216-16P-I AI

Who This Is For

For integrators and security managers who need a capable AI-processing hub at the centre of a 16-camera IP system - without paying for a higher-tier chassis they do not need. The Dahua DHI-NVR5216-16P-I AI is a 1U rack-mount NVR built around WizMind AI: face recognition across up to 4 live video streams simultaneously, perimeter protection across 12 channels, and video metadata extraction covering people, vehicles, and non-motor vehicles. All 16 camera connections are powered by onboard PoE (IEEE 802.3af/at), with ports 1 through 8 also supporting ePoE and EoC for extended cable runs. Recording resolution reaches up to 24MP, storage is handled by 2 internal SATA III bays, and the unit ships without hard drives - giving installers full control over drive selection and capacity planning before deployment.

What This NVR Actually Does

Who Buys This Model

• Commercial property managers: Specifying a 16-channel AI system for an office building or retail centre where face recognition and stranger detection at entry points is a specific requirement, without needing a multi-bay rack NVR.
• Security integrators deploying perimeter systems: Installers combining multiple outdoor cameras on a single NVR who need IVS perimeter rules on up to 12 channels simultaneously, with ePoE on ports 1-8 to reach cameras at distances beyond standard PoE limits.
• Warehouse and logistics operators: Sites that need vehicle metadata capture (plate, type, colour) alongside people tracking for incident review - replacing manual footage review with attribute-based AI search.
• Mixed-camera site upgrades: Facilities already running Axis, Sony, or other ONVIF-compliant cameras that want WizMind AI analytics at the NVR level without replacing every existing camera on site.

Honest Assessment

The DHI-NVR5216-16P-I AI handles AI workloads that most NVRs at this channel count cannot - face recognition at 16 pictures per second, metadata extraction across all object classes, and IVS perimeter protection on 12 channels concurrently. The dual SATA III storage bays and 24MP recording ceiling give it genuine headroom for high-resolution deployments. ePoE and EoC on ports 1-8 is a practical advantage for installers dealing with long cable runs on existing infrastructure. It is worth noting that AI functions reduce the recording bandwidth ceiling from 320 Mbps to 160 Mbps, so high channel counts running both maximum-resolution streams and full AI simultaneously will require careful bitrate planning. This unit ships with no hard drives, meaning HDDs must be purchased and installed before the system can record. For sites needing more than 2 storage bays or higher total PoE power budgets, a larger NVR chassis would serve better. The DHI-NVR5216-16P-I AI is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are building a 16-camera IP system that requires face recognition on entry-point cameras and IVS perimeter rules on outdoor cameras - the NVR handles both simultaneously within one 1U chassis.
• Good match if: Some cameras need to be located beyond 100m from the head-end and you want to avoid additional network switches - ePoE and EoC on ports 1-8 extend those runs over existing Cat cabling.
• You may need a different model if: Your site requires more than 2 internal hard drives for on-site storage redundancy or RAID across 4+ bays - a larger-chassis NVR with 4 or more SATA bays would be more appropriate for high-retention or high-bitrate environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need face recognition and IVS perimeter protection running simultaneously on a 16-channel system, with all camera power delivered from a single 1U device - the onboard AI processing and 16-port PoE arrangement eliminates the need for a separate PoE switch.
• You may need a different model if: Your site requires more than 2 internal hard drives, RAID redundancy across 4+ bays, or a higher total PoE power budget - a larger-chassis NVR with more SATA bays and higher aggregate PoE would be more appropriate.
• Pairs well with: WizMind AI-capable IP cameras (turret, dome, or bullet form factor) that send face detection snapshots to the NVR for database comparison, maximising the face recognition channel count and AI search capability.

Common Questions

1. Does this NVR do face recognition on all 16 cameras at the same time?

   No - not across all 16 channels simultaneously as live video streams. The DHI-NVR5216-16P-I AI supports face recognition on up to 4 video stream channels simultaneously. However, if connected cameras are configured as face detection (FD) cameras that send cropped face snapshots rather than full video streams, picture stream face recognition scales to all 16 channels. Processing speed is up to 16 face pictures per second across the active recognition channels.

2. Will this NVR work with my existing non-Dahua cameras?

   Yes, for standard recording and motion detection. The NVR supports ONVIF 2.4 and lists confirmed compatibility with Axis, Sony, Samsung, Panasonic, Pelco, Arecont, and Canon cameras. The important distinction is that WizMind AI features - face recognition, perimeter protection with human/vehicle classification, and video metadata extraction - require cameras that output the relevant AI data streams. Standard ONVIF cameras will record normally but will not feed AI analytics to the NVR.

3. How much storage do I need, and what drives should I install?

   That depends on your channel count, resolution, bitrate, and retention period. As a starting point: 16 cameras at 4MP with Smart H.265+ running continuously typically require 4-6TB per week of retention. This NVR accepts up to 2 drives at 10TB each (20TB total raw), so plan for roughly 2-4 weeks of continuous retention at mid-resolution. Always use surveillance-rated hard drives rated for 24/7 write cycles - desktop drives are not suitable for continuous NVR use and will fail prematurely.

4. What does ePoE actually do on ports 1-8, and how far can cables run?

   ePoE (extended Power over Ethernet) allows PoE-powered cameras to operate at distances significantly beyond the standard 100m Cat cable limit. On ports 1-8 of this NVR, ePoE can extend camera runs to up to 300m at reduced network speeds, or up to 800m in some configurations using EoC (Ethernet over Coax). This is practically useful for perimeter cameras at large sites where running cable back to a central switch within 100m is not feasible. Confirm the specific distance and speed tier with the connected camera's ePoE specification before finalising the cable run length.

5. Does enabling AI features reduce recording quality or frame rate?

   Not directly on individual cameras, but it does reduce total system bandwidth. When AI functions are enabled, the NVR's maximum recording bandwidth drops from 320 Mbps to 160 Mbps across all 16 channels. At 160 Mbps shared across 16 cameras, each channel averages 10 Mbps - sufficient for 4MP or 5MP streams at typical frame rates, but requiring careful bitrate management if multiple channels are recording at 8MP or above. Individual camera bitrates should be capped accordingly in the camera settings before enabling full AI functionality on the NVR.

6. How does the face database work, and can I search footage by a specific person?

   Yes. The NVR stores up to 20 separate face databases containing up to 200,000 face images in total. Each face record can include name, gender, date of birth, nationality, address, and ID information. Databases are assigned independently to individual camera channels, so an entry-point camera can reference one database while a back-of-house camera references a different one. For post-incident searches, the AI Search function allows you to upload up to 8 target face images simultaneously and search recorded footage for matches, with a configurable similarity threshold for each target. The system also features Stranger Mode, which triggers an alert when a face appears that does not match any enrolled profile - useful for monitoring restricted areas. This NVR is stocked by Security Australia.

7. Can I access live footage and recordings remotely from a phone?

   Yes. The NVR supports remote access via mobile app on iPhone, iPad, and Android devices. It also supports P2P connectivity, which simplifies remote setup without requiring static IP addresses or complex port forwarding in most network configurations. Up to 128 user accounts can be configured with individual access permissions, making it practical for sites where multiple operators or managers need separate login credentials with different viewing rights.
