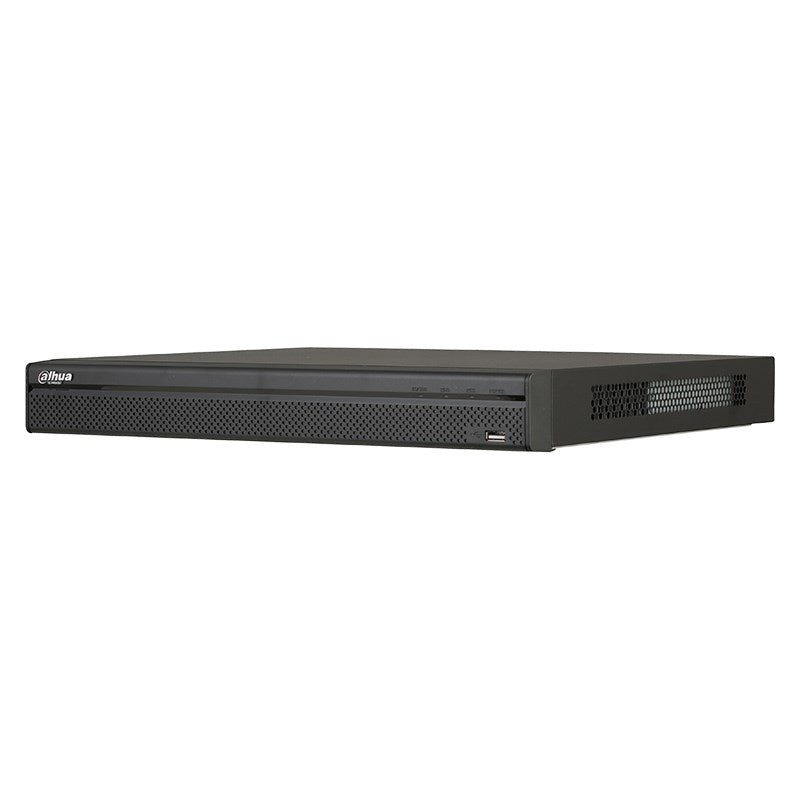

Dahua DHI-NVR5216-16P-I-4TB 16Channel 1U 16PoE AI Network Video Recorder with 4TB Installed

Model: DHI-NVR5216-16P-I-4TB

Who This Is For

For integrators and security managers who need a 16-channel AI-capable NVR that eliminates the need for an external PoE switch and arrives with storage pre-installed. The Dahua DHI-NVR5216-16P-I-4TB suits installations where cameras are spread across a building or small campus and cabling simplicity matters - each of the 16 PoE ports delivers power and data over a single Cat cable, with ports 1 through 8 also supporting ePoE for extended cable runs beyond the standard 100-metre limit. The 4TB drive installed at dispatch means the unit can be racked and recording on day one without a separate storage order. AI functions including perimeter protection, face recognition, SMD Plus, and video metadata are processed on-board, making this well suited to retail environments, commercial offices, schools, and light industrial sites where intelligent search and alarm accuracy matter more than basic motion recording.

What This NVR Actually Does

Who Buys This Model

• Security integrators on commercial fit-outs: The built-in 16-port PoE switch and ePoE on ports 1-8 reduce rack space, bill of materials, and installation time compared to pairing a standard NVR with a separate managed switch.
• Retail and hospitality managers: Face recognition with up to 20 databases and video metadata search by clothing description give loss prevention teams a way to find specific individuals in recorded footage without reviewing hours of footage manually.
• School and campus administrators: Perimeter protection on up to 12 channels with human/vehicle secondary classification means after-hours intrusion alerts are filtered to genuine threats rather than triggering on wildlife or moving foliage.
• Small-to-medium enterprise IT managers: ONVIF 2.4 compatibility, SDK and CGI access, and support for third-party cameras from Axis, Sony, Panasonic, Samsung and others allow this NVR to integrate into existing mixed-brand camera deployments without a rip-and-replace approach.
• Installers specifying long-cable-run sites: Sites with outbuildings, car parks, or boundary cameras beyond 100 metres can use ports 1-8 in ePoE mode to reach those positions without additional power injectors or network switches at remote locations.

Honest Assessment

The DHI-NVR5216-16P-I-4TB handles a genuine workload that cheaper 16-channel NVRs cannot - simultaneous AI analytics, face recognition, metadata extraction, and high-resolution recording across all 16 channels in a 1U chassis with its own PoE switch built in. The 4TB pre-installed drive and ePoE capability on ports 1-8 make it a practical choice for installations where getting to site, racking, and cabling fast matters. It records up to 24MP camera inputs and decodes up to 4 channels at 8MP for live display, which covers most current Dahua camera lineups without bottlenecks. Where it has limits: the total PoE budget of 130W (managed to 80%) means running 16 high-wattage cameras simultaneously requires careful power planning. Face recognition is limited to 4 live video stream channels concurrently - sites needing broader real-time face matching may need to step up to a higher-tier WizMind recorder. Available through Security Australia, this unit ships with the 4TB drive fitted and ready to deploy.

Before You Buy

Quick Fit Check

• Good match if: You are deploying up to 16 IP cameras and want a single 1U device that handles switching, power, recording, and AI analytics without a separate PoE switch in the rack.
• Good match if: Your site has 1 or more cameras beyond the standard 100-metre cable limit and you want to use ePoE on ports 1-8 to reach those positions without additional infrastructure.
• You may need a different model if: You need real-time face recognition across more than 4 live video stream channels simultaneously - a higher-channel WizMind NVR with greater AI processing headroom would be the appropriate step up, and Security Australia stocks options in that range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-unit solution that handles 16-channel AI recording, built-in PoE switching, ePoE for long cable runs, and face recognition - and you want 4TB of storage ready to record from day one without a separate drive order.
• You may need a different model if: You require real-time face recognition across more than 4 simultaneous live video streams, or your AI analytics load across all 16 channels consistently hits the 160Mbps bandwidth ceiling - a higher-specification WizMind NVR with greater AI processing capacity would serve those requirements better.
• Pairs well with: Dahua WizMind IP cameras with built-in face detection or perimeter protection (to offload processing to the camera and enable 16-channel picture-stream face recognition), and a rack-mount UPS to protect the NVR and connected PoE cameras during power events.

Common Questions

1. Does this NVR include a PoE switch, or do I need to buy one separately?

   No separate switch is needed. The DHI-NVR5216-16P-I-4TB has 16 PoE ports built in, each supporting IEEE 802.3af and 802.3at. You run a single Cat5e or Cat6 cable from each PoE port directly to your camera, which carries both power and data. The NVR manages the switch function internally, which saves rack space and simplifies the installation bill of materials.

2. Will this NVR work with my existing non-Dahua cameras?

   Yes, in most cases. The NVR supports ONVIF 2.4, which provides compatibility with cameras from Axis, Sony, Samsung, Panasonic, Canon, Pelco, and others. Basic live view and recording will work with most ONVIF-compliant cameras. However, AI features such as perimeter protection classification, face recognition, and video metadata typically require compatible Dahua cameras that pass structured AI data to the NVR rather than raw video alone.

3. How many channels can run face recognition at the same time?

   4 channels in video stream mode simultaneously. If you use compatible Dahua face detection cameras that process and send picture-stream data from the camera itself, the NVR can receive and match face data across all 16 channels at once. The NVR processes up to 16 face pictures per second for modelling and comparison, and can search up to 8 target face images simultaneously across the database.

4. What is the total PoE power available, and will it run 16 cameras without issues?

   The total rated PoE output is 130W, managed at 80% to protect the power supply - giving approximately 104W of usable budget across all 16 ports. Each port delivers up to 25.5W maximum. Standard fixed cameras drawing 6-10W each are well within this budget across all 16 ports. Where caution is needed is when mixing in PTZ cameras or multi-sensor units drawing 15-25W each. Calculate the sum of all camera power draws before finalising your camera selection to avoid triggering the built-in protection threshold.

5. Does enabling AI functions reduce recording performance?

   Yes. With AI functions enabled, the maximum recording bandwidth drops from 320Mbps to 160Mbps. For most 16-camera deployments using Smart H.265+ compression at 4MP or 1080p, total bitrate sits well below 160Mbps and this limit is not an issue in practice. Where it becomes relevant is installations using high-bitrate cameras at 8MP or above across all 16 channels simultaneously without efficient compression enabled. Activating Smart H.265+ on compatible Dahua cameras substantially reduces per-channel bitrate and is the recommended approach for high-channel AI deployments.

6. How far can I run cameras using the ePoE ports?

   Ports 1-8 support ePoE and EoC, which extend the usable cable distance beyond the standard 100-metre Cat cable limit. The exact extended distance depends on the cable quality, camera model, and ePoE mode selected - Dahua's ePoE technology supports runs up to 800 metres in some configurations using specific operating modes, though at reduced data speeds over very long runs. Check the datasheet for the specific camera being deployed to confirm the ePoE distance and speed combination appropriate for your cable run length.

7. Can I add a second hard drive to increase storage beyond 4TB?

   Yes. The NVR has 2 SATA III bays. One bay contains the pre-installed 4TB drive. The second bay accepts a SATA surveillance-grade HDD of up to 10TB, bringing maximum internal capacity to 14TB with a 10TB second drive fitted. The specification lists the maximum single-HDD capacity as 10TB, noting that the usable ceiling may vary with operating temperature. For storage requirements beyond 20TB, network storage via the NAS or iSCSI path would need to be considered. Part of the Security Australia range, this unit can be ordered alongside compatible surveillance drives if required.

8. Does the face recognition stranger mode work without a pre-built database?

   Yes. Stranger mode detects and flags faces that do not match any enrolled image across all active face databases. The similarity threshold for what constitutes a "match" is set manually, so you can tune sensitivity to reduce false stranger alerts in high-traffic areas. This is useful in scenarios such as staff access zones where you want an alert when any unknown face appears, even before you have a large enrolled database. Each of the 20 available databases can be assigned independently to specific camera channels, allowing different watch lists for different areas of a site.
