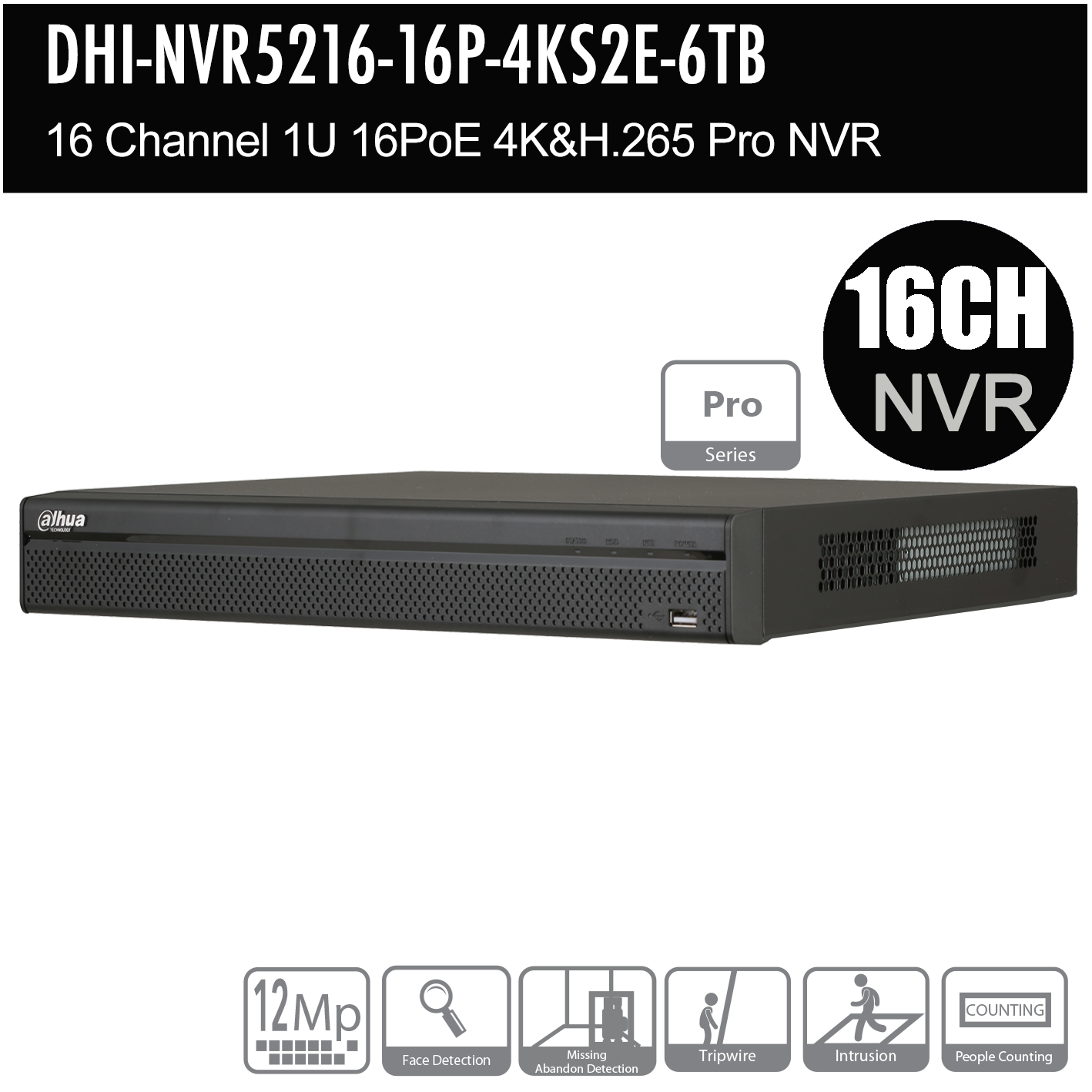

Dahua DHI-NVR5216-16P-4KS2E 16 Channel 1U 16PoE 4K H265 Pro NVR

Model: DHI-NVR5216-16P-4KS2E

Who This Is For

Property managers specifying a 16-camera IP system who need a single unit to handle power, recording and remote access without a separate PoE switch need to look closely at the DHI-NVR5216-16P-4KS2E. All 16 PoE ports are built directly into the recorder, so each Dahua IP camera runs off a single Cat cable from the NVR - no patch panel, no secondary switch, no extra power adaptors. The unit supports recording up to 12MP resolution with H.265+ compression, cutting storage consumption by up to 70% compared to standard H.265. Eight HDD bays provide serious long-term retention capacity, and ePoE on ports 1-8 extends camera runs to 800m without repeaters - genuinely useful across large commercial properties, warehouses and multi-building sites where cable runs exceed standard PoE limits. Remote management through the Easy4ip app keeps the system accessible from any mobile device.

What This NVR Actually Does

Who Buys This Model

• Commercial installers building 16-camera systems: The integrated 16-port PoE switch removes the need to specify and rack a separate managed switch, simplifying the bill of materials and reducing installation time on standard commercial jobs.
• Warehouses and industrial sites with long cable runs: ePoE on ports 1-8 supports camera placements up to 800m from the NVR, making this practical for large sheds, yards and multi-building layouts where standard 100m PoE limits are regularly exceeded.
• Retail operations requiring POS integration: The built-in POS overlay feature links transaction data from point-of-sale terminals directly to video footage, allowing managers to search and review incidents against specific transaction records.
• Sites upgrading from analogue CCTV: EoC support means existing coaxial cable runs can carry IP camera signals to this NVR, avoiding the cost of a full Cat cable rewire during an upgrade to high-definition IP surveillance.
• Installers specifying ANPR at entry and exit points: When paired with compatible Dahua ITC cameras, the NVR provides licence plate recognition with black and white list management, supporting vehicle access control at gated facilities, car parks and loading docks.

Honest Assessment

The DHI-NVR5216-16P-4KS2E is a well-specified 16-channel recorder that genuinely simplifies commercial installations through its all-in-one PoE architecture. The combination of Smart H.265+ compression, up to 8 HDD bays and 320Mbps incoming bandwidth gives installers real headroom for high-resolution, multi-camera deployments without compromising retention periods. ePoE extending to 800m and EoC support for legacy coax make it one of the more flexible options at this channel count, available through Security Australia as part of the Dahua Pro NVR range.

That said, this unit is a recorder - not a full system. Cameras, HDDs, cabling and mounting hardware are all separate purchases. ANPR functionality requires compatible Dahua ITC cameras specifically; standard IP cameras will not enable licence plate recognition. If the requirement is for 32 or more channels, or for an NVR without a built-in PoE switch where cameras connect through a separate managed network, a different model in the Dahua Pro NVR range would be a more appropriate fit.

Before You Buy

Quick Fit Check

• Good match if: You are installing up to 16 Dahua IP cameras on a single site and want to eliminate a separate PoE switch - all 16 camera ports are built into the rear of this unit, simplifying rack layout and reducing hardware cost.
• Good match if: Your site has camera positions more than 100m from the head-end - ePoE on ports 1-8 supports continuous Cat cable runs to 800m, removing the need for mid-run switches or fibre on long approaches.
• You may need a different model if: Your system requires more than 16 channels, or cameras connect through an existing managed network switch rather than directly to the NVR - a non-PoE Dahua Pro NVR with higher channel capacity would be a better fit for those scenarios; the full range is available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 16 IP camera channels with power delivered directly from the recorder, especially when cable runs on some positions exceed standard 100m PoE limits - the built-in 16-port PoE switch and ePoE capability on ports 1-8 are the primary differentiators at this channel count.
• You may need a different model if: Your camera count exceeds 16 channels, or your cameras are already connected through a managed network switch and you need an NVR without a built-in PoE switch - a non-PoE Pro NVR with a higher channel count would be the appropriate direction.
• Pairs well with: Dahua 4K or 12MP turret or bullet IP cameras for standard channels; Dahua ITC fixed ANPR cameras for entry and exit points; surveillance-rated SATA hard drives sized to your required retention period.

Common Questions

1. Does this NVR include hard drives?

   No. The DHI-NVR5216-16P-4KS2E ships without HDDs - up to 8 drives can be installed separately. For surveillance use, specify surveillance-rated SATA drives rather than desktop-grade drives. The number and size of drives you need depends on camera resolution, frame rate, the number of channels recording simultaneously and your required retention period. Smart H.265+ compression significantly reduces per-camera storage consumption, which can allow fewer or smaller drives to achieve the same retention as a standard H.265 system.

2. Will all 16 cameras work at full 4K or 12MP resolution simultaneously?

   Yes, subject to the 320Mbps incoming bandwidth limit. The NVR supports up to 12MP recording and playback per channel. Whether all 16 cameras can sustain maximum resolution simultaneously depends on the bitrate of each individual camera stream - Smart H.265+ compression on the cameras reduces per-stream bandwidth requirements substantially, making simultaneous high-resolution recording across all 16 channels achievable in most deployments within the 320Mbps ceiling.

3. Does this NVR work with non-Dahua IP cameras?

   Partially. The NVR is designed and optimised for Dahua IP cameras. ONVIF-compatible third-party cameras may connect and record basic video, but advanced features including Smart H.265+ compression, ANR, ANPR, fisheye dewarping and POS integration are only fully functional with compatible Dahua cameras. If your installation requires a mix of camera brands, confirm ONVIF compliance and test the specific camera models before committing to the full install.

4. How does the ePoE function on ports 1-8 work, and what cable does it need?

   ePoE extends the maximum camera cable run from the standard 100m PoE limit to 800m over a single continuous Cat5e or Cat6 cable. Ports 1-8 on this NVR are configurable for ePoE mode. The camera being connected must also support ePoE - not all Dahua IP cameras do, so check the camera's spec sheet before planning long runs. At distances beyond standard PoE range, the data rate and power delivery profile change compared to standard IEEE 802.3af/at PoE; the cable run must be a single unjointed length of quality Cat cable. Patch panels or inline connectors within the run will reduce reliable operating distance.

5. Does the built-in ANPR feature work with any IP camera?

   No. ANPR on the DHI-NVR5216-16P-4KS2E is only supported when the system is paired with compatible Dahua ITC (Intelligent Traffic Camera) models specifically designed for licence plate recognition. Standard Dahua IP cameras - turrets, bullets, domes - do not activate the ANPR functionality. The ITC camera handles the plate capture and classification at the camera level; the NVR provides the black and white list management, search interface and video linkage. If ANPR is a core requirement, confirm the specific compatible Dahua ITC camera models with Security Australia before finalising your specification.

6. Can I access live view and recorded footage remotely from a phone?

   Yes. The NVR supports remote access through the Easy4ip app, available on both iOS (App Store) and Android (Google Play). The app allows live view of all 16 channels, event notification push alerts, and search and playback of recorded footage. Remote access requires the NVR to be connected to the internet and the Easy4ip app to be configured with the device credentials during initial setup.

7. What happens to recording if the network connection between a camera and the NVR drops?

   ANR (Automatic Network Replenishment) handles this. When the network connection to a camera is interrupted, the camera stores footage locally on its own SD card for the duration of the outage. Once the connection is restored, the NVR automatically retrieves and integrates the stored footage into the recorded timeline, filling the gap without manual intervention. ANR requires the connected camera to have an SD card installed and the ANR feature enabled on both the camera and NVR.

8. Does this NVR fit in a standard rack cabinet?

   Yes. The DHI-NVR5216-16P-4KS2E is a 1U device designed for standard 19-inch rack mounting. Confirm that your rack cabinet has adequate depth to accommodate the NVR body and the rear cable connections - 16 PoE camera cables, network uplink, HDMI or VGA to a monitor, and power all terminate at the rear, so allow sufficient cable management space behind the unit within the cabinet.
