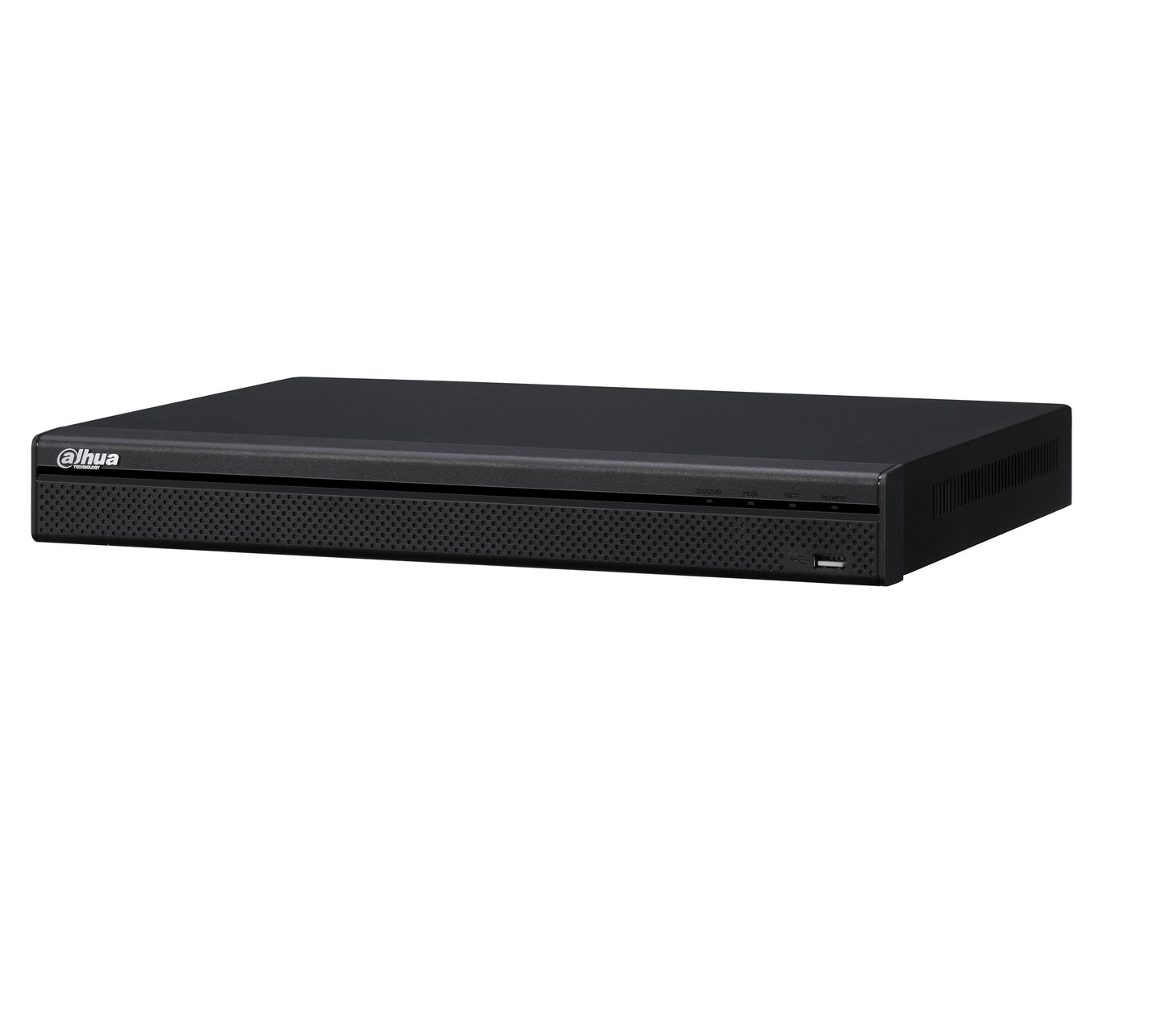

16 Channel 1U 16PoE 4K & H.265 Lite Network Video Recorder
The 16 Channel 1U 16PoE 4K & H.265 Lite Network Video Recorder, model DHI-NVR4216-16P-4KS2, from Dahua Security is a powerful and efficient NVR designed for high-definition surveillance systems. It supports up to 16 channels of IP camera inputs, providing robust coverage for large-scale security needs. The device features 16 PoE ports, simplifying the installation process by allowing both power and data transmission through a single cable. With 4K resolution support, it ensures superior image clarity, capturing every detail in high-quality video.
Key Features
Code/SKU: DHI-NVR4216-16P-4KS2
Quick Specs:
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Industrial embedded micro-processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Interface | Web; local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection by Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | 16 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Search | Search for pictures by channel, time and event type | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | 16/32 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Search | Search by target classification (human, vehicle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access Channel | 16/32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Bandwidth | 200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capability | 8 channels@1080p (30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 VGA: 1920 × 1080; 1280 × 1024; 1280 × 720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | 16-channel: 1/4/8/9/16 32-channel: 1/4/8/9/16/25/36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | Smart H.265+; Smart H.264+; H.265; H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | PCM; G.711A; G.711U; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | Android; iOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (profile T/S/G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | Chrome; IE9 or later; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-channel Playback | 1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Method | Local HDD and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup | USB device | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Group | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anomaly Alarm | Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Alarm | Perimeter protection; SMD; people counting; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel, RCA connector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel, RCA connector, which support voice intercom output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 2 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | 16 ports (IEEE802.3at/af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Parameter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | Single, 100V–240V AC, 50 Hz–60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | NVR: < 13.2W (without HDD) PoE: Max 25.5W for single port, 130W in total | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 2.6 kg (5.7 lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 4 kg (8.8 lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 375.0 mm × 327.4 mm × 53.0 mm (14.8″ × 12.9″ × 2.1″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–93% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | 30%–85% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Altitude | 3,000 m (9,843 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE: EN55032; EN55024; EN50130-4; EN60950-1 FCC: Part 15 Subpart B; ANSI C63.4-2014 UL: UL 60950-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DHI-NVR4216-16P-4KS2 16 Channel 1U 16PoE 4K H265 Lite Network Video Recorder
Dahua NVR4000-4KS2 is introduced as the first Lite series NVR that supports 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can serve as edge storage, central storage, or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices, making it the perfect solution for surveillance systems that work independently of video management systems (VMS). It features an open architecture that supports multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.
Features
Functions
4K Resolution
4K resolution represents a significant advancement in image processing, delivering four times the resolution of standard 1080p HDTV. This technology provides exceptional picture quality and detailed images, enhancing the clarity of magnified scenes for crisp forensic video across large areas.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard doubles the data compression ratio while maintaining the same video quality, or it significantly enhances video quality at the same bit rate compared to older compression methods. H.265 achieves this through advanced techniques like expanded pattern comparison, improved motion vector prediction, motion region merging, and a unique filtering step known as sample-adaptive offset filtering.
Intelligent Video System (IVS)
When paired with IVS-enabled IP cameras, the NVR can identify and record video with IVS data on all IP channels. It captures standard edge intelligence features as well as advanced IVS functions like detecting abandoned or missing objects, Tripwire violations, and intrusions. Additionally, the NVR can record business analysis data, including Facial Detection, People Counting, and Heat Mapping, from IP cameras equipped with Intelligent Business Analytics.
ANR (Automatic Network Replenishment Technology)
NVRs equipped with ANR automatically store video data on an IP camera's SD card when the network connection is lost. Once the network is restored, the NVR seamlessly retrieves the stored video data from the camera.
Easy4ip
The Easy4ip app, available on iOS and Android platforms, simplifies surveillance by allowing remote access to NVR devices. Users can view live video, receive event notifications, and search recorded footage from an iPhone, iPad, or Android device anytime, anywhere.
| Main Processor | Industrial embedded micro-processor |
| Operating System | Embedded Linux |
| Max Incoming Bandwidth | 200 Mbps |
| Video Decoding Capability | Up to 8 channels @ 1080p (30 fps), up to 2 channels @ 4K |
| Resolution Support | Up to 8MP |
| Video Output | HDMI: 3840 × 2160; VGA: 1920 × 1080 |
| Network Connectivity | 16 PoE ports |
| Third Party Camera Access | Compatible with brands like Panasonic, Sony, Axis, ONVIF, etc. |
