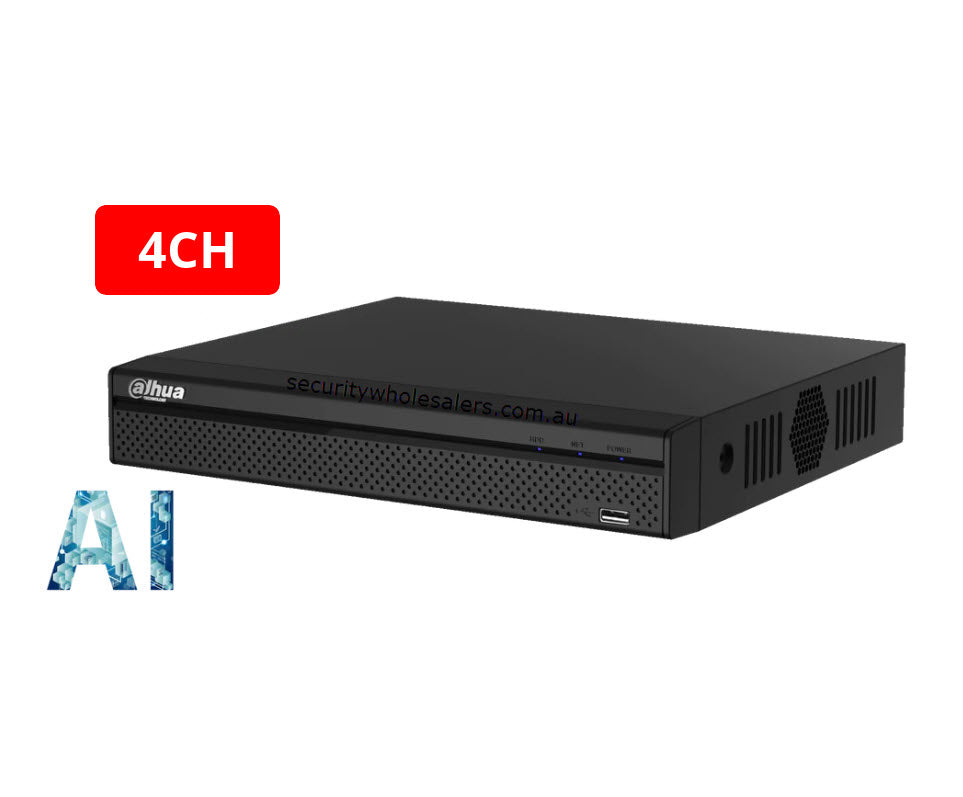

4 Channels Compact 1U 4PoE 1HDD WizSense Network Video Recorder
The NVR4000-AI/ANZ series is a new generation of network recorders that offers powerful decoding capabilities and strong bandwidth. It features high-precision face recognition, perimeter protection, and SMD (Smart Motion Detection), which can distinguish target vehicles and humans from other types in real-time.
Key Features
Code/SKU: DHI-NVR4104HS-P-AI/ANZ
Quick Specs: Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Industrial-grade processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Interface | Web; Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Performance of AI by Camera (Number of Channels) | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Detection Performance of AI by Camera (Number of Channels) | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Database Capacity | Up to 10 face databases with 200,00 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Recorder (Number of Channels) | 4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Performance of AI by Camera (Number of Channels) | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD Plus by Camera | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vehicle License Plate Comparison | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ANPR by Camera (Number of Channels) | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access Channel | 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoin | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1 HDMI, 1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | 1st Screen: 1/4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711a; G.711u; PCM; G726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | Chrome; IE9 and later; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-channel Playback | Up to 4 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | General, motion detection; intelligent; alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Method | USB device and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD Interface | 1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Port | 4 ports, 10/100 Mbps, IEEE 802.3 af/at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 53 VDC, 1.226 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Total output of NVR is <10 W(without HDD) Total output power of PoE is 36W,the maximum output power of asingle port is 25.5W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.86 kg (1.90 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 1.88 kg (4.14 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 333 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40") (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–93% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Rack or desktop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
The Dahua NVR4104HS-P-AI/ANZ is a 4-channel network video recorder designed for small to medium-sized surveillance systems. It supports AI features, including face detection and perimeter protection. This compact 1U device comes with 4 PoE ports, providing both power and data to connected IP cameras. It supports up to 8MP resolution for clear and detailed recordings. The recorder can handle up to 1 HDD for storage, ensuring ample space for video data. It integrates seamlessly with Dahua's WizSense technology, enhancing accuracy and efficiency in video analysis.
Remote access and management are possible through the Dahua DMSS app. This NVR is compatible with various third-party devices, supporting both ONVIF and custom protocols. It also features smart H.265+ compression to reduce storage and bandwidth needs. The NVR4104HS-P-AI/ANZ is an ideal solution for robust, intelligent video surveillance.
Features
Functions
Face Detection
Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing and then outputs the best face snapshot.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with those in the face database to recognize the person's identity.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables the system to perform secondary recognition for the targets. Improving alarm accuracy.
SMD Plus
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.
AI Search
Support AI search by metadata of different targets or uploading face pictures to the device and comparing them with recorded faces by similarity. Enable operators to search through multi-channels quickly and easily and long duration, efficiently find out when and where a person of interest appears.
Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people's appearance probability. Export and display the crowd status in different colors. Generally, crowd status is the statistics of people's quantity in space and time dimensions.
ANPR by Camera
With a deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video.
Quick Pick
Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI by Recorder |
Face detection, face recognition, perimeter protection, and SMD Plus. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI by Camera |
Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance AI by Recorder (Number of Channels) |
2 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance of AI by Camera (Number of Channels) |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
When paired with compatible IPC cameras, the Quick Pick technology enables easy identification and retrieval of human and vehicle targets. This network recorder is both cost-effective and versatile, supporting a broad range of third-party devices. It’s an excellent option for small and medium-sized businesses due to its affordability and extensive compatibility.
