  • Sku: DHI-NVR4104HS-P-4KS2
  • Vendor: SecurityAustralia

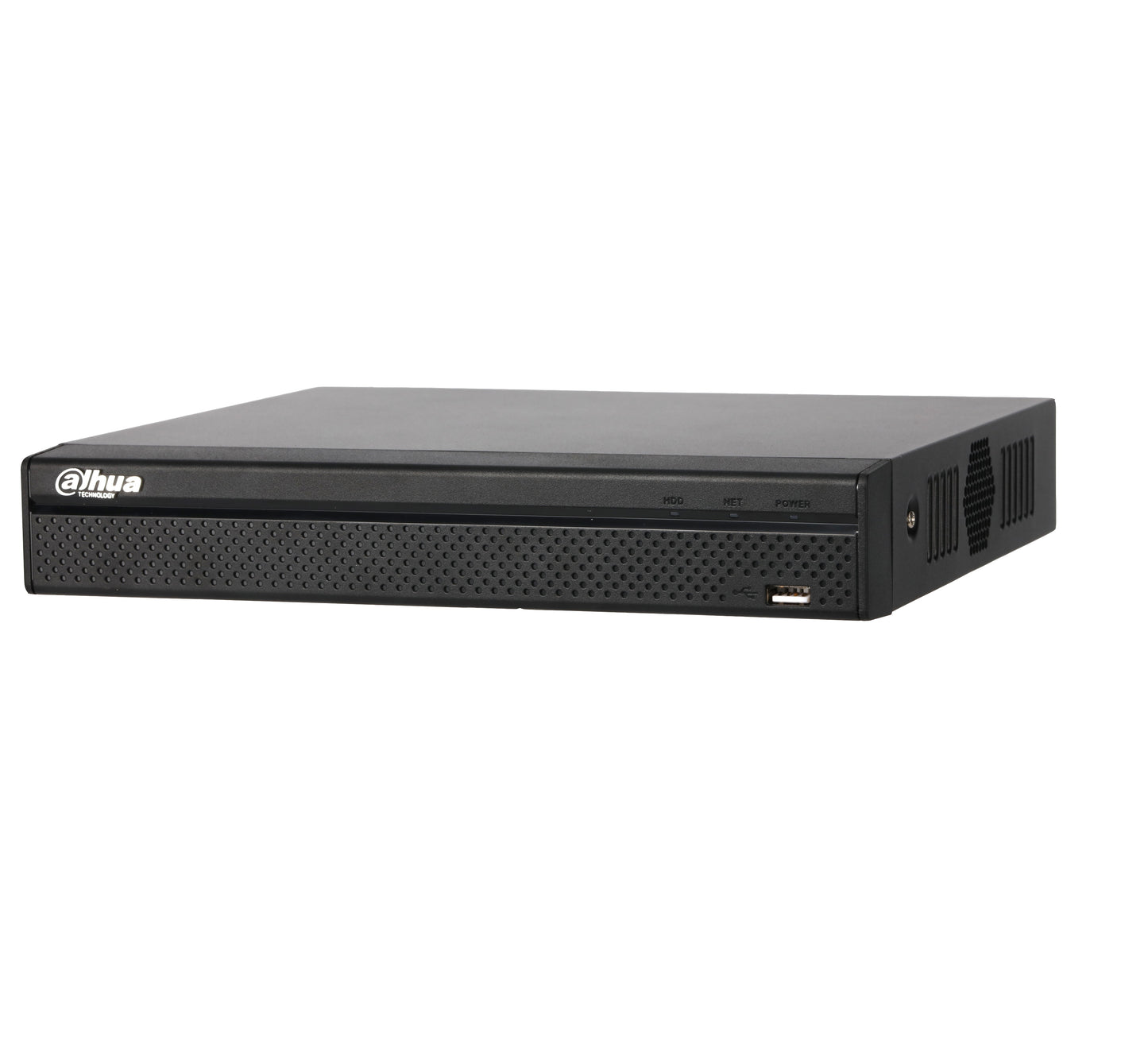

Dahua DHI-NVR4104HS-4P-4KS2 4 Channel Compact 1U 4PoE 4K H265 Lite Network Video Recorder

$279.00 AUD
$199.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4 Channel Compact 1U 4PoE 4K & H.265 Lite Network Video Recorder

The DHI-NVR4104HS-P-4KS2 is a compact 1U Network Video Recorder (NVR) designed to offer robust performance in a space-saving form factor. It features four Power over Ethernet (PoE) ports, enabling the direct connection and power of compatible IP cameras without the need for additional power supplies. Supporting 4K resolution recording, this NVR ensures high-quality video capture with exceptional clarity.

Key Features

  • 4-channel IP video access
  • Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
  • Max 80 Mbps incoming bandwidth
  • Up to 8MP resolution for preview and playback
  • 8-channel decoding@1080p (30 fps)
  • AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
  • Support IPC UPnP, 4 PoE ports

Code/SKU: DHI-NVR4104HS-P-4KS2
Quick Specs:

  • Video: Smart H.265+; Smart H.264+; H.265; H.264
  • Audio: PCM; G.711A; G.711U; G.726

Specifications

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

4/8 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

4/8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4/8

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 channels@1080p (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

4-channel: 1/4
8-channel: 1/4/8/9

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

4-channel: 1/4
8-channel: 1/4/9

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 independent 100 Mbps ethernet port

PoE

4 ports (IEEE802.3at/af)

General Parameter

Power Supply

48V/1.5A DC

Power Consumption

NVR: < 7.5W (without HDD)
PoE: Max 25.5W for single port, 48W in total

Net Weight

0.8 kg (1.76 lb) (without HDD)

Gross Weight

1.6 kg (3.53 lb) (without HDD)

Product Dimensions

260.0 mm × 232.5 mm × 47.6 mm (10.2" × 9.2" × 1.9")

Package Dimensions

331 mm × 312 mm × 87 mm (13.0" × 12.3" × 3.4")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DHI-NVR4104HS-4P-4KS2 4 Channel Compact 1U 4PoE 4K H265 Lite Network Video Recorder

$279.00 AUD
$199.00 AUD
 per

The DHI-NVR4104HS-P-4KS2 is a compact 1U Network Video Recorder (NVR) designed to offer robust performance in a space-saving form factor. It features four Power over Ethernet (PoE) ports, enabling the direct connection and power of compatible IP cameras without the need for additional power supplies. Supporting 4K resolution recording, this NVR ensures high-quality video capture with exceptional clarity. It utilizes H.265 Lite compression technology, which provides efficient video compression and reduces storage requirements while maintaining video quality. The NVR supports up to 4 channels of video recording, making it suitable for small to medium-sized surveillance systems. It includes a user-friendly interface that simplifies configuration and management, allowing for easy system setup and operation.

With its 1U design, it fits easily into standard server racks, making it ideal for environments with limited space. The device also includes features such as remote viewing and playback via mobile apps or web browsers. Its built-in storage supports the installation of a hard disk drive (HDD) for recording and storing footage. This model offers reliable performance and scalability for various security applications, delivering comprehensive surveillance solutions. The DHI-NVR4104HS-P-4KS2 is engineered to meet the needs of users seeking a high-definition, compact NVR with advanced features and efficient data management.

Features

  • 4-channel IP video access
  • Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
  • Max 80 Mbps incoming bandwidth
  • Up to 8MP resolution for preview and playback
  • 8-channel decoding@1080p (30 fps)
  • AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
  • Support IPC UPnP, 4 PoE ports



Functions

Perimeter Protection by Camera
Automatically filters out false alarms triggered by animals, rustling leaves, bright lights, and more. This enables the system to apply secondary recognition for targets, enhancing alarm accuracy.

SMD Plus by Camera
Dahua's smart motion detection technology uses an intelligent algorithm to categorize targets that trigger motion detection. It filters out alarms caused by non-relevant targets, ensuring effective and accurate alerts.

People Counting by Camera
Utilizing a deep learning algorithm, Dahua’s People Counting technology tracks and processes moving human body targets for precise statistics on the number of people entering, leaving, and present in an area. It integrates with management platforms to provide yearly, monthly, weekly, and daily reports.

Smart Codec
Dahua's smart codec technology, with its advanced scene-adaptive rate control algorithm, offers superior encoding efficiency compared to H.265 and H.264. It delivers high-quality video while reducing storage and transmission costs.

ANR (Automatic Network Replenishment Technology)
Records video on an SD card in IP cameras during network outages. Once the network is restored, the video is transferred to the device and saved.

DMSS
The DMSS app is available on the iOS App Store and Google Play. It simplifies surveillance by allowing remote access to back-end devices, live video viewing, event notifications, and video searches from an iPhone, iPad, or Android phone, anytime and anywhere.

Technical Specifications:

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

4/8 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

4/8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4/8

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 channels@1080p (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

4-channel: 1/4
8-channel: 1/4/8/9

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

4-channel: 1/4
8-channel: 1/4/9

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 independent 100 Mbps ethernet port

PoE

4 ports (IEEE802.3at/af)

General Parameter

Power Supply

48V/1.5A DC

Power Consumption

NVR: < 7.5W (without HDD)
PoE: Max 25.5W for single port, 48W in total

Net Weight

0.8 kg (1.76 lb) (without HDD)

Gross Weight

1.6 kg (3.53 lb) (without HDD)

Product Dimensions

260.0 mm × 232.5 mm × 47.6 mm (10.2" × 9.2" × 1.9")

Package Dimensions

331 mm × 312 mm × 87 mm (13.0" × 12.3" × 3.4")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1
