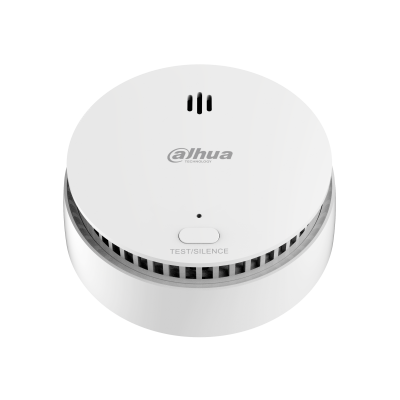

Dahua DHI-HY-SA21A-W2 | Wireless Photoelectric Smoke Alarm – Battery-Powered, Split-Spectrum Sensor

Model: DHI-HY-SA21A-W2

Who This Is For

When adding smoke detection to an existing Dahua wireless alarm system without running new cabling is the priority, the DHI-HY-SA21A-W2 is the device most installers reach for. It is designed for residential and light-commercial spaces - rental properties, home offices, granny flats, and small retail tenancies - where a wired solution is impractical or where a tenant arrangement makes wall penetrations undesirable. Because it runs entirely on battery power and communicates wirelessly, it drops straight into a Dahua wireless alarm ecosystem alongside other enrolled sensors without additional infrastructure. The split-spectrum photoelectric sensor is the core reason to specify this model over a basic single-technology detector: it is engineered to differentiate genuine smoke particles across two wavelengths, reducing the kind of nuisance triggering that makes occupants disable alarms. Suited to installers building out multi-zone Dahua wireless systems and to property managers wanting a tidy, code-aware smoke detection solution.

What This Device Actually Does

Who Buys This Model

• Dahua Wireless Alarm Installers: Integrators building out DHI-ARA24-W2 based systems who need smoke detection zones added without introducing a separate, non-integrated detector brand.
• Property Managers and Landlords: Those needing compliant smoke alarm coverage in rental properties where running mains-powered wired detectors to every required location is cost-prohibitive or structurally disruptive.
• Retrofit and Upgrade Projects: Existing premises where a Dahua wireless alarm system is already installed and a smoke detection zone needs to be added to an existing panel without cabling work.
• Small Business Owners: Retail tenancies, small offices, and service businesses where a wireless, centrally monitored smoke alarm integrates into the same app and panel already used for intrusion detection.

Honest Assessment

The DHI-HY-SA21A-W2 does its best work as part of a Dahua wireless alarm ecosystem. The split-spectrum photoelectric sensor is a genuine step up from single-technology photoelectric-only units, offering more discriminating smoke identification and a lower nuisance alarm rate in real-world environments. Battery operation and wireless enrolment keep installation clean and fast, which matters on multi-zone fit-outs where running cable to every detector position adds significant labour cost. What this device will not do is operate as a standalone smoke alarm independent of a compatible Dahua wireless hub - it is a system component, not a self-contained unit. It is also not a combined smoke and heat detector; sites that require dual-technology detection per AS 3786 requirements or specific building codes may need to confirm compliance with their certifier before specifying this model. Available through Security Australia, it is suited to installations already committed to the Dahua wireless platform rather than mixed-brand environments.

Before You Buy

Quick Fit Check

• Good match if: You need a low-maintenance smoke alarm for a rental property, apartment, or any room where running mains wiring is not feasible.
• Good match if: You are building out a Dahua wireless alarm system and want smoke detection integrated alongside your intrusion devices.
• You may need a different model if: Your installation requires a hardwired or 240V mains-connected smoke alarm - a wired photoelectric detector would be the more appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are already running or specifying a Dahua W2-compatible wireless alarm system and need smoke detection that integrates into the same panel and app without cabling.
• You may need a different model if: Your site requires a combined smoke and heat detector, or a mains-powered hardwired unit with battery backup - a wired combination detector type would be more appropriate in those cases.
• Pairs well with: A Dahua W2-compatible wireless alarm hub and other W2 wireless peripherals such as PIR motion detectors, door and window contacts, and a wireless keypad for a complete integrated system.

Common Questions

1. Will this smoke alarm work without a Dahua alarm panel?

   No. The DHI-HY-SA21A-W2 is a wireless system peripheral and requires enrolment into a compatible Dahua W2 wireless alarm hub to function. It does produce a local audible alert at the device itself when smoke is detected, but status reporting, remote notifications, and zone management all depend on a connected hub. It cannot be used as a fully standalone smoke alarm.

2. What does split-spectrum photoelectric detection actually mean in practice?

   It means the detector analyses smoke particles using 2 different light wavelengths rather than 1. Standard photoelectric detectors use a single infrared beam; split-spectrum sensing adds a second wavelength, which improves the detector's ability to identify a wider range of smoke types - including light-scattering particles from smouldering fires - while reducing false triggers caused by dust or steam that can fool single-wavelength sensors.

3. Does this smoke alarm meet Australian smoke alarm legislation requirements?

   It depends on your state and the specific installation context. The DHI-HY-SA21A-W2 uses photoelectric detection, which aligns with the technology mandated in most Australian states for residential applications. However, state legislation - particularly in Queensland - also specifies interconnection requirements and placement rules. Confirm with your certifier or local authority whether wireless RF interconnection via the Dahua hub satisfies interconnection obligations for your specific dwelling type before installation.

4. Does this unit report battery status back to the alarm panel?

   Yes. As a Dahua W2 wireless peripheral, the DHI-HY-SA21A-W2 communicates battery status to the enrolled hub. Low battery conditions are flagged through the panel and the associated app, allowing the installer or end user to arrange replacement before the detector loses power rather than discovering the issue only when the device starts chirping.

5. How many of these detectors can be enrolled into a single Dahua hub?

   The maximum enrolled device count depends on the specific Dahua wireless hub model being used, not the detector itself. The DHI-ARA24-W2, for example, has a defined maximum zone capacity. Check your hub's specification sheet for total device limits and confirm how many zones are already occupied by existing PIR, door contact, or other peripherals before ordering multiple smoke detectors for a single system.

6. Is this detector suitable for a garage or outdoor undercover area?

   No. The DHI-HY-SA21A-W2 is designed for indoor ceiling installation in conditioned or semi-conditioned spaces. Garages present challenges for photoelectric smoke detection due to vehicle exhaust fumes and dust, and outdoor or undercover environments expose the unit to humidity, temperature extremes, and airborne particulates that are outside its intended operating conditions. A heat detector type is generally more appropriate for garage applications.

7. Can this alarm trigger other devices in the Dahua system when smoke is detected?

   Yes, within the capabilities of the enrolled hub. When the DHI-HY-SA21A-W2 reports a smoke event to the Dahua wireless panel, the hub can be configured to trigger associated outputs - such as activating a siren, sending a push notification, or initiating other programmed responses depending on the hub model's automation rules. The range of trigger actions available is determined by the hub's firmware and configuration options, not the detector itself. The full range of Dahua W2 wireless smoke alarm accessories is stocked by Security Australia.
