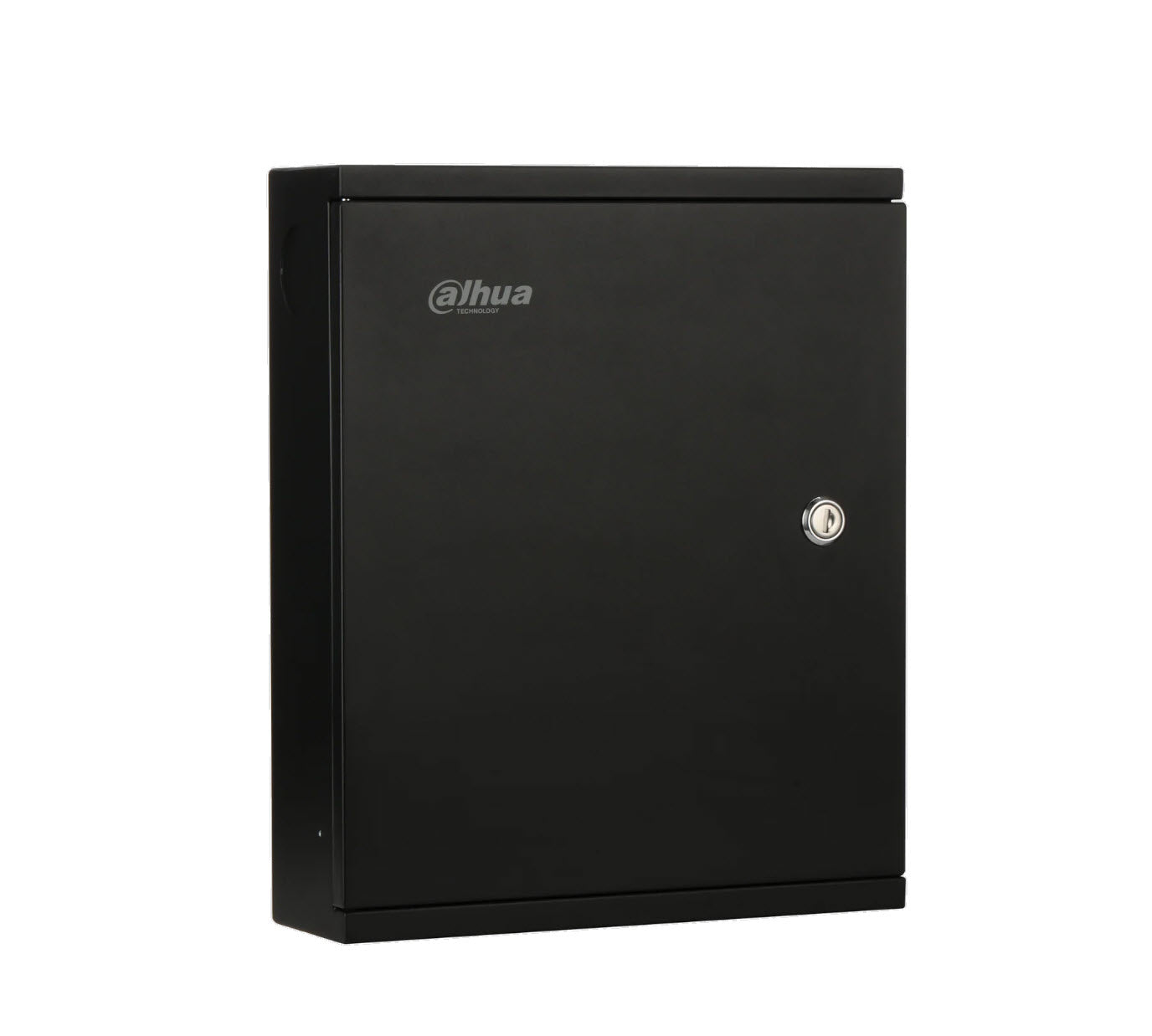

Dahua DHI-ASC2204C-H Four Door Masters Access Controller
Four Door Master Access Controller
The ASC2204C-H Four Door Master Access Controller from Dahua Security offers robust and scalable access control for up to four doors. It features advanced encryption protocols to ensure secure communication between the controller and connected devices. The unit supports various authentication methods, including card readers, keypads, and biometric devices, making it versatile for different security needs.
Key Features
- Supports 200,000 valid cards and 150,000 records.
- CAN bus supports cascading of up to 16 sub-controller modules.
- Supports card, password, fingerprint, and combination authentication.
- Features TCP/IP interface.
- Provides Wiegand or RS-485 interface to readers.
- Includes door close time out alarm, intrusion alarm, duress alarm, and tamper alarm.
- Supports global anti-passback, multi-door interlock, multi-personal open, and remote verification unlock.
- Web service available for configuring sub-controllers.
- Supports 128 efficient time and holiday schedules.
- Built-in RTC with support for DST.
- Watchdog function ensures device remains operational.
- Designed for surface-mounted installation.
- Includes accumulator battery extension.
- Compatible with Onvif Profile C, CGI, and SDK for third-party platforms.
Code/SKU: ASC2204C-H
Quick Specs:
- Power Supply: AC85-AC264, 50/60Hz
- Operating Temperature: –30°C to +60°C
- Working Humidity: ≤95%
- Dimension (W×D×H): 330.0 mm × 270.0 mm × 87.0 mm
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The ASC2204C-H Four Door Master Access Controller from Dahua Security offers robust and scalable access control for up to four doors. It features advanced encryption protocols to ensure secure communication between the controller and connected devices. The unit supports various authentication methods, including card readers, keypads, and biometric devices, making it versatile for different security needs. Its user-friendly interface allows for easy configuration and management through Dahua's software solutions. Designed for reliability and durability, the ASC2204C-H is ideal for both small and medium-sized installations where security and flexibility are paramount.
Features
- Supports 200,000 valid cards and 150,000 records.
- CAN bus supports cascading of up to 16 sub-controller modules.
- Supports card, password, fingerprint, and combination authentication.
- Features TCP/IP interface.
- Provides Wiegand or RS-485 interface to readers.
- Includes door close time out alarm, intrusion alarm, duress alarm, and tamper alarm.
- Supports global anti-passback, multi-door interlock, multi-personal open, and remote verification unlock.
- Web service available for configuring sub-controllers.
- Supports 128 efficient time and holiday schedules.
- Built-in RTC with support for DST.
- Watchdog function ensures device remains operational.
- Designed for surface-mounted installation.
- Includes accumulator battery extension.
- Compatible with Onvif Profile C, CGI, and SDK for third-party platforms.
Technical Specifications:
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Memory | 256 Mb | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input/Output Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input | Inputs x 20 ( Lock state x 4, Door sensor x 4, Exit button x 4, Alarm x 8) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output | Relay x 12(Door lock x 4, Alarm x 8 ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reader | Reader x 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card holders | 200,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Events | 150,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Control Mode | Four door one-way | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access control | Anti-pass back, Multi-interlock, Multi-card unlock | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User Management | General, VIP, Guest, Patrol, Blocklist, Duress | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Period | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| To PC | RJ45(10/100M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| To Reader | Wiegand 26/34, RS485 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Function | TCP/IP, UDP, HTTP, HTTPS, DDNS, Register, P2P, NTP, DST | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. User Access | 1-999 adjustable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Genreal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RTC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | AC85-AC264, 50/60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30°C to +60°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension(W×D×H) | 330.0 mm × 270.0 mm × 87.0 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 2 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | Indoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certificates | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FCC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Four Door Master Access Controller
The ASC2204C-H Four Door Master Access Controller from Dahua Security offers robust and scalable access control for up to four doors. It features advanced encryption protocols to ensure secure communication between the controller and connected devices. The unit supports various authentication methods, including card readers, keypads, and biometric devices, making it versatile for different security needs.
Key Features
- Supports 200,000 valid cards and 150,000 records.
- CAN bus supports cascading of up to 16 sub-controller modules.
- Supports card, password, fingerprint, and combination authentication.
- Features TCP/IP interface.
- Provides Wiegand or RS-485 interface to readers.
- Includes door close time out alarm, intrusion alarm, duress alarm, and tamper alarm.
- Supports global anti-passback, multi-door interlock, multi-personal open, and remote verification unlock.
- Web service available for configuring sub-controllers.
- Supports 128 efficient time and holiday schedules.
- Built-in RTC with support for DST.
- Watchdog function ensures device remains operational.
- Designed for surface-mounted installation.
- Includes accumulator battery extension.
- Compatible with Onvif Profile C, CGI, and SDK for third-party platforms.
Code/SKU: ASC2204C-H
Quick Specs:
- Power Supply: AC85-AC264, 50/60Hz
- Operating Temperature: –30°C to +60°C
- Working Humidity: ≤95%
- Dimension (W×D×H): 330.0 mm × 270.0 mm × 87.0 mm
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Memory | 256 Mb | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input/Output Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input | Inputs x 20 ( Lock state x 4, Door sensor x 4, Exit button x 4, Alarm x 8) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output | Relay x 12(Door lock x 4, Alarm x 8 ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reader | Reader x 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card holders | 200,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Events | 150,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Control Mode | Four door one-way | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Access control | Anti-pass back, Multi-interlock, Multi-card unlock | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User Management | General, VIP, Guest, Patrol, Blocklist, Duress | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Period | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| To PC | RJ45(10/100M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| To Reader | Wiegand 26/34, RS485 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Function | TCP/IP, UDP, HTTP, HTTPS, DDNS, Register, P2P, NTP, DST | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. User Access | 1-999 adjustable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Genreal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RTC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | AC85-AC264, 50/60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30°C to +60°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension(W×D×H) | 330.0 mm × 270.0 mm × 87.0 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 2 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | Indoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certificates | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FCC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
