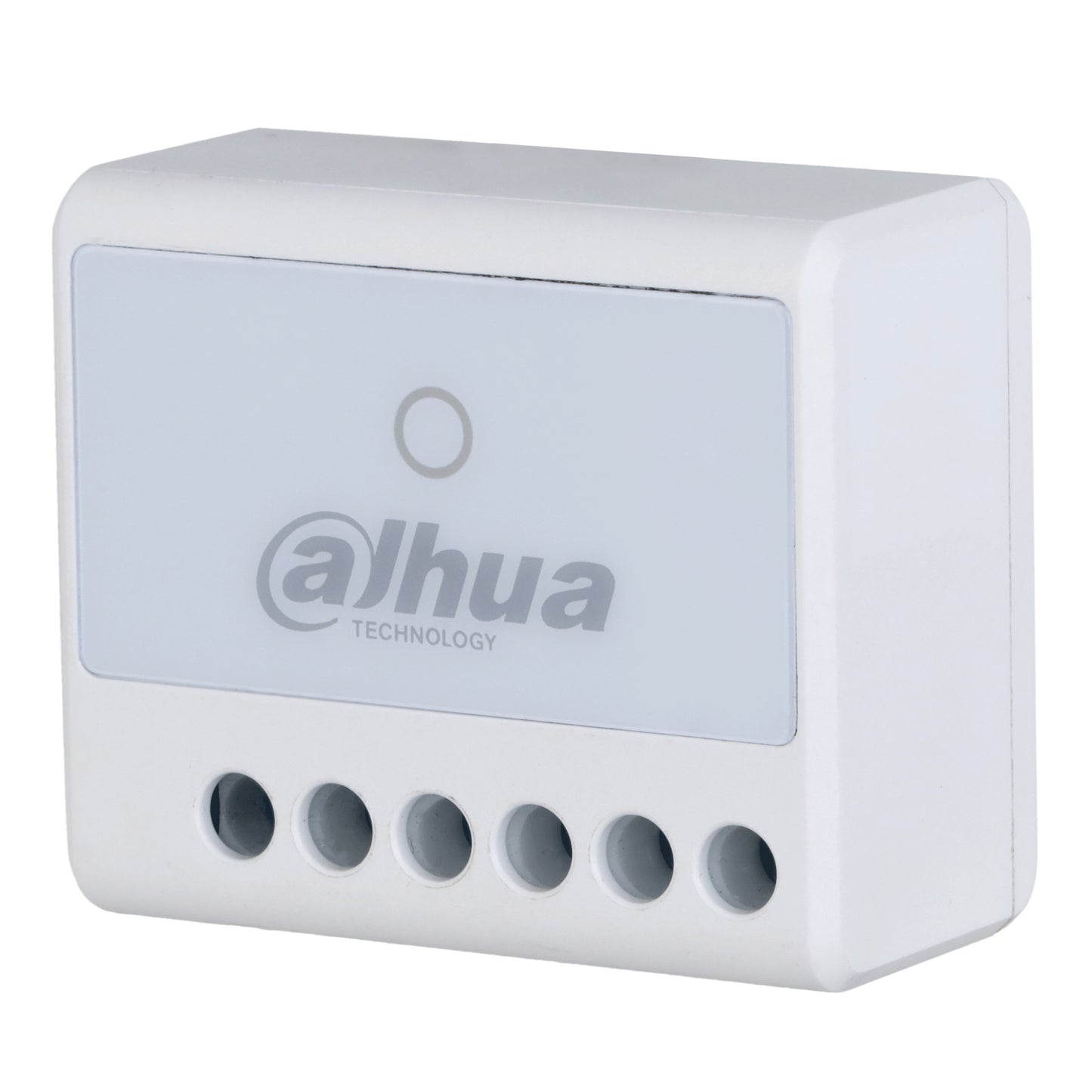

Dahua DHI-ARM7011-W2 Wireless Relay

Model: DHI-ARM7011-W2

Who This Is For

When extending an alarm system to a remote output device - a gate lock, a siren, a lighting circuit - without running control cabling across a building is the priority, the Dahua DHI-ARM7011-W2 Wireless Relay is the device that fills that gap. It is built for alarm installers and integrators who need a single dry-contact relay output positioned up to 800 metres from the wireless hub, in locations where trenching or surface-running cable is impractical. Industrial facilities, large residential properties, warehouses, and outbuildings are the environments this device is designed for. With a 0-36 VDC, 5A relay output and a tamper-monitored alarm input, it drops cleanly into existing Dahua wireless alarm architectures and handles low-voltage output switching without requiring a dedicated power run beyond the device's own 12V DC supply.

What This Device Actually Does

Who Buys This Model

• Alarm Installers on Wireless Projects: Integrators building out Dahua wireless alarm systems who need a remote relay output for a siren, gate, or lock without running control cabling to that point.
• Rural and Large-Property Installers: Sites where an outbuilding, gate post, or shed needs to respond to an alarm trigger and cable runs are not viable - the 800 m open-area range covers most large residential and agricultural property layouts.
• Security Integrators Replacing Wired Outputs: Installers retrofitting a monitored alarm into an existing building where surface-mounted control cabling would be disruptive or costly, and a wireless relay at the output device is the cleaner solution.
• Monitoring-Focused Installations: Sites where tamper detection on every device in the field is a client or insurer requirement - the DHI-ARM7011-W2 includes an external tamper input so the relay itself remains within the supervised alarm loop.

Honest Assessment

The DHI-ARM7011-W2 does one thing well: it puts a supervised, encrypted, tamper-monitored relay output wherever you need it, without a control cable. The 800 m open-area range, AES128 encryption, jamming detection, and cloud firmware recovery make it a more serious device than generic 433 MHz relay modules. The 0-36 VDC / 5A output covers most low-voltage switching tasks an alarm installation demands. The confirmed operating temperature of -10 to +55°C and overheating and overvoltage protection add durability in demanding environments.

What it will not do: it is an indoor device, so it is not appropriate for direct outdoor exposure without a suitable enclosure. It is also designed to work within the Dahua wireless alarm ecosystem - installers using a different brand's hub should verify protocol compatibility before purchasing. For high-current switching or mains-voltage applications, a different relay type is needed. Available through Security Australia, it suits alarm and integration professionals rather than DIY end users.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Dahua wireless alarm system and need a remote relay output - for a gate lock, door strike, or siren - at a location where running a control cable from the panel is not practical.
• Good match if: Your project requires tamper supervision on every field device, as the DHI-ARM7011-W2 includes an external tamper input that keeps the relay within the alarm's supervised loop.
• You may need a different model if: The relay needs to be mounted in an exposed outdoor location - this is an indoor-rated device and a weatherproof outdoor wireless relay or a sealed enclosure solution would be more appropriate for direct external exposure.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a supervised, encrypted wireless relay output within a Dahua wireless alarm system and cannot run a control cable to the output device location.
• You may need a different model if: The relay needs to be installed in a directly exposed outdoor location - an outdoor-rated wireless relay module or a sealed IP-rated enclosure solution would be more appropriate for environments with rain, humidity, or dust exposure.
• Pairs well with: A compatible Dahua wireless alarm hub or control panel, a 12V DC power supply at the relay location, and a Dahua wireless alarm keypad or app-based arming solution for the broader system.

Common Questions

1. Will this relay work with any wireless alarm hub, or only Dahua systems?

   It is designed for the Dahua wireless alarm ecosystem. The DHI-ARM7011-W2 uses Dahua's proprietary two-way 433 MHz protocol with AES128 encryption and frequency hopping - it is not a generic 433 MHz relay that will pair with non-Dahua hubs. Confirm your hub model supports this device before ordering.

2. Does this relay need its own power supply at the installation location?

   Yes. The DHI-ARM7011-W2 requires a 12V DC supply (or PoE) at the device's physical location. It is not a standalone battery-powered relay for the output function. A 12V DC source must be available at the mounting point - factor this into the installation plan before finalising placement.

3. What voltage and current loads can the relay output actually switch?

   The relay output switches loads from 0 to 36 VDC at a maximum of 5A. This covers most low-voltage alarm output applications including 12V door strikes, gate motor release inputs, and low-voltage siren triggers. It is not rated for mains-voltage (240V AC) switching - a different relay type is required for mains loads.

4. How does the jamming detection work, and what happens when jamming is detected?

   The device monitors the 433 MHz band for abnormal RF interference patterns consistent with deliberate signal jamming. When detected, it generates an alert that is reported back to the alarm system hub. This means an installer or monitoring station will see an active tamper or fault condition rather than simply losing communication with the relay silently.

5. Does this work for outdoor gate installations?

   Not directly exposed outdoors - the DHI-ARM7011-W2 is rated for indoor use with an operating temperature of -10 to +55°C. For a gate post installation, the relay would need to be housed inside a weatherproof enclosure rated for the outdoor environment. The wireless range of up to 800 m in open space is more than adequate for most gate-to-house distances once the device is properly housed.

6. What happens to the relay if a firmware update fails mid-process?

   The device automatically rolls back to a functional firmware state if a cloud update fails. This prevents the relay from becoming non-functional after an interrupted update - important when the device is installed at a remote location where a site visit to recover a bricked unit would be costly. The team at Security Australia can advise on firmware management for larger Dahua wireless alarm deployments.

7. Will the 800 m wireless range hold up inside buildings?

   No - 800 m is the open-space figure. Real-world range inside buildings will be considerably shorter depending on wall construction materials, floor count, and RF congestion on the 433 MHz band. Concrete and masonry significantly attenuate 433 MHz signals. Conduct a wireless link test at the intended installation position before permanently fixing the device.
