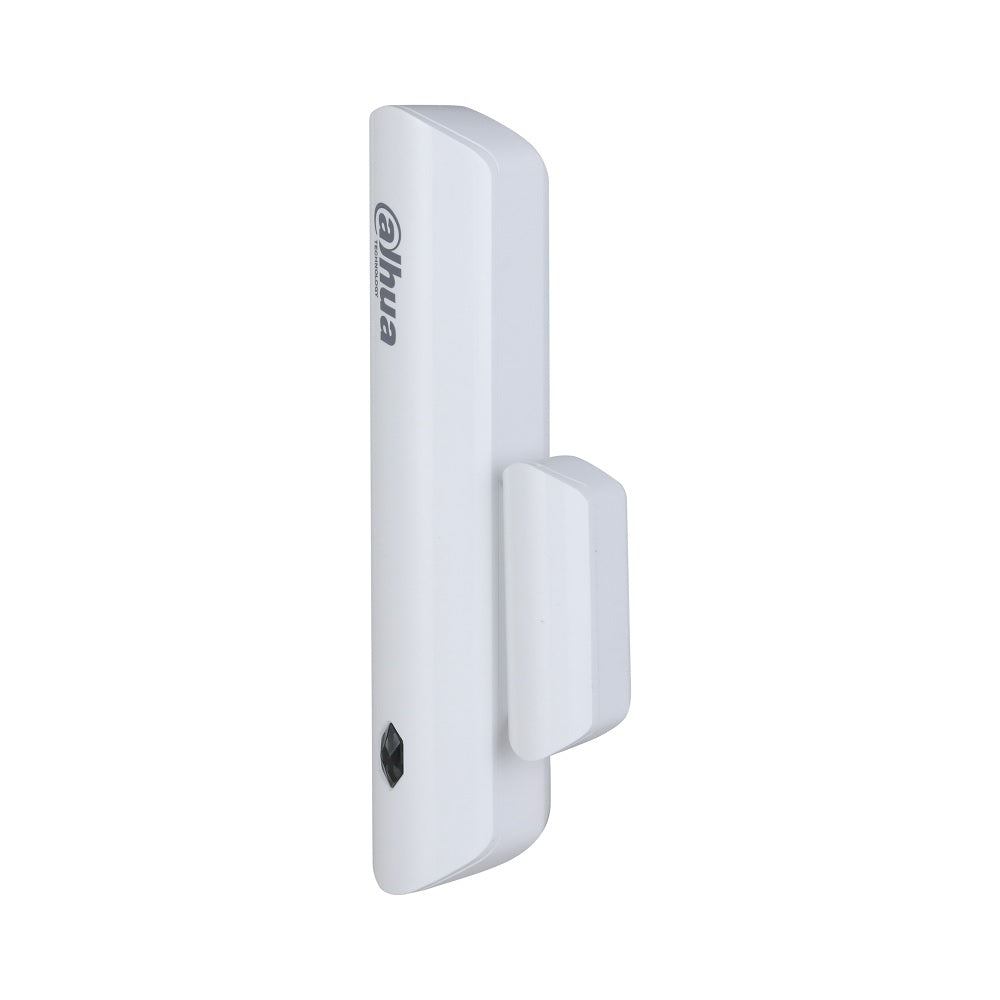

Dahua DHI-ARD324-W2(S) Wireless Door Detector Plus

Model: DHI-ARD324-W2(S)

Who This Is For

When wireless sensor placement across a large or multi-entry property is the priority, the Dahua Wireless Door Detector Plus DHI-ARD324-W2(S) is built for exactly that scenario. Security installers specifying wireless alarm zones for residential homes, small offices, or retail tenancies will find this detector covers the fundamentals without requiring cable runs to every door or window. Operating on 433 MHz RF with a communication range of up to 800 metres in open space, it gives integrators real flexibility in sensor positioning relative to the alarm hub. AES128 encryption and frequency hopping make it a credible choice where RF signal security matters. Powered by a single CR123A battery rated for up to 3 years, it suits situations where ongoing maintenance access is limited. IP54 protection means it handles the dust and humidity typical of garages, storerooms, and covered entry points without issue.

What This Detector Actually Does

Who Buys This Model

• Alarm Installers Specifying Wireless Zones: Integrators building out Dahua wireless alarm systems who need a reliable door/window sensor with encrypted RF communication and tamper protection at each zone point.
• Property Managers in Strata and Rental Buildings: Sites where cable runs to individual apartment entry doors are not practical - the 3-year battery life reduces the maintenance visits needed across multiple tenancies.
• Small Business and Retail Operators: Shop owners or office managers adding door monitoring to a wireless alarm panel, particularly for after-hours entry detection on back doors and stockroom entries.
• Homeowners with Large or Spread-Out Properties: Residential installs where detached garages, workshops, or secondary structures need to be covered - the 800 m open-space range allows hub placement in the main dwelling without signal loss.

Honest Assessment

The DHI-ARD324-W2(S) does what a wireless door detector needs to do - it reports openings quickly, communicates over a useful RF range, and backs that up with AES128 encryption and frequency hopping that put it ahead of basic 433 MHz sensors on signal security alone. The IP54 rating and 3-year battery life are practical advantages in installs where the detector sits in a semi-exposed location or where maintenance access is limited. It is available through Security Australia as part of the Dahua wireless alarm ecosystem, which means it is designed to pair with compatible Dahua alarm hubs rather than function as a standalone device. If your alarm panel is from a different manufacturer using a proprietary wireless protocol, this detector will not be compatible - check hub compatibility before ordering. It also does not suit applications requiring wired zone integration or full outdoor exposure beyond IP54 conditions.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are building a Dahua wireless alarm system and need door/window sensors with AES128 encrypted RF communication, long battery life, and IP54 protection for semi-exposed mounting locations.
• You may need a different model if: Your alarm panel uses a wired zone input rather than wireless RF - a wired door contact will be more reliable and lower cost for those installations. If you need full outdoor exposure beyond IP54, a higher-rated detector or a wired weatherproof contact is a better fit.
• Pairs well with: A compatible Dahua wireless alarm hub, Dahua wireless PIR motion detectors for interior zones, and a Dahua alarm keypad for local arming and disarming.

Common Questions

1. Will this detector work with any 433 MHz alarm panel, or does it need to be a Dahua hub?

   It is designed for use with compatible Dahua wireless alarm hubs and is not guaranteed to pair with third-party 433 MHz panels. The AES128 encryption and frequency hopping implementation used in the DHI-ARD324-W2(S) are specific to the Dahua wireless alarm ecosystem. Before purchasing, confirm the exact Dahua hub model you intend to use supports this sensor, as not all Dahua alarm products share the same wireless protocol.

2. Does the 800 m range apply inside a building?

   No. The 800 m communication range is measured in open, unobstructed space. Inside a building, concrete walls, steel framing, and floor slabs will reduce this figure considerably - real-world in-building range depends on the number and composition of obstacles between the sensor and the hub. Always test signal strength at the intended mounting position during installation rather than relying on the open-space specification.

3. Does this detector work on windows as well as doors?

   Yes. The DHI-ARD324-W2(S) functions as a contact sensor for any door or window where the main body and magnet can be aligned correctly on the frame and leaf. It detects the separation of the magnet from the sensor body, so it works on sliding doors, hinged doors, and casement or sliding windows provided both parts can be positioned within the specified gap distance.

4. How does the tamper detection actually work?

   The detector includes a tamper switch in the housing that activates if the cover is removed or the unit is forcibly pulled from its mounting surface. When triggered, a tamper alert is sent to the alarm hub independently of any door open/close event. This means an attempt to defeat the sensor by physically removing it generates an immediate alarm condition rather than a silent zone gap.

5. Is the CR123A battery easy to source in Australia, and does the detector warn before it goes flat?

   Yes. CR123A lithium batteries are widely stocked at electronics retailers and hardware stores across Australia. The detector includes a low-battery alert that notifies the alarm hub before power is critically depleted, giving time to schedule a replacement before the sensor loses function. Under normal usage the rated battery life is up to 3 years. Stocked by Security Australia as part of the Dahua wireless alarm range.

6. Is IP54 sufficient for an outdoor door frame installation?

   IP54 provides protection against dust ingress and water splashing from any direction, which covers covered outdoor locations such as a porch, eave-protected entry, or garage door frame. It is not rated for direct rain exposure or submerging, so it is not suitable for mounting on an exposed exterior surface where rain hits the unit directly. For fully exposed outdoor positions, a higher IP-rated contact sensor is required.

7. Does frequency hopping actually prevent jamming?

   It significantly increases resistance to deliberate RF jamming compared to fixed-frequency sensors. Frequency hopping means the sensor and hub continuously shift across multiple frequencies during communication, making it much harder for a jamming device operating on a fixed channel to interrupt transmission consistently. Combined with AES128 encryption, this puts the DHI-ARD324-W2(S) ahead of basic fixed-frequency 433 MHz sensors in signal security - though no wireless system is immune to a sufficiently powerful broadband jammer, which is why pairing with a monitored alarm system is recommended for high-risk sites.
