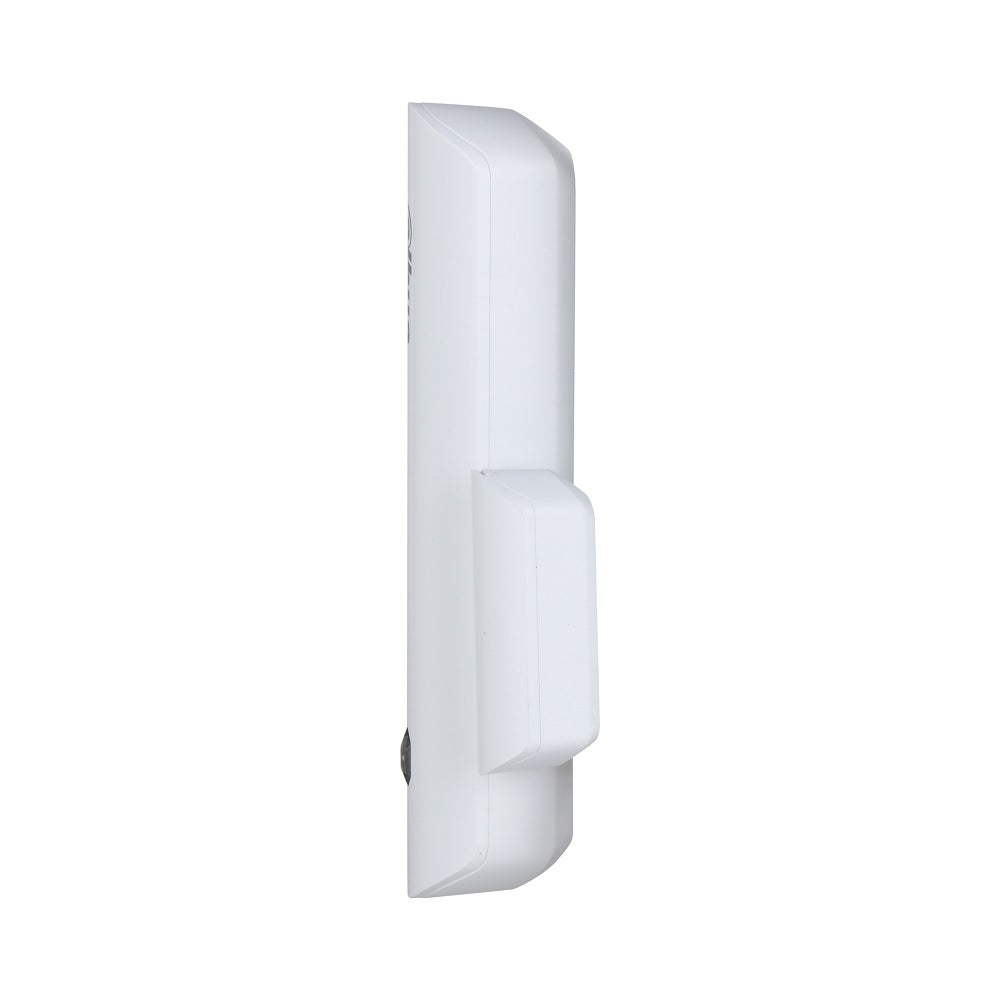

Dahua DHI-ARD323-W2(S) Wireless Door Detector

Model: DHI-ARD323-W2(S)

Who This Is For

Property managers specifying wireless alarm sensors for multi-tenancy buildings, small offices, or residential installations where running new cabling is not practical will find the Dahua DHI-ARD323-W2(S) Wireless Door Detector a straightforward fit. It is designed to work within the Dahua wireless alarm ecosystem, reporting door and window open or close events to a compatible hub and pushing real-time notifications through the DMSS app. The CR123A battery powering the unit is rated for up to 4 years under normal usage, which reduces routine maintenance calls on installed sites. The 433 MHz RF link supports open-space ranges of up to 1,000 metres and includes frequency hopping for signal stability. IP54 dust and splash resistance means it can be placed at external doors without concern about moisture ingress in typical Australian conditions.

What This Sensor Actually Does

Who Buys This Model

• Residential alarm installers: Adding door and window detection to a Dahua wireless alarm system without the cost and disruption of running sensor cabling through existing wall cavities.
• Small business owners self-managing security: Using the DMSS app to receive real-time alerts when a back door, stock room, or server room entry is opened outside of business hours.
• Property managers: Deploying sensors across multiple tenancies or units where battery-powered wireless installation avoids the need for electrician involvement at each site.
• Facilities staff monitoring environmental entry points: Combining door open detection with the onboard temperature reporting at locations like cold rooms or IT equipment rooms where both data points are operationally useful.

Honest Assessment

The DHI-ARD323-W2(S) does its core job well: it reliably detects door and window open events, communicates via a stable 433 MHz frequency-hopping link, and keeps maintenance low with a 4-year battery rating and proactive low battery alerts. The IP54 rating and -10 °C to +55 °C operating range make it suitable for Australian external door applications that would rule out unrated sensors. The addition of tamper detection, jamming alerts, and temperature reporting adds genuine operational value beyond basic contact sensing. What this device will not do is operate as a standalone product - it requires a compatible Dahua wireless alarm hub. It is also not a hardwired sensor, so installations requiring tamper-evident cabling for high-security graded systems will need a different product type. Available through Security Australia, the DHI-ARD323-W2(S) is best evaluated as part of a Dahua wireless alarm build rather than as an isolated sensor purchase.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding a Dahua wireless alarm system and need a door or window contact sensor with IP54 weather resistance for external door placement.
• Good match if: Long battery life and minimal maintenance are a priority - the 4-year CR123A rating and proactive low battery alerts reduce the frequency of site revisits for battery replacement.
• You may need a different model if: Your installation requires a hardwired door contact for a graded or high-security alarm system - a wired sensor product type from the Dahua alarm range or an alternative wired system will be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are building a Dahua wireless alarm system and need a battery-powered door/window contact sensor with IP54 weather resistance, temperature reporting, and up to 4 years between battery changes.
• You may need a different model if: Your project requires a hardwired door contact for a graded alarm system or an installation where continuous supervised cabling is mandated - a wired sensor product type will be the correct fit for that specification.
• Pairs well with: A compatible Dahua wireless alarm hub, additional wireless motion detectors for internal area protection, and a Dahua NVR or IP camera system sharing the DMSS app for unified mobile monitoring.

Common Questions

1. Does this sensor work as a standalone device without an alarm hub?

   No. The DHI-ARD323-W2(S) must be paired with a compatible Dahua wireless alarm hub to function. The sensor transmits status events via 433 MHz RF to the hub, which then manages arming state, alert processing, and DMSS app notifications. Without a paired hub, the sensor has no way to trigger alerts or report to the app.

2. Will this sensor work on an external door exposed to weather?

   Yes, provided installation is in a position protected from direct rain. The IP54 rating means the housing resists dust ingress and water splashes from any direction, which covers most Australian external door scenarios including morning condensation and indirect rain splash. IP54 does not cover sustained water jets or submersion, so fully exposed installations facing direct rainfall are not recommended.

3. What does the 1,000 metre wireless range mean in a real building?

   The 1,000 m figure is the open-space specification - actual range in buildings will be considerably less. Brick, concrete, and steel reduce RF penetration significantly. For a typical residential or small commercial install, a sensor two or three rooms away from the hub on the same floor should present no issues, but multi-storey concrete construction will require hub placement testing. Use the onboard signal strength detection feature during commissioning to verify adequate link quality before finalising the sensor mount position.

4. How does the jamming detection work and what triggers it?

   The DHI-ARD323-W2(S) monitors the RF environment on its 433 MHz channel and detects sustained interference that would prevent normal communication with the hub. If jamming is detected, the sensor generates a tamper-class alert. This is transmitted to the hub and appears as a notification in the DMSS app, alerting the user to a potential attempt to suppress sensor communication before or during an intrusion event.

5. Does the temperature monitoring function trigger alarms independently?

   Temperature reporting transmits ambient temperature data back to the hub and DMSS app but alarm behaviour for temperature thresholds depends on the hub's configuration options rather than the sensor itself. The sensor's confirmed function is to report temperature readings - whether those readings can be used to set discrete temperature-based alarm triggers will depend on the capabilities of the paired Dahua wireless hub. Check hub configuration options before relying on temperature-triggered alerts.

6. Can firmware be updated without a technician visiting the site?

   Yes. The DHI-ARD323-W2(S) supports remote firmware updates delivered via cloud through the connected hub. This means firmware can be pushed to sensors across a multi-site installation without a site visit, reducing ongoing maintenance costs and keeping devices current without manual intervention at each sensor location. The Security Australia range includes compatible Dahua hubs that support this cloud update pathway.

7. Is a CR123A battery included, and how difficult is it to source replacements?

   Battery inclusion should be confirmed at the time of purchase as this can vary. CR123A batteries are a standard lithium primary cell widely available through electronics retailers, hardware stores, and online suppliers in Australia - they are not proprietary. With a 4-year rated service life under normal usage, replacement frequency is low, but stocking spares before a large deployment is recommended to avoid a site visit for a single battery change during the commissioning period when test mode activity increases battery consumption slightly.
