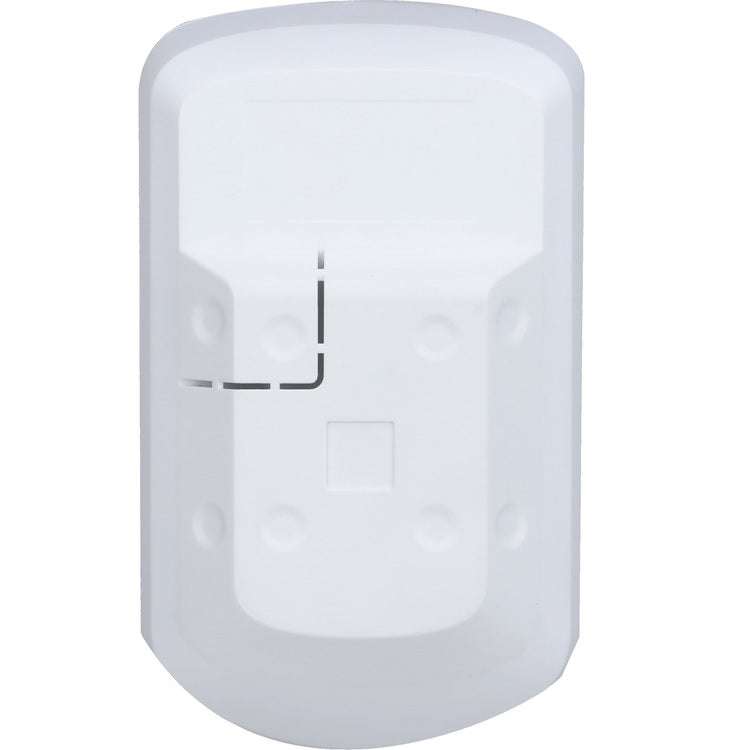

Dahua DHI-ARD1233-W2 Wireless PIR Detector

Model: DHI-ARD1233-W2

Who This Is For

When reducing false alarms in pet-friendly homes or retrofitting wireless detection into an existing property is the priority, the Dahua DHI-ARD1233-W2 is worth a close look. It suits installers and security integrators specifying wireless alarm sensors for residential, apartment, or small commercial sites where running cable is impractical or cost-prohibitive. The DHI-ARD1233-W2 pairs with compatible Dahua wireless alarm hubs and communicates at up to 1,600 m in open space using frequency hopping and AES128 encryption, making it appropriate for larger properties or multi-room configurations. Pet owners with animals up to 18 kg will find the built-in pet immunity particularly relevant - it is one of the main reasons this model gets specified over a standard PIR in domestic settings. Battery-powered operation with a rated life of up to 4 years means minimal ongoing maintenance once installed.

What This Product Actually Does

Who Buys This Model

• Alarm installers retrofitting wireless sensors: Properties where chasing cables into walls is not feasible - rental properties, heritage buildings, or existing homes - benefit from the 868 MHz wireless communication and up to 1,600 m open-space range back to the hub.
• Residential customers with pets: Households with cats or small-to-medium dogs up to 18 kg specify this model specifically to avoid the constant nuisance alerts that standard PIR detectors generate when animals move through the detection zone at night.
• Apartment and multi-dwelling unit installers: The AES128 encryption and frequency hopping make this detector more suitable for dense RF environments like apartment blocks, where cheaper 433 MHz sensors often suffer from interference and missed events.
• Security integrators specifying EN 50131 Grade 2 systems: The CE certification and EN 50131-2-2:2017 Security Grade 2 compliance make this detector appropriate for projects where a certified graded alarm system is required by the insurer or building specification.

Honest Assessment

The DHI-ARD1233-W2 does several things well: pet immunity at the hardware level, a 4-year battery rating, EN 50131 Security Grade 2 certification, and a communication range that suits larger properties rather than just small apartments. The auto temperature compensation is a genuine engineering feature rather than marketing language - it directly addresses one of the known failure modes of passive infrared detection in warm climates. The tamper alarm and AES128 encryption lift this above entry-level wireless sensors. Where it will not serve: it is an indoor-only detector rated to -10 °C minimum, so outdoor perimeter detection is outside its scope. It requires a compatible Dahua wireless alarm hub - it does not function as a standalone unit or integrate natively with third-party alarm panels without additional equipment. If perimeter or outdoor detection is needed, a different detector type from the Security Australia alarm range will be more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are installing wireless alarm sensors in a pet-friendly home and need a PIR that will not false-alarm on animals up to 18 kg - the hardware-level pet immunity is built into the detection element, not just a sensitivity reduction.
• Good match if: The project requires EN 50131 Security Grade 2 certification - this detector carries the full CE and EN 50131-2-2:2017 certification needed for graded residential or light commercial alarm installations.
• You may need a different model if: You need outdoor or perimeter detection - the DHI-ARD1233-W2 is rated for indoor use only. An outdoor-rated wireless PIR or dual-technology outdoor detector from the alarm range will be more appropriate for external zones.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need EN 50131 Security Grade 2 certification combined with pet immunity up to 18 kg and AES128-encrypted wireless communication in a battery-powered sensor - that combination is the specific reason this model gets selected over basic wireless PIR alternatives.
• You may need a different model if: Your detection zone is outdoors or in an unconditioned space below -10 °C. This detector is rated for indoor use only - an outdoor-rated dual-technology wireless detector will be more appropriate for external perimeter zones.
• Pairs well with: A compatible Dahua wireless alarm hub or control panel that supports the 868 MHz Dahua wireless protocol - the detector requires a matching hub to function and to relay low battery and tamper alerts back to the monitoring platform.

Common Questions

1. Will this detector work with my existing alarm panel from a different brand?

   Most likely no. The DHI-ARD1233-W2 uses the Dahua proprietary wireless protocol on the 868 MHz band, which is not cross-compatible with third-party alarm panels or hubs. It is designed to pair with Dahua wireless alarm hubs and control panels. Check the compatibility of your existing panel before purchasing - if you are working in the Dahua wireless ecosystem, the detector will integrate normally.

2. Does the pet immunity work for a dog that weighs close to 18 kg?

   Yes, up to the 18 kg threshold stated in the specification. The pet immunity function analyses both the size and the thermal profile of movement in the detection zone. Animals at or below 18 kg should not trigger an alarm under normal conditions. Larger animals above 18 kg will be detected and will trigger an alert in the same way a person would.

3. What is the actual detection coverage area and how is it affected by mounting height?

   The specified range is 12 m at a 90° horizontal angle, calibrated for a mounting height of 2.2 m. Altering the mounting height changes the angle of the detection lobe relative to the floor, which affects the effective coverage footprint. The built-in test mode is the correct tool for verifying actual coverage during installation rather than relying on the open-specification figure alone.

4. How does the temperature compensation feature actually work?

   It is a two-way digital compensation system built into the detection electronics. As the ambient temperature rises and approaches human body temperature, standard PIR detectors can lose sensitivity or generate false positives. The DHI-ARD1233-W2 automatically adjusts its detection threshold in response to temperature changes across its -10 °C to +55 °C operating range, with the specification confirming no attenuation of detection distance at elevated temperatures.

5. Does this detector support cloud firmware updates?

   Yes. The DHI-ARD1233-W2 supports cloud updates, which allows firmware to be updated automatically through the connected Dahua system without requiring manual intervention at the sensor itself. This is relevant for maintaining security patches and feature improvements over the product's operational life.

6. Is the 1,600 m communication range achievable in a real building?

   No - not in typical building conditions. The 1,600 m figure is a line-of-sight open-space specification. In practice, walls, floors, steel framing, and other obstructions each reduce effective range. For multi-room or multi-storey installations, use the signal strength detection feature during commissioning to confirm adequate RF path at each sensor location. If signal is marginal, a wireless repeater within the Dahua ecosystem may be needed.

7. What does the EN 50131 Security Grade 2 certification mean for this detector?

   Security Grade 2 under EN 50131 is the European standard for intrusion detection components intended to deter or delay low-to-medium risk intruders. It sets requirements for tamper resistance, communication reliability, and detection performance. For Australian installations, some insurers and commercial specifications reference Grade 2 as a minimum standard. The DHI-ARD1233-W2 is available through Security Australia as part of the Dahua wireless alarm range, and its certification documentation can be confirmed prior to project specification.
