  • Sku: DH-XVR5108HS-4KL-X
  • Vendor: SecurityAustralia

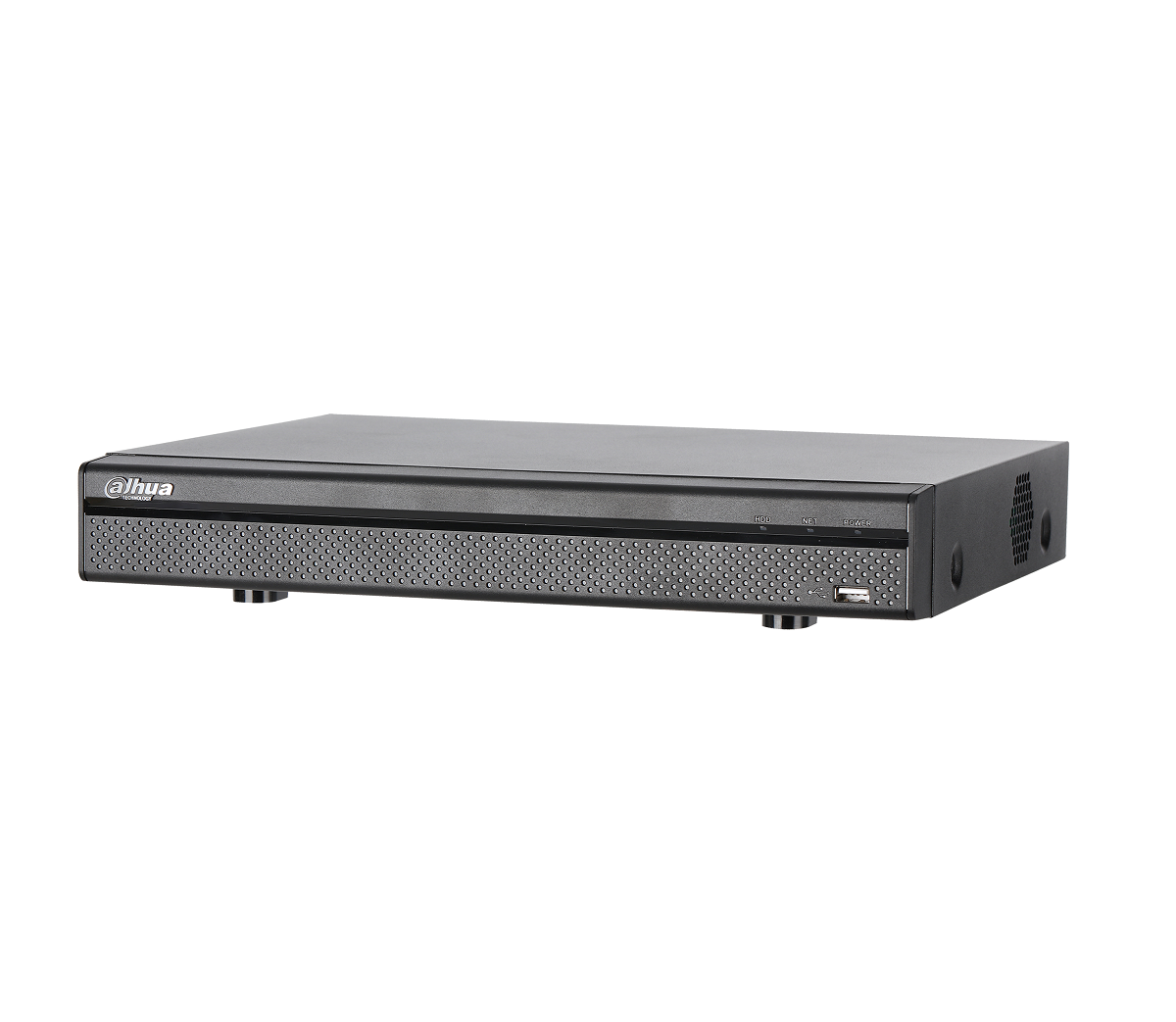

Dahua DH-XVR5108HS-4KL-X 8 Channel Penta-brid 4K Compact 1U DVR with 3TB HDD

$617.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

8 Channel Penta-brid 4K Compact 1U Digital Video Recorder

The DH-XVR5108HS-4KL-X from Dahua Security is an advanced 8-channel Penta-brid digital video recorder designed for versatile surveillance solutions. It supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, allowing for seamless integration with various camera types. This 4K compact recorder offers high-resolution video recording and playback, ensuring clear and detailed footage.

Key Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12 channels IP camera inputs, each channel up to 8MP; Max 48Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System

Code/SKU: DH-XVR5108HS-4KL-X
Quick Specs:

  • Compression: H.265+/H.265/H.264+/H.264
  • Resolution: 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

Specifications

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8 Channel, BNC

HDCVI Camera

4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+4 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

Record Rate

Main stream: 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)

Sub stream:960H(1~15fps); D1/CIF(1~25/30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 2.0,1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/2A

Power Consumption

(without HDD)

<10W

Construction

Dimensions

Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")

Device with PFH101

Rack Mount Tray

483mmx281mmx56mm (19.0"x11.1"x2.2")

Net Weight

(without HDD)

0.9kg (2.0 lb)

Gross Weight

1.6kg (3.5 lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-XVR5108HS-4KL-X 8 Channel Penta-brid 4K Compact 1U DVR with 3TB HDD

$617.00 AUD
 per

The DH-XVR5108HS-4KL-X from Dahua Security is an advanced 8-channel Penta-brid digital video recorder designed for versatile surveillance solutions. It supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, allowing for seamless integration with various camera types. This 4K compact recorder offers high-resolution video recording and playback, ensuring clear and detailed footage. It features a 1U rack-mountable design, making it suitable for installations where space is limited. The device includes advanced video compression technology, such as H.265+, which enhances storage efficiency and reduces bandwidth usage. It supports up to 8 IP cameras with 4K resolution, delivering exceptional image quality.

The DH-XVR5108HS-4KL-X also features smart analytics capabilities, including motion detection and line crossing, to improve surveillance effectiveness. Users can manage and access footage remotely via Dahua’s user-friendly software and mobile apps. It supports multiple storage options, including SATA HDDs, for extensive recording durations. The recorder is equipped with a built-in HDMI and VGA output for flexible video display options. Additionally, it features robust network connectivity, ensuring reliable and fast data transmission. The DH-XVR5108HS-4KL-X combines high performance with ease of use, making it a reliable choice for comprehensive security monitoring.

Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12 channels IP camera inputs, each channel up to 8MP; Max 48Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System



Functions

Smart H.265+
Smart Codec, H.265+ can reduce bit rates and storage requirements by up to 90% compared to H.264, without needing to invest in new cameras.

HDCVI/AHD/TVI/CVBS Auto-detect
The XVR automatically recognizes the signal from connected cameras without any additional settings, making operation more user-friendly and convenient.

8MP Resolution
The XVR supports up to 8MP HD resolution (3840 x 2160) for both HDCVI and IP camera inputs.

Coaxial Audio/Upgrade/Alarm
The integrated design minimizes wiring issues, making installation more cost-effective and convenient.

Long Distance Transmission
The HDCVI system supports long-distance transmission over coaxial cable and UTP, with a maximum range of 700m for 4K/4MP, 800m for 1080P, and 1200m for 720P.

Smart Fan Design
The smart fan automatically adjusts its operation based on CPU temperature, reducing noise and enhancing the user experience.

Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR can detect and analyze moving objects for improved surveillance. It includes standard intelligence at the edge, detecting behaviors like abandoned or missing objects and supporting Tripwire analytics for monitoring line crossings.

Face Detection
This technology is used for searching or identifying individuals in various applications.

Smart Search
This feature allows for quick retrieval of motion-detected video by drawing a region during playback, which is especially useful in emergencies.

Technical Specifications:

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8 Channel, BNC

HDCVI Camera

4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+4 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

Record Rate

Main stream: 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)

Sub stream:960H(1~15fps); D1/CIF(1~25/30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 2.0,1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/2A

Power Consumption

(without HDD)

<10W

Construction

Dimensions

Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")

Device with PFH101

Rack Mount Tray

483mmx281mmx56mm (19.0"x11.1"x2.2")

Net Weight

(without HDD)

0.9kg (2.0 lb)

Gross Weight

1.6kg (3.5 lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
