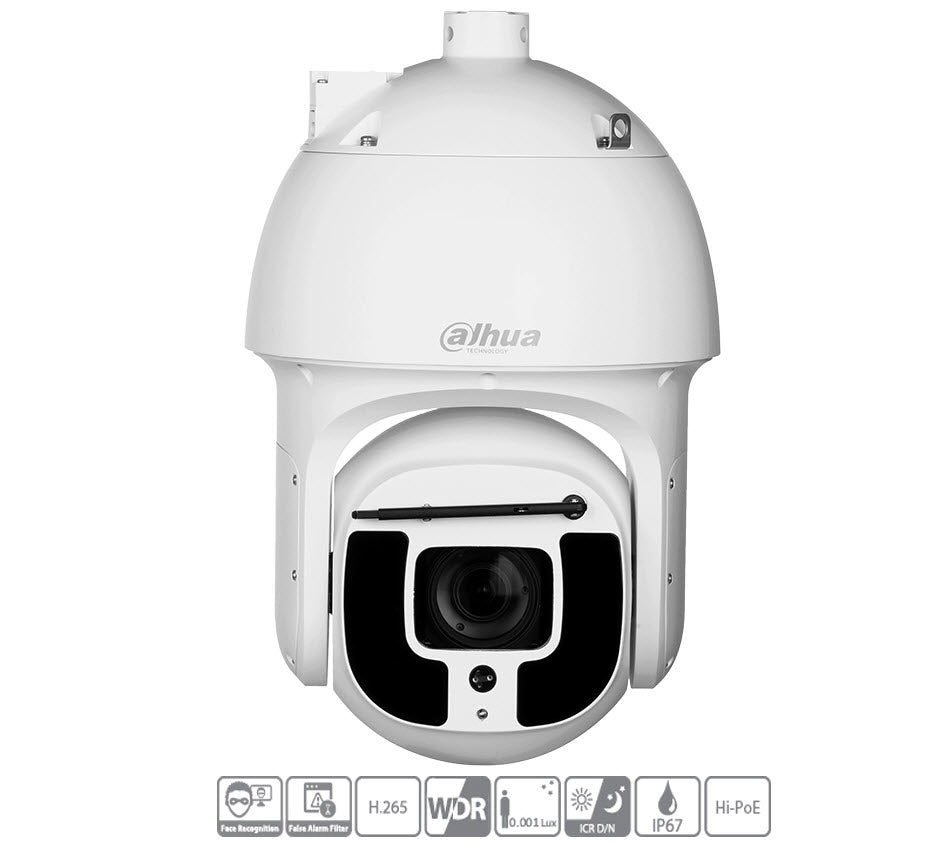

Dahua DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera

Model: DH-SD8A840-HNF-PA

Who This Is For

For security integrators and facilities managers who need a single camera to cover ground that would otherwise require four or five fixed units, the Dahua SD8A840-HNF-PA is built for exactly that role. The 40x optical zoom paired with 4K Starlight imaging makes it well-suited to wide-area applications where operators need to pivot from a broad overview to a tight close-up without losing usable detail - think large carparks, port facilities, university campuses, perimeter fence lines, and commercial properties with long open approaches. The IR illumination extends usability into complete darkness, and the AI classification layer helps cut through false alarm noise in environments with constant background movement. Whether mounted on a pole, rooftop parapet, or building corner, this PTZ gives control room operators and monitoring centres the reach and image quality to act on what they see rather than simply record it.

What This Camera Actually Does

Who Buys This Model

• Security integrators on large commercial sites: Specifying PTZ positions to reduce total camera count on campuses, industrial facilities, and logistics precincts where fixed cameras alone would require extensive cabling runs and mounting infrastructure.
• Council and government facility managers: Deploying on parks, town centres, or multi-building campuses where a single PTZ on a pole can patrol a broad area and respond to alarm triggers from perimeter sensors or access control events.
• Monitoring centres and control rooms: Operators who need a camera they can actively drive to follow an incident in real time, with enough zoom reach and image resolution to gather evidence-grade detail at distance.
• Port, transport, and logistics operators: Sites with long vehicle approaches, loading docks, and external yards where the 40x zoom range allows number plate and driver identification from mounting positions that keep the camera out of reach.
• Critical infrastructure protection teams: Energy, water, and utility sites requiring perimeter surveillance with AI-filtered alerting, where false alarm fatigue is a documented operational problem with standard motion-based systems.

Honest Assessment

The SD8A840-HNF-PA does its best work in large open-area installations where a single motorised camera needs to cover ground, respond to alarm triggers, and deliver identifiable detail at significant range. The 40x optical zoom combined with 4K resolution is a genuine operational combination - not just a headline spec - and the Starlight sensor extends colour coverage into conditions where most PTZ cameras have already dropped to monochrome. The AI human and vehicle classification meaningfully reduces false alert volume in busy outdoor environments. Where this camera is not the right tool: it will not replace a dense grid of fixed cameras in a corridor or retail environment, and it is not suitable where continuous simultaneous coverage of multiple separate zones is needed without an operator actively controlling it. A fisheye or multi-sensor camera serves that use case better. Available through Security Australia, this model suits professional integrator-led deployments rather than DIY residential installs.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open area - carpark, perimeter, campus - where you need both a wide overview and the ability to zoom to identifying detail at distance, and you have either active monitoring or alarm-triggered preset positions configured.
• Good match if: Your site has AI-filterable alarm triggers - perimeter beams, access control events, or radar - and you need the PTZ to slew automatically to a preset on activation, with 4K detail available in the zoomed view for the responding operator.
• You may need a different model if: You need continuous simultaneous coverage of multiple fixed zones with no active operator - a multi-sensor panoramic or a grid of fixed AI cameras will provide consistent always-on coverage that a single PTZ cannot match when it is pointing elsewhere.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover a large area with both wide situational awareness and the optical zoom reach to deliver identifying detail - 40x zoom at 4K is not matched by fixed turret or bullet cameras at any price point.
• You may need a different model if: Your priority is simultaneous continuous coverage of multiple fixed zones with no active operator involvement - a multi-sensor panoramic camera or a bank of fixed AI cameras will cover all zones at once, whereas a PTZ can only view one direction at a time.
• Pairs well with: Fixed AI turret or bullet cameras at entry points and critical fixed positions, with this PTZ handling the wide open-area patrol and incident response role - a combined fixed-plus-PTZ system gives you both always-on coverage and zoom-capable follow-up.

Common Questions

1. Does this PTZ require PoE+ or will a standard PoE switch work?

   Standard 802.3af PoE (15.4W) is very likely insufficient for this camera. A PTZ at this specification level - 4K sensor, 40x zoom motor, IR illuminators, and pan-tilt drive motors all running simultaneously - typically requires IEEE 802.3at PoE+ (30W) at minimum. Confirm the power class requirement in the full datasheet before ordering switching equipment, and calculate cable run length as voltage drop on longer runs can push an already-marginal power budget below what the camera needs to operate correctly.

2. Will this camera work with non-Dahua NVRs and VMS platforms?

   Yes, with ONVIF-compliant platforms, though full feature access depends on the VMS. As a network IP camera, the SD8A840-HNF-PA communicates over standard protocols and will stream video to any ONVIF-capable recorder. However, AI classification alerts, intelligent preset triggers, and advanced PTZ functions typically require either Dahua's own DSS/DMSS platform or a VMS with a validated Dahua integration driver. Confirm with your VMS vendor that the specific AI event types you need - human detection triggers, vehicle classification alarms - are supported in their Dahua integration before commissioning.

3. How many preset positions can this PTZ store, and how does alarm-triggered preset positioning work?

   PTZ cameras of this class typically support a large number of stored presets - commonly 300 or more - though the exact figure for this model should be confirmed in the full Dahua datasheet. In practice, alarm-triggered presets work by linking an input event (perimeter sensor trigger, AI detection zone breach, access control alarm) to a specific preset number in the PTZ configuration. When the alarm fires, the camera drives to that position within seconds. The practical limit is not the number of presets but the number of alarm inputs your NVR or VMS can map to preset calls - verify this in your system design before programming.

4. What is the effective IR range at full 40x zoom, and does the IR adjust as the lens zooms?

   On PTZ cameras in this class, IR illumination is designed to be zoom-adaptive - the IR beam narrows as the lens zooms in, concentrating illumination on the same area the lens is viewing rather than flooding a wide scene. The exact rated IR distance for this model should be verified in the datasheet, but adaptive IR is a confirmed design feature of Dahua's PTZ range at this specification level. Without adaptive IR, zoomed night-time footage would appear underexposed at range because the IR would still be dispersing across the full wide-angle scene while the lens shows only a fraction of it.

5. Does the AI on this camera reduce false alarms compared to standard motion detection?

   Yes, meaningfully so in outdoor environments. Standard motion detection triggers on any pixel change - passing headlights, wind-blown foliage, rain, insects near the lens at night. The AI classification on the SD8A840-HNF-PA is trained to distinguish human and vehicle shapes from background movement, so only confirmed detections of people or vehicles generate alert events. In high-movement outdoor environments like carparks, bushland perimeters, or industrial yards, this typically reduces alarm volumes by a significant margin compared to standard motion-based rules - though exact false alarm rates vary by scene complexity and detection zone configuration. The team at Security Australia can advise on detection zone setup for your specific site type.

6. Will this camera handle Australian outdoor conditions - heat, humidity, and direct sun on the housing?

   PTZ cameras in this class are designed for outdoor installation and carry an IP weather ingress rating suitable for direct exposure to rain and dust. For Australian conditions specifically, the relevant factors are operating temperature range (confirm in the datasheet that it covers the high ambient temperatures in Queensland, WA, and NT installations), and direct sun exposure on the housing. Dark-coloured PTZ housings in full northern Australian sun can reach internal temperatures beyond the rated operating range during summer afternoons. In high-UV, high-heat locations, consider a sunshield accessory or a north-facing mounting position that keeps the housing out of the worst direct sun during peak heat hours.
