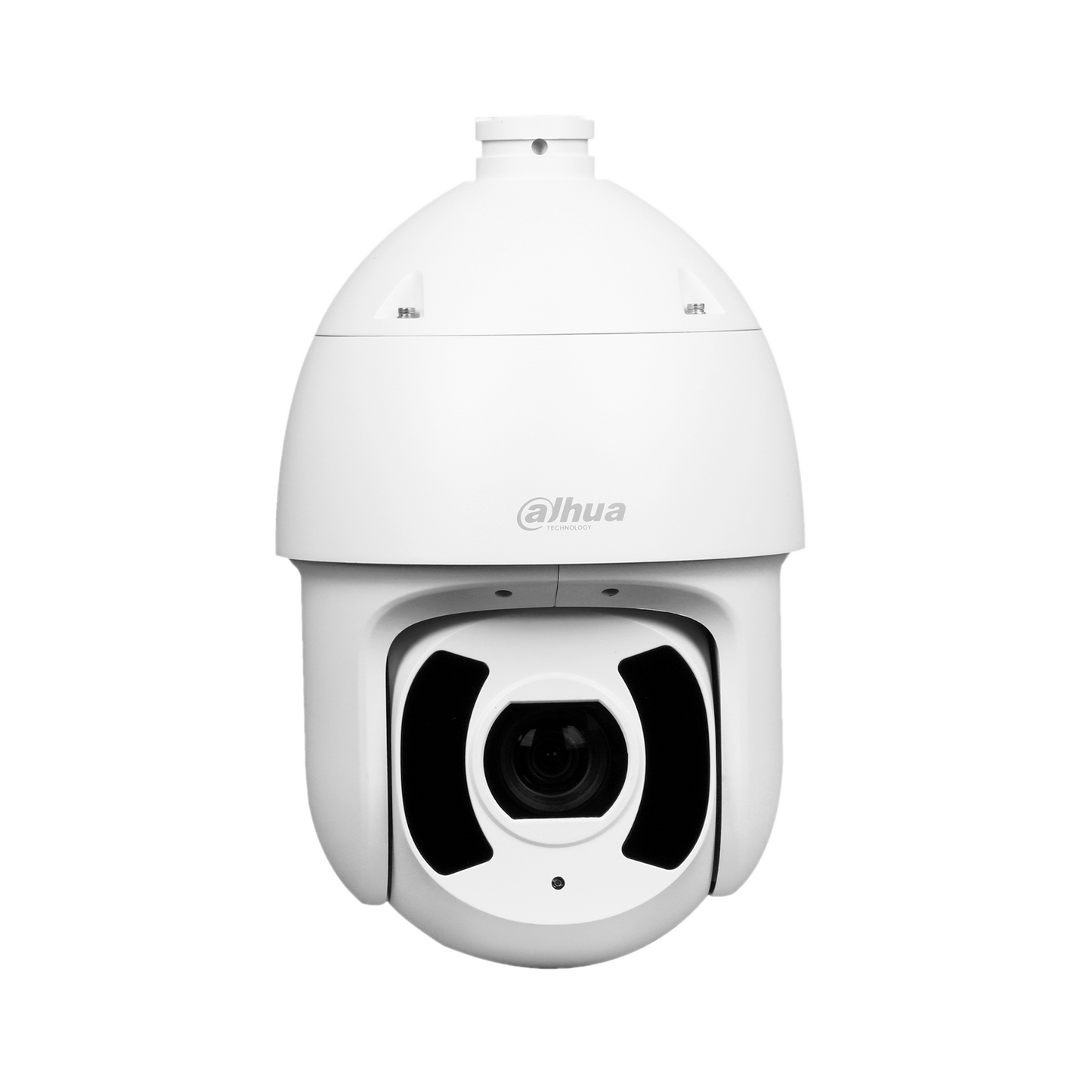

Dahua DH-SD6CE445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera

The Dahua DH-SD6CE445XA-HNR is a high-performance 4MP PTZ camera that offers impressive imaging capabilities with its 45x optical zoom lens. It features Starlight technology, ensuring excellent low-light performance and clear, detailed images even in challenging lighting conditions. The camera’s powerful IR illumination provides effective night vision, allowing it to capture clear footage up to 100 meters in complete darkness. With WizSense AI technology, it delivers advanced analytics for accurate detection and enhanced security management. The DH-SD6CE445XA-HNR supports multiple streaming options, including H.265+ compression, which reduces bandwidth and storage requirements while maintaining high video quality. Its rugged design makes it suitable for various weather conditions, ensuring reliable performance in outdoor environments.

The camera is equipped with a high-speed pan-and-tilt mechanism for flexible surveillance and precise positioning. It also includes features such as auto-tracking and a built-in wiper for maintaining a clear lens in adverse weather. Easy installation is supported through its PoE capability, simplifying wiring and reducing installation costs. The camera’s user-friendly interface allows for straightforward configuration and operation. Additionally, it integrates seamlessly with Dahua’s video management software for enhanced system functionality. Overall, the DH-SD6CE445XA-HNR is a robust and versatile solution for comprehensive surveillance needs.

Features

• 1/2.8” 4Megapixel STARVIS™ CMOS
• Powerful 45x optical zoom
• Starlight technology
• Max. 25/30fps@4MP
• Deep-learning-based auto tracking and perimeter protection
• Face detection
• SMD Plus
• IR distance up to 250m
• IP67, IK10



Functions

Starlight Technology
Dahua's Starlight Ultra-low Light Technology is designed for challenging low-light environments, offering exceptional light sensitivity to capture color details even in conditions as dim as 0.005 lux. The camera employs advanced optical features to ensure balanced lighting across the scene, producing clear images even in dark settings.

Wide Dynamic Range
The camera utilizes industry-leading Wide Dynamic Range (WDR) technology to deliver clear images in high-contrast lighting situations. With True WDR (120 dB), the camera optimizes both bright and dark areas simultaneously, making it ideal for scenes with rapidly changing lighting conditions.

Auto-tracking
This feature allows the camera to automatically control its pan, tilt, and zoom actions to follow a moving object, keeping it within the frame. The tracking can be triggered manually or automatically based on predefined rules, enabling the camera to zoom in and track the target as soon as the rule is activated.

Perimeter Protection
The camera intelligently filters out false alarms caused by factors like animals, rustling leaves, and bright lights. It enhances alarm accuracy by focusing on secondary recognition of actual targets, improving overall system reliability.

Environmental
Designed for extreme conditions, Dahua cameras can operate in temperatures ranging from -40°C to 70°C (-40°F to +158°F) with 95% humidity. The camera is IK10-rated for vandal resistance and has passed rigorous dust and water immersion tests, earning an IP67 Ingress Protection rating, making it suitable for demanding outdoor applications.

Protection
The camera supports a ±25% input voltage tolerance, making it reliable in unstable outdoor environments. Its 8KV lightning protection rating safeguards both the camera and its structure from lightning damage.

Interoperability
The camera adheres to the ONVIF (Open Network Video Interface Forum) specifications, ensuring seamless interoperability with network video products from different manufacturers.

SMD Plus
Powered by a Deep-Learning Algorithm, Dahua SMD Plus effectively filters out motion detection alarms triggered by irrelevant objects, accurately recognizing and focusing on human and vehicle movements. This feature ensures that alarms are only sent when a human or vehicle intrusion is detected.

Technical Specifications:

Camera

Image Sensor

1/2.8'' STARVIS™ CMOS

Pixels

4 MP

Max. Resolution

2560 (H) × 1440 (V)

Scanning System

Progressive

Electronic Shutter Speed

1/1 s–1/30,000 s

Minimum Illumination

Color: 0.005 Lux@F1.6; B/W: 0.0005 Lux@F1.6; 0 Lux@F1.6 (IR on)

Illumination Distance

Distance up to 250 m (820 ft)

Illumination On/Off Control

Auto/Manual

Illuminator Number

6

Lens

Focal Length

3.95 mm–177.75 mm

Max. Aperture

F1.6–F4.95

Angle of View

H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°

Optical Zoom

45x

Focus Control

Auto/Manual

Iris Control

Auto/Manual

Close Focus Distance

10 mm–3,000 mm

DORI Distance

DORI Distance

Detect

Observe

Recognize

Identify

3176 m (10420 ft)

1271 m (4170 ft)

635 m (2083 ft)

318 m (1043 ft)
