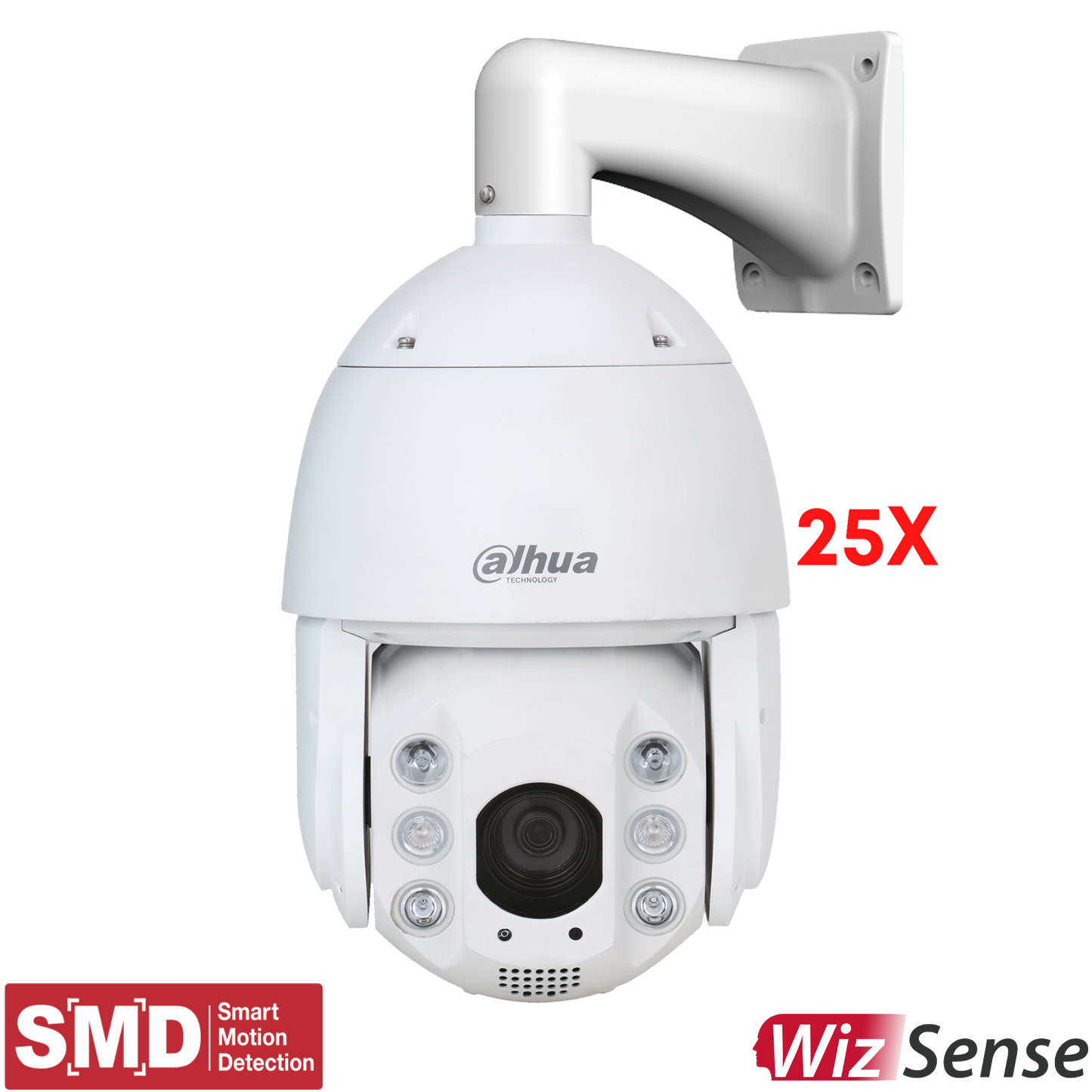

Dahua DH-SD6C3425XB-HNR-A-PV1 4MP TIOC 2.0 IP 25X PTZ Camera IR 150m

Model: DH-SD6C3425XB-HNR-A-PV1

Who This Is For

For security integrators and site managers who need a single camera to cover large, open areas with both wide situational awareness and the ability to zoom in on specific targets at distance, the Dahua DH-SD6C3425XB-HNR-A-PV1 is designed for exactly that challenge. The combination of 25x optical zoom, 150 m IR illumination, and TiOC 2.0 active deterrence makes it a strong candidate for critical infrastructure, large commercial yards, logistics facilities, and public-space surveillance where a fixed camera simply cannot cover the required geometry. The built-in WizSense AI handles perimeter protection with human and vehicle classification, filtering out common false-alarm sources before an alert is sent. The IP66-rated housing and IK10 vandal resistance mean it can be mounted in exposed outdoor positions without a separate enclosure. This is a specification-grade PTZ suited to planned deployments, not a quick residential install.

What This Camera Actually Does

Who Buys This Model

• Security integrators on critical infrastructure projects: Substations, water treatment facilities, and communications sites where a single PTZ must cover a large perimeter and respond actively to intrusions using the TiOC 2.0 strobe and voice alarm system.
• Logistics and freight yard operators: Large open yards where the 25x optical zoom allows one camera to monitor multiple entry points and zoom in on vehicle details at the far end of the property without installing additional fixed cameras.
• Local government and public space teams: Town centres, parks, and transport hubs where the 1,655 m detection DORI distance and 165 m identification distance justify replacing multiple fixed cameras with a single controllable unit.
• Construction site managers: After-hours perimeter monitoring where the active deterrence - red/blue strobes plus voice alarm triggered on human detection - creates an intervention capability without requiring a monitoring station to respond in real time.
• Commercial property managers with after-hours risk: Car parks, industrial estates, and distribution centres where face detection metadata supports evidence-gathering and the IK10/IP66 housing tolerates weather and the risk of physical interference.

Honest Assessment

The DH-SD6C3425XB-HNR-A-PV1 genuinely delivers where wide-area outdoor coverage, active deterrence, and detail capture at distance need to coexist in one unit. The 25x optical zoom combined with 150 m IR and Starlight sensitivity is a strong specification for large sites, and the TiOC 2.0 deterrence system - triggered on AI-confirmed human or vehicle detection rather than raw motion - is a meaningful step above cameras with only passive recording. The DORI figures (detect at 1,655 m, identify at 165 m) give integrators real numbers to work with during camera positioning planning. Where this camera will not serve well: it is not a substitute for fixed cameras at high-density, multi-lane entrances where a PTZ cannot simultaneously watch all lanes. It is also not the right choice when a fixed wide-angle overview with no pan/tilt/zoom requirement is all that is needed - a multi-sensor panoramic camera from the Security Australia range would be more cost-effective in that scenario. This model is priced and specified for professional deployment, not a DIY self-install.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a large outdoor area - a yard, car park, or open perimeter - where 25x optical zoom lets one camera survey wide and then zoom in on a target at the far end without a separate fixed camera for detail capture.
• Good match if: Your site requires active deterrence: the TiOC 2.0 red/blue strobe and voice alarm, triggered by AI-confirmed human or vehicle detection, is the right fit for an after-hours perimeter where a passive recording camera alone is insufficient.
• You may need a different model if: Your requirement is simultaneous, uninterrupted coverage of a wide scene with no blind spots during pan movement - a multi-sensor panoramic camera would be more suitable as it covers 180 or 360 degrees continuously without the field of view limitations that come with a single-lens PTZ.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires a single camera to perform wide-area overview and detailed zoom-in coverage, with active deterrence triggered by confirmed AI detection - a combination no fixed camera can replicate.
• You may need a different model if: Your requirement is continuous 360-degree or 180-degree coverage with no gaps during camera movement - a multi-sensor panoramic camera covers the full scene simultaneously and does not create blind spots while tracking a target.
• Pairs well with: Fixed turret or bullet cameras at choke points such as gates and doorways, so the PTZ handles open-area patrol and target tracking while fixed cameras maintain uninterrupted coverage of specific entry and exit positions.

Common Questions

1. What pan and tilt range does this camera support?

   The DH-SD6C3425XB-HNR-A-PV1 is a full 360-degree continuous pan PTZ with a tilt range of -15 to 90 degrees (auto-flip supported). Continuous pan means there is no mechanical stop - the camera can complete a full rotation without reversing direction, which matters for guard tour programming across large perimeters. The 90-degree downward tilt allows the camera to look directly beneath its mount point when installed on a high pole.

2. Does this camera require PoE+ or will a standard PoE switch work?

   This camera requires PoE+ (IEEE 802.3at, up to 30 W) - standard 802.3af PoE at 15.4 W is insufficient. The combination of the pan/tilt motor drive, 150 m IR illuminators, white-light LEDs, and active deterrence components under simultaneous load exceeds what 802.3af can supply. Using an under-rated switch or injector risks the unit operating in a degraded state or cycling off under load. Confirm your PoE switch or mid-span injector is 802.3at rated before cabling.

3. How does the auto-tracking work and will it leave other areas unmonitored while tracking?

   Yes - when auto-tracking is active and following a target, the camera pans and tilts to keep that subject in frame, which means it will move away from any preset position or guard tour point during the tracking event. This is a fundamental characteristic of single-lens PTZ auto-tracking, not a fault of this specific model. The correct design approach is to pair this camera with fixed cameras at critical fixed points such as gates and doorways so those positions remain covered continuously while the PTZ tracks across the open area.

4. What does the DORI distance actually mean for this camera in practice?

   DORI (Detect, Observe, Recognise, Identify) is a standardised way of describing what a camera can actually see at a given distance, not just how far the lens can reach. At maximum zoom, this camera detects movement at 1,655 m, observes enough detail to classify a person at 653 m, recognises a person at 331 m, and reaches identification quality - enough for evidential use - at 165 m. These figures apply at maximum 25x optical zoom with adequate lighting. Real-world environmental factors including haze, rain, and lighting conditions will reduce effective distances below these maximums.

5. Will the TiOC active deterrence trigger on animals or tree movement?

   No - the TiOC 2.0 deterrence is tied to the WizSense AI perimeter protection rules, which classify detected targets as human or vehicle before triggering any alarm output. Animals, blowing vegetation, and light changes that would trigger standard motion detection are filtered out by the secondary AI recognition step before the strobe or voice alarm activates. This is the practical difference between perimeter protection and basic motion-triggered alerts on outdoor cameras.

6. Can I import my own voice messages for the active deterrence alarm?

   Yes. The camera supports import of custom audio files for the voice alarm function in addition to the built-in alert messages. This allows site-specific messages - for example, a warning referencing the specific property or instructing the subject to leave immediately - rather than a generic alarm sound. Check the Dahua configuration interface for supported audio file formats before preparing your recordings.

7. Does this camera work for monitoring a site that is available through Security Australia with a Dahua NVR?

   Yes. The DH-SD6C3425XB-HNR-A-PV1 integrates natively with Dahua NVR platforms using the Dahua private protocol, which enables full PTZ control, preset management, AI event handling, and metadata recording from the NVR interface. It also supports ONVIF for integration with third-party VMS platforms. When pairing with an NVR, confirm the NVR channel count and that the recorder supports PTZ control passthrough, as some entry-level NVRs handle PTZ cameras with limited functionality.

Downloads & Resources

No downloads available for this product.
