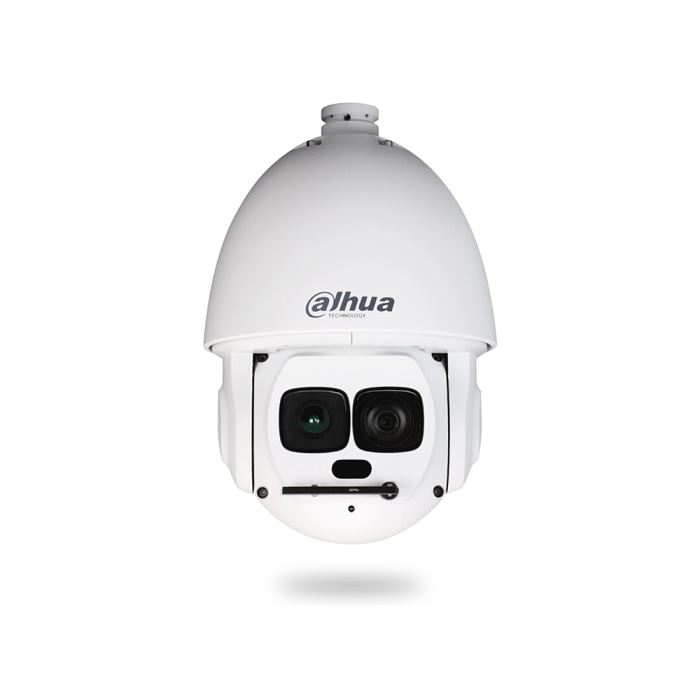

Dahua DH-SD6AL830V-HNI-IR 4K 30x IR PTZ Network Camera

Model: DH-SD6AL830V-HNI-IR

Who This Is For

Property managers specifying surveillance for large outdoor sites - ports, mine sites, sports facilities, perimeter fencing, and critical infrastructure compounds - will find the Dahua DH-SD6AL830V-HNI-IR built precisely for that scale of monitoring. This is a full 4K PTZ camera with 30x optical zoom, IR illumination to 150m, and auto-tracking, designed to cover the kind of ground where a fixed camera simply cannot follow a moving subject or zoom in on a distant access point. The DORI detection distance reaches 3,892m, observation at 1,557m, and recognition at 778m, which means this camera is doing the work of multiple fixed units across a wide-area site. With IK10 and IP67 ratings, Hi-PoE support, and an operating range from -40°C to +70°C, it is specified for environments where weather, temperature extremes, and physical exposure are constant factors - not occasional ones.

What This Camera Actually Does

Who Buys This Model

• Critical infrastructure operators: Power stations, water treatment facilities, and transmission substations where a single PTZ must cover large perimeter sections and auto-track intruders without requiring a dedicated operator watching every feed.
• Port and logistics terminal managers: Loading docks, container yards, and vessel berths where 30x zoom and 3,892m detection distance allow one camera to monitor the full length of a quayside or terminal approach.
• Mining and resources site security teams: Remote sites with temperature extremes and limited power infrastructure benefit from the -40°C to +70°C operating range, Hi-PoE single-cable installation, and IVS auto-tracking that reduces staffing requirements.
• Sports stadium and events venue operators: Where crowd management requires zoom-in identification at recognition distance (778m), 4K detail at full frame rate, and the flexibility to reposition coverage between zones during an event.
• Security integrators on government and defence-adjacent projects: ONVIF and PSIA compliance makes the DH-SD6AL830V-HNI-IR compatible with enterprise VMS platforms, simplifying specification into existing or multi-vendor recording infrastructure.

Honest Assessment

The DH-SD6AL830V-HNI-IR does genuine wide-area work that fixed cameras cannot replicate. The combination of 4K resolution, 30x optical zoom, DORI recognition at 778m, and auto-tracking with IVS rules makes it a credible choice for perimeter security, large open sites, and any installation where an operator needs to zoom in on activity and have the camera follow it. The IK10 and IP67 ratings, 8KV surge protection, and extreme temperature tolerance add real-world durability for outdoor industrial deployments. Smart H.265+ meaningfully reduces the storage load for what would otherwise be a bandwidth-heavy stream. Where this camera will not serve as well: if full-colour night imaging across the entire PTZ field of view is the primary requirement, a dedicated full-colour or white-light PTZ may produce better results in that specific scenario. For sites requiring simultaneous wide-angle and zoom coverage without operator input, a multi-sensor panoramic system available through Security Australia may complement or replace this unit. Hi-PoE is required - standard 802.3af switches will not power this camera.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to monitor a large perimeter or open compound and require zoom-in identification at extended range - the 30x optical zoom and 778m recognition DORI distance mean one unit can do the work of multiple fixed cameras across a wide frontage.
• Good match if: Your site operates in temperature extremes or exposed outdoor conditions - the -40°C to +70°C operating range, IP67 weatherproofing, IK10 impact resistance, and 8KV lightning protection are specified for permanent outdoor industrial installations, not just light commercial use.
• You may need a different model if: Your primary requirement is simultaneous 360-degree or wide-angle coverage without PTZ operator control - a multi-sensor panoramic or fisheye camera would give you persistent full-scene coverage that a PTZ camera, by nature, cannot provide when it is pointed in one direction.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover a large outdoor area with operator-controlled or auto-triggered zoom and tracking - the 30x optical zoom, 4K resolution, and IVS auto-tracking deliver a capability level that no fixed camera can match across equivalent distances.
• You may need a different model if: Your site requires persistent simultaneous coverage of multiple directions without operator or automated PTZ steering - a multi-sensor panoramic camera provides continuous 180° or 360° coverage that a PTZ camera cannot replicate when pointed in a single direction.
• Pairs well with: A Hi-PoE managed network switch (to supply sufficient per-port wattage), a compatible AI-enabled NVR for local IVS rule management and recording, and fixed turret or bullet cameras covering close-range zones the PTZ may be pointed away from.

Common Questions

1. What PoE standard does this camera require - will a standard PoE switch work?

   No. The DH-SD6AL830V-HNI-IR requires Hi-PoE (PoE+), which means your switch or injector must deliver at least 30W per port. Standard IEEE 802.3af switches are limited to 15.4W, which is insufficient to run the PTZ motors, IR illuminators, and sensor simultaneously. Before purchasing, confirm your network switch supports IEEE 802.3at (PoE+) or higher on the port you intend to use for this camera.

2. What is the pan and tilt range on this PTZ?

   The DH-SD6AL830V-HNI-IR is a full PTZ camera with motorised pan, tilt, and zoom. While the full pan/tilt rotation range should be confirmed against the current Dahua datasheet for this specific model, the horizontal field of view spans from 61.2° at wide angle down to 2.1° at full 30x telephoto, giving the operator significant flexibility to cover wide scenes or zoom tightly onto a distant subject. Preset positions can be stored and recalled for automated patrol patterns or guard tour routines.

3. How does the auto-tracking work and does it require continuous operator input?

   No, it does not require continuous operator input once configured. Auto-tracking on this camera operates via IVS rules set during commissioning. When a defined rule fires - such as a person crossing a line or entering a zone - the camera steers itself to follow the target and adjusts zoom to keep it framed. Tracking can also be initiated manually by an operator clicking on a subject in the live view. When tracking ends, the camera can be configured to return to a preset patrol position automatically.

4. What do the DORI distances mean and how should I use them for site planning?

   DORI stands for Detect, Observe, Recognise, and Identify - 4 levels of image detail at increasing proximity. For this camera at maximum zoom, detection occurs at up to 3,892m (you can see a human-sized object), observation at 1,557m (you can see movement and general behaviour), recognition at 778m (you can distinguish features such as clothing and build), and identification at 389m (you can confirm individual identity). These are general proximity figures used for planning camera placement, not guaranteed forensic standards. Use them to determine whether a single PTZ position covers your required recognition or identification zone before committing to a mounting location.

5. Will this camera work in extreme Australian outback conditions - heat, dust, and lightning?

   Yes. The DH-SD6AL830V-HNI-IR is rated for operation from -40°C to +70°C and carries an IP67 ingress protection rating, meaning it is dust-tight and protected against water immersion. The 8KV surge and lightning protection rating provides meaningful resilience against the electrical storm activity common across northern and central Australia. For installations on exposed steel structures such as poles or masts, earthing the mounting hardware appropriately remains important regardless of the camera's built-in surge protection.

6. Does this camera support integration with non-Dahua recording systems?

   Yes. The DH-SD6AL830V-HNI-IR supports both ONVIF and PSIA open standards, which means it can be added to most enterprise-grade VMS platforms and third-party NVRs that support these protocols. Full PTZ control (pan, tilt, zoom, preset recall) is typically available via ONVIF Profile S. Some advanced AI features such as IVS metadata streaming may require a Dahua-compatible NVR or VMS integration to be fully utilised - confirm with your VMS vendor before specifying. The range is stocked by Security Australia and the team can advise on confirmed compatible recording platforms.

7. How much storage does a 4K PTZ camera like this actually require, and how does Smart H.265+ help?

   A 4K stream at standard H.265 is bandwidth and storage intensive. Smart H.265+ uses scene-adaptive encoding, dynamic GOP, and intelligent noise reduction to reduce bit rate and storage requirements by up to 70% compared to standard H.265. In practical terms, a camera with a continuously moving PTZ scene - which changes significantly as the camera pans - will use more storage than a static fixed camera with the same compression. When sizing your NVR storage, calculate based on actual average bit rate under Smart H.265+ for your specific scene type rather than maximum theoretical throughput to avoid significant over-specification of hard drive capacity.

8. Does the PFA focusing technology make a practical difference when zooming quickly in the field?

   Yes, noticeably so. Standard PTZ cameras often exhibit a brief period of focus hunting when zooming rapidly - the image blurs and the autofocus system searches for the correct focal point, sometimes taking several seconds. PFA (Predictive Focus Adjustment) technology uses advanced focusing algorithms that predict and pre-position focus during the zoom movement rather than searching after it completes. In operational terms this means that when an operator zooms in quickly on a vehicle or person at distance, the image is sharp substantially faster - a meaningful improvement in time-sensitive monitoring situations.

Downloads & Resources

No downloads available for this product.
