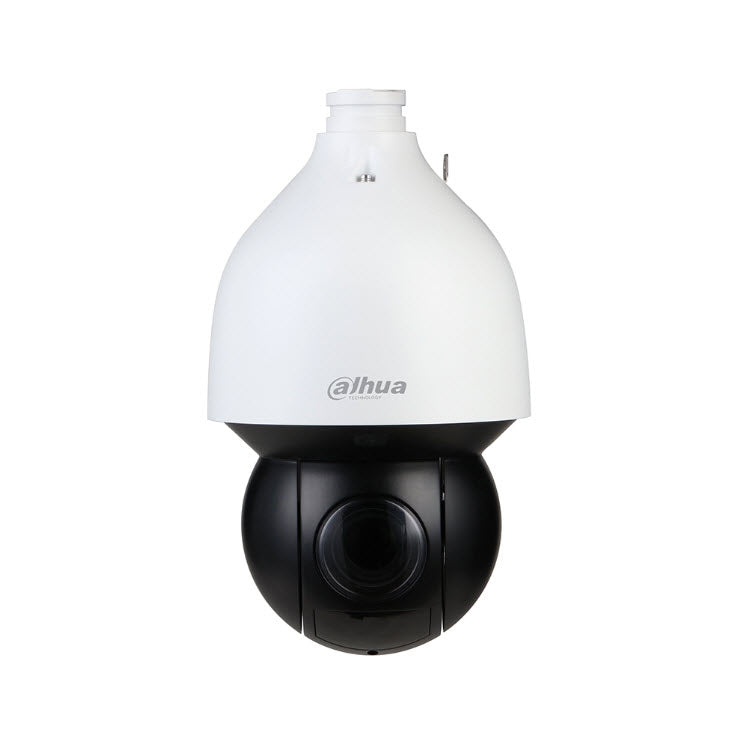

Dahua DH-SD5A432GB-HNR 4MP IP 32X PTZ CAMERA with Wizsense

$2,063.00 AUD
$1,158.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4MP 32x Starlight IR WizSense Network PTZ Camera

The Dahua 4MP 32x Starlight IR WizSense Network PTZ Camera (DH-SD5A432GB-HNR) offers exceptional clarity and detail with its 4MP resolution, making it ideal for capturing high-definition images over large areas. Equipped with a 32x optical zoom lens, this camera allows for detailed close-ups, even from a significant distance.

Key Features

  • 1/2.8" 4Megapixel STARVIS™ CMOS.
  • Powerful 32x optical zoom.
  • Max. 25/30 fps@4M.
  • IR distance up to 150 m.
  • Auto Tracking 3.0.
  • Face Detection.
  • SMD 4.0.
  • PoE+.
  • IP67, IK10.

Code/SKU: DH-SD5A432GB-HNR
Quick Specs: Focal Length: 4.8 mm–154 mm; Max. Aperture: F1.6–F4.0; Field of View: H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°; Optical Zoom: 32×

Specifications



Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR

Illuminator Number

4 (IR)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.8 m–5.0 m (2.62 ft–16.40 ft)

Iris Control

Auto; manual



Detect

Observe

Recognize

Identify

DORI Distance

2,124 m (6,968.50 ft)

839 m (2,752.63 ft)

425 m (1,394.36 ft)

212 m (695.54 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–300°/s

Tilt: 0.1°/s–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Intelligence

Video Metadata

Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

People Counting

Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month.

Auto Tracking

Yes

SMD

SMD 4.0

Acupick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)Sub stream 1: D1/VGA/CIF (1–25/30 fps)Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H264: 96 Kbps–14848 Kbps

H265: 38 Kbps–8960 Kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; TLSv1.2; SYSLOG(REMOTE LOGS); SSL

Interoperability

ONVIF(Profile S&G&T);CGI;SDK

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Alarm I/O

2/1

Audio I/O

1/1

Two-way Audio

Yes

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

24 VDC, 2.5 A ± 25%
PoE +(802.3at)

Power Consumption

Basic: 13 W

Max: 22 W (illuminator + PTZ working + Heater + Fan)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

332 mm × Φ190 mm (13.07" × Φ7.48")

Net Weight

4.7 kg (10.36 lb)

Gross Weight

8 kg (17.64 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-SD5A432GB-HNR 4MP IP 32X PTZ CAMERA with Wizsense

$2,063.00 AUD
$1,158.00 AUD
 per

The Dahua 4MP 32x Starlight IR WizSense Network PTZ Camera (DH-SD5A432GB-HNR) offers exceptional clarity and detail with its 4MP resolution, making it ideal for capturing high-definition images over large areas. Equipped with a 32x optical zoom lens, this camera allows for detailed close-ups, even from a significant distance. Its Starlight technology ensures superior low-light performance, delivering clear and colorful images in challenging lighting conditions. The built-in IR functionality provides reliable night vision up to 100 meters, ensuring comprehensive coverage around the clock.

The camera's WizSense feature leverages advanced AI technology for accurate and intelligent video analysis, enhancing overall surveillance effectiveness. It supports H.265 compression, optimizing bandwidth and storage efficiency while maintaining high video quality. With its robust PTZ capabilities, users can remotely control pan, tilt, and zoom functions, providing flexible and dynamic monitoring options. The camera is housed in a durable, weather-resistant enclosure, suitable for various outdoor environments. Additionally, it features multiple alarm and input/output interfaces, integrating seamlessly with existing security systems. Its user-friendly interface and comprehensive management software facilitate easy installation and operation.

Features

  • 1/2.8" 4Megapixel STARVIS™ CMOS.
  • Powerful 32x optical zoom.
  • Max. 25/30 fps@4M.
  • IR distance up to 150 m.
  • Auto Tracking 3.0.
  • Face Detection.
  • SMD 4.0.
  • PoE+.
  • IP67, IK10.



Functions

Perimeter Protection:
This feature automatically filters out false alarms triggered by animals, rustling leaves, bright lights, and other disturbances. It employs secondary recognition during target detection to enhance alarm accuracy.

Auto-tracking:
The camera's auto-tracking capability controls pan, tilt, and zoom actions to continuously follow a moving object and keep it within view. Tracking can be activated either manually or based on predefined rules. Once a rule is triggered, the camera automatically zooms in and follows the designated target.

Face Detection:
Supports detection of six attributes and eight expressions: Gender, age, glasses, mask, beard, and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It includes face cutout options: Face and single-inch photo, as well as three snapshot methods: Real-time snapshot, priority snapshot, and quality priority.

SMD 4.0:
Dahua's Smart Motion Detection (SMD) technology utilizes intelligent algorithms to classify targets that trigger motion detection alarms. It filters out irrelevant objects, such as animals of various sizes, to prevent false alarms. When used with an AI NVR, Quick Pick technology enables easy searching and identification of human and vehicle targets in SMD event videos, prioritizing the most relevant matches.

Starlight Technology:
Dahua's Starlight Ultra-low Light Technology excels in low-light conditions, capturing vivid color detail even at just 0.005 lux. The camera uses advanced optical features to balance light across the scene, delivering clear images in dark environments.

Smart H.265+ & Smart H.264+:
Dahua's advanced scene-adaptive rate control algorithm improves encoding efficiency over standard H.265 and H.264, providing high-quality video while reducing storage and transmission costs.

Technical Specifications:

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR

Illuminator Number

4 (IR)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.8 m–5.0 m (2.62 ft–16.40 ft)

Iris Control

Auto; manual

Detect

Observe

Recognize

Identify

DORI Distance

2,124 m (6,968.50 ft)

839 m (2,752.63 ft)

425 m (1,394.36 ft)

212 m (695.54 ft)
