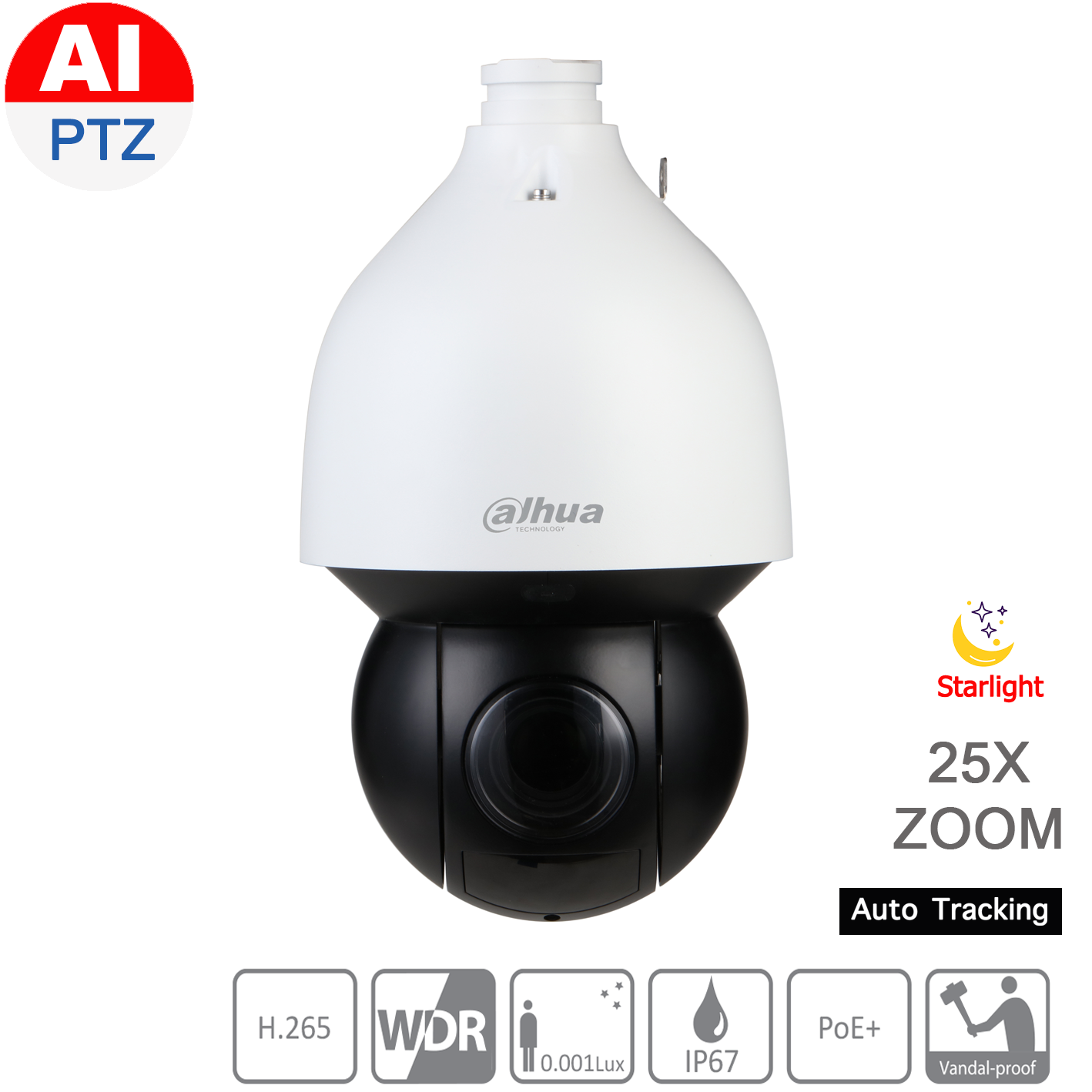

Dahua DH-SD5A425XA-HNR 4MP 25x Starlight IR PTZ AI Network Camera

Model: DH-SD5A425XA-HNR

Who This Is For

For security managers and installers who need a single camera to cover large, variable-distance environments without deploying multiple fixed units. The DH-SD5A425XA-HNR is a 4MP PTZ camera built around a 25x optical zoom, 150 m IR illumination, and deep-learning AI - a combination that suits wide-open sites where the camera must both patrol a broad scene and zoom into fine detail on demand. Typical installs include transport hubs, school campuses, industrial yards, and public open spaces where operators need to detect movement at distance, track a subject as it moves, and then identify that subject clearly before dispatch. The camera's IP67 and IK10-rated housing handles exposed outdoor mounting, while PoE+ delivery means a single Cat6 run covers both power and data. It is a working tool for professional installations where coverage planning, tracking behaviour, and AI classification accuracy all matter.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Managers: Yards, warehouses, and distribution centres where a single PTZ with 150 m IR and auto-tracking replaces 3 or 4 fixed cameras covering overlapping zones.
• School and Campus Security Teams: Large open grounds where the camera patrols preset positions after hours and auto-tracks any human detection, with SMD Plus filtering out birds, swaying trees, and passing headlights.
• Transport and Logistics Operators: Bus depots, rail yards, and freight terminals where the 25x optical zoom allows operators to read identifiers on vehicles and individuals at distances impractical for fixed cameras.
• Local Government and Councils: Public open spaces, parks, and streetscapes where a single vandal-resistant IK10 PTZ on a pole mount provides the patrol coverage that would otherwise require a dense fixed-camera network.
• Professional CCTV Integrators: Projects specifying Dahua WizSense ecosystems where deep-learning perimeter protection, IVS rule-based triggers, and NVR-side AI processing need to work together from a single camera head.

Honest Assessment

The DH-SD5A425XA-HNR does several things well in combination: the 25x optical zoom paired with 4MP resolution gives operators genuine identification capability at distance, and the DORI figures bear this out - recognition at 344 m and identification at 172 m are real working numbers for a camera at this focal length. The Starlight+ sensor and SmartIR interaction is genuinely useful at night; most competing PTZs at this zoom range wash out close subjects when IR is at full output. The IP67 and IK10 construction is confirmed, not just claimed, making exposed pole mounts in Australian coastal or industrial conditions a practical option. Where it has limits: auto-tracking works within the camera's field of view and zoom ratio - it will not hand off to adjacent cameras without VMS-level integration. If the primary requirement is fixed, wide-angle continuous colour night vision rather than zoom and patrol, a multi-sensor panoramic or TiOC fixed camera may serve better. The Security Australia team can help match this to the right NVR and VMS configuration for your site.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to monitor a large open area - a yard, campus, or public space - and require both wide patrol coverage and the ability to zoom into detail at 100 m or more at night using 150 m IR.
• Good match if: Your site generates frequent nuisance alarms from existing motion-detection cameras, and you need deep-learning human and vehicle classification (SMD Plus) to filter detections before alerts are sent to operators.
• You may need a different model if: Your primary requirement is continuous full-colour wide-angle night vision across a fixed scene with no patrol or zoom need - a multi-sensor panoramic or TiOC turret camera will cover more ground simultaneously without the mechanical complexity of a PTZ.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need zoom-in identification capability at 100 m or more, combined with active auto-tracking and deep-learning perimeter protection on a single camera - areas where fixed cameras require multiple units to match the coverage.
• You may need a different model if: The requirement is continuous simultaneous wide-angle recording of an entire scene with no gaps between patrol positions - a multi-sensor panoramic camera captures a full 180 or 360-degree view at all times rather than directing a single lens around a zone.
• Pairs well with: A Dahua WizSense NVR with AI processing capability, which allows SMD Plus detections, IVS rules, and auto-tracking events to be managed, searched, and alerted centrally rather than relying on camera-side notification only.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The DH-SD5A425XA-HNR requires PoE+ (IEEE 802.3at) delivering up to 30W, not standard 802.3af PoE which is limited to 15.4W. The additional power is needed to drive the pan/tilt motors, 4 IR illuminators, and the onboard AI processing simultaneously. Using a standard PoE switch will result in the camera not powering on or operating with reduced functionality.

2. What are the pan and tilt ranges on this PTZ?

   Pan is 360-degree endless rotation with no mechanical stop. Tilt runs from -15 degrees to 90 degrees, allowing the camera to look slightly above horizontal through to straight down. The endless pan means the camera can follow a subject continuously around a full circuit without needing to reverse direction - useful for tracking subjects moving around a perimeter or through a large open yard.

3. What is the optical zoom ratio and how does it affect image quality at distance?

   The optical zoom is 25x, covering a focal length of 5.4 mm to 135 mm. Because it is optical rather than digital, image quality does not degrade as the camera zooms in - the lens physically changes focal length. Combined with the 4MP sensor and PFA auto-focus technology, this gives the camera confirmed DORI identification performance at 172 m and recognition at 344 m under the EN 62676-4 standard.

4. Will the auto-tracking feature follow a person who walks outside the camera's current field of view?

   No - not automatically on the camera alone. Auto-tracking follows a subject within the camera's current zoom and field of view and adjusts pan, tilt, and zoom to maintain lock. If the subject moves beyond the tracking range or into a blind zone not covered by that camera's physical position, tracking is lost. Handoff to adjacent cameras requires VMS-level integration rather than a camera-only function.

5. How does SMD Plus differ from standard motion detection on this camera?

   SMD Plus uses a deep-learning algorithm to classify detected objects as human or vehicle before generating an alert, rather than triggering on any pixel change in the scene. Standard motion detection alarms on wind-blown foliage, insects, lighting changes, and small animals. SMD Plus filters these out and only sends an alert when a human or vehicle classification is confirmed - reducing nuisance alarms significantly on exposed outdoor sites.

6. Does this camera record locally if the network connection drops?

   Yes, with a microSD card installed. The DH-SD5A425XA-HNR has a built-in microSD card slot that supports local edge recording. If the network or NVR connection is interrupted, the camera continues to record to the card. Once connectivity is restored, many Dahua NVRs support automatic retrieval of the gap footage from the card - check NVR compatibility for this specific function during system design.

7. What do the DORI distances mean in practice for this camera?

   DORI is a standardised measurement (EN 62676-4) of what a camera can actually see at different distances. For the DH-SD5A425XA-HNR at full 25x zoom: Detect (something is present) at 1,724 m; Observe (basic description of object type) at 689 m; Recognise (confirm a known individual) at 344 m; Identify (positive ID of an unknown individual) at 172 m. These figures apply at the telephoto end of the zoom range. At wider zoom settings, these distances reduce proportionally. Security Australia stocks this camera as part of the Dahua WizSense PTZ range for sites where these working distances are a key specification requirement.

8. Will this camera maintain colour video at night without IR being switched on?

   It depends on the ambient light level. The Starlight+ sensor captures colour at 0.001 lux, which is enough for many partially lit environments - car parks, building exteriors with nearby street lighting, or areas with some ambient spill. In truly dark environments with zero ambient light, IR switches on and the image moves to black-and-white. The camera does not produce full-colour video in complete darkness without an external white-light source - that capability belongs to TiOC or full-colour fixed cameras with dedicated white illuminators.
