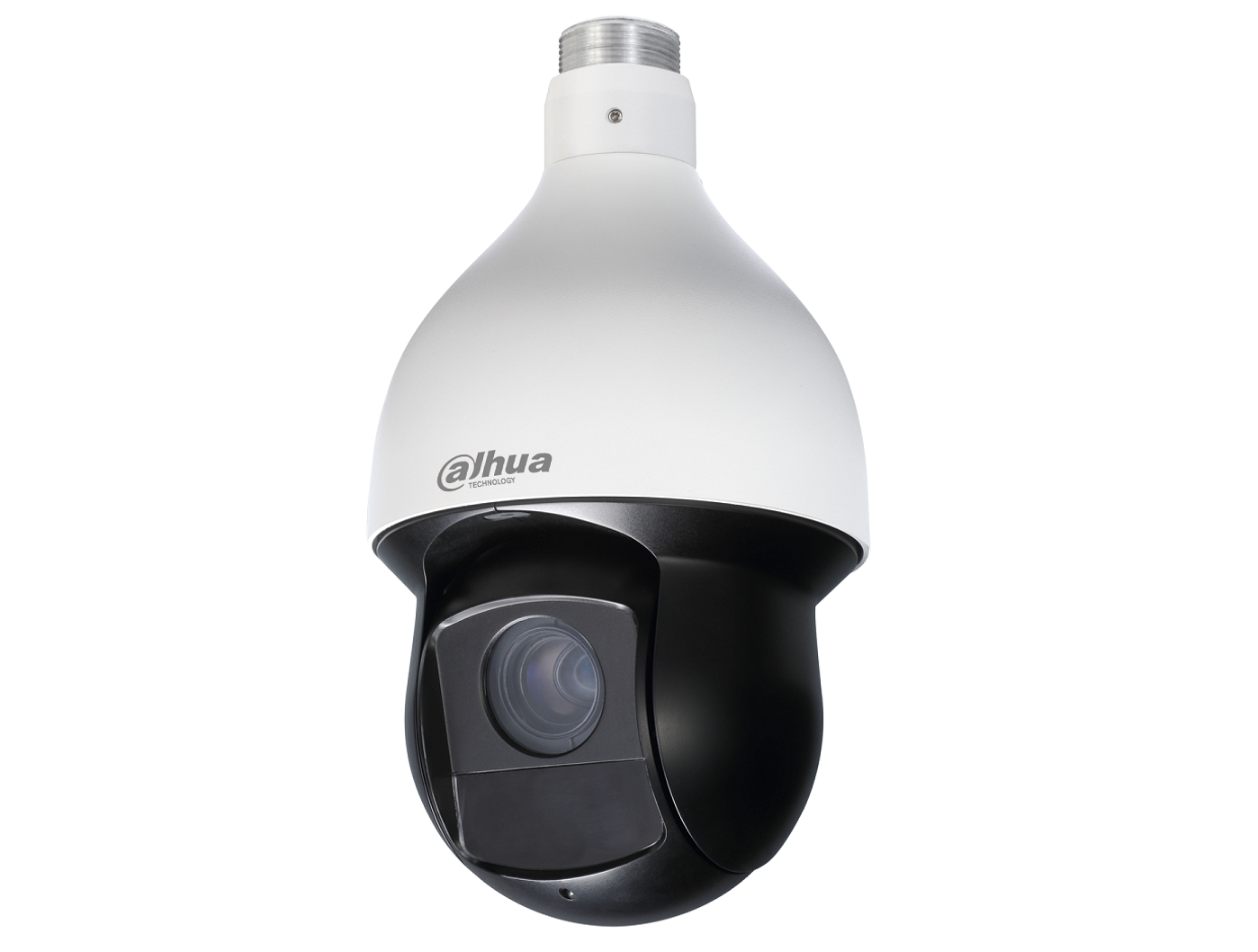

Dahua DH-SD59430U-HNI 4MP 30x IR PTZ Network Camera

Model: DH-SD59430U-HNI

Who This Is For

When covering large open spaces with a single camera position is the priority, the Dahua DH-SD59430U-HNI delivers the optical reach and intelligent automation to make that viable. Designed for installers specifying cameras across car parks, building perimeters, transport hubs, and critical infrastructure sites, this PTZ combines a 30x optical zoom with 100m IR range and auto-tracking to follow movement across wide areas without a second operator. The 4MP sensor resolves enough detail at distance to support post-event review, and Smart H.265+ compression keeps storage demands manageable on long-retention deployments. PoE+ power delivery simplifies cabling runs to elevated or pole-mounted positions where running separate power is impractical. It suits facilities managers, integrators, and local government contractors who need one camera to actively patrol a zone rather than passively record it.

What This Camera Actually Does

Who Buys This Model

• Security integrators on commercial contracts: Specifying a single PTZ to replace multiple fixed cameras across open areas like car parks, plazas, or building forecourts, using auto-tracking and IVS rules to reduce reliance on monitored control rooms.
• Local government and infrastructure managers: Deploying on pole mounts for town centre or traffic monitoring where PoE+ simplifies installation and the 30x optical zoom provides the reach to cover wide intersections or transit corridors from a single position.
• Industrial facility and site managers: Installing at perimeter fence lines, loading dock entries, or fuel storage areas where the 100m IR range and IP66 housing maintain coverage through dust, rain, and complete darkness.
• ONVIF-based system integrators: Adding a PTZ layer to an existing multi-brand NVR environment where ONVIF and PSIA compliance allows integration without proprietary hardware lock-in.

Honest Assessment

The DH-SD59430U-HNI does a specific job well: active, wide-area coverage from a single camera position. The 30x optical zoom combined with auto-tracking and IVS perimeter protection makes it a genuine monitoring tool rather than a passive recorder. Smart H.265+ keeps storage costs realistic for 4MP continuous recording, and the PoE+ power delivery is a practical advantage on elevated or remote mounting positions. The IP66 rating and 6KV lightning protection make it viable for exposed Australian outdoor environments including coastal and tropical sites, available through Security Australia.

Where it has limits: this is not the right choice if you need full-colour night vision - the IR system is monochrome. It also requires PoE+ (802.3at), not standard PoE, so your switch or injector budget needs to account for that. For applications that need multi-lane or simultaneous wide-angle coverage without manual operator input, a multi-sensor panoramic camera may serve better than a single PTZ.

Before You Buy

Quick Fit Check

• Good match if: You need to actively monitor a large open area - a carpark, forecourt, or industrial yard - from a single mounting point, and auto-tracking can replace the need for a staffed monitoring position.
• Good match if: Your install position is pole-mounted or elevated with a single Cat5e or Cat6 cable run, and you need both power and data from a PoE+ switch without pulling a separate power circuit.
• You may need a different model if: Your site requires simultaneous full-colour wide-angle coverage across multiple directions without PTZ movement - a multi-sensor panoramic or turret array would cover that scenario more effectively. Security Australia stocks both types.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to actively follow movement across a large open area, with 30x optical zoom to reach subjects at distance and auto-tracking to operate without a dedicated monitoring operator.
• You may need a different model if: Your application requires simultaneous wide-angle recording in all directions without any blind spots during PTZ movement - a multi-sensor panoramic camera covers all directions at once, which a PTZ cannot do while actively tracking.
• Pairs well with: A fixed wide-angle IP camera at the same location to maintain continuous overview recording while the PTZ zooms and tracks, along with a PoE+ managed switch that supports 802.3at on the PTZ port.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The DH-SD59430U-HNI requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. Standard PoE (IEEE 802.3af) is limited to 15.4W and will not power this PTZ. You need a switch or injector that explicitly supports 802.3at on the port used for this camera. Check your switch's per-port wattage specification before installation - "PoE switch" on a spec sheet does not guarantee 802.3at support.

2. What is the optical zoom ratio and what does 30x actually mean for coverage distance?

   The 30x optical zoom spans a focal length of 4.5mm to 135mm, shifting the horizontal field of view from 60 degrees down to 2.2 degrees. At the narrow end, a camera mounted at 6 metres height can resolve facial detail at distances that a standard fixed camera at the same position could not approach. The 30x figure is a pure optical ratio with no digital zoom degradation - image quality at 135mm is maintained by the sensor rather than upscaled digitally.

3. Will this camera automatically follow a person who enters a restricted zone?

   Yes, with configuration. The auto-tracking function can be set to activate based on IVS rules - specifically tripwire or intrusion zone triggers - so the camera begins tracking only when a subject crosses a defined boundary rather than responding to all movement. Once triggered, it adjusts pan, tilt, and zoom automatically to keep the subject centred. In open or busy areas, configuring a specific trigger zone rather than general motion detection produces more controlled tracking behaviour.

4. Does the auto-tracking work in complete darkness?

   Yes. The camera's 4 IR LEDs illuminate to 100 metres and the minimum illumination reaches 0 lux with IR active at F1.6. Auto-tracking uses the camera's video analysis rather than a separate sensor, so it functions across the IR-illuminated image the same way it does in daylight. The IR activates automatically unless switched to manual control.

5. How much does Smart H.265+ actually reduce storage compared to standard recording?

   Dahua's Smart H.265+ uses scene-adaptive encoding, dynamic GOP, and intelligent noise reduction to reduce bit rate and storage requirements by up to 70% compared to standard H.265. In practice, the actual saving depends on scene complexity and movement frequency - a busy intersection will save less than a quiet perimeter fence. For storage planning purposes, calculate your NVR capacity at standard H.265 bit rates and treat Smart H.265+ as an efficiency margin rather than a baseline guarantee.

6. What pan and tilt range does this PTZ cover, and how many preset positions can be stored?

   The confirmed specifications for full pan range, tilt range, and maximum preset position count are not detailed in the available spec sheet for the DH-SD59430U-HNI. For precise PTZ movement parameters before specifying for a particular installation, the Dahua technical datasheet for this model should be reviewed - this detail is relevant when planning patrol routes or coverage arcs. Contact the team at Security Australia if you need the full mechanical specification confirmed prior to ordering.

7. Is this camera compatible with third-party NVRs and VMS platforms?

   Yes, to the extent that the NVR or VMS supports ONVIF or PSIA. The DH-SD59430U-HNI is certified to both ONVIF and PSIA standards, which provides baseline compatibility for video stream integration, PTZ control, and event triggers across platforms from multiple manufacturers. Full feature availability - including IVS rules, auto-tracking activation, and Smart H.265+ decoding - typically requires a Dahua NVR or a VMS with native Dahua SDK integration.

8. Does this camera produce colour video at night, or only monochrome IR?

   Monochrome only in IR mode. The DH-SD59430U-HNI uses infrared illumination for night vision, which produces black-and-white images below the colour threshold. The minimum colour illumination is 0.05 lux at F1.6. Below that level, the camera switches to IR-assisted monochrome. If full-colour night vision is a requirement, a full-colour or TiOC camera type with white light or warm light illumination would be the appropriate product category to consider instead.

Downloads & Resources

No downloads available for this product.
