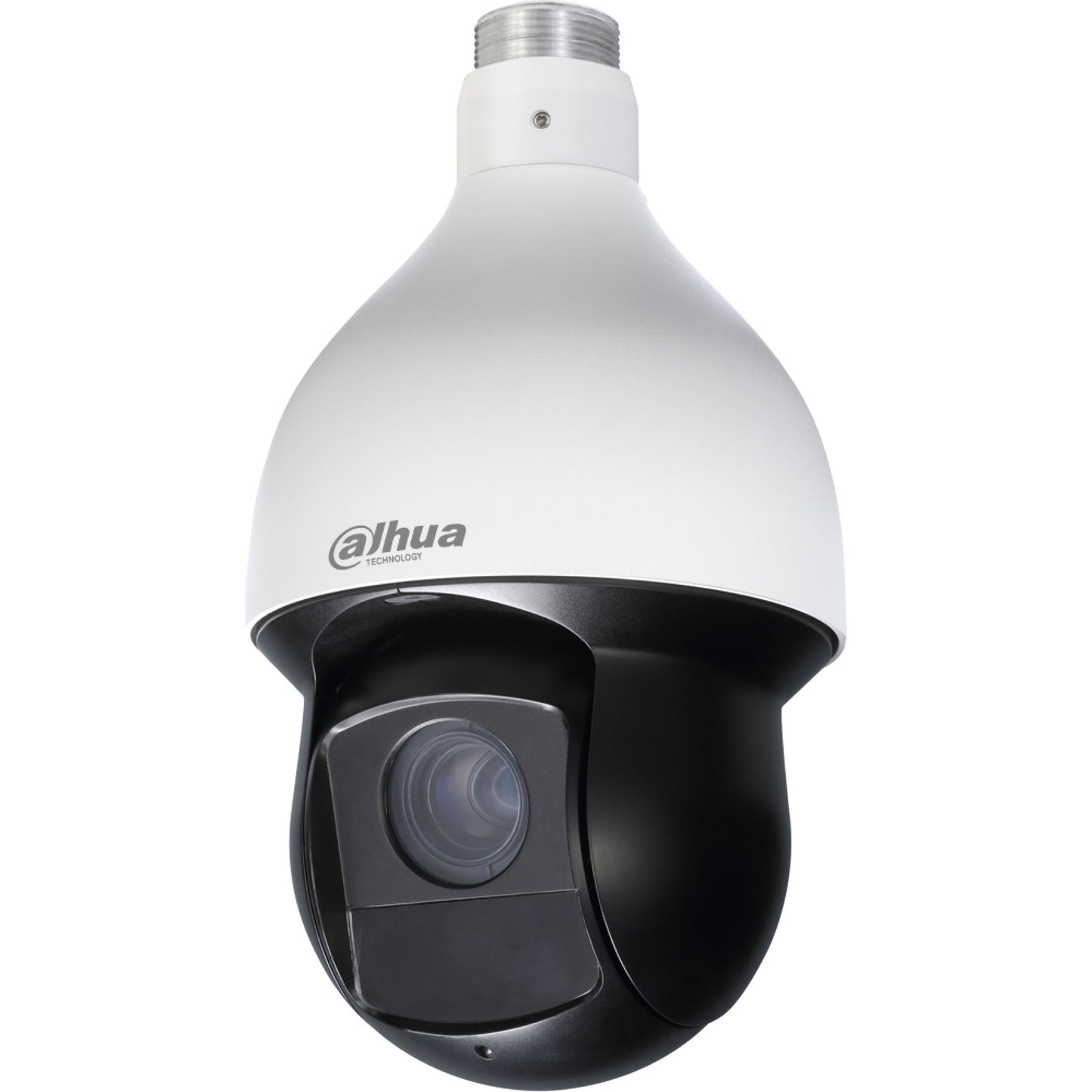

Dahua DH-SD59230U-HNI 2MP 30x Starlight IR PTZ Network Camera

Model: DH-SD59230U-HNI

Who This Is For

For security professionals and site managers who need a single camera to cover large outdoor areas without deploying a fixed camera at every angle, the Dahua DH-SD59230U-HNI delivers 30x optical zoom, 360-degree continuous pan, and auto-tracking in one IP66-rated housing. This is the type of camera specified for school ovals, large car parks, industrial yards, sporting precincts, and perimeter fences where a fixed camera simply cannot reach far enough or pivot to follow movement. The Starlight sensor handles colour imaging down to 0.005 lux, and the 150m IR range means long after dark, the camera is still pulling usable footage. Installers planning wide-area coverage with a reduced camera count will find the SD59230U-HNI a practical fit - one well-positioned unit can replace several fixed cameras while adding the flexibility of operator-controlled or rule-triggered tracking.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Managers: Yards, loading areas, and perimeter fences where a single pan-tilt-zoom unit replaces multiple fixed cameras and can be operator-driven to respond to incidents in real time.
• School and Campus Facility Teams: Large ovals, playgrounds, and open-plan grounds where 30x optical zoom allows staff to zoom in on incidents from a central mounting point without needing cameras at every end of the site.
• Local Council and Public Space Operators: Parks, carpark complexes, and public plazas where 360-degree continuous pan and auto-tracking IVS rules can be configured to detect and follow unauthorised entry or late-night activity.
• Security Integrators Reducing Camera Count: Installers specifying systems where budget or cabling constraints limit the number of camera positions - the 150m IR and 30x zoom allow a single SD59230U-HNI to cover a zone that would otherwise require 3 or 4 fixed units.

Honest Assessment

The DH-SD59230U-HNI does the things a wide-area PTZ needs to do well: the 30x optical zoom is genuinely useful rather than a marketing figure, Starlight colour imaging at 0.005 lux means colour information is preserved in low-light scenes where most cameras switch to greyscale, and the 150m IR extends usable footage well into darkness. Smart H.265+ keeps storage manageable for a camera running continuous motion-driven recording. The IP66 and -40 to +70 degree operating range mean it handles Australian outdoor conditions without issue, and the 6KV lightning protection is a meaningful inclusion for exposed rural or coastal installs. Where this camera has limits: it is a 2MP sensor, so zoomed-out wide-angle views produce less detail per square metre than a 4MP or 8MP fixed camera covering the same zone. If the goal is evidentiary-quality facial or plate capture at wide angles simultaneously, a higher-resolution fixed camera or a multi-sensor panoramic unit available through Security Australia may be a better fit.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open area - a car park, industrial yard, or school oval - where a single camera needs to zoom in on detail at distance and pan continuously to follow or monitor movement across the full 360 degrees.
• Good match if: The site has poor or no external lighting and you need colour imaging in near-dark conditions plus IR coverage out to 150 metres - the Starlight sensor and IR LEDs handle this without a second camera or external lighting investment.
• You may need a different model if: Your priority is capturing simultaneous high-resolution detail across a wide panoramic view without any blind spots during a PTZ movement - a multi-sensor panoramic camera type is better suited to that requirement and avoids the coverage gap that occurs when a PTZ is pointed in one direction.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need one camera to actively follow movement across a large outdoor space using auto-tracking IVS, with 30x optical zoom giving you usable detail at distance rather than just wide-area overview.
• You may need a different model if: The requirement is continuous simultaneous coverage of 180 or 360 degrees with no blind spots during camera movement - a multi-sensor panoramic camera type maintains full-scene recording at all times regardless of where the view is directed.
• Pairs well with: A PoE+ managed switch or NVR with PoE+ ports, combined with a secondary fixed wide-angle camera to maintain overview coverage while this unit is zoomed in or tracking a target.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The DH-SD59230U-HNI requires IEEE 802.3at PoE+ and will not function correctly on a standard IEEE 802.3af PoE port. PoE+ delivers up to 30W per port versus the 15.4W limit of standard PoE. Before purchasing, confirm your NVR or switch has PoE+ rated ports, or plan for a PoE+ injector on the relevant cable run. Running it underpowered can cause the camera to power cycle or fail to operate the PTZ motors.

2. Will this camera track moving subjects automatically without an operator?

   Yes. The auto-tracking function can be triggered by IVS rules such as intrusion detection or line crossing, so the camera responds to detected motion without a live operator present. Once triggered, it pans, tilts, and zooms to keep the subject in frame. Tracking can also be activated manually by an operator via a connected NVR or VMS. Setting up accurate IVS zones during commissioning is important to reduce false triggers from environmental movement like trees or passing vehicles outside the monitored area.

3. What does the 30x optical zoom actually mean in practical terms?

   It means the focal length adjusts from 4.5mm to 135mm with no digital interpolation. The horizontal field of view shifts from 67.8 degrees at wide-angle to 2.4 degrees at full telephoto. In practice, a subject at 50 metres that appears small in wide view can be magnified to fill the frame. Importantly, PFA technology maintains focus continuity throughout the zoom travel, so there is no hunting or blur as you adjust zoom level.

4. How much does Smart H.265+ reduce storage compared to regular H.264?

   Significantly. Smart H.265+ uses scene-adaptive encoding and dynamic GOP to reduce bitrate by up to 70% compared to standard H.265, and further compared to H.264. For a PTZ camera that may run continuous recording or event-based high-bitrate streams, this reduction is meaningful when sizing storage on an NVR. The saving is greatest on scenes with large areas of low-movement content - typical of outdoor perimeter scenes overnight. Security Australia stocks compatible NVR units if you need to plan storage alongside this camera.

5. Does the camera maintain a recording position when not being actively controlled?

   Yes. PTZ cameras including this model support preset positions and patrol patterns - the camera can be configured to return to a default overview position after a period of inactivity, or cycle through a sequence of presets automatically. This is configured through the camera's web interface or via a connected NVR, and means the camera is not left pointing at the last manually controlled position indefinitely when not attended.

6. What is the pan range and how quickly does it move?

   Pan is 360-degree continuous with no mechanical stop. This means the camera can rotate in one direction indefinitely without cable winding issues. Tilt range and speed specifications are not confirmed in the available data, however the camera supports both manual speed control via PTZ interface and auto-tracking which manages movement speed relative to subject motion. For patrol pattern planning, preset positions can be programmed and the camera moves between them at a configurable dwell time.

7. Is the DH-SD59230U-HNI compatible with third-party NVRs and VMS platforms?

   Yes. The camera conforms to ONVIF standards, which means it will integrate with any ONVIF-compatible NVR or video management software from other manufacturers. For full feature access including Smart H.265+, IVS rule configuration, and auto-tracking controls, a Dahua NVR or Dahua SmartPSS/DSS software platform is recommended - third-party ONVIF integration typically covers basic streaming and PTZ control but may not expose manufacturer-specific AI or compression features.

Downloads & Resources

No downloads available for this product.
