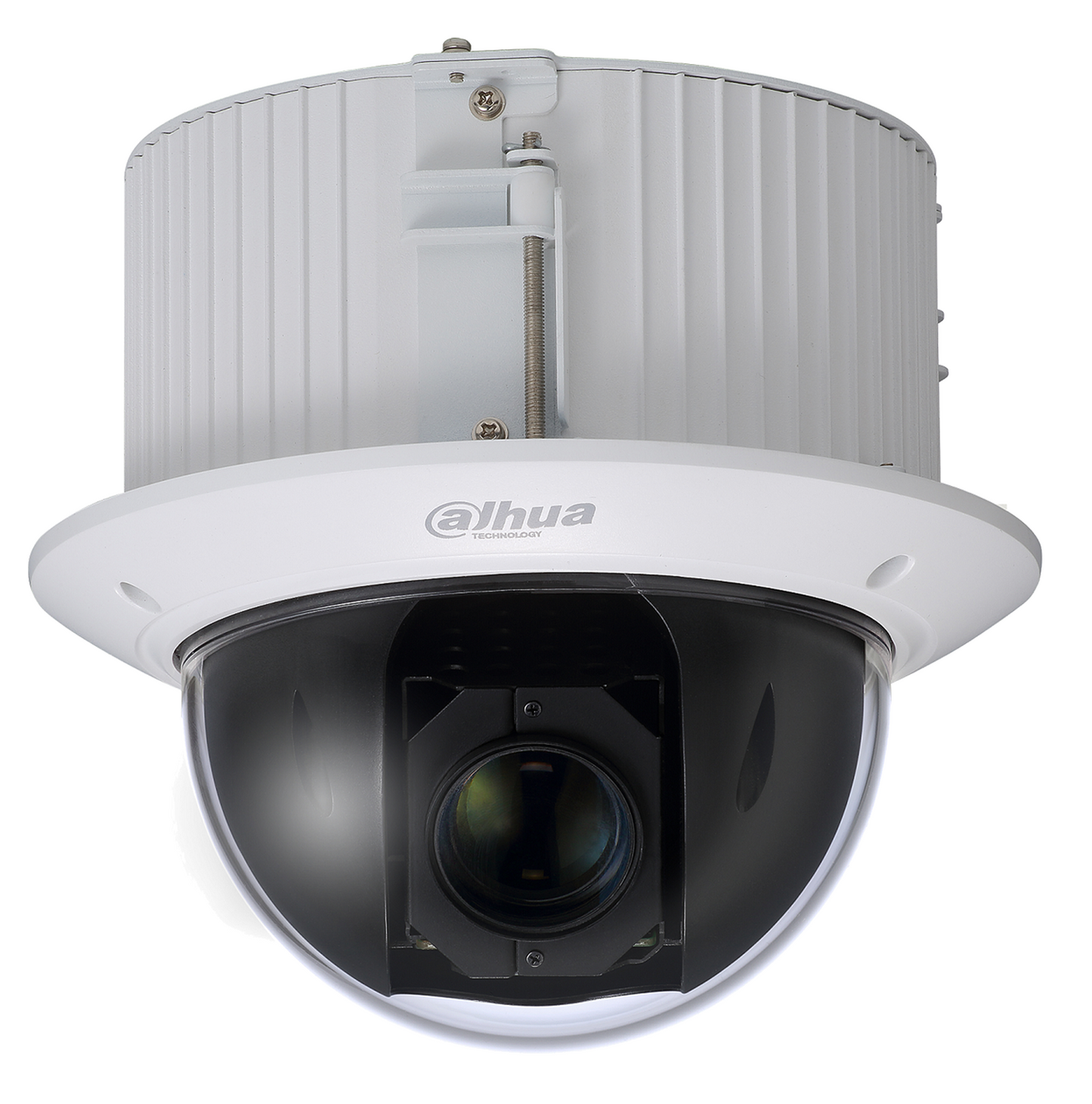

Dahua DH-SD52C225U-HNI 2MP 25x Starlight PTZ Network Camera

Model: DH-SD52C225U-HNI

Who This Is For

When wide-area coverage from a single camera position is the priority, the Dahua DH-SD52C225U-HNI delivers the optical reach and movement intelligence to handle it. Built for installers specifying PTZ cameras across large open sites - transport hubs, commercial car parks, open retail forecourts, educational campuses, and public spaces - this camera combines a 25x optical zoom with Starlight low-light sensitivity and onboard auto-tracking to reduce the operator workload considerably. The 25x zoom ranges from a 62.8 degree wide view down to 2.6 degrees for tight detail at distance, and the auto-tracking function can lock onto and follow a moving subject through predefined rules without manual intervention. At 2MP and 1080p up to 60fps, it produces smooth, detailed footage at full HD. PoE+ powering keeps installation straightforward where network infrastructure is already in place, and the IK10-rated housing handles impact and vandalism in exposed locations.

What This Camera Actually Does

Who Buys This Model

• Transport and logistics facilities: Bus depots, rail yards, and freight terminals use the 25x optical zoom to monitor platform approaches and loading areas from a single elevated mounting point, zooming in on incidents without repositioning a fixed camera.
• Large commercial car parks and forecourts: Sites needing coverage of wide open areas with the ability to zoom into specific bays or follow a subject rely on auto-tracking and IVS rules to reduce the monitoring load on operators.
• Educational campuses and public open spaces: Councils and facilities managers specifying cameras across large grounds where a single PTZ can patrol a wider area than multiple fixed cameras, with Starlight performance handling the low ambient light common in outdoor after-hours environments.
• Security integrators on commercial projects: Installers who need PoE+ powering to simplify cabling, ONVIF compliance for VMS integration across mixed-brand systems, and IK10 housing for locations where vandal resistance is a contract specification requirement.

Honest Assessment

The DH-SD52C225U-HNI earns its place in wide-area monitoring applications where a fixed camera simply cannot do the same job. The 25x optical zoom combined with Starlight sensitivity and auto-tracking gives it genuine operational value - not just as a remotely controllable camera, but as one that can respond to events with minimal human input. The IK10 rating and -30°C to 60°C operating range mean it handles harsh Australian outdoor environments without issue, and the 6KV lightning protection is a practical consideration for exposed rooftop or pole-mounted installs. What it will not do is provide IR-based illumination at night - this model has no built-in IR LEDs, so sites expecting complete darkness coverage will need supplemental lighting or a different model with integrated IR. It is also 2MP, so if identification-level detail at the maximum zoom distance is critical, a higher-resolution PTZ may be worth comparing. Available through Security Australia with confirmed PoE+ support for single-cable installation.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open area - a car park, campus, or transport facility - where a single motorised camera with 25x optical zoom and auto-tracking can replace multiple fixed cameras and reduce operator intervention during incidents.
• Good match if: Your site has variable or mixed lighting conditions including high-contrast scenes, and you need the combination of 120dB WDR and 0.005 lux Starlight sensitivity to maintain footage quality across the full operating day and into low-light hours.
• You may need a different model if: Your site has no ambient lighting at night and IR illumination is essential - a PTZ model with integrated IR LEDs would be more suitable for complete-darkness environments without external lighting infrastructure.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor PTZ with 25x optical zoom, auto-tracking via IVS rules, Starlight low-light sensitivity, IK10 vandal resistance, and PoE+ powering in a package built for extended outdoor operating temperatures down to -30°C.
• You may need a different model if: Your site has no ambient lighting and you require IR illumination to maintain footage in complete darkness - a PTZ model with integrated IR LEDs would be better suited to that environment.
• Pairs well with: A PoE+ managed switch with sufficient per-port power budget, a compatible NVR or VMS platform with PTZ control support, and supplemental white-light or IR illuminators if the site has extended periods of zero ambient light.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The DH-SD52C225U-HNI requires PoE+ (IEEE 802.3at), which provides up to 30W per port. Standard 802.3af PoE switches are limited to 15.4W and will not supply enough power to run both the camera sensor and PTZ motor simultaneously. Check that your switch or injector is explicitly rated 802.3at before ordering.

2. What is the pan and tilt range, and how many preset positions does it support?

   The confirmed specifications include full 360-degree continuous pan and -15 to 90 degree tilt based on the SD52C series platform. The camera supports preset positions, patrol tours, and pattern scanning, configurable through the onboard web interface or a connected NVR. For the exact preset count confirmed for this firmware version, refer to the Dahua product datasheet linked in Downloads below.

3. How does auto-tracking actually behave once it locks onto a subject?

   Once triggered - either manually by an operator or by a configured IVS rule such as an intrusion zone breach - the camera uses its pan, tilt, and zoom motors to keep the moving subject centred in frame. It will zoom in as the subject moves further away and zoom out as they move closer. Tracking continues until the subject leaves the scene, a manual override is issued, or a configurable timeout period is reached. The quality of tracking is directly dependent on IVS rule configuration during commissioning - poorly defined zones or sensitivity settings will affect how reliably the trigger fires.

4. Will this camera work in complete darkness without external lighting?

   No. This model has no built-in IR LEDs - the IR distance specification is listed as N/A. The Starlight sensor is highly capable in low ambient light (down to 0.0005 lux in monochrome mode), but in true zero-light conditions without any supplemental lighting, the camera will not produce usable footage. For sites with extended periods of complete darkness, either add external IR or white-light illuminators, or compare this model against a PTZ variant with integrated IR.

5. Does the 25x optical zoom maintain focus throughout the zoom range?

   Yes. PFA (Predictive Focusing Algorithm) technology is built into this camera to maintain image sharpness throughout the full zoom travel from 4.8mm to 120mm. PFA uses predictive calculations to anticipate the correct focus position as the lens moves, significantly reducing the hunting or momentary blur that can occur during zoom transitions on cameras without this feature. Auto and manual focus modes are both available.

6. Is this camera compatible with third-party VMS platforms?

   Yes. The DH-SD52C225U-HNI is ONVIF compliant, meaning it will integrate with any VMS or NVR platform that supports the ONVIF standard - including non-Dahua systems. PTZ control, live view, and event triggers are accessible through ONVIF. Full feature access including Smart H.265+ compression and advanced IVS analytics is best achieved through a Dahua NVR or Dahua DSS software. Stocked by Security Australia for supply to integrators working across mixed-brand installations.

7. How much storage does this camera actually consume running 24/7?

   Storage consumption depends on scene complexity and the bitrate settings configured. Smart H.265+ encoding adapts dynamically - a static outdoor scene overnight will use significantly less data than a busy daytime scene. As a rough planning guide, a 2MP H.265+ stream at moderate bitrate typically consumes in the range of 15-25GB per day per camera under normal activity levels, though this can vary considerably. Always use a proper storage calculator when planning NVR capacity for PTZ cameras, as the variable bitrate behaviour of Smart H.265+ makes fixed estimates unreliable.
