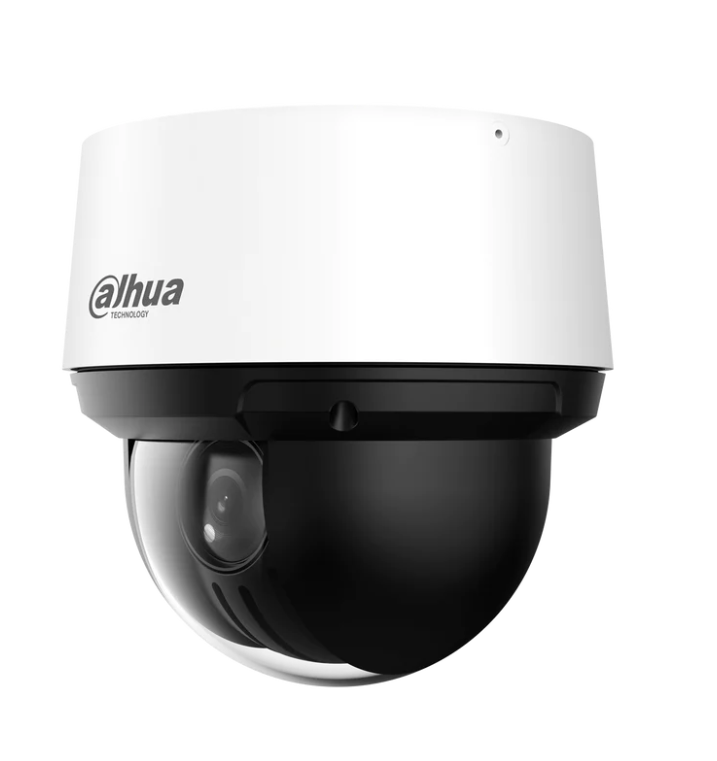

Dahua DH-SD4A425DB-HNY 4MP 25X IP Starlight WizSense Mini PTZ Camera

Model: SD4A425DB-HNY

Who This Is For

Property managers specifying a single camera to cover large open areas - carparks, school ovals, industrial yards, or waterfront sites - where fixed cameras would require multiple positions, will find the Dahua SD4A425DB-HNY a practical answer. This is a mini PTZ with 25x optical zoom and 4MP resolution that can reach out to 100 m in complete darkness using its 6 IR illuminators, while WizSense AI filters alarms down to confirmed human and vehicle detections. The compact housing suits pole mounts and parapet walls where a full-size PTZ dome would be disproportionate. Auto-tracking 1.0 means operators do not need to manually follow a subject - the camera does it automatically based on defined rules. With a built-in heater and fan rated to -40°C to +65°C and IP66 ingress protection, this unit is engineered for Australian outdoor conditions ranging from coastal humidity to alpine cold.

What This Camera Actually Does

Who Buys This Model

• Schools and universities: Grounds managers covering large open ovals, carparks and entry roads from a single mount point, using auto-tracking to follow incidents without deploying staff.
• Industrial facility operators: Sites needing a compact PTZ that can handle chemical wash-down zones or temperature extremes, where a standard outdoor dome would not survive the conditions.
• Retail strip and shopping centre managers: Loading dock and rear carpark monitoring where the 100 m IR range and 25x zoom provide number plate detail from a single rooftop or pole position.
• Construction site security contractors: Temporary installs on exposed sites where the heater/fan module and IP66 rating matter, and where auto-tracking captures after-hours trespassers without a monitoring operator.
• Strata and property management companies: Body corporate carparks and open common areas where one PTZ unit reduces the number of fixed cameras needed to achieve adequate coverage.

Honest Assessment

The SD4A425DB-HNY earns its place when coverage planning requires one camera to do the work of several fixed units. The 25x optical zoom combined with 4MP resolution and 100 m IR range means a single correctly positioned camera can patrol a large area while retaining enough detail for evidentiary use. WizSense AI reduces the false alarm load that makes PTZ installs impractical in high-vegetation or high-traffic environments, and the thermal range of the housing makes it genuinely suitable for demanding outdoor sites, available through Security Australia. Where this unit is not the right answer: it is not a replacement for fixed cameras at specific choke points requiring continuous unattended recording of every angle simultaneously - a PTZ can only point in one direction at a time. Sites needing full-colour night vision without any IR glow should look at a full-colour illumination camera instead. Auto-tracking 1.0 also works best with a supported NVR; verify compatibility with your recorder before ordering.

Before You Buy

Quick Fit Check

• Good match if: You need one outdoor camera to actively follow and zoom in on intruders across a large open area at night - the 100 m IR range, auto-tracking 1.0, and 25x optical zoom make this viable from a single mounting point.
• Good match if: Your site experiences temperature extremes or is subject to high-pressure washdown - the built-in heater/fan rated to -40°C to +65°C and IP66 certification cover conditions that would limit a standard PTZ.
• You may need a different model if: You need simultaneous full-coverage recording of multiple fixed angles around a property perimeter - a multi-camera fixed turret or bullet system on a multi-channel NVR will give you continuous recorded coverage from every direction rather than one at a time.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site needs active tracking and 100 m IR reach from a single compact outdoor PTZ with AI-filtered alarms and a housing rated for temperature extremes.
• You may need a different model if: You need simultaneous multi-directional recording without operator intervention - a multi-sensor panoramic camera provides full 360° continuous coverage that a PTZ cannot replicate while tracking a single subject.
• Pairs well with: A WizSense-compatible Dahua NVR with smart event support and PoE+ ports, which allows centralised AI alarm management, auto-tracking rule configuration, and event-triggered recording directly at the recorder.

Common Questions

1. Does this camera require PoE+ or will a standard PoE switch work?

   PoE+ (IEEE 802.3at) is required - standard PoE (IEEE 802.3af) will not power this camera reliably. Standard PoE delivers up to 15.4W, while this unit requires 802.3at rated to at least 25W per port. This matters especially during cold start-up when the built-in heater draws additional wattage. Check your switch specifications before cabling.

2. How does auto-tracking 1.0 actually work - does it track anything that moves?

   No. Auto-tracking 1.0 works in conjunction with WizSense AI to track targets that meet defined criteria. It can be set to track only when a human or vehicle triggers a defined rule such as a tripwire or intrusion zone breach, rather than following every moving object in the scene. This reduces the camera chasing birds, shadows and vehicle headlight sweeps. Once tracking ends - because the subject leaves the scene or a timeout is reached - the camera returns to its home position or resumes a patrol pattern.

3. What is the pan and tilt range on this mini PTZ?

   The confirmed specification data supplied with this model does not explicitly list the pan and tilt range figures. Mini PTZ cameras in the SD4A series are designed for continuous 360° pan operation. For the exact tilt range and preset limits confirmed for the SD4A425DB-HNY, refer to the official Dahua datasheet linked in the Downloads section below or contact Security Australia before specifying for a site with specific angular coverage requirements.

4. Will this camera work in complete darkness without any external lighting?

   Yes. The 6 built-in IR illuminators allow operation at 0 lux - no ambient or external light is required. IR reach extends to 100 m. The illuminator control offers Zoom Priority mode, which adjusts IR intensity as the camera zooms in or out so the illuminated area remains appropriately matched to the field of view - avoiding over-exposure on close subjects when zoomed in.

5. Does the 25x optical zoom maintain 4MP resolution throughout the zoom range?

   Yes. Optical zoom uses glass lens movement to magnify the image without degrading pixel count - the sensor continues to output at 2560 × 1440 (4MP) regardless of zoom position. This is distinct from digital zoom, which would crop and enlarge a portion of the sensor output, reducing effective resolution. PFA focus technology actively maintains sharpness throughout the zoom travel.

6. Does this camera work for sites with extreme temperature swings between day and night?

   Yes. The SD4A425DB-HNY is rated to operate from -40°C to +65°C, and the built-in heater activates automatically in cold conditions to maintain the optics and electronics within the operating range. The built-in fan manages heat dissipation in high ambient temperature environments. IP66 ingress protection also prevents moisture ingress during condensation events common in large daily temperature swings.

7. What is SMD 3.0 and how does it reduce false alarms compared to standard motion detection?

   SMD 3.0 (Smart Motion Detection 3.0) uses deep-learning algorithms running on the camera's processor to classify detected motion as either human or vehicle before raising an alarm. Standard pixel-change motion detection triggers on anything that moves - including animals, swaying trees, rain, and passing headlights. SMD 3.0 applies a second classification step to confirm the target type, meaning alarm outputs and NVR event recordings are triggered only when a human or vehicle is confirmed. This significantly reduces nuisance notifications on outdoor sites without requiring any NVR-side AI processing.

8. Can this camera be integrated with third-party VMS platforms or does it require a Dahua NVR?

   It can integrate with third-party VMS platforms via ONVIF or RTSP stream. The camera will stream and record on any compatible NVR or VMS. However, WizSense AI alarm events - including SMD 3.0, Perimeter Protection alerts, and auto-tracking rule management - are typically only fully surfaced on Dahua-native NVRs and VMS platforms that support Dahua smart event protocols. On a generic ONVIF system, these AI events may not be forwarded or may appear only as generic motion events. Verify with your VMS vendor before specifying.

Downloads & Resources

No downloads available for this product.
