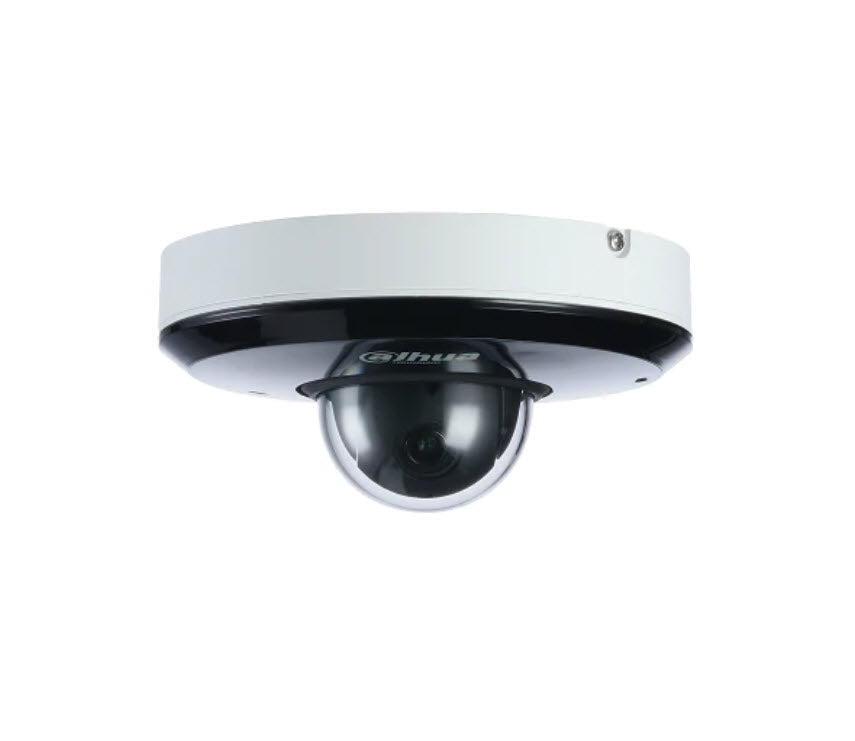

Dahua DH-SD1A404XB-GNR 4x Starlight IR PTZ AI Network Camera

Model: DH-SD1A404XB-GNR

Who This Is For

When covering a large outdoor area with a single camera position is the priority, the Dahua DH-SD1A404XB-GNR delivers PTZ flexibility in a compact, PoE-powered housing. Designed for installers specifying compact PTZ cameras for small commercial sites, councils, body corporate buildings, and school grounds, this camera combines 4x optical zoom with WizSense AI classification to filter human and vehicle detections from background movement. Installers working with restricted cable runs will appreciate the single Cat6 PoE connection - no separate power required. The 15 m IR range suits close-to-medium distance monitoring, and the IK08-rated housing adds resistance to impact in semi-exposed positions. With smart tracking, people counting up to 95% accuracy, and perimeter protection built in, the DH-SD1A404XB-GNR suits sites where a budget-priced PTZ with on-board AI is more practical than deploying multiple fixed cameras.

What This Camera Actually Does

Who Buys This Model

• Small commercial installers: Specifying a single PTZ to cover a car park entry, driveway, or open yard where multiple fixed cameras would require more cable runs and NVR channels.
• School and childcare facility managers: Using the people counting and perimeter protection functions to monitor entry/exit points and flag after-hours intrusions with classified AI alerts rather than constant motion triggers.
• Body corporate and strata managers: Mounting on a wall or eave above a shared car park or common area where PTZ pan-and-tilt coverage reduces blind spots without fitting multiple fixed cameras at each angle.
• Retail operators: Deploying the people counting feature at a single entry point to track footfall data alongside standard surveillance, using the up to 95% count accuracy for basic occupancy reporting.
• IT-managed site integrators: Taking advantage of PoE power delivery and H.265+ compression to keep switch port counts and NAS storage requirements low on bandwidth-constrained networks.

Honest Assessment

The DH-SD1A404XB-GNR earns its place as a compact, AI-capable PTZ for sites that need flexible coverage without running multiple fixed camera drops. The WizSense SMD Plus classification, on-board perimeter protection, smart tracking, and people counting at this price point are genuine differentiators - all processed on-camera without a separate analytics licence. The 6 kV lightning protection and IP66 rating make it usable in exposed Australian outdoor conditions, and PoE simplifies installation considerably. Where it will not keep pace: the 15 m IR range is modest compared to full-size PTZ cameras, and the 4x optical zoom is entry-level - sites needing to identify subjects at distances beyond 48 m (the confirmed recognition distance at wide angle) or requiring 20x-30x optical zoom for long-range detail should look at a larger PTZ model available through Security Australia. The built-in microphone supports audio recording, though two-way audio is not confirmed as this model has no confirmed built-in speaker.

Before You Buy

Quick Fit Check

• Good match if: You need pan-tilt-zoom coverage and AI-classified alerts (human/vehicle SMD Plus) from a single PoE camera point at a small commercial site, school, or shared car park.
• Good match if: Your site requires on-camera people counting at an entry point - the DH-SD1A404XB-GNR provides up to 95% count accuracy with separate in/out statistics without a server-side analytics licence.
• You may need a different model if: Your monitoring distances exceed 15 m at night or you need optical zoom beyond 4x - a full-size PTZ with longer IR range and higher zoom ratio would be more appropriate for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, PoE-powered PTZ with on-camera WizSense AI (SMD Plus, perimeter protection, people counting, smart tracking) for a small to medium outdoor site where a single camera must cover multiple angles without requiring a separate analytics licence.
• You may need a different model if: Your site requires monitoring distances beyond 15 m at night, identification at ranges greater than 24 m, or optical zoom beyond 4x - a larger PTZ camera with extended IR and higher optical zoom ratio would serve those applications better.
• Pairs well with: A PoE NVR with WizSense compatibility to take full advantage of on-camera AI event filtering and people counting data logs without additional server-side processing.

Common Questions

1. Does this camera require PoE+ or will a standard PoE switch port work?

   Standard PoE (IEEE 802.3af) is confirmed for this model. A switch port delivering 15.4 W is the baseline requirement. That said, PTZ cameras draw variable current as motors move, so specifying a PoE+ switch (802.3at, 30 W per port) is a practical precaution - particularly for installations in cold climates where motor load increases and power draw spikes on startup.

2. What is the pan and tilt range of the DH-SD1A404XB-GNR?

   Full pan and tilt range figures are not published in the confirmed spec sheet for this model. What is confirmed is that the camera supports motorised PTZ operation with preset positions, smart auto-tracking of moving targets, and patrol scan functions. For exact pan/tilt degree limits, refer to the Dahua datasheet or contact Security Australia before specifying for applications with strict angular coverage requirements.

3. Will this camera work for identifying faces or reading number plates?

   Face detection is confirmed - but face recognition (matching against a database) is not confirmed for this model. For number plate identification, the DORI data shows recognition distance at 48 m and identification at 24 m at the wide-angle setting. At 4x zoom those distances extend, but this is not a dedicated ANPR camera and does not include confirmed licence plate recognition analytics. It will capture plate detail at close range in good light, but should not be substituted for a purpose-built ANPR solution.

4. How does the smart tracking work - does it follow a person automatically?

   Yes. When a moving target is detected within the camera's field of view, the smart tracking function commands the PTZ mechanism to pan and tilt to keep the subject centred in frame. The camera uses its WizSense deep learning to classify the target as a human or vehicle before tracking, which reduces the likelihood of the camera chasing irrelevant movement. Tracking will continue until the subject leaves the scene or a timeout period expires, at which point the camera can return to a preset home position.

5. Does the people counting feature work accurately in both directions at the same time?

   Yes. The people counting function tracks individual entries and exits separately in real time, providing independent tallies for both directions. Dahua rates the accuracy at up to 95% under standard conditions. Performance can degrade in scenes with very high foot traffic density, heavy occlusion (people walking very close together), or extremely low contrast lighting - these are practical limitations to factor into any counting application.

6. What storage options are available if I do not have an NVR on site?

   The camera supports microSD card storage for local edge recording, NAS (network-attached storage), and cloud storage. MicroSD provides a useful fallback if the network or NVR goes offline - footage continues recording locally. The H.265+ compression codec reduces file sizes by up to 70% compared to standard H.265, so a modest microSD card covers a meaningful recording window before overwriting.

7. How far can this camera actually see - and what does the DORI data mean in practice?

   The DORI distances for this model are: Detect 240 m, Observe 95 m, Recognise 48 m, Identify 24 m (measured at wide angle). In practical terms: at 240 m the camera can confirm something is present, at 95 m you can see what type of object it is, at 48 m you can recognise a person's general features, and at 24 m you can identify a specific individual. These distances are measured in good light with the lens at its widest setting. At 4x zoom (12 mm), the narrower field of view extends these distances proportionally for the zoomed area, but the IR illumination is still limited to 15 m for night-time use.

Downloads & Resources

No downloads available for this product.
