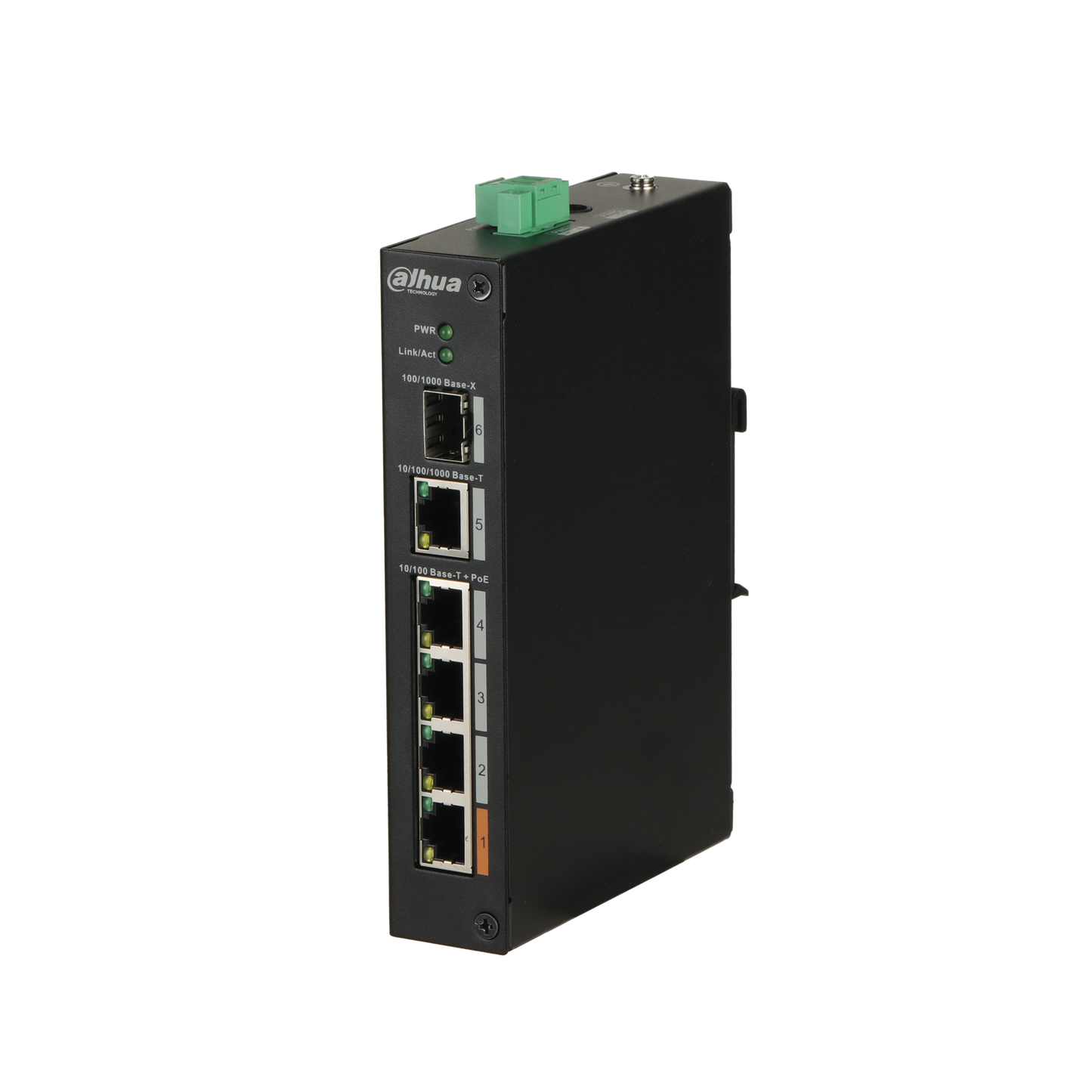

Dahua DH-PFS3106-4ET-60 4-Port PoE Switch (Unmanaged)

The DH-PFS3106-4ET-60 is an unmanaged 4-port PoE switch designed to deliver efficient power and network connectivity for surveillance systems. It supports IEEE 802.3af/at PoE standards, providing up to 60 watts of power across its four ports, ideal for powering devices such as IP cameras and access points. With a compact and rugged design, this switch is well-suited for installation in various environments, including tight spaces and outdoor enclosures. Its plug-and-play functionality ensures quick and easy setup without the need for complex configurations or management. The switch features a robust metal housing to withstand harsh conditions and ensure reliable operation. It operates silently due to its fanless design, making it suitable for noise-sensitive areas.

The DH-PFS3106-4ET-60 supports a range of operating temperatures and has a high tolerance for electrical interference, enhancing its performance in challenging environments. This model provides reliable data transfer rates with a 1 Gbps uplink port, ensuring smooth network performance. The switch’s built-in surge protection safeguards connected devices from electrical surges and spikes. Overall, the DH-PFS3106-4ET-60 is an ideal choice for users seeking a durable, efficient, and easy-to-deploy PoE switch for their networked surveillance systems.

Features

• Eight-Pin assignment PoE power supply
• Intelligent PoE
• Hi-PoE 60 W (Orange Port)
• PoE watchdog
• 250 m long distance PoE transmission
• Wide operating temperature: –30 °C to +65 °C (–22 °F to +149 °F)



Functions

Rich Port Types
The device features four 10/100 Mbps Base-T PoE Ethernet ports, one 10/100/1000 Mbps Base-T Ethernet port, and one 100/1000 Mbps Base-X optical port.

Wide Operating Temperature
It operates effectively in temperatures ranging from –30 °C to +65 °C (–22 °F to +149 °F).

Dual Power Backup
This device supports dual power backup to ensure continued operation during power failures.

Intelligent PoE
The switch includes intelligent PoE power management to maintain power and data flow even during power faults. It monitors the power consumption of connected devices and, in case of significant power fluctuations, shuts down one port at a time instead of all ports simultaneously. This approach prioritizes shutting down the highest-numbered ports first until power consumption falls below the PoE budget.

Hi-PoE 60W
In addition to IEEE802.3af and IEEE802.3at, the orange port supports a maximum output of 60W.

PoE Watchdog
An advanced PoE watchdog function detects network port failures and automatically restarts communication on the affected port, reducing the need for manual maintenance and network restarts.

Long Distance PoE
Long-distance PoE transmission extends the maximum range to 250 meters (from 100 meters), though it reduces the transmission speed to a maximum of 10 Mbps (from 1000 Mbps).

Eight-PIN Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply to improve compatibility at both the front and rear ends, reducing cable loss and enhancing loading capacity.

Technical Specifications:

Hardware

Ethernet Port

4

Optical Port

1

Ethernet Port Speed

100 Mbps

Data Transmission Port

Port 1–4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink) Port 6: 1 × SFP 100/1000 Mbps (Uplink)

Power Supply

53 VDC

Operaing Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 2.5 W Full load: 60 W

Performance

Capacity

6.80 Gbps

Packet Forwarding Rate

3.57 Mpps

Packet Buffer Memory

1 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

60 W

Power Consumption Management

Yes

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

General

Statics Protection

Air discharge: 15 kV Contact discharge: 8 kV

Thunder-proof

Common mode: 4 kV Differential mode: 2 kV

Net Weight

0.45 kg (0.99 lb)

Gross Weight

1.10 kg (2.43 lb)

Product Dimensions

150 mm × 100 mm × 30 mm (5.91" × 3.94" × 1.18") (L × W × H)

Packing Dimensions

Packing box: 270 mm × 240 mm × 75 mm (10.63" × 9.45" × 2.95") (L × W × H) Protective box: 544 mm × 253 mm × 331 mm (21.42" × 9.96" × 13.03") (L × W × H)

•


• •
