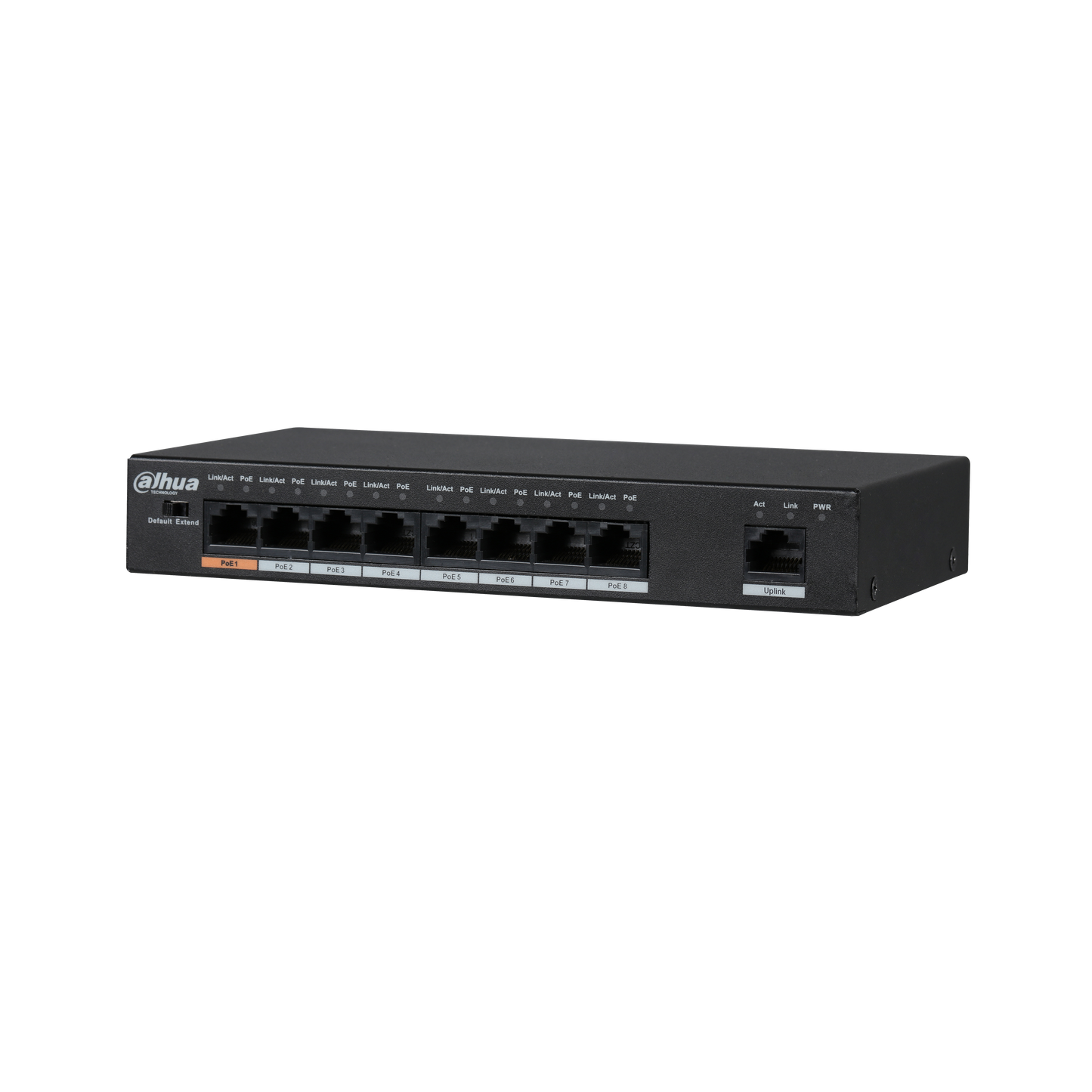

Dahua DH-PFS3009-8ET-96 8 Port POE Switch (unmanaged)
9-Port Unmanaged Desktop Switch with 8 Port PoE
The 9-Port Unmanaged Desktop Switch with 8 Port PoE, model DH-PFS3009-8ET-96, from Dahua Security, is a robust networking solution designed for small to medium-sized surveillance setups. It features 9 ports, including 8 PoE ports, which can deliver both data and power to compatible devices such as IP cameras, simplifying the installation process. The switch supports IEEE802.3af and IEEE802.3at standards, ensuring compatibility with a wide range of PoE devices.
Key Features
- Intelligent PoE.
- Red port supports 90W IEEE802.3bt.
- 8-pin assignment PoE power supply.
- 250 m long distance PoE transmission.
- PoE watchdog.
- Wide working temperature.
Code/SKU: DH-PFS3009-8ET-96
Quick Specs:
- Packet Buffer Memory: 768 Kb
- MAC Table Size: 2K
- Flow Control: Enabled by default
- Application Humidity: 5%~95%
- Power: DC 48~57V power adapter
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The 9-Port Unmanaged Desktop Switch with 8 Port PoE, model DH-PFS3009-8ET-96, from Dahua Security, is a robust networking solution designed for small to medium-sized surveillance setups. It features 9 ports, including 8 PoE ports, which can deliver both data and power to compatible devices such as IP cameras, simplifying the installation process. The switch supports IEEE802.3af and IEEE802.3at standards, ensuring compatibility with a wide range of PoE devices. With a total power budget of 96W, it can efficiently power multiple devices simultaneously.
The compact desktop design makes it easy to integrate into various environments without requiring extensive space. It also includes protection against power surges, ensuring the longevity and stability of connected devices. The plug-and-play design allows for hassle-free installation, requiring no complex configuration. Its non-blocking switching architecture ensures maximum data throughput, enhancing the performance of the connected network. This switch is an excellent choice for those seeking a reliable, cost-effective solution for powering and connecting multiple IP cameras in a surveillance network.
Key Features
- Layer two commercial switch
- Supports PoE power management
- Supports wall-mount installation
- Supports anti-theft lock hole
- MAC auto learning and aging, MAC address capacity is 2K
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- RJ45 port supports 10/100 Mbps self-adaptation
- Supports 250 meters long distance PoE transmission
- Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
Technical Specifications:
| Technical Specification | |
|---|---|
| Model | DH-PFS3009-8ET-96 |
| Ethernet Port | 1 * 10/100 Base-T |
| 8 * 10/100 Base-T (PoE power supply) | |
| PoE Power Consumption | Port 1 ≤ 60W |
| Port 2-8 ≤ 30W | |
| Total ≤ 96W | |
| PoE PIN Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE Power Management | Support |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.34 Mpps |
| Packet Buffer Memory | 768 Kb |
| MAC Table Size | 2K |
| Flow Control | Enabled by default |
| Application Humidity | 5%~95% |
| Power | DC 48~57V power adapter |
| Lightning Protection | Common Mode: 4 KV |
| Differential Mode: 2 KV | |
| ESD Protection | Air Discharge: 8 KV |
| Contact Discharge: 6 KV | |
| Working Temperature | -10°C~55°C |
| Weight | 490 g |
| Dimension (W×D×H) | 190 mm × 100 mm × 30 mm |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
9-Port Unmanaged Desktop Switch with 8 Port PoE
The 9-Port Unmanaged Desktop Switch with 8 Port PoE, model DH-PFS3009-8ET-96, from Dahua Security, is a robust networking solution designed for small to medium-sized surveillance setups. It features 9 ports, including 8 PoE ports, which can deliver both data and power to compatible devices such as IP cameras, simplifying the installation process. The switch supports IEEE802.3af and IEEE802.3at standards, ensuring compatibility with a wide range of PoE devices.
Key Features
- Intelligent PoE.
- Red port supports 90W IEEE802.3bt.
- 8-pin assignment PoE power supply.
- 250 m long distance PoE transmission.
- PoE watchdog.
- Wide working temperature.
Code/SKU: DH-PFS3009-8ET-96
Quick Specs:
- Packet Buffer Memory: 768 Kb
- MAC Table Size: 2K
- Flow Control: Enabled by default
- Application Humidity: 5%~95%
- Power: DC 48~57V power adapter
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Technical Specification | |
|---|---|
| Model | DH-PFS3009-8ET-96 |
| Ethernet Port | 1 * 10/100 Base-T |
| 8 * 10/100 Base-T (PoE power supply) | |
| PoE Power Consumption | Port 1 ≤ 60W |
| Port 2-8 ≤ 30W | |
| Total ≤ 96W | |
| PoE PIN Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE Power Management | Support |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.34 Mpps |
| Packet Buffer Memory | 768 Kb |
| MAC Table Size | 2K |
| Flow Control | Enabled by default |
| Application Humidity | 5%~95% |
| Power | DC 48~57V power adapter |
| Lightning Protection | Common Mode: 4 KV |
| Differential Mode: 2 KV | |
| ESD Protection | Air Discharge: 8 KV |
| Contact Discharge: 6 KV | |
| Working Temperature | -10°C~55°C |
| Weight | 490 g |
| Dimension (W×D×H) | 190 mm × 100 mm × 30 mm |
