6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports
The DH-PFS3006-4ET-60 is a versatile 6-port unmanaged desktop switch designed for small to medium-sized network environments. It features four PoE (Power over Ethernet) ports, which provide power and data connectivity to compatible devices such as IP cameras, VoIP phones, and wireless access points. With a 10/100Mbps speed, it ensures reliable data transmission for everyday networking needs.
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
Key Features
Code/SKU: DH-PFS3006-4ET-60
Quick Specs:
| Hardware | |
| Ethernet Port | 4 |
| Optical Port | 0 |
| Ethernet Port Rate | 100 Mbps |
| Number of Business Card Slots Port | 1–4: 4 × RJ-45 10/100 M (PoE) 5–6: 2 × RJ-45 10/100 M (uplink) |
| Power Supply | 53V DC |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 5%–95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Storage Humidity | 5%–95% |
| Power Consumption | Idling: 1.5W Full load: 60W |
| Performance | |
| Switching Capacity | 1.80 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Packet Buffer Size | 1 Mbit |
| MAC Table Size | 2K |
| Communication Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| PoE | |
| PoE Standard | IEEE802.3af/IEEE802.3at/Hi-PoE |
| PoE Power | 60W |
| PoE Power Consumption | 60W |
| Management | Yes |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+) 3, 6, 7, 8 (V-) |
| Far Distance Mode | 250 m @10 Mbps |
| General | |
| ESD | Air discharge: 8kV Contact discharge: 6kV |
| Thunderproof | Common mode: 2kV Differential mode: 1kV |
| Net Weight | 0.3 kg (0.66 lb) |
| Gross Weight | 0.9 kg (1.98 lb) |
| Product Dimensions | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

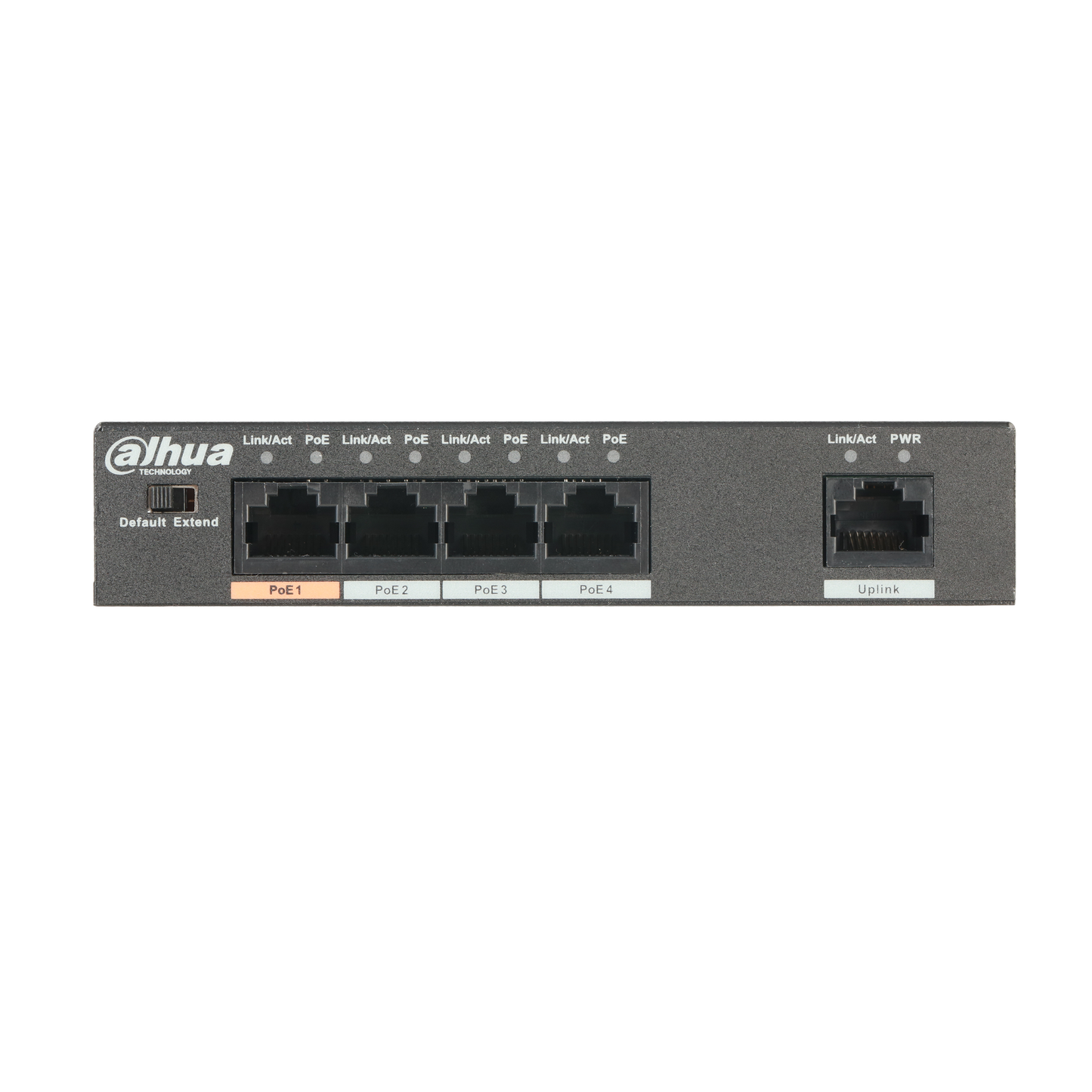

Dahua DH-PFS3006-4ET-60 Dahua 4 Port POE Switch (unmanaged)
The DH-PFS3006-4ET-60 is a versatile 6-port unmanaged desktop switch designed for small to medium-sized network environments. It features four PoE (Power over Ethernet) ports, which provide power and data connectivity to compatible devices such as IP cameras, VoIP phones, and wireless access points. With a 10/100Mbps speed, it ensures reliable data transmission for everyday networking needs. The switch is compact and easy to install, making it ideal for both home and office use. It supports a total bandwidth of 1.2Gbps, ensuring smooth data flow and minimal network congestion.
The device is designed for plug-and-play operation, requiring no configuration to get started. Its sturdy build and reliable performance make it a cost-effective solution for expanding network connectivity. The DH-PFS3006-4ET-60 also features LED indicators for easy monitoring of network status and power usage. Its unmanaged design offers simplicity and ease of use, without the need for complex setup or management. Overall, this switch is a practical choice for enhancing network infrastructure with additional PoE capabilities.
Features
Functions
Intelligent PoE The system adopts a PoE power consumption management strategy that prioritizes power supply to critical ports first. If the total power consumption surpasses the system's set threshold, it reduces power from ports starting with the highest numbered port to the lowest. Smart detection mechanisms are employed to prevent outages. The system supplies power within an ultra-wide power range, accommodating IPC power consumption fluctuations even in harsh environments.
Hi-PoE 60W (Orange Port) In addition to supporting IEEE802.3af and IEEE802.3at standards, the orange port provides a maximum output of 60W.
Long Distance PoE The device surpasses the IEEE 100 m transmission limit, supporting PoE transmission distances up to 250 m, offering more flexibility in network setups.
All Metal Design The device features an all-metal design, ensuring efficient heat dissipation and reliable operation in extreme conditions.
POE Watchdog The PoE watchdog function minimizes the need for manual maintenance and device restarts, enabling intelligent management and reducing operational costs.
| Hardware | |
| Ethernet Port | 4 |
| Optical Port | 0 |
| Ethernet Port Rate | 100 Mbps |
| Number of Business Card Slots Port | 1–4: 4 × RJ-45 10/100 M (PoE) 5–6: 2 × RJ-45 10/100 M (uplink) |
| Power Supply | 53V DC |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 5%–95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Storage Humidity | 5%–95% |
| Power Consumption | Idling: 1.5W Full load: 60W |
| Performance | |
| Switching Capacity | 1.80 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Packet Buffer Size | 1 Mbit |
| MAC Table Size | 2K |
| Communication Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| PoE | |
| PoE Standard | IEEE802.3af/IEEE802.3at/Hi-PoE |
| PoE Power | 60W |
| PoE Power Consumption | 60W |
| Management | Yes |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+) 3, 6, 7, 8 (V-) |
| Far Distance Mode | 250 m @10 Mbps |
| General | |
| ESD | Air discharge: 8kV Contact discharge: 6kV |
| Thunderproof | Common mode: 2kV Differential mode: 1kV |
| Net Weight | 0.3 kg (0.66 lb) |
| Gross Weight | 0.9 kg (1.98 lb) |
| Product Dimensions | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
