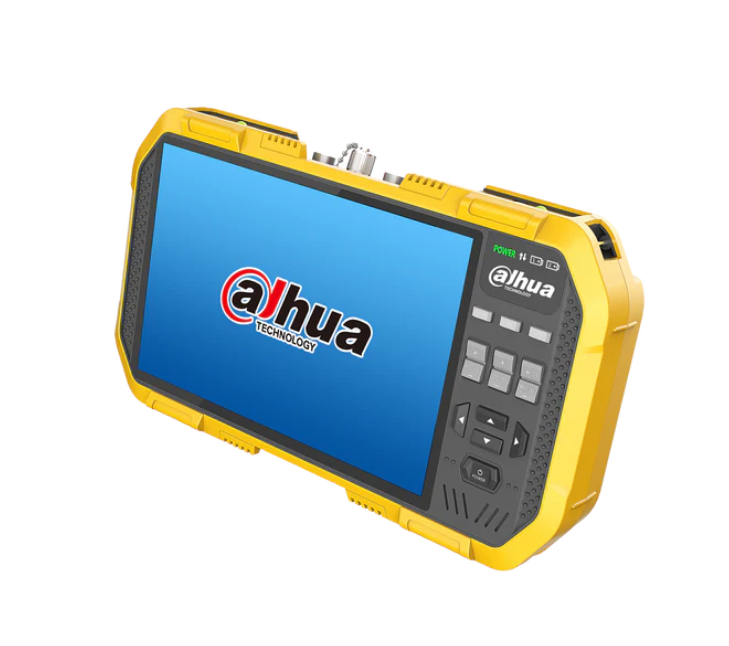

DAHUA DH-PFM907-E Integrated mount Tester

Model: DH-PFM907-E

Who This Is For

When commissioning efficiency on-site is the priority, security installers and technicians reach for a tester that can handle IP, HDCVI, AHD, HDTVI, and CVBS cameras in a single unit without carting a laptop to each job. The Dahua PFM907-E is built for fieldwork - the 7-inch 1920x1200 touchscreen lets technicians view live footage, adjust IP addresses, modify camera resolution, and reset credentials directly at the camera position. The built-in PoE output means the tester can power a camera under test without a separate injector or NVR on site. TDR cable testing, a digital multimeter, and Wi-Fi signal analysis make it a consolidated diagnostic tool for both new installs and fault-finding on existing systems. Installers working across mixed analogue and IP environments - retail fitouts, commercial buildings, strata complexes - will get consistent daily use from this unit.

What This Tester Actually Does

Who Buys This Model

• Security installation contractors: Technicians commissioning mixed IP and analogue systems who need a single device to test ONVIF cameras, HDCVI/AHD/TVI/CVBS signals, and network cables without returning to a van for separate tools.
• Dahua-focused integrators: Installers working predominantly with Dahua equipment who benefit from the native Dahua private protocol support for camera initialisation, credential management, and factory reset functions in the field.
• Service and maintenance technicians: Fault-finding specialists attending break-fix calls who need TDR cable testing and a digital multimeter combined with live camera viewing to diagnose signal, power, and cabling faults quickly at the camera end.
• Multi-site commercial installers: Teams fitting out retail chains, strata buildings, or commercial offices where camera initialisation and IP configuration must happen efficiently at height before a permanent recorder is commissioned.

Honest Assessment

The PFM907-E covers a genuinely broad range of commissioning tasks in one handheld unit. The 7-inch 1920x1200 touchscreen is large enough to assess camera framing accurately, and the combination of PoE output, ONVIF access, analogue format support, TDR testing, and a multimeter means a technician can diagnose most common installation faults without returning to a vehicle. The Linux-based system supports online and local firmware updates, which keeps the tool current as new camera protocols emerge. Operating across -10 to 55 degrees Celsius suits Australian outdoor conditions during installation. Where the PFM907-E has limits: it is not a replacement for full NVR-based multi-camera recording, and its IP camera resolution support tops out at 4K - cameras above that specification will require a dedicated display setup. Technicians working exclusively with non-Dahua IP brands should verify ONVIF compatibility for specific function control features before purchasing. The PFM907-E is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: Your team regularly installs or services mixed analogue and IP camera systems, and you need a single portable device that can display live footage, configure network settings, supply PoE power, and test cabling at the camera position.
• Good match if: You work primarily with Dahua camera ranges and need on-site initialisation, IP configuration, and factory reset capability without connecting to a recorder - the native Dahua private protocol support covers these tasks directly from the tester.
• You may need a different model if: Your workflow requires deep configuration of non-Dahua IP cameras beyond basic ONVIF live view - a laptop-based commissioning setup with manufacturer software may provide more complete access to proprietary camera settings for other brands.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single field tool that covers IP camera commissioning via ONVIF and Dahua protocol, analogue format testing across HDCVI/AHD/HDTVI/CVBS, PoE power output, TDR cable testing, and a digital multimeter in one portable device.
• You may need a different model if: Your work is exclusively focused on high-volume IP-only systems from a single non-Dahua brand - a laptop running that manufacturer's commissioning software may offer deeper configuration access than ONVIF alone provides on this tester.
• Pairs well with: A PoE network switch and patch leads for staged multi-camera commissioning, and a cable crimping and termination kit to address faults identified during TDR testing on the same site visit.

Common Questions

1. Will this tester work with cameras from brands other than Dahua?

   Yes, for basic live view and image functions via ONVIF. The PFM907-E connects to any ONVIF-compliant IP camera and will display live footage, capture snapshots, and perform zoom. However, deeper configuration functions - such as modifying resolution, changing credentials, or restoring factory defaults - are confirmed for Dahua private protocol cameras. The extent of configuration access on third-party ONVIF cameras depends on each manufacturer's implementation of the standard.

2. Does the PFM907-E supply power to a camera during testing?

   Yes. The tester provides both PoE and 12 VDC power output, so it can power a camera directly during commissioning or fault diagnosis. This means a technician can test a newly run cable, power the camera at the end of it, view live footage, and configure settings - all without a separate PoE switch or power supply at the camera location.

3. What analogue camera formats does the PFM907-E support?

   It supports HDCVI, AHD, HDTVI, and CVBS. These four formats cover the majority of analogue HD and standard-definition surveillance cameras in current use. This makes the PFM907-E suitable for both new HDCVI installations and fault-finding on older CVBS systems without needing format-specific test monitors.

4. What is TDR testing and how does it help on a service call?

   TDR (time-domain reflectometry) sends a signal down a cable and measures the reflection to identify faults and their distance from the tester end. In practice, this means a technician can pinpoint a cable break or poor termination in a concealed run - inside a wall or above a ceiling - without pulling the cable out. It converts a time-consuming diagnostic process into a precise, targeted repair task.

5. What is the maximum IP camera resolution the PFM907-E can display?

   4K is the maximum confirmed resolution. The tester supports 2MP at 1920x1080 (25fps or 30fps), 4MP, 6MP, and 4K, with H.265 and H.264 decoding. Cameras above 4K resolution are outside the confirmed display capability of this unit.

6. Can the PFM907-E initialise a brand new Dahua camera straight out of the box?

   Yes. Camera initialisation is a confirmed function when using the Dahua private protocol. A technician can set the initial IP address and account credentials on an uninitialised Dahua camera directly from the tester, which is particularly useful when commissioning cameras at height before connecting them to a permanent NVR. The team at Security Australia can confirm which Dahua camera ranges are fully supported by this function.

7. What operating temperature range does the PFM907-E cover?

   The confirmed operating range is -10 to +55 degrees Celsius. This covers the range of conditions a technician is likely to encounter during outdoor installations in Australian conditions, including work in roof spaces and plant rooms during summer. Operating humidity is rated at 30%-90% RH.
