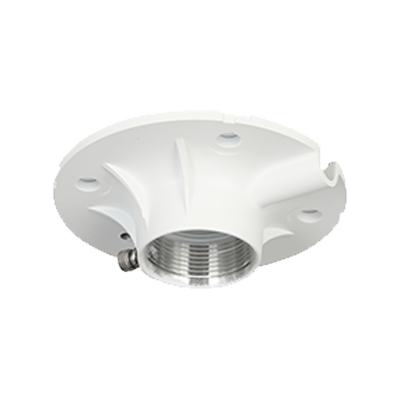

Dahua DH-PFB301C Ceiling Mount Bracket

Model: DH-PFB301C

Who This Is For

Property managers specifying Dahua SD8A-series PTZ cameras in indoor environments will find the PFB301C the right ceiling mount for the job. Designed specifically for Dahua's SD8A and below dome PTZ range, this aluminium alloy bracket provides a clean, low-profile ceiling attachment point with internal cable routing so wiring stays concealed behind the ceiling surface. It suits finished environments where exposed conduit or surface-run cables would look out of place - boardrooms, hotel lobbies, shopping centre atriums, and larger retail floors. The 10 kg load capacity comfortably handles the weight of supported PTZ units, and the compact 128.8 mm diameter footprint keeps the installation tidy. One important installation note: this bracket uses an 8-inch ball fitting and requires a compatible mount adapter - not included - so that pairing needs to be confirmed before ordering.

Download Product Datasheet (PDF)

What This Bracket Actually Does

Who Buys This Model

• AV and security integrators: Fitting Dahua SD8A PTZ cameras in corporate or hospitality projects where a clean, concealed-cable ceiling mount is part of the scope.
• Retail loss prevention teams: Specifying ceiling-mounted PTZ coverage across shop floors or atriums, where a low-profile white bracket blends into a finished ceiling without drawing attention.
• Facilities managers: Replacing or adding PTZ mount points in managed buildings where Dahua SD8A-series cameras are already the site standard.
• CCTV contractors completing a Dahua PTZ install: Needing a manufacturer-matched bracket that confirms load rating and dimensional compatibility with the camera head unit, rather than sourcing a generic alternative.

Honest Assessment

The PFB301C does one job well: it provides a Dahua-matched, internally cabled ceiling mount point for SD8A-series PTZ cameras in environments where a tidy finish matters. The aluminium alloy build, confirmed 10 kg load rating, and compact profile make it a straightforward specification decision for integrators already working with compatible Dahua PTZ heads. Available through Security Australia, it is priced as a component accessory rather than a premium bracket, which suits projects where multiple mount points need to be budgeted. What it will not do is work as a standalone mounting solution - the 8-inch ball fitting means a separate compatible mount adapter is required before installation can proceed. It is also not suitable for outdoor use without additional weatherproofing, and it is specific to the SD8A range - installers working with other camera types should confirm compatibility or look at alternative Dahua bracket models.

Before You Buy

Quick Fit Check

• Good match if: You are ceiling-mounting a Dahua SD8A-series PTZ camera in a finished indoor environment and need internal cable routing to keep wiring concealed.
• Good match if: Your camera head unit weighs within the 10 kg load rating and you need a manufacturer-matched bracket with confirmed dimensional compatibility for the SD8A range.
• You may need a different model if: You are mounting in an outdoor or exposed location - a weatherproof wall or pole mount bracket type will be more appropriate for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are ceiling-mounting a Dahua SD8A-series PTZ camera in a finished indoor environment and need internal cable routing with a confirmed 10 kg load capacity.
• You may need a different model if: Your installation is outdoors or in an exposed location - a weatherproof wall mount or pole mount bracket type will be more appropriate for those conditions.
• Pairs well with: A compatible Dahua 8-inch ball mount adapter (required for this bracket to function) and a Dahua SD8A-series PTZ camera.

Common Questions

1. Does this bracket include the mount adapter needed to attach the camera?

   No. The PFB301C uses an 8-inch ball fitting and requires a separate compatible mount adapter that is not included in the package. The package contains only the ceiling mount bracket and an S5.0 wrench. Confirm the correct Dahua mount adapter for your SD8A-series camera model before ordering both components.

2. Will this bracket support my Dahua PTZ camera's weight?

   Yes, provided your camera weighs 10 kg or less. The PFB301C is rated to a 10 kg load capacity, which covers the Dahua SD8A series and below. If your camera head unit exceeds this figure, you will need to confirm a bracket with a higher load rating.

3. Are the cables hidden inside the bracket or do they run on the outside?

   Hidden inside. The PFB301C is designed with internal cable routing - wires pass through the bracket body rather than along the outside surface. This is one of the key reasons installers choose this bracket for finished ceiling environments where exposed cabling is not acceptable.

4. Can this bracket be used outdoors?

   Not confirmed for standalone outdoor use. The operating temperature range of -40°C to +60°C covers a wide span, but the PFB301C is listed as a ceiling mount bracket without a confirmed IP weatherproof rating. For outdoor PTZ installations, check the Security Australia range for brackets with confirmed IP-rated housings suited to exposed conditions.

5. What are the physical dimensions of the PFB301C?

   The bracket measures 128.8 mm in diameter and 35.5 mm in height (D x H). This compact footprint - roughly the size of a standard smoke detector base - keeps the ceiling profile minimal. The bracket itself weighs 0.21 kg, so the total ceiling fixing load is dominated by the camera head rather than the mount.

6. Which Dahua camera models is the PFB301C compatible with?

   The PFB301C is specified for Dahua SD8A-series cameras and below. If you are working with a different Dahua PTZ series, verify the camera's mounting ball size against this bracket's 8-inch ball interface before purchasing. Using a mismatched interface will prevent proper installation.

Downloads & Resources

• Product Spec Sheet (PDF)
