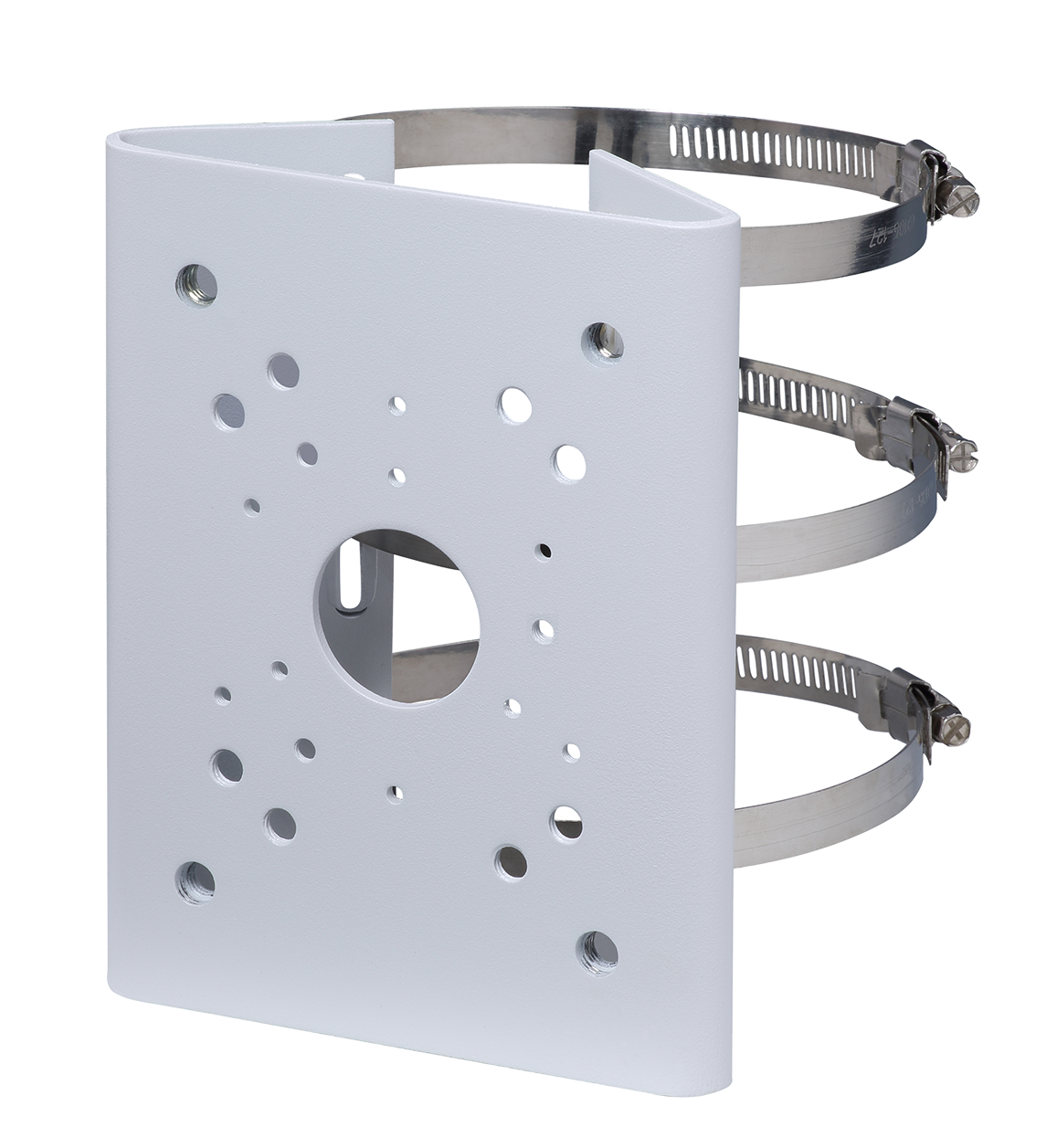

Dahua DH-PFA150 Triple Clamp Pole Mount Bracket
- Sku: DH-PFA150
- Vendor: SecurityAustralia
Built as a pole mount bracket for outdoor camera installations, the DH-PFA150 secures cameras to poles ranging from 80 to 150mm in diameter using a triple-clamp design and corrosion-resistant SECC and SUS304 steel construction. It supports a load of up to 10kg, making it suitable for most standard dome and bullet cameras.
Why This Model
- Wide pole compatibility: Adjustable clamping fits poles from 80 to 150mm in diameter, covering street poles, light posts, and fence posts without needing additional adapters.
- Corrosion-resistant materials: SECC and SUS304 stainless steel construction handles prolonged outdoor exposure, including coastal and high-humidity environments where bracket failure is a common issue.
- 10kg load rating: Supports most full-size surveillance cameras, including heavier PTZ and dome units, without risk of sag or bracket flex over time.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DH-PFA150
Who This Is For
For installers and integrators who need a clean, stable solution for mounting cameras on round poles at car parks, perimeter fences, driveways, and street-facing positions, the Dahua DH-PFA150 Triple Clamp Pole Mount Bracket is a purpose-built accessory that takes the guesswork out of field installation. It accommodates poles between 80mm and 150mm in diameter, covers the range of standard galvanised lighting and security poles found across Australian residential, commercial, and industrial sites. The SECC steel and SUS304 stainless hardware combination handles outdoor exposure without corroding, and the bracket's 10kg load rating gives it enough capacity for the full range of Dahua dome, bullet, and turret cameras. If pole-mounting cameras is a regular part of your install workflow, this bracket is worth keeping on the van.
What This Bracket Actually Does
Wide Pole Compatibility
The triple clamp design fits poles from 80mm to 150mm in diameter. That range covers most standard galvanised street-lighting poles, carpark columns, and perimeter fence posts without needing an adapter or custom fabrication on site.
SECC and SUS304 Construction
The bracket combines electrogalvanised cold-rolled steel (SECC) for the main body with SUS304 stainless fasteners. This pairing resists surface rust and fastener corrosion in coastal and high-humidity outdoor environments where cheaper mild-steel hardware fails early.
10kg Load Rating
A rated load capacity of 10kg covers the full weight range of standard Dahua dome, bullet, and turret cameras, including heavier all-in-one housings. You are not restricted to lightweight models, and the bracket will not require load calculations for typical single-camera installs.
Extended Temperature Range
Rated from -40°C to +60°C, the bracket maintains structural integrity in environments ranging from cold-climate alpine sites to exposed metal-roofed industrial yards in summer. Thermal expansion and contraction cycling will not cause fastener slippage over time.
Compact Profile
At 130.4mm x 170mm x 45mm and 1.1kg, the bracket adds minimal bulk to the pole and keeps the overall camera assembly visually tidy. The low-profile depth of 45mm keeps the camera close to the pole rather than projecting it outward on a long arm.
Who Buys This Model
- Security installers on commercial sites: Car parks, warehouse perimeters, and loading docks commonly use round galvanised poles as camera mounting points. The 80-150mm diameter range and 10kg capacity cover the majority of these sites without ordering custom hardware.
- Local council and infrastructure contractors: Street-lighting and public space poles fall squarely within the 80-150mm diameter range this bracket handles. The SECC and SUS304 construction meets the corrosion resistance expected for permanent public infrastructure installs.
- Industrial facility managers and in-house maintenance teams: Sites that handle their own camera additions to existing pole infrastructure use this bracket to add coverage points without fabrication. The confirmed load rating removes guesswork when selecting hardware for a camera already on hand.
- Rural and regional installers: The -40°C to +60°C operating range makes this bracket a practical choice for outdoor installs in Queensland summers or alpine areas where temperature cycling is extreme and hardware longevity is a real concern.
Honest Assessment
The DH-PFA150 does one job and does it to a confirmed standard: it attaches a camera to a round pole in the 80-150mm diameter range with a SECC and SUS304 material stack rated for outdoor exposure and a 10kg load limit that covers standard single-camera installations. The triple clamp approach distributes grip across the pole evenly, which matters on smooth galvanised steel where a single clamp can rotate under wind load. The compact 45mm depth keeps the mounted camera close to the pole rather than extending it on a long arm, which reduces leverage stress at the clamp points. What this bracket will not do is accommodate flat walls, square posts, poles outside the 80-150mm range, or camera loads above 10kg - for those scenarios, a different bracket type is the right answer. The DH-PFA150 is available through Security Australia as a standalone accessory to complete pole-mount camera builds.
Before You Buy
Installer Note: Measure the pole diameter before ordering. The DH-PFA150 covers 80mm to 150mm only. Poles outside that range - including thin galvanised conduit under 80mm or larger structural columns above 150mm - will not clamp correctly, and forcing an undersized or oversized fit will compromise bracket stability. Also confirm your camera's combined housing and mounting adapter weight stays under the 10kg load rating, particularly if you are mounting a heavier multi-sensor or housing-with-junction-box assembly.
Coastal Installs: While the SUS304 stainless fasteners provide good corrosion resistance, the SECC steel body is electrogalvanised rather than hot-dip galvanised or stainless. In direct salt-spray zones - within roughly 500 metres of breaking surf - inspect the bracket annually and consider applying a protective coating at installation time to extend service life.
Quick Fit Check
- Good match if: You are mounting a single camera on a round pole between 80mm and 150mm in diameter at an outdoor location - car parks, perimeter fences, driveways, and public spaces are the natural home for this bracket.
- Good match if: The install environment sees temperature extremes or high humidity, and you need a bracket with confirmed material ratings rather than an unspecified generic fitting that may corrode or loosen over time.
- You may need a different model if: Your mounting surface is a flat wall, a square structural column, or a pole outside the 80-150mm range - a wall mount bracket or a different pole clamp sized to your specific pole diameter will be the appropriate product type.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your mounting point is a round pole between 80mm and 150mm in diameter outdoors, and you need a bracket with confirmed material ratings and a 10kg load capacity rather than a generic unrated clamp.
- You may need a different model if: The mounting surface is a flat wall or ceiling, or the pole diameter falls outside the 80-150mm range - a wall mount bracket or a different pole clamp type sized to your specific pole is the right product category for those situations.
- Pairs well with: Dahua outdoor bullet, turret, or dome cameras up to 10kg, combined with a compatible junction box or conduit adapter where cable entry protection is required at the pole.
Common Questions
-
Will this bracket fit the standard galvanised poles used in Australian car parks?
Yes, in most cases. Standard Australian galvanised lighting and security poles in car park environments typically measure between 88mm and 140mm in diameter, which falls within the DH-PFA150's confirmed 80-150mm mast diameter range. Measure the pole before ordering if you are uncertain of the exact diameter. -
Does the 10kg load rating cover typical Dahua outdoor cameras?
Yes. The large majority of standard Dahua bullet, turret, and dome cameras weigh between 0.4kg and 1.5kg including their housing. Even with a junction box and cabling hardware added, a single-camera assembly will be well within the confirmed 10kg load rating of the DH-PFA150. -
Why does the material listing include both SECC and SUS304?
These are 2 different materials used in different parts of the bracket. SECC (electrogalvanised cold-rolled steel) is used for the main body - it is strong, formed easily, and has a surface zinc coating for corrosion resistance. SUS304 stainless steel is used for the fasteners, where contact with dissimilar metals and moisture would otherwise cause galvanic corrosion and seized bolts over time. The combination is standard practice in outdoor-rated mounting hardware. -
Will this work for mounting cameras in cold-climate or alpine sites?
Yes. The DH-PFA150 has a confirmed operating temperature range of -40°C to +60°C, which covers Australian alpine environments. The SUS304 stainless fasteners are not subject to cold-embrittlement at those temperatures, and the SECC steel body will not become structurally compromised during freeze-thaw cycling typical of alpine winter conditions. The bracket is stocked by Security Australia as a standalone accessory for exactly these types of installs. -
Does this bracket allow camera angle adjustment after mounting?
No, not independently. The DH-PFA150 is a pole clamp that fixes the camera base to the pole - camera angle adjustment is handled by the camera's own mounting head or any tilt adapter fitted between the bracket and the camera. If your camera does not have a built-in tilt mechanism, confirm that your specific camera model supports a separate tilt or swivel adapter before finalising the install design. -
Can I use this bracket on a wooden post or square steel section?
No. The triple clamp design on the DH-PFA150 is shaped for round poles within the 80-150mm diameter range. It will not grip correctly on square, rectangular, or irregular cross-sections, and it will not conform to timber post profiles. For those surfaces, a flat wall mount bracket or a specifically designed square-post clamp is the appropriate product type.
Downloads & Resources
No downloads available for this product.
| Model | DH-PFA150 |
| General | |
| Material | SECC & SUS304 |
| Dimension(WxHxD) | 130.4mmx170mmx45mm (5.13”x6.69”x1.77”) |
| Mast Diameter | 80~150mm(3.15”~5.91”) |
| Pipe Thread | N/A |
| Operating Temperature | -40℃~+60℃ (-40℉~+140℉) |
| Humidity | 0~90% RH |
| Load Bearing | 10kg(22.05lb) |
| Weight | 1.1kg(2.43lb) |
