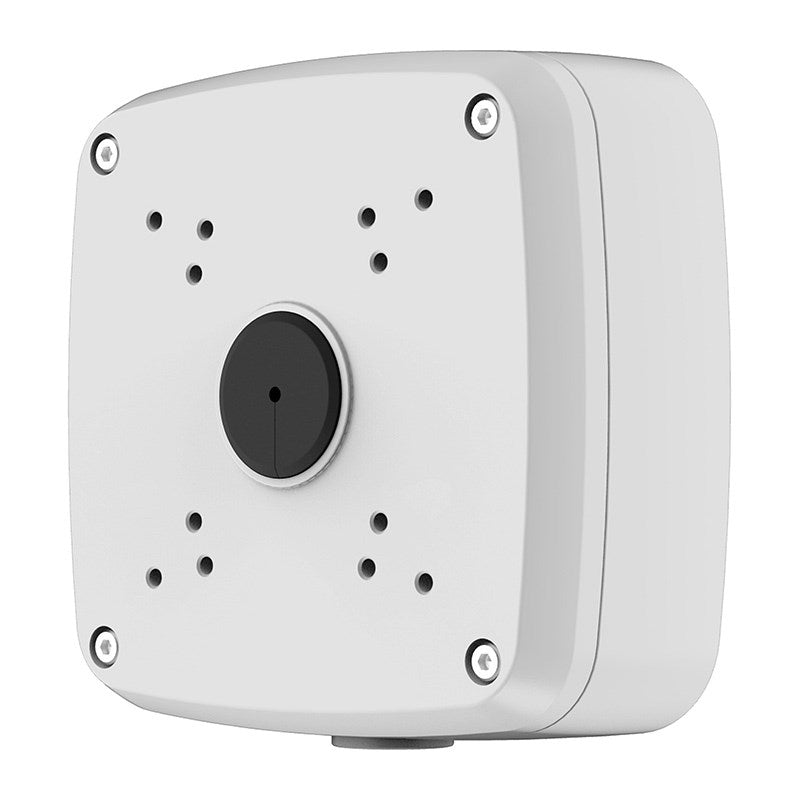

Dahua DH-PFA121 Water-Proof Junction Box
- Sku: DH-PFA121
- Vendor: SecurityAustralia
The Dahua PFA121 delivers reliable weatherproof cable management for outdoor CCTV installations where protecting network and power connections from the elements is essential. Built from aluminium with an IP66 rating, it handles everything from heavy rain to dust ingress while supporting camera loads up to 3kg. Compatible with G3/4" conduit threading, it suits a wide range of mounting configurations.
Why This Model
- IP66 weatherproofing: Fully rated against dust ingress and powerful water jets, keeping cable terminations dry and secure in exposed outdoor locations.
- Aluminium construction: A die-cast aluminium body resists corrosion and physical impact far better than plastic alternatives, making it suitable for long-term outdoor use.
- Wide temperature tolerance: Rated from -40°C to +60°C, it remains reliable across Australia's full range of climates from alpine to tropical.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DH-PFA121
Who This Is For
Property managers and installers specifying outdoor camera runs often overlook the weak point in any installation: the cable junction. The Dahua DH-PFA121 Water-Proof Junction Box is built for exactly this situation - protecting network and power connections at the rear of outdoor cameras where conduit meets housing. Constructed from aluminium with an IP66-rated sealed enclosure, it handles direct rain exposure, coastal humidity, and the temperature swings common across Australian outdoor environments (-40°C to +60°C). The G3/4" pipe thread accepts standard conduit, and the compact 134 x 133.5 x 56mm footprint keeps the installation profile low against walls and soffits. At 540g and rated to support a 3kg load, it provides a stable, weatherproof termination point for camera mounting scenarios where exposed cable connections would otherwise be vulnerable.
What This Actually Does
IP66 Weather Sealing
The IP66 rating means this enclosure is fully protected against high-pressure water jets from any direction. Outdoor cable junctions exposed to rain, cleaning hoses, or coastal spray are sealed against moisture ingress that would otherwise corrode connections or cause camera faults over time.
Aluminium Construction
Cast aluminium provides strength without bulk. Unlike plastic junction boxes that become brittle under UV or physical impact, the aluminium body of the DH-PFA121 holds up to repeated heat cycling and accidental knocks in plant areas, loading docks, and exposed rooflines.
Wide Temperature Tolerance
Rated from -40°C to +60°C, this enclosure performs across Australian climate extremes - from rooftop installations in northern Queensland summer heat to cold-store and refrigerated warehouse environments where standard plastic accessories fail at low temperatures.
Standard Pipe Thread Entry
The G3/4" pipe thread connection integrates cleanly with standard electrical conduit systems. This allows installers to run conduit directly into the junction box for a fully sealed cable pathway from wall penetration to camera connection, with no exposed cable runs.
Load-Rated Mounting
With a confirmed load bearing capacity of 3kg, the DH-PFA121 can support the weight of a camera mounted directly to the box in addition to its own 540g. This simplifies installations where the junction box also serves as the primary mounting point for a compact outdoor camera.
Who Buys This Model
- CCTV Installers: Professionals running conduit to outdoor bullet or turret cameras who need a clean, IP66-rated termination point at the camera end - eliminating exposed cable tails and unsecured connections at the mounting surface.
- Commercial Property Managers: Facilities teams upgrading external camera cabling on warehouses, carparks, or retail sites where weatherproofing at every junction point is part of the site compliance or insurance requirement.
- Industrial Site Electricians: Trades working on manufacturing or logistics facilities who need a conduit-compatible, aluminium-bodied enclosure rated to handle wash-down zones, high humidity, and temperature extremes without seal failure.
- Owner-Builders and Self-Installers: Those installing outdoor cameras with surface-run conduit who want a professional-grade weatherproof cable enclosure rather than improvising with generic PVC fittings that may not maintain an adequate seal over time.
Honest Assessment
The DH-PFA121 does one thing well: it provides a compact, properly rated enclosure for outdoor cable junctions that would otherwise be the most vulnerable point in an external camera installation. The aluminium body, IP66 seal, and -40°C to +60°C operating range are confirmed specs that hold up across genuine Australian outdoor conditions. The G3/4" thread is compatible with standard conduit, keeping installations tidy and reducing the need for additional weatherproofing workarounds at the wall entry point. Where this product will not help: it does not replace a dedicated camera mount or pole bracket for cameras requiring height or angle adjustment, and it is not suited to installations where an in-wall or cavity junction is more appropriate. If your installation runs cabling internally with no exposed conduit at the camera end, you likely do not need this box. Available through Security Australia as part of the Dahua accessories range for installers specifying complete weatherproof outdoor runs.
Before You Buy
Installer Note: The DH-PFA121 uses a G3/4" pipe thread entry - confirm your conduit fittings match this thread standard before ordering. The box supports a 3kg load bearing capacity, which covers most compact bullet and turret cameras mounted directly to the enclosure, but check your specific camera's weight if it's a larger housing. The 134 x 133.5mm footprint is worth measuring against your mounting surface, particularly on narrow fascia boards or small soffit sections where a bulkier enclosure may not sit flush.
Environmental Note: The IP66 rating protects against water jets but does not cover submersion. For installations in drain channels, ground-level flood-prone areas, or any location where the box could be submerged, an IP67 or IP68 rated enclosure is required. This box is designed for wall, soffit, and eave mounting in exposed outdoor positions, not below-grade or submerged applications.
Quick Fit Check
- Good match if: You're running surface conduit to an outdoor camera and need a weatherproof termination box at the camera end - the G3/4" thread accepts standard conduit directly and the IP66 seal keeps the junction protected from rain and cleaning spray.
- Good match if: Your installation is in an environment with significant temperature variation - from cold-store facilities to sun-exposed northern Australian rooftops - and you need an enclosure rated across the full -40°C to +60°C range.
- You may need a different model if: Your installation requires the camera to be mounted at height or on an adjustable arm - a dedicated camera bracket or pole mount from the Dahua accessories range will provide the positioning flexibility that a fixed junction box cannot.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need an IP66-rated, aluminium-bodied enclosure for outdoor cable junctions that connects directly to standard G3/4" conduit and handles the full range of Australian outdoor temperature and humidity conditions.
- You may need a different model if: Your installation requires camera height adjustment, angular positioning, or pole mounting - a dedicated camera arm or wall bracket accessory from the Dahua accessories range is the appropriate product type for those requirements.
- Pairs well with: Outdoor bullet or turret cameras mounted to external walls or soffits with surface conduit runs, where a sealed cable junction at the camera mounting point is part of the installation design.
Common Questions
-
Will the DH-PFA121 work with standard electrical conduit fittings?
Yes, but confirm your conduit fitting matches the G3/4" thread specification. G3/4" is a BSP (British Standard Pipe) thread. Some Australian conduit systems use metric or different thread standards, so verify your conduit fittings before installation to ensure a weatherproof connection at the entry point. -
Does this junction box support cameras mounted directly to it?
Yes, within the 3kg load bearing limit. The DH-PFA121 is rated to support up to 3kg, which covers most compact bullet and turret cameras. Check your specific camera's weight before mounting directly to the box. Heavier PTZ or large housing cameras will require a dedicated bracket rated for their load. -
What does IP66 actually mean for this junction box?
IP66 means the enclosure is fully dustproof and protected against high-pressure water jets from any direction. The first digit (6) confirms complete protection against dust ingress. The second digit (6) confirms protection against powerful water jets - which covers rain, cleaning hoses, and splash exposure. It does not cover submersion. -
Will this junction box handle Australian summer heat on a sun-exposed roof or wall?
Yes. The confirmed upper operating temperature is +60°C, which exceeds the ambient air temperatures recorded in all Australian states. Note that surface temperatures on directly sun-exposed metal surfaces can exceed ambient air temperature, so consider whether the installation position is in direct solar exposure for extended periods when planning cable routing. -
Is this compatible with Dahua cameras specifically, or will it work with other brands?
The DH-PFA121 is a general-purpose weatherproof junction box and is not electrically paired to any camera. Compatibility depends on conduit thread size (G3/4") and whether the camera mounting pattern aligns with the box. It is designed as a Dahua accessory but functions as a standard enclosure. Security Australia can advise on compatibility with specific camera models. -
Can this box be used in high-humidity environments like tropical north Australia?
Yes. The DH-PFA121 is rated to operate at up to 90% relative humidity, which covers the conditions found in tropical Australian environments including northern Queensland, the Northern Territory, and coastal Western Australia. The IP66 seal also prevents moisture ingress during heavy monsoonal rainfall typical of those regions.
Downloads & Resources
No downloads available for this product.
| Model | DH-PFA121 |
| General | |
| Material | Aluminum |
| Dimension (WxHxD) | 134.0mmx133.5mmx56.0mm (5.28”x5.25”x2.20”) |
| Pipe Thread | G3/4” |
| Weight | 0.54kg(1.19lb) |
| Load Bearing | 3.0kg(6.61lb) |
| Color | White |
| Protection | IP66 |
| Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| Humidity | 0~90% RH |
