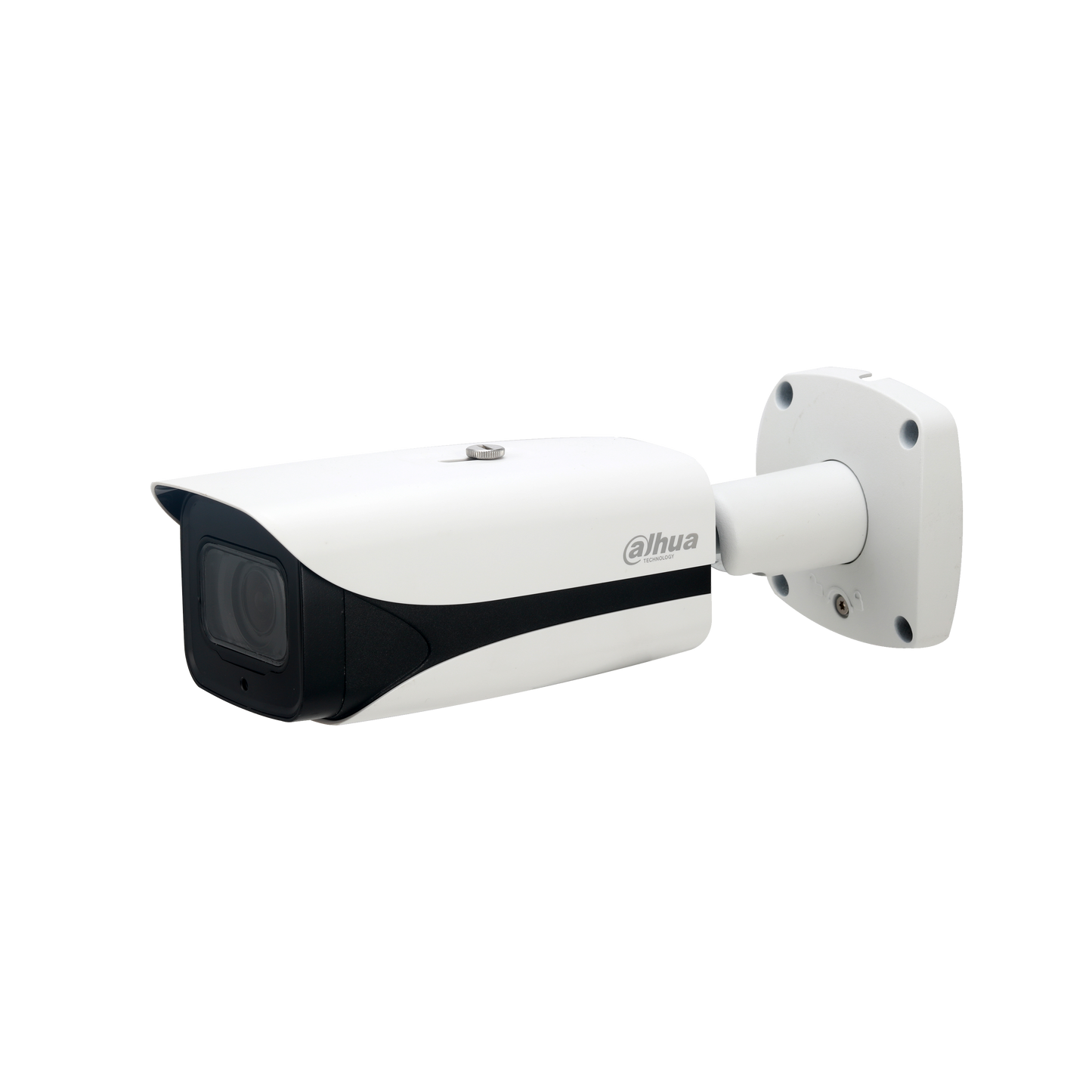

Dahua DH-IPC-HFW5541EP-ZE-27135 5MP IP WDR IR Bullet AI Network Camera, 2.7mm ~13.5mm motorized lens ePOE ,IR 50m, Micro SD memory,SMD

$572.00 AUD
$528.00 AUD
Tax included.
Shipping calculated at checkout.
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

5MP IR Vari-focal Bullet WizMind Network Camera

The Dahua 4MP Lite IR Vari-focal Bullet Network Camera (DH-IPC-HFW2431T-ZAS-S2) is a versatile surveillance solution designed for both indoor and outdoor use. It features a 4MP resolution that delivers clear and detailed images, ensuring reliable monitoring. The camera comes with a motorized vari-focal lens, allowing for easy adjustments to the field of view, making it adaptable to various environments.

Key Features

  • 5-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
  • Outputs up to 5MP (2592 × 1944)@20 fps and supports 4MP (2688 × 1520)@25/30 fps.
  • Built-in IR LED with a maximum illumination distance of 60 m.
  • Features ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible encoding for various bandwidth and storage environments.
  • Includes rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenes.
  • Equipped with three switchable intelligent resources: IVS, face detection, and people counting.
  • Alarm system: 2 inputs, 1 output; audio: 1 input, 1 output; supports a maximum 256 GB Micro SD card.
  • 12 VDC/PoE power supply for easy installation.
  • IP67 and IK10 protection with ePoE support.
  • SMD 3.0 technology.

Code/SKU: DH-IPC-HFW2431T-ZAS-S2
Quick Specs:

  • Lens Type: Motorized vari-focal
  • Lens Mount: φ14
  • Focal Length: 2.7 mm–13.5 mm
  • Max. Aperture: F1.5

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

1GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 100°–28°
Vertical: 72°–21°
Diagonal: 133°–35°

Iris Control

Auto

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64 m (209.97 ft)

25.6 m (83.99 ft)

12.8 m (41.99 ft)

6.4 m

(21.00 ft)

T

212 m (695.54 ft)

84.8 m (278.22 ft)

42.4 m (139.11 ft)

21.2 m (69.55 ft)

Smart Event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

SMD 3.0

Less false alarm, longer detection distance

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps) /1920 × 1080@(1-50/60 fps)
Sub stream: D1@(1 fps–50/60 fps)
Third stream: 1080p@(1 fps–50/60 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

2592 × 1944; 2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270°(Support 90°/270° with 4M resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; input error; voltage detection; face detection; people counting in area; stay detection; people counting; people number error detection; queue management; intensity change

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE8 and later
Chrome
Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5 mA 3–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af); ePoE

Power Consumption

Basic: 3 W (12 VDC); 3.7 W (PoE)
Max. (max. stream + IR LED + focus): 9.9 W (12 VDC); 10.9 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal + plastic

Product Dimensions

273.2 mm × 95 mm × 95 mm (10.76" × 3.74" × 3.74") (L × W × H)

Net Weight

1110 g (2.45 lb)

Gross Weight

1510 g (3.33 lb)

Documentation

13-dahua-ir-bullet-network-camera_qsg_v1.0.18.pdf
dh-ipc-hfw5541e-ze_dimension_20190408.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HFW5541EP-ZE-27135 5MP IP WDR IR Bullet AI Network Camera, 2.7mm ~13.5mm motorized lens ePOE ,IR 50m, Micro SD memory,SMD

$572.00 AUD
$528.00 AUD

The 5MP IR Vari-focal Bullet WizMind Network Camera DH-IPC-HFW5541E-ZE from Dahua Security is designed to deliver high-resolution imaging with its 5MP sensor, ensuring clear and detailed footage. It features a vari-focal lens, allowing users to adjust the focal length between 2.7mm and 13.5mm for flexible field of view adjustments. Equipped with IR illumination, it provides superior night vision capabilities, capturing clear images in low-light conditions up to 50 meters. The camera utilizes WizMind technology, which includes advanced AI features for enhanced object detection and recognition. It supports H.265+ video compression to reduce bandwidth and storage requirements while maintaining high image quality. The DH-IPC-HFW5541E-ZE is built with a robust and weatherproof design, making it suitable for various outdoor environments. It offers a range of mounting options for versatile installation. The camera supports PoE (Power over Ethernet) for simplified power and data transmission. It includes features such as 120dB WDR (Wide Dynamic Range) to handle challenging lighting conditions. The camera is also equipped with a built-in microphone and speaker for two-way audio communication, adding an extra layer of functionality.

Features

  • 5-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
  • Outputs up to 5MP (2592 × 1944)@20 fps and supports 4MP (2688 × 1520)@25/30 fps.
  • Built-in IR LED with a maximum illumination distance of 60 m.
  • Features ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, flexible encoding for various bandwidth and storage environments.
  • Includes rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenes.
  • Equipped with three switchable intelligent resources: IVS, face detection, and people counting.
  • Alarm system: 2 inputs, 1 output; audio: 1 input, 1 output; supports a maximum 256 GB Micro SD card.
  • 12 VDC/PoE power supply for easy installation.
  • IP67 and IK10 protection with ePoE support.
  • SMD 3.0 technology.



Functions

Face Detection
Face Detection is a software feature that automatically identifies and captures faces from digital images or video frames. Dahua cameras leverage advanced deep learning algorithms trained on extensive face data, allowing them to quickly and accurately locate and capture facial images within a video stream.

Face Attributes
Using deep learning algorithms, Dahua cameras can extract six facial attributes from each frame: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, and Moustache & Beard. This capability allows users to obtain detailed statistical data about faces detected in the video.

Perimeter Protection
Dahua’s Perimeter Protection enhances accuracy by reducing false alarms and lowering the pixel count required for object detection. It features customizable tripwires based on object type for automated monitoring of restricted areas, such as pedestrian or vehicle-only zones. The integration of advanced AI analytics and real-time alerts to desktops or mobile devices improves system efficiency and reduces resource requirements.

People Counting
The People Counting function utilizes advanced image processing technology to capture depth information from images. By combining this with deep learning algorithms, the camera can detect and track human bodies in real time. It provides statistics on individual entrances and exits with up to 95% accuracy.

Metadata
Metadata refers to the feature attribute information extracted from a target object for data retrieval purposes. Dahua’s face detection cameras can extract six facial attributes and generate metadata for detailed analysis.

ePoE Technology
Dahua’s proprietary ePoE technology employs advanced 2D-PAM3 coding modulation to achieve full duplex transmission over 800 meters at 10Mbps, or 300 meters at 100Mbps using Cat 5 or coaxial cables. It supports PoE and PoC power supply, simplifying installation and wiring. ePoE technology facilitates long-distance transmission between IP cameras and network switches, offering flexible surveillance system design, improved reliability, and cost savings.

Protection (IP67, IK10, Wide Voltage)
The camera supports a ±30% input voltage tolerance, making it suitable for unstable outdoor conditions. It features a 6KV lightning rating for effective protection against lightning, and it is certified for rigorous dust and immersion (IP67) and impact (IK10) tests. This ensures durability and reliability in harsh environments.

Technical Specifications:

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

1GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 100°–28°
Vertical: 72°–21°
Diagonal: 133°–35°

Iris Control

Auto

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64 m (209.97 ft)

25.6 m (83.99 ft)

12.8 m (41.99 ft)

6.4 m

(21.00 ft)

T

212 m (695.54 ft)

84.8 m (278.22 ft)

42.4 m (139.11 ft)

21.2 m (69.55 ft)
