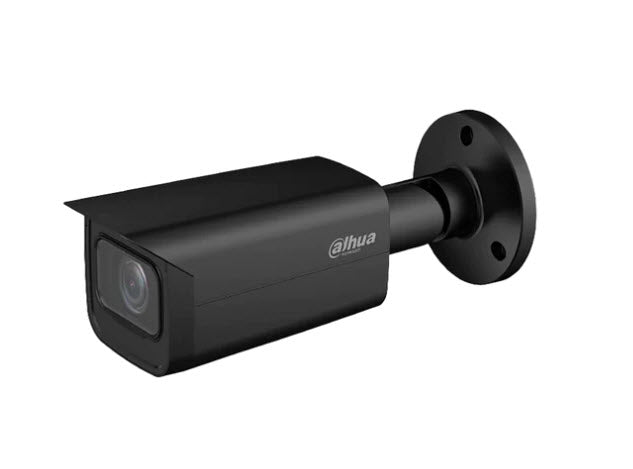

Dahua DH-IPC-HFW3866TP-ZAS-AUS 8MP (4K) WDR IR Bullet, Motorised Black

Model: DH-IPC-HFW3866TP-ZAS-AUS-BLK

Who This Is For

Security integrators specifying cameras for commercial perimeters, car parks, loading docks, and industrial entry points will find the Dahua DH-IPC-HFW3866TP-ZAS-AUS-BLK a strong fit where both coverage flexibility and AI-grade detection are required. The black housing suits sites where visual discretion or aesthetic integration matters, and the motorised vari-focal lens - spanning 2.7 mm to 13.5 mm - lets installers dial in the exact field of view from 109 degrees wide to a tight 30 degrees telephoto without changing the physical mounting position. At 8MP (4K) resolution with 60-metre IR, this camera handles long driveways, yard approaches, and fence lines where a fixed-lens bullet simply cannot match coverage without compromise. SMD 4.0 and Perimeter Protection add AI-driven human and vehicle classification, making it a practical choice for sites where false alarm rates from standard motion detection have been a persistent problem.

What This Camera Actually Does

Who Buys This Model

• Security Installers on Commercial Sites: The motorised lens removes the need for a second site visit to adjust field of view after client walkthrough - focal length is dialled in remotely once the exact coverage requirement is confirmed.
• Industrial Facility Managers: Long driveways, loading docks, and yard perimeters with 30-60-metre approach distances are the natural fit for the 60-metre IR range and the 4K detail needed to distinguish individuals at distance.
• Integrators Replacing High-False-Alarm Systems: Sites already running standard motion-detection cameras that generate excessive alerts benefit directly from SMD 4.0 and Perimeter Protection, which classify events before triggering alarm outputs.
• Car Park and Access Road Operators: The 289.7-metre DORI detect distance at telephoto and human/vehicle classification make this a suitable choice for boom gate approaches and multi-level car park entry lanes where identification at distance is operationally important.

Honest Assessment

The DH-IPC-HFW3866TP-ZAS-AUS-BLK is a well-specified outdoor bullet for installers who need 4K resolution, a remotely adjustable lens, and AI detection in a single weather-rated unit. The motorised vari-focal lens is the standout practical advantage - it eliminates field-of-view guesswork during installation and allows adjustments without returning to site. SMD 4.0 delivers genuine false alarm reduction that makes a measurable difference on perimeter deployments. IP67 weatherproofing and IK10 (optional) vandal resistance make it appropriate for exposed industrial and commercial environments. Available through Security Australia, this model suits sites where a fixed-focal bullet would require multiple cameras to achieve the same flexibility. It will not replace a PTZ for active operator-controlled tracking, and it does not offer full-colour night vision - if colour detail in complete darkness is the priority, a camera with white-light or full-colour illumination would be a more suitable choice.

Before You Buy

Quick Fit Check

• Good match if: You are covering a long driveway, fence line, or industrial approach where exact field of view cannot be confirmed until after mounting - the motorised 2.7 mm-13.5 mm lens lets you fine-tune coverage remotely without repositioning the camera.
• Good match if: The site generates persistent false alarms from standard motion detection - SMD 4.0 and Perimeter Protection classify human and vehicle targets specifically, reducing nuisance alarm volume from animals, foliage, and passing traffic.
• You may need a different model if: The installation requires active pan-and-tilt operator control or auto-tracking of moving subjects across a wide open area - a PTZ camera is the appropriate product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K outdoor resolution with a remotely adjustable lens and AI-based human/vehicle classification in a single IP67-rated bullet housing - the motorised zoom removes the need for multiple fixed-focal units to cover variable-distance approaches.
• You may need a different model if: The application requires operator-controlled pan and tilt, auto-tracking of moving subjects, or optical zoom beyond 5x - a PTZ camera is the appropriate product type for active wide-area tracking and operator-directed monitoring.
• Pairs well with: A Dahua WizSense-compatible NVR with AI processing support, which unlocks Quick Pick search and full SMD 4.0 event management across all connected cameras.

Common Questions

1. Will this camera work on a standard PoE port?

   Yes. This camera supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable from a standard PoE switch or NVR carries both power and data. The camera also accepts 12VDC if a direct power supply is preferred or if cable runs exceed practical PoE limits. Confirm port power budget on longer runs with high-quality cabling.

2. How does the motorised vari-focal lens actually get adjusted after installation?

   Zoom and focus are adjusted remotely via a Dahua-compatible NVR interface or the camera's web interface - no physical access to the lens barrel is required post-mounting. The focal range is 2.7 mm to 13.5 mm, giving a horizontal field of view from 109 degrees at wide end to 30 degrees at telephoto. This is the primary installation advantage of this unit over a fixed-focal bullet: coverage can be refined after the client walkthrough without returning to the mounting position.

3. What is the practical detection range at the telephoto setting, and how far can it identify a person?

   At the telephoto (13.5 mm) setting, the DORI detect distance is 289.7 metres - meaning movement can be flagged at nearly 290 metres. Observation distance is 115.7 metres, recognition is 57.9 metres, and identification (face-level detail meeting standard criteria) is 29.0 metres. At the wide (2.7 mm) setting, identification drops to 8.8 metres. These distances assume standard 1.8-metre human target height and are useful for planning camera placement relative to perimeter boundaries.

4. Does SMD 4.0 work without an AI NVR?

   Yes, partially. The camera runs SMD 4.0 classification onboard and filters human and vehicle targets locally - this reduces false alarms at the camera level without requiring an AI NVR. Pairing with a Dahua AI-compatible NVR adds Quick Pick functionality, which lets you search SMD event footage filtered by human or vehicle targets, prioritising the most relevant matches. The core alarm filtering works on the camera itself regardless of recorder type.

5. Does this camera record audio, and is an external microphone needed?

   No external microphone is needed. The ZAS variant includes a built-in microphone plus 1 audio input and 1 audio output. Audio recording is supported directly to a compatible NVR. The audio input also allows connection of an external microphone if the built-in mic does not suit the installation position. This is confirmed hardware on the ZAS model only - not all HFW3866 variants include this capability.

6. Will this camera work in complete darkness?

   Yes. With the IR illuminator active, the camera reaches 0 lux minimum illumination - complete darkness is not a limiting factor. The 4 IR LEDs illuminate to 60 metres. In low-light conditions with ambient light present, the minimum illumination is 0.007 lux in colour mode. The camera does not produce colour night vision in darkness - IR illumination produces monochrome output. If colour detail in complete darkness is required, a full-colour or white-light illuminated camera would be the appropriate product type.

7. Is a 256GB SD card included, and can the camera record locally without an NVR?

   No SD card is included. The camera supports a Micro SD card up to 256GB (not supplied), which enables local edge recording without an NVR connection. This is useful as a backup recording path or for standalone deployments where running network cable to a central recorder is not practical. Edge recording configuration is managed through the camera's web interface. Security Australia stocks this camera without a card - source a compatible Class 10 or higher Micro SD separately.

8. Does Smart H.265+ noticeably reduce storage requirements compared to standard H.265?

   Yes, measurably. Dahua's Smart H.265+ applies scene-adaptive rate control that reduces bitrate during low-activity periods - stationary backgrounds, empty car parks, and overnight idle scenes use significantly less storage than they would under standard H.265 at a fixed bitrate. For an 8MP (4K) camera running 24/7, this is a practical consideration: Smart H.265+ can substantially reduce the storage footprint on an NVR compared to unconstrained 4K H.265 streams, without visible quality loss during recorded events.
