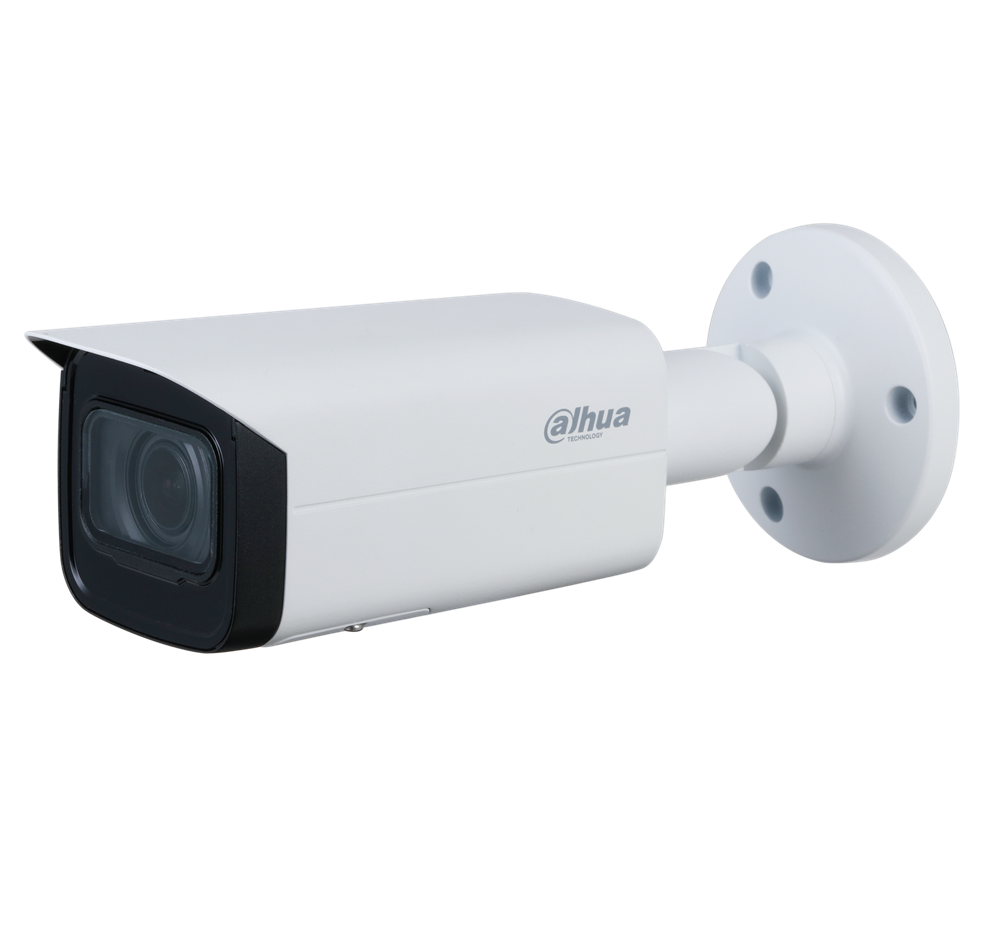

Dahua DH-IPC-HFW3541TP-ZS-27135 5MP Lite AI Motorised Starlight Bullet, Perimeter, SMD WDR, IR60m

Model: DH-IPC-HFW3541TP-ZS-27135

Who This Is For

For installers and security integrators who need a single outdoor bullet camera to cover a long approach, driveway, or perimeter fence line without locking in the lens angle at the time of installation. The DH-IPC-HFW3541TP-ZS-27135 pairs a 5MP sensor with a motorised 2.7-13.5mm vari-focal lens, so the field of view can be dialled in remotely after mounting - no ladders required to adjust glass. Starlight-rated sensitivity down to 0.005 Lux keeps colour detail in near-dark conditions, and 60m IR fills in when light disappears entirely. SMD Plus filters out animals and environmental movement so alarm events are triggered by people and vehicles only. This suits commercial properties, light industrial sites, and rural installations where long cable runs and unpredictable lighting are standard challenges, and where getting the zoom right after the camera is bolted up saves hours on site.

What This Camera Actually Does

Who Buys This Model

• Security Integrators: Specifying a perimeter bullet for commercial sites where the final zoom position cannot be confirmed until the camera is physically mounted - the motorised lens allows post-install tuning without revisiting the roofline or pole.
• Rural and Agricultural Property Owners: Installing on farm gate entries, sheds, or equipment yards where ambient light is minimal and 60m IR coverage is needed to capture anyone approaching in darkness.
• Light Industrial and Warehouse Operators: Adding perimeter tripwire detection to loading dock approaches or yard entries where after-hours human and vehicle classification reduces false alarms from wind movement and machinery vibration.
• Small Business Owners with Long Driveways or Car Parks: Needing a single camera that can cover a long straight approach at the telephoto end of the lens while retaining the option to widen the view if the layout changes.

Honest Assessment

The DH-IPC-HFW3541TP-ZS-27135 does two things especially well: flexible post-install framing via its motorised lens and genuinely useful perimeter intelligence through SMD Plus and IVS. The 5MP resolution at the telephoto end gives workable facial and vehicle detail at realistic outdoor distances, and the Starlight sensor handles the dimly lit scenarios where standard cameras lose colour and start to blur. The 120dB WDR is a real advantage for gate-facing installs where sun or headlight glare would otherwise wash out the frame. What this camera will not do is cover a wide courtyard or multi-angle scene from a single position - for that, a fisheye or multi-sensor model would serve better. It also does not produce full-colour night video without supplementary white-light; IR illumination means night footage is monochrome. Available through Security Australia, this is a considered choice for straight-line perimeter and approach coverage where lens flexibility and AI filtering are the priorities.

Before You Buy

Quick Fit Check

• Good match if: You are covering a driveway, fence line, or loading dock approach where the camera will be mounted at height and the optimal zoom level needs to be set remotely after the bracket is fixed - the motorised 2.7-13.5mm lens handles exactly this.
• Good match if: Your site generates frequent false motion alerts from wind, animals, or traffic and you need perimeter rules that only trigger on confirmed human or vehicle classification via SMD Plus and IVS.
• You may need a different model if: Your priority is full-colour night-time footage without running supplementary lighting - a full-colour or TiOC camera with a built-in white-light illuminator would serve that requirement better. Browse the full outdoor camera range at securityaustralia.com.au for those options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a perimeter bullet with a lens you can tune remotely after mounting, combined with human-and-vehicle-only AI alerting that eliminates nuisance motion events.
• You may need a different model if: Full-colour night footage is the primary requirement - a full-colour bullet or TiOC model with integrated white-light illumination would deliver colour in complete darkness, whereas this camera produces monochrome IR imagery at night.
• Pairs well with: A Dahua-compatible PoE NVR with SMD Plus support, ensuring the human and vehicle classification data is processed and searchable from the recorder interface rather than relying solely on the camera's onboard rules.

Common Questions

1. Will this camera record in colour at night without additional lighting?

   No. The DH-IPC-HFW3541TP-ZS-27135 uses infrared illumination for night-time operation, which produces monochrome footage in darkness. The Starlight sensor (0.005 Lux minimum illumination) retains colour in very low ambient light - dim street lighting or headlight scatter - but once the IR activates in full darkness, the image shifts to black and white. For full-colour night recording, a camera with an integrated white-light illuminator would be required.

2. Does this work for a long driveway approach where I can't finalise the zoom angle until the camera is installed?

   Yes. The motorised vari-focal lens (2.7-13.5mm) adjusts remotely via the camera's web interface or a compatible Dahua NVR after the housing is fixed. You can tighten the field of view to cover a narrower, longer corridor or widen it for a broader entrance zone without physically touching the lens or returning to the mounting point with tools.

3. What is the difference between the DORI distances at wide versus telephoto on this camera?

   At the wide end (2.7mm), the identification distance is 6.4m - suitable for close entry points where you need a face-level image of someone right in front of the camera. At the telephoto end (13.5mm), the identification distance extends to 22.2m and detection reaches 222m. This means at full zoom, the camera can detect a person nearly a quarter of a kilometre away and produce a recognisable image at 22 metres - practical for driveway approaches, fence lines, and access roads where early detection matters. Matching the zoom position to your actual target distances is the key tuning step at commissioning.

4. How does the motorised lens zoom ratio affect IR performance at the telephoto end?

   The IR distance (60m) is rated as a maximum and is most effective when the lens is zoomed in. At the telephoto end, the narrower field of view concentrates IR light on a smaller area, which generally produces better subject illumination at distance than the same IR spread across a wide-angle view. However, at wide angle (2.7mm), the IR cone spreads across a larger area so the effective illumination per square metre is lower - subjects at the far edge of the 60m rating will be dimmer at wide than at tele. For maximum night detail at distance, zoom in and use the IR in combination.

5. Does SMD Plus work independently or does it require a compatible NVR?

   SMD Plus runs on the camera itself - human and vehicle classification is processed at the edge without requiring a specific NVR model. The camera can trigger local alarm outputs, push notifications, and flag events based on its own AI engine. However, to search SMD-tagged events from a recorder interface, log classified events centrally, or use SMD-filtered playback, a compatible Dahua NVR with SMD Plus support is required. The camera-only setup is functional; the NVR integration adds management and searchability.

6. Will this camera work if my power supply voltage varies - for example on a rural property with a generator or solar setup?

   Yes, with some caveats. The camera supports 12V DC input with a wide voltage tolerance (rated at approximately plus or minus 30%), which provides headroom for fluctuating supply from generators or solar inverters. PoE operation depends on the switch delivering stable 802.3af compliant power - if your PoE source voltage is unstable, the 12V DC input with a regulated adapter is the more dependable choice. Confirm your supply stays within the rated voltage window before relying on PoE on an off-grid setup. This model is stocked by Security Australia and the team can advise on appropriate power supply options for off-grid installs.

7. Can I use the microSD slot as the primary storage without an NVR?

   Yes, for standalone operation. The camera supports up to a 256GB microSD card and can record continuously or on event-triggered schedules directly to the card. This is a practical option for single-camera installs in remote locations where running cable back to a recorder is not feasible. The limitation is that footage retrieval requires either removing the card or accessing the camera's web interface directly - there is no centralised management or multi-camera playback without an NVR.
