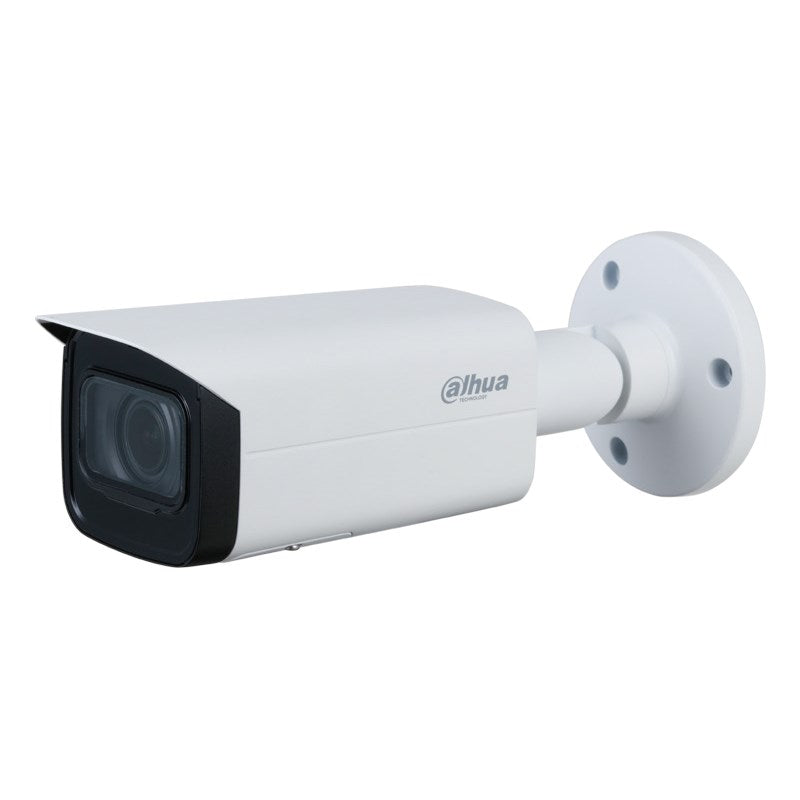

Dahua DH-IPC-HFW3466TP-ZAS-AUS 4MP WDR IR Bullet Network Camera with 2.7-13.5mm Motorized Lens Wizsense

Model: DH-IPC-HFW3466TP-ZAS-AUS

Who This Is For

For installers and property managers who need to cover long approaches, carparks, or perimeter fence lines without locking in a fixed field of view at the time of installation, the Dahua DH-IPC-HFW3466TP-ZAS-AUS delivers genuine flexibility. The 2.7-13.5mm motorised varifocal lens means zoom and focus are adjusted remotely through the NVR or software - no ladders, no manual lens adjustment on the housing. At 4MP resolution across a sensor capable of detecting to 210 metres at telephoto, this camera suits sites where the distance to the target area is unknown until commissioning, or where coverage priorities may shift over time. The built-in microphone, alarm I/O, and audio output on the ZAS variant add event-triggered response options that the base model does not include. IP67-rated and built for outdoor continuous use.

What This Camera Actually Does

Who Buys This Model

• Carpark and Driveway Installers: The motorised varifocal lens allows precise framing of long entry lanes or parking bays from elevated pole or wall mounts, without a return visit to manually adjust the lens after cabling is complete.
• Commercial Property Managers: Sites where perimeter coverage requirements change over time - such as when tenancies shift or loading dock access points are reconfigured - benefit from a camera whose field of view can be re-tuned remotely.
• Integrators Specifying AI-Capable Systems: When the project NVR is a Dahua AI-compatible model, SMD 4.0 classification and Quick Pick search become available across the recorded archive - reducing the time required to locate specific events after an incident.
• Industrial and Warehouse Sites: The IP67 rating, 60m IR range, and wide-voltage tolerance suit outdoor exposed mounting on buildings, yard perimeters, and loading areas where lighting is poor and weather exposure is a factor.
• Installers Needing Alarm Integration: The ZAS variant's alarm I/O ports allow connection to external sirens, gate controllers, or access systems - making this suitable for projects that require the camera to trigger or respond to external devices.

Honest Assessment

The DH-IPC-HFW3466TP-ZAS-AUS performs well where a fixed-lens bullet camera would leave you guessing at the zoom level during design. The motorised lens removes post-installation adjustment from the critical path, and SMD 4.0 classification genuinely reduces nuisance alarm volume on busy outdoor sites. The alarm and audio I/O on the ZAS variant are a meaningful differentiator for integration-heavy projects. At telephoto, the confirmed detect distance of 210 metres makes this a credible option for long-approach monitoring. What it will not do: this is not a full-colour low-light camera - it transitions to black-and-white IR at night, so if 24-hour colour output is a project requirement, a full-colour or TiOC variant would be more appropriate. It also lacks optical zoom tracking or auto-patrol - a PTZ would suit applications where the camera needs to physically follow moving targets. Available through Security Australia with the ZAS alarm and audio I/O ports included as standard on this SKU.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on a high pole or elevated bracket where returning to manually adjust a fixed lens is impractical - the motorised 2.7-13.5mm lens lets you frame the scene remotely after install.
• Good match if: The project includes a compatible Dahua AI NVR and the client needs efficient post-event search - SMD 4.0 classification feeds directly into Quick Pick search for human and vehicle targets in recorded footage.
• You may need a different model if: The application requires the camera to actively track moving targets across a wide area - a PTZ camera with auto-tracking capability would cover that use case more effectively; the full PTZ range is available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed-mount bullet camera whose field of view can be dialled in remotely after install, and where AI-based human and vehicle classification with alarm I/O integration is required on a single outdoor unit.
• You may need a different model if: The site requires the camera to pan, tilt, or actively follow moving targets - a PTZ camera type with auto-tracking handles dynamic monitoring scenarios that a fixed-mount bullet cannot replicate; the PTZ range is available on securityaustralia.com.au.
• Pairs well with: A Dahua AI-capable NVR with Quick Pick support - this unlocks SMD 4.0 event-based search and maximises the value of the on-camera classification built into this model.

Common Questions

1. Does the motorised lens on this camera require physical access to adjust after mounting?

   No. The motorised varifocal lens adjusts electronically via the NVR interface or camera web interface. Zoom and autofocus are both controllable remotely once the camera is live on the network. This means the lens can be re-framed without a ladder return visit - a meaningful advantage on elevated or awkward mounting positions. Note that initial focus confirmation during commissioning is still recommended before finalising cable routes.

2. What is the actual zoom ratio of the 2.7-13.5mm lens, and how does this affect the field of view?

   The lens delivers a 5x optical zoom ratio (2.7mm to 13.5mm). At the wide end (2.7mm), horizontal field of view is 104 degrees, suited to covering wide open areas at close range. At the telephoto end (13.5mm), horizontal field of view narrows to 29 degrees, concentrating coverage on a specific zone at distance. The confirmed DORI detect distance extends to 210 metres at telephoto, meaning a person walking towards the camera can be detected at that range under appropriate conditions - though recognition requires a target within 42 metres and identification within 21 metres at that focal length.

3. Will this camera work for after-hours perimeter monitoring with alarm output to an external siren?

   Yes. The ZAS variant includes 1 alarm output that can trigger an external siren or other device when a detection event fires. Combined with the on-camera tripwire or intrusion zone detection, the camera can classify a human crossing a defined line and immediately activate the alarm output - without requiring the NVR to process the event first. This makes the camera functional as a standalone perimeter detection and alerting unit at the edge.

4. Does this camera produce colour video at night, or does it switch to black-and-white?

   It switches to black-and-white IR mode at night. The camera uses 4 IR LEDs with a confirmed 60m illumination range - colour is available down to 0.005 lux, but below that threshold the camera transitions to monochrome. If continuous full-colour night footage is a requirement, a full-colour or active-deterrence camera with white light illumination would be more appropriate than this model.

5. What does SMD 4.0 actually do differently from standard motion detection?

   SMD 4.0 uses deep learning to classify detected motion as human, vehicle, or neither - before generating an alert. Standard pixel-based motion detection triggers on any image change: shadows, rain, animals, swaying vegetation. SMD 4.0 filters those out at the camera level, sending alerts only when a human or vehicle is confirmed. On a busy outdoor site, this can substantially reduce the volume of nuisance notifications reaching the NVR or monitoring platform. When used with a compatible Dahua AI NVR, Quick Pick further allows event-based searches filtered by human or vehicle targets.

6. Is a microSD card included with the camera, and how much local storage does it support?

   No microSD card is included. The camera supports up to 256GB via a microSD slot (ZAS variant). Local edge storage is useful as a backup when NVR connectivity is interrupted, or as a standalone recording option on low-channel installs. The card must be sourced and inserted separately during installation - it is not pre-installed.

7. What PoE standard does this camera require, and will a standard PoE switch work?

   Yes, a standard PoE switch is sufficient. This camera supports IEEE 802.3af PoE, which is the most common standard and supported by the majority of managed and unmanaged PoE switches. It also accepts 12VDC with a wide-voltage tolerance of plus or minus 30%, providing flexibility where PoE infrastructure is not in place. A single Cat5e or Cat6 cable carries both data and power under PoE, simplifying the cable run to the mounting point. Contact Security Australia if you need guidance on matching PoE switch specifications to a multi-camera installation.

8. Does the AI SSA feature work automatically, or does it require manual configuration?

   It works automatically. AI Scene Self-Adaptation continuously analyses the live scene and adjusts image parameters in response to detected environmental conditions - including backlight, low light, fog, rain, and flickering light sources. There is no manual trigger or scheduled adjustment required. This is particularly relevant for outdoor cameras where lighting conditions shift significantly from morning to evening, or where a site has mixed artificial and natural light sources during the day.
