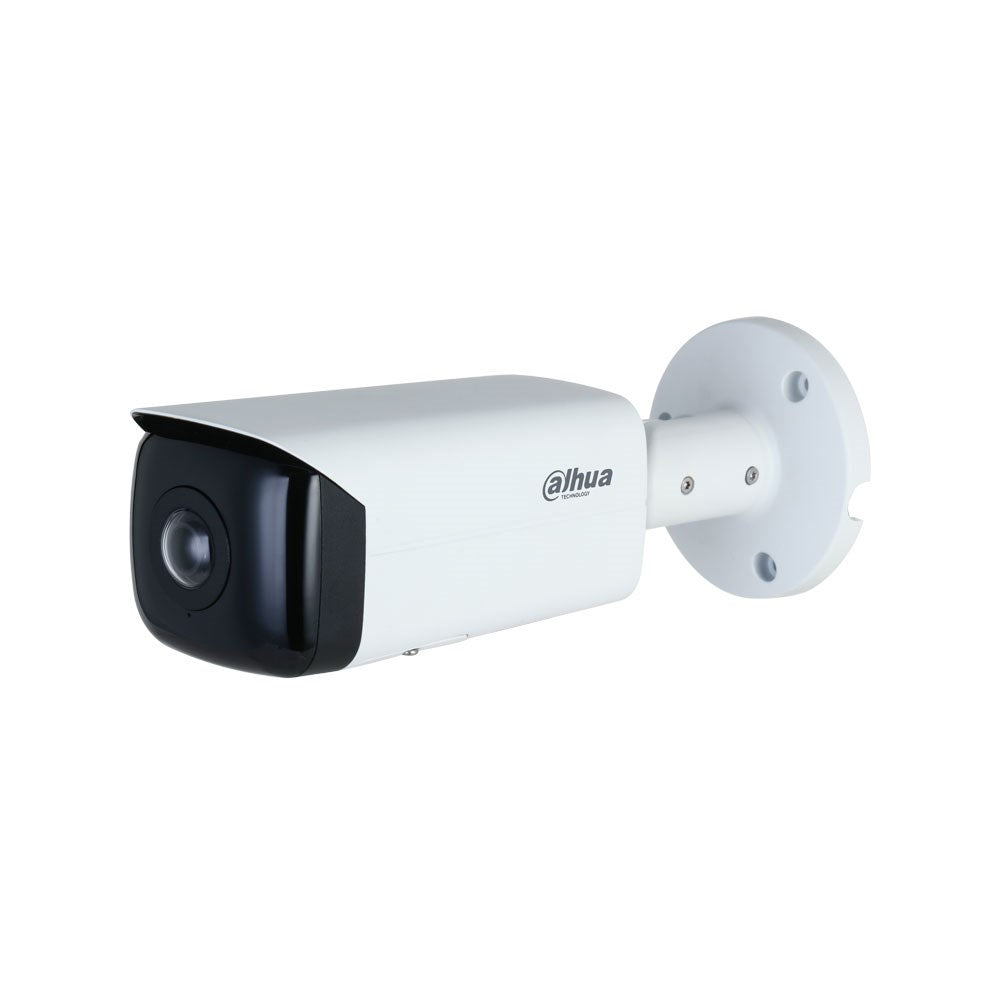

Dahua DH-IPC-HFW3466T-AS-P 4MP Wide Angle Fixed Bullet WizSense Network Camera

Model: DH-IPC-HFW3466T-AS-P

Who This Is For

When maximising coverage from a single fixed camera position is the priority, the Dahua DH-IPC-HFW3466T-AS-P is built for exactly that challenge. Its 2.1 mm lens delivers a 170-degree horizontal field of view by default, making it well-suited to installers who need to cover wide corridors, building entrances, car park pedestrian zones, or retail shopfronts without mounting multiple cameras side by side. The bullet housing suits eave, soffit, and wall installs where the camera needs to face forward and down into a broad scene. WizSense SMD 3.0 filters motion events down to confirmed human and vehicle targets, cutting notification noise on sites where wind, animals, or passing traffic would otherwise flood the system. With PoE or 12 VDC power options, onboard audio input and output, a built-in microphone, and support for up to a 256 GB SD card, this model suits small business, residential, and light commercial deployments where a self-contained wide-angle solution is preferred.

What This Camera Actually Does

Who Buys This Model

• Small business owners covering a single wide entry point: A shopfront, servery window, or single-door access point where one camera with a 170-degree horizontal FOV replaces 2 or 3 standard lens cameras.
• Residential installers fitting eave or soffit cameras over driveways: The bullet form factor and adjustable pan, tilt, and rotation mount suits eave-mount installs where the camera needs to be aimed down and across a wide approach zone.
• Property managers on low-cabling budgets: PoE power delivery means one Cat5e or Cat6 run handles power and video, reducing conduit and labour costs per camera position on multi-tenancy sites.
• Integrators building edge-recording fallback into a system: The 256 GB SD slot with Smart H.265+ means this camera can continue recording locally if the NVR network path is lost, adding resilience to the overall system design.
• Sites requiring post-event audio-visual review: The built-in microphone and audio I/O terminals make this suitable for reception areas, vehicle check-in points, or retail counters where capturing ambient audio alongside video has evidentiary value.

Honest Assessment

The DH-IPC-HFW3466T-AS-P does wide-angle fixed coverage genuinely well. The 170-degree corrected horizontal field of view from a 2.1 mm lens is the defining capability here, and it is backed by a properly specified 4 MP sensor, intelligent SMD 3.0 filtering, and a full suite of alarm I/O and audio terminals that are rarely found together in this camera class. EPTZ target tracking adds meaningful post-alarm review value without any motorised components to maintain. The IP67 rating handles Australian outdoor conditions without question, and the PoE or 12 VDC power options give installers real flexibility. Where this model has limits: the IR illumination distance is 20 m, so it is not the right choice for long driveway approaches, perimeter fencing, or carpark rows where subjects need to be detected or recognised beyond that range. For those scenarios, a standard focal length bullet with longer IR reach, available through Security Australia, is the more appropriate starting point. The wide-angle distortion, even with LDC correction, also means identification distances at the edges of frame are short - the confirmed DORI identify distance is only 5.2 m.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a wide entrance, corridor, or open floor area up to approximately 10 m deep and the 170-degree corrected FOV allows you to eliminate 2 or 3 standard-lens camera positions.
• Good match if: Your site requires human and vehicle-filtered alerts with virtual tripwire or intrusion rules, and you want onboard audio recording or alarm I/O without adding a separate device.
• You may need a different model if: Your monitoring zone is a long driveway, perimeter fence line, or carpark row where IR coverage beyond 20 m is required - a longer-range bullet or varifocal camera will serve that application better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires maximum horizontal coverage from a single fixed bullet position - the 170-degree corrected FOV with SMD 3.0 filtering and onboard audio I/O makes this a highly capable wide-angle single-camera solution for entry points and open zones up to 20 m deep.
• You may need a different model if: Your site has long approaches, perimeter fencing, or carpark aisles where subjects need to be detected or identified beyond 20 m - a standard or varifocal bullet with a longer focal length and extended IR range is the more appropriate product type.
• Pairs well with: A Dahua WizSense-compatible NVR with SMD filtering support, which allows centralised management of all human and vehicle events across the site and enables the alarm I/O and audio output features to be triggered from the NVR interface.

Common Questions

1. Does this camera work for covering a wide driveway or gate entry with a single unit?

   Yes, for driveway widths and approach zones up to approximately 10-15 m deep. The 2.1 mm lens produces a 170-degree corrected horizontal field of view, which is wide enough to cover a standard single or double vehicle gate in one frame. Keep in mind the DORI identify distance is 5.2 m, so if facial or number plate identification is a requirement the subject must pass close to the camera axis, not at the outer edges of the frame.

2. Will this camera work with a standard PoE switch?

   Yes. The DH-IPC-HFW3466T-AS-P supports IEEE 802.3af standard PoE, meaning any compliant 802.3af PoE switch or injector will power it over a single Cat5e or Cat6 cable run. No PoE+ (802.3at) is required. It also accepts 12 VDC as an alternative, which is useful in retrofits where a centralised 12 V power supply is already in place.

3. What exactly does the EPTZ feature do on the DH-IPC-HFW3466T-AS-P, and does it require any motorised hardware?

   No motorised hardware is involved. EPTZ is a fully digital function that activates when a perimeter protection alarm (tripwire or intrusion) fires. When triggered, the camera digitally crops the full 4 MP wide-angle frame around the detected human or vehicle target and produces a zoomed sub-stream that tracks the target's movement within the scene. This gives reviewers a close-up view of the triggering subject in the alert clip while the main recording continues at the full wide-angle resolution. The practical limit of EPTZ is that digital zoom degrades pixel density as the crop tightens - it is most useful for confirming the nature and direction of movement, not for fine identification detail at range.

4. What are the DORI distances for this camera and what do they mean in practice?

   The confirmed DORI distances for the 2.1 mm lens are: Detect 52 m, Observe 20.8 m, Recognise 10.4 m, and Identify 5.2 m. In plain terms, the camera can detect a human-sized object at 52 m but cannot provide useful identifying detail at that distance. To observe general behaviour (posture, clothing colour) the subject needs to be within 20.8 m. For facial recognition quality that could be used evidentially, the subject must be within 5.2 m of the camera on the central axis. These distances are significantly shortened at the extreme edges of the wide-angle frame due to distortion even with LDC enabled. Plan camera placement so that the critical identification zone - such as a doorway or counter - falls within 5.2 m of the lens on the central axis.

5. Does the DH-IPC-HFW3466T-AS-P support two-way audio?

   Yes. The camera includes a built-in microphone and a dedicated audio output terminal. Connecting an external powered speaker to the audio output, then using a compatible Dahua NVR or VMS with two-way audio support, allows remote operators to listen and speak through the camera position. The built-in microphone handles the incoming audio and is confirmed in the specifications as part of the onboard audio hardware.

6. How does Smart H.265+ affect storage compared to standard H.265?

   Smart H.265+ uses a scene-adaptive encoding algorithm that analyses the video content and allocates bitrate dynamically - reducing bitrate significantly during periods of low activity while maintaining quality when motion or detail is detected. In practice this means recorder storage stretches further compared to a standard H.265 stream set at a fixed bitrate. The 256 GB onboard SD slot in this camera provides meaningful local recording capacity when Smart H.265+ is active, and the same efficiency applies when recording to an NVR. Exact storage duration depends on scene activity, resolution, and frame rate settings - consult the Dahua bitrate calculator for site-specific estimates.

7. Can the perimeter protection rules distinguish between humans and vehicles separately?

   Yes. Both the tripwire and intrusion detection rules on this camera support independent classification filtering. Each rule can be configured to trigger on humans only, vehicles only, or both. This allows an installer to, for example, set a nighttime intrusion zone across a yard entry that alerts on any pedestrian but ignores vehicles, or configure a loading dock tripwire to flag after-hours vehicle entry without generating alerts during business hours. The classification is handled by the onboard WizSense deep learning processor - no separate analytics server is required. Contact Security Australia if you need advice on configuring these rules within a specific Dahua NVR or VMS environment.
