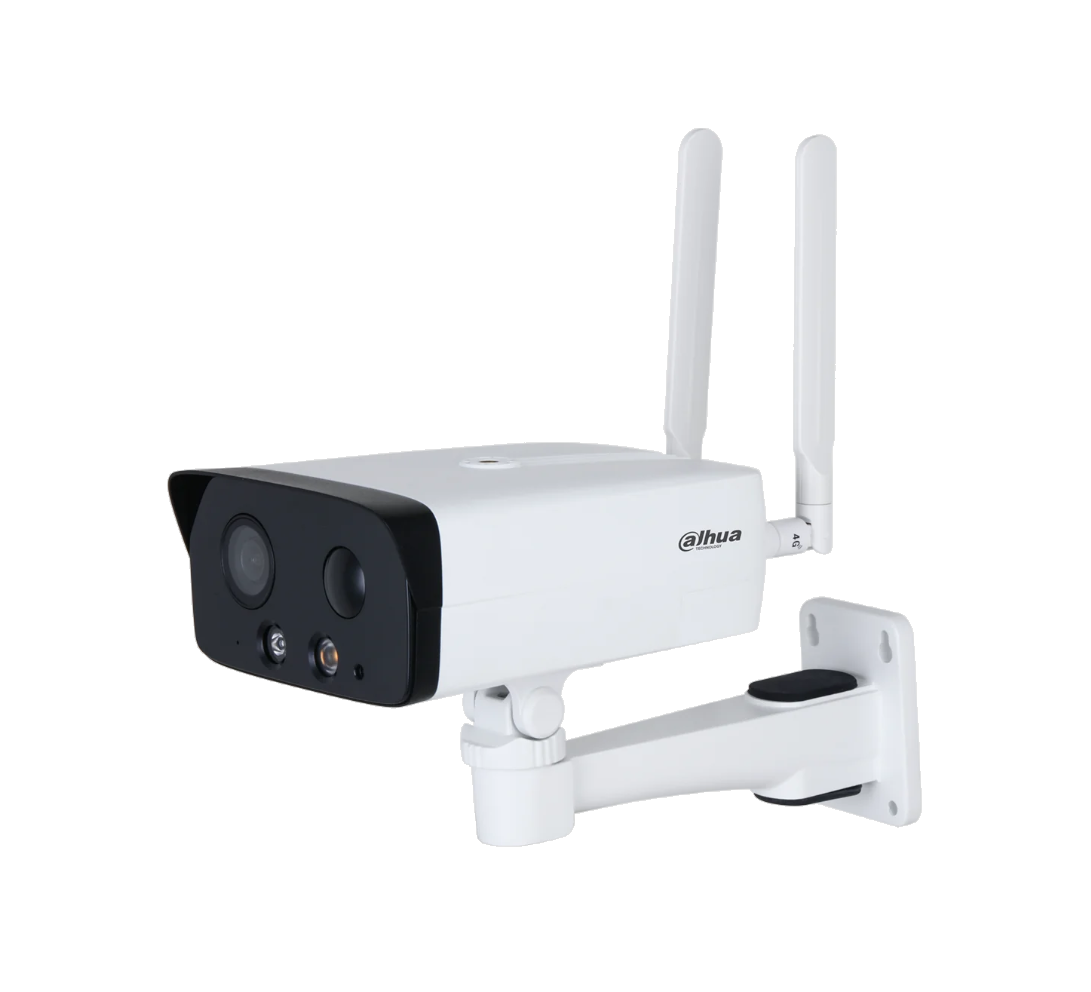

Dahua DH-IPC-HFW3441DG-AS-4G-EAU-B 4mp Wizsense 4G Network Bullet Camera

$833.00 AUD
$659.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING

4MP IR Fixed-focal Bullet WizSense 4G Network Camera

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Key Features

  • 4MP 1/3'' CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 x 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light/IR LED
  • Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
  • Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
  • Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
  • Built-in 8 GB eMMC memory chip that protects key records from being lost
  • Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
  • IP67 protection

Code/SKU: DH-IPC-HFW3441DG-AS-4G-EAU-B
Quick Specs: Video Compression: H.265; H.264; H.264H; H.264B; MJPEG; Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Specifications



Camera

Image Sensor

1/3" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128MB

RAM

256MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux@F1.6 (Color,30IRE)

0.001 Lux@F1.6 (B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

IR: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: –60°–0°

Rotation: 0°–360°

PIR Sensor Distance

10 m (the height of device is 2.5 m, placed horizontally)
5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6

Field of View

2.8 mm: H: 102°; V: 54°; D:121°
3.6 mm: H: 84°; V: 42°; D:101°
6 mm: H: 52°; V: 48°; D:61°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.2 m (10.50 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

6 mm

124.0 m (406.82 ft)

49.6m (162.73 ft)

24.8m

(81.36 ft)

12.4m

(40.68 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Video Frame Rate

Main stream: 2688 × 1520 @(1–25/30 fps )

sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30

fps)

Stream Capability

2 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a;G.711Mu; G.726; PCM

Alarm

Alarm Event

SD card error; SD card full; IP conflict; illegal access; motion detection; video tampering; Scene Changing; audio detection; security exception; PIR alarm; external alarm; low battery alarm; light alarm; sound alarm

Network

Network Port

RJ-45 (10/100 Base-T)

Frequency

LTE FDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41
WCDMA:B1/5/8
GSM/GPRS/EDGE:B3/5/8

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15; Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

RS-485

1 (Only report the information of solar battery, such as power and battery level)

Power

Power Supply

12 VDC

Power Consumption

Sleep Mode: 0.03 W

General Mode: 4 W

Power Saving Mode: 2 W

Max. (4G pulling stream+IR+speaker+warning light): 7.5 W

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

132 mm × 219 mm×179 mm (5.20" × 8.62" × 7.05")

(L × W × H)

Packaging Dimensions

280 mm × 239 mm × 146 mm (11.02" × 9.41" × 5.75")

(L × W × H)

Net Weight

680 g (1.50 lb)

Gross Weight

1180 g (2.60 lb)

Documentation

IPC-HFW3441DG-AS-4G-EAU-B_datasheet_20221021.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HFW3441DG-AS-4G-EAU-B 4mp Wizsense 4G Network Bullet Camera

$833.00 AUD
$659.00 AUD

The Dahua 4MP IR Fixed-focal Bullet WizSense 4G Network Camera (DH-IPC-HFW3441DG-AS-4G-EAU-B) offers high-resolution imaging with its 4MP sensor, delivering detailed and clear footage even in low-light conditions. This camera features advanced IR technology, ensuring reliable night vision up to 50 meters for comprehensive surveillance around the clock. With its fixed-focal lens, it provides a consistent field of view, making it ideal for monitoring specific areas with precision. The WizSense technology enhances the camera’s intelligent analytics, enabling accurate detection of people and vehicles. Its built-in 4G connectivity allows for flexible installation without the need for wired network connections, ideal for remote locations. The camera is equipped with durable housing that is weather-resistant, ensuring long-term performance in various environmental conditions. Its compact and discreet design makes it suitable for both residential and commercial applications.

The camera supports H.265+ video compression, which optimizes bandwidth usage and storage efficiency while maintaining high image quality. Integration with other Dahua systems is seamless, offering comprehensive solutions for enhanced security management. The DH-IPC-HFW3441DG-AS-4G-EAU-B also includes features such as motion detection and alarm notifications for proactive monitoring. Its user-friendly interface allows for easy setup and management, enhancing user experience. Overall, this camera combines advanced technology with practical features to deliver effective and reliable security monitoring.

Features

  • 4MP 1/3'' CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 x 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light/IR LED
  • Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
  • Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
  • Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
  • Built-in 8 GB eMMC memory chip that protects key records from being lost
  • Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
  • IP67 protection



Functions

SMD 3.0
Dahua's Smart Motion Detection (SMD) 3.0 technology uses an intelligent algorithm to differentiate between relevant and non-relevant motion, ensuring accurate and effective alarms by filtering out unnecessary alerts.

4G
Equipped with a high-performance 4G mobile network module, the camera can connect directly to cloud platforms once a 4G SIM card is inserted. This allows for easy installation without the need for network cables, enabling real-time monitoring and remote control via a mobile client.

Smart H.265+ & Smart H.264+
Dahua's smart encoding technology, utilizing an advanced scene-adaptive rate control algorithm, provides higher encoding efficiency compared to H.265 and H.264 standards. This results in high-quality video while reducing storage and transmission costs.

Perimeter Protection
Leveraging deep learning algorithms, Dahua's Perimeter Protection technology accurately identifies humans and vehicles. It significantly reduces false alarms in restricted areas (such as pedestrian and vehicle zones) by intelligently detecting specific targets like tripwire and intrusion.

Protection (IP67)
Rated IP67, the camera undergoes rigorous dust and water immersion tests, ensuring dust-proof functionality and normal operation after being submerged in 1 meter of water for 30 minutes.

Cyber Security
Dahua network cameras incorporate robust security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These measures enhance the camera's defense against cyber threats and protect against malicious attacks.

Technical Specifications:

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128MB

RAM

256MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux@F1.6 (Color,30IRE)

0.001 Lux@F1.6 (B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

IR: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: –60°–0°

Rotation: 0°–360°

PIR Sensor Distance

10 m (the height of device is 2.5 m, placed horizontally)
5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6

Field of View

2.8 mm: H: 102°; V: 54°; D:121°
3.6 mm: H: 84°; V: 42°; D:101°
6 mm: H: 52°; V: 48°; D:61°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.2 m (10.50 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

6 mm

124.0 m (406.82 ft)

49.6m (162.73 ft)

24.8m

(81.36 ft)

12.4m

(40.68 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
