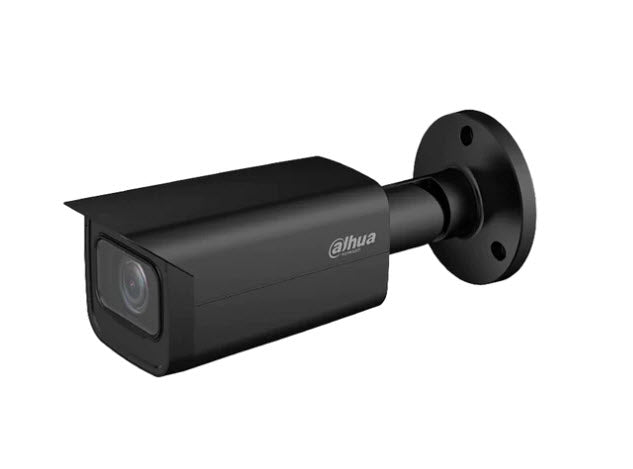

Dahua DH-IPC-HFW3866TP-ZAS-AUS 8MP (4K) WDR IR Bullet, Motorized with Wizsense

$437.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING

8MP IR Vari-focal Bullet WizSense Network Camera

The 8MP IR Vari-focal Bullet WizSense Network Camera, model DH-IPC-HFW3866TP-ZAS-AUS, is a high-performance surveillance camera designed for detailed monitoring in various environments. It features an 8-megapixel sensor that captures ultra-clear images, even in low-light conditions, thanks to its advanced IR illumination. The camera's vari-focal lens allows for flexible adjustment of the field of view, making it adaptable to different surveillance needs.

Key Features

  • 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance, and high definition of images
  • Outputs max. 8 MP (3840 × 2160) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max. IR distance: 60 m
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Supports the AFSA (Anti-flicker Self-adaption) function, which automatically eliminates flicker
  • Intelligent detection: Intrusion, tripwire (supports the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card, built-in Mic
  • 12 VDC/PoE power supply facilitates installation
  • IP67, IK10 (optional) protection
  • SMD 4.0, AI SSA

Code/SKU: DH-IPC-HFW3866TP-ZAS-AUS
Quick Specs:

  • Lens Type: Motorized vari-focal
  • Lens Mount: φ14
  • Focal Length: 2.7 mm–13.5 mm
  • Max. Aperture: F1.5

Specifications

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 131° –35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

88.3 m
(289.70 ft)

35.3 m
(115.81 ft)

17.7 m
(58.07 ft)

8.8 m
(28.87 ft)

T

289.7 m
(950.46 ft)

115.7 m
(379.59 ft)

57.9m
(189.96 ft)

29.0 m
(95.14 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Stabilization

Electronic Image Stabilization (EIS)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

-ZAS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

-ZS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only - ZAS supports)

Audio Output

1 channel (RCA port) (Only - ZAS supports)

Alarm Input

1 channel in: 5 mA 3–5 VDC (Only - ZAS supports)

Alarm Output

1 channel out: 300 mA 12 VDC (Only - ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to 140°F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

244.1 mm × 79.0 mm × 75.9 mm
(9.61" × 3.11" × 3.00") (L × W × H)

Net Weight

820 g (1.81 lb)

Gross Weight

1090 g (2.40 lb)

Documentation

DH-IPC-HFW3866TP-ZAS-AUS.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HFW3866TP-ZAS-AUS 8MP (4K) WDR IR Bullet, Motorized with Wizsense

The 8MP IR Vari-focal Bullet WizSense Network Camera, model DH-IPC-HFW3866TP-ZAS-AUS, is a high-performance surveillance camera designed for detailed monitoring in various environments. It features an 8-megapixel sensor that captures ultra-clear images, even in low-light conditions, thanks to its advanced IR illumination. The camera's vari-focal lens allows for flexible adjustment of the field of view, making it adaptable to different surveillance needs. With WizSense technology, this camera is equipped with intelligent features like human and vehicle classification, which reduces false alarms and enhances the accuracy of detection. The camera supports Smart H.265+ compression, significantly reducing bandwidth and storage requirements without compromising image quality. Its robust IP67-rated housing ensures durability against harsh weather conditions, making it suitable for both indoor and outdoor installations.

The camera also includes a built-in microphone, enabling audio recording for comprehensive monitoring. With advanced features such as WDR (Wide Dynamic Range), the camera delivers clear images even in challenging lighting conditions. It supports PoE (Power over Ethernet) for easy installation and cable management. The DH-IPC-HFW3866TP-ZAS-AUS is also equipped with a microSD card slot for local storage, providing additional data security. This camera is ideal for applications requiring high-resolution imaging and intelligent features, making it a reliable choice for enhancing security in various settings.

Features

  • 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance, and high definition of images
  • Outputs max. 8 MP (3840 × 2160) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max. IR distance: 60 m
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Supports the AFSA (Anti-flicker Self-adaption) function, which automatically eliminates flicker
  • Intelligent detection: Intrusion, tripwire (supports the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card, built-in Mic
  • 12 VDC/PoE power supply facilitates installation
  • IP67, IK10 (optional) protection
  • SMD 4.0, AI SSA



Functions

SMD 4.0
Dahua's Smart Motion Detection technology utilizes intelligent algorithms to accurately classify targets that trigger motion detection alarms. It effectively filters out non-target objects, such as small and large animals, to minimize false alarms. When integrated with an AI NVR, Quick Pick technology becomes available, enabling users to quickly search and identify human and vehicle targets from SMD event videos, prioritizing the most relevant matches.

AI SSA
Dahua AI Scene Self-adaptation (AI SSA) uses deep learning algorithms to analyze environmental conditions, such as rain, fog, backlight, low light, and flicker. It then adjusts the image parameters accordingly to ensure clear and high-quality images are consistently captured, regardless of the surrounding conditions.

Smart H.265+ & Smart H.264+
Dahua's smart encoding technology, featuring an advanced scene-adaptive rate control algorithm, offers greater encoding efficiency compared to traditional H.265 and H.264. This technology delivers high-quality video while simultaneously reducing storage and transmission costs.

Perimeter Protection
Dahua Perimeter Protection technology leverages deep learning algorithms to accurately identify humans and vehicles. In restricted areas, such as pedestrian or vehicle zones, this technology significantly reduces false alarms in intelligent detection systems based on target types like tripwire and intrusion.

Protection (IP67, Wide Voltage)
IP67: The camera undergoes rigorous testing to ensure it is dustproof and can function normally after being submerged in 1-meter deep water for 30 minutes.
Wide Voltage: The camera supports a ±30% input voltage tolerance (for certain power supplies), making it suitable for outdoor environments where voltage stability may be a concern.

Cyber Security
Dahua network cameras incorporate a range of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These measures enhance the camera's ability to defend against external cyber threats and prevent malicious programs from compromising the device.

Technical Specifications:

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 131° –35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

88.3 m
(289.70 ft)

35.3 m
(115.81 ft)

17.7 m
(58.07 ft)

8.8 m
(28.87 ft)

T

289.7 m
(950.46 ft)

115.7 m
(379.59 ft)

57.9m
(189.96 ft)

29.0 m
(95.14 ft)
