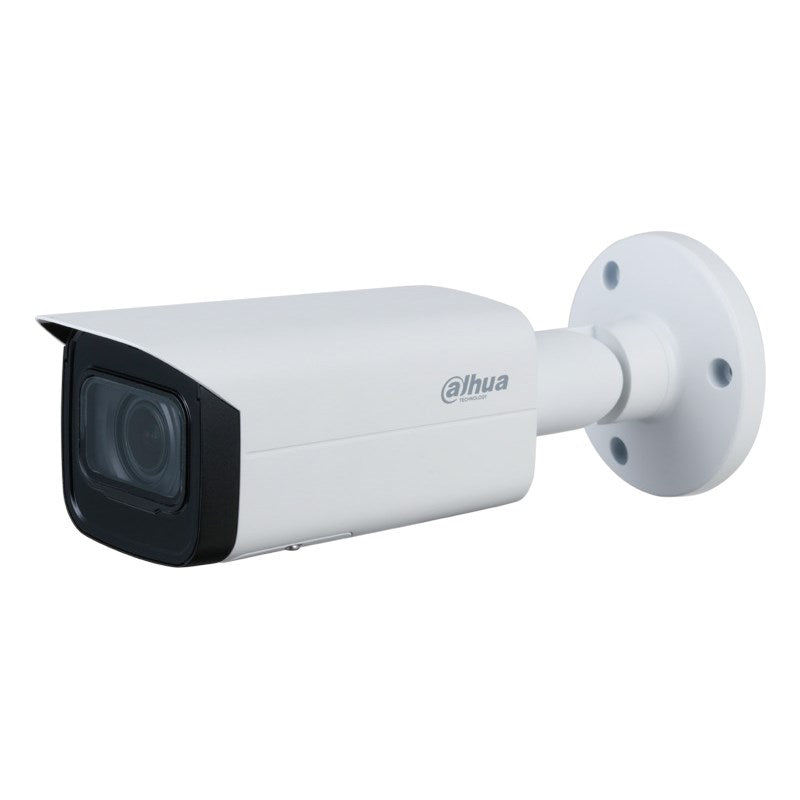

Dahua DH-IPC-HFW2531TP-ZAS-27135-S2 5MP WDR IR Bullet Network Camera with 2.7-13.5mm Motorized Lens

Model: DH-IPC-HFW2531T-ZAS-S2

Who This Is For

For security installers and facilities managers who need to lock in the right field of view after the camera is mounted - not before. The Dahua DH-IPC-HFW2531T-ZAS-S2 is a 5MP bullet camera with a 2.7-13.5mm motorised vari-focal lens, meaning zoom can be adjusted remotely or via software once the camera is on the wall, avoiding the need to climb a ladder every time the coverage angle needs tweaking. At 2.7mm it covers a wide approach; at 13.5mm it pulls in detail on a narrow corridor or gate. With 60m IR range, IP67 weatherproofing, and IVS tripwire and intrusion detection built in, this camera suits perimeter fencing, car parks, loading dock approaches, and any outdoor run where the exact mounting distance to the target zone is not finalised at design stage. The adjustable lens makes it a practical choice where the installation environment is unpredictable or subject to change.

What This Camera Actually Does

Who Buys This Model

• Security installers on multi-site contracts: The motorised lens removes the need to stock multiple fixed-focal-length cameras for different approach distances. One model covers short driveways at 2.7mm and long fence lines at 13.5mm.
• Industrial and logistics facility managers: Loading dock approaches, yard entries, and perimeter fencing benefit from 60m IR coverage combined with IVS tripwire alerts that flag unauthorised boundary crossings overnight without constant monitoring.
• Car park and body corporate operators: WDR handles the contrast challenges of entry/exit points where headlights and daylight create exposure problems for fixed-exposure cameras. IP67 rating suits exposed rooftop or external soffit installs.
• IT managers expanding existing Dahua NVR systems: The camera integrates directly with Dahua NVR platforms, allowing remote focus and zoom adjustment from the NVR interface without additional software or physical ladder access after commissioning.

Honest Assessment

The DH-IPC-HFW2531T-ZAS-S2 does several things genuinely well. The motorised vari-focal lens is the standout feature for installers - being able to dial in the angle after the camera is physically mounted saves significant commissioning time, especially on difficult-to-access positions. The F1.5 aperture performs well in low light, and the 60m IR range is adequate for most commercial outdoor perimeter runs. Smart H.265+ keeps storage requirements manageable across multi-camera deployments. IVS tripwire and intrusion detection are functional and configurable without requiring a separate analytics licence on compatible Dahua NVRs. Where this camera has limits: it does not produce colour video at night - IR output is monochrome, so if full-colour night footage is required, a different camera type would be more appropriate. At 5MP the resolution is solid, but it is not designed for long-range identification work at telephoto distances where higher-resolution or optical-zoom cameras would serve better. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on a high wall or eave where the exact coverage angle cannot be confirmed until the camera is up - the motorised lens can be dialled in remotely after install without further physical access.
• Good match if: Your site has high-contrast lighting conditions such as car park entries or gate columns - WDR at this price point handles backlight and glare better than basic fixed-exposure bullet cameras.
• You may need a different model if: Your site requires full-colour night footage rather than IR monochrome - a full-colour or TiOC-type camera would be more suitable for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The final mounting position is known but the exact target zone distance is uncertain at design stage - the motorised vari-focal lens lets you set the angle accurately during commissioning rather than guessing at the design phase.
• You may need a different model if: Your site requires full-colour night footage, active deterrence, or strobe/audio warnings on detection - a full-colour or TiOC-type bullet camera would be more appropriate for those use cases.
• Pairs well with: A Dahua PoE NVR with IVS support - this allows remote lens adjustment and IVS alert management from a single interface without additional software.

Common Questions

1. How does the motorised zoom lens actually work - do I need to physically adjust it on the camera?

   No. The motorised vari-focal lens on the DH-IPC-HFW2531T-ZAS-S2 is adjusted electronically, not by hand. Once mounted, you connect to the camera via its web interface or a compatible Dahua NVR and use the focus/zoom controls in software to dial in the exact field of view. This is particularly practical on high or difficult-to-access mounts - the lens can be adjusted from the ground without returning to the camera body. The range spans 2.7mm to 13.5mm, covering a horizontal field of view from 100° down to 26°.

2. What is the DORI performance of this camera and what does it mean in practice?

   At the wide end (2.7mm), detect distance is 64m, observe is 25.6m, recognise is 12.8m, and identify is 6.4m. At the telephoto end (13.5mm), those distances extend to 220m detect, 88m observe, 44m recognise, and 22m identify. In practical terms: at the wide setting, a person can be clearly identified at roughly 6m; at the telephoto setting you can identify a person at 22m. DORI figures help with site planning - if facial or clothing identification at 30m or beyond is a requirement, this lens at tele end may not achieve that, and a higher-resolution model should be considered.

3. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. The DH-IPC-HFW2531T-ZAS-S2 operates within the IEEE 802.3af power budget, so any standard PoE switch or PoE NVR port will power it correctly via a single Cat5e or Cat6 cable. PoE+ (802.3at) is not required and not necessary. The camera also supports 12V DC as an alternative power source for installations where PoE infrastructure is not available.

4. Will this camera work for perimeter detection or does it just record motion?

   Yes, it goes beyond basic motion recording. The built-in Dahua IVS supports configurable tripwire and intrusion zone detection. A tripwire triggers an alert when an object crosses a defined line in the frame; an intrusion zone triggers when an object enters or appears within a defined region. These rules are set via the camera's interface or a compatible Dahua NVR. This is more targeted than general motion detection and generates fewer nuisance alerts from wind or lighting changes.

5. Does the Smart H.265+ compression make a meaningful difference to storage at 5MP?

   Yes, particularly on static or low-movement scenes. Smart H.265+ uses adaptive bitrate control that reduces the data rate significantly when there is little motion in the frame - parking areas at night, empty corridors, or quiet perimeters. When motion does occur, it maintains full detail at higher bitrate. Compared to fixed-bitrate H.265, Smart H.265+ can reduce storage consumption substantially over a 24-hour recording period, which is relevant when planning NVR hard drive capacity across multiple 5MP channels. The team at Security Australia can assist with storage calculations if needed.

6. Does this camera produce colour video at night?

   No. The DH-IPC-HFW2531T-ZAS-S2 uses IR (infrared) LEDs for night illumination, which produces monochrome (black and white) footage in low light and darkness. The 4 IR LEDs provide up to 60m of night coverage, and the F1.5 aperture with 0.008 Lux minimum illumination means the camera retains usable detail even in near-darkness. If full-colour night footage is a specific requirement for your site, a full-colour or TiOC-type camera would need to be considered instead.

Downloads & Resources

No downloads available for this product.
