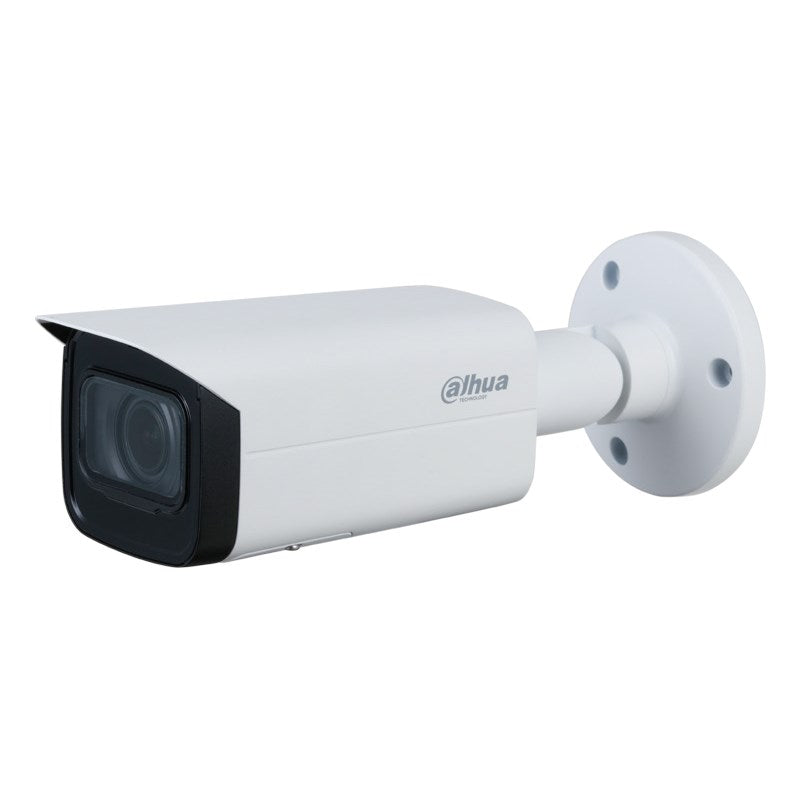

Dahua DH-IPC-HFW2431TP-ZAS-27135-S2 4MP WDR IR Bullet Network Camera with 2.7-13.5mm Motorized Lens

Model: DH-IPC-HFW2431TP-ZAS-27135-S2

Who This Is For

For security installers and site managers who need a single outdoor bullet camera that can cover both wide-area monitoring and long-distance detail without being locked into a fixed focal length, the Dahua DH-IPC-HFW2431TP-ZAS-27135-S2 is built for exactly that flexibility. The 2.7-13.5mm motorized vari-focal lens adjusts remotely from the NVR interface after installation - no ladder required for fine-tuning. At 4MP and with 60 m Smart IR, it suits commercial car parks, warehouse perimeters, school grounds, and retail loading docks where the mounting height or coverage zone is not always predictable at the point of cable run. IP67 weatherproofing handles exposure to rain and dust across Australian outdoor environments, and onboard IVS tripwire and intrusion detection mean the camera can flag defined-area breaches rather than relying solely on continuous recording review.

What This Camera Actually Does

Who Buys This Model

• Commercial site installers: Running cable to a fixed mounting point before the client confirms exactly what coverage is required - the motorized lens means focal length can be set precisely after installation without revisiting the install height.
• Warehouse and logistics operators: Monitoring loading dock approaches and yard perimeters where IVS tripwire can alert on after-hours vehicle or pedestrian movement before they reach secure areas.
• School and childcare facility managers: Covering long external fence lines or car park approaches where 60 m IR and a narrowable field of view at tele end gives usable identification distance at night.
• Retail and strata building managers: Adding edge storage via the onboard 256 GB Micro SD slot as a backup or standalone recording option in locations where NVR cabling is impractical to retrofit.

Honest Assessment

The DH-IPC-HFW2431TP-ZAS-27135-S2 earns its place in outdoor commercial installs primarily because the motorized zoom lens removes the guesswork from field-of-view selection at the time of rough-in. Combined with 4MP output, IP67 weatherproofing, 60 m Smart IR, and onboard IVS, it covers the core requirements for perimeter and approach monitoring without stepping up to a higher-cost PTZ. The F1.5 aperture and 0.008 Lux minimum illumination handle low-light well within the IR range. It is available through Security Australia as part of the Dahua Lite series, which balances feature depth with cost-effective deployment across multi-camera sites. Where this camera is not the right tool: if you need active pan-tilt-zoom to follow a subject across a large area, a motorised bullet is not a substitute for a true PTZ. Likewise, if the install location requires face identification beyond approximately 22 m at tele end, a higher-resolution model will serve better.

Before You Buy

Quick Fit Check

• Good match if: You are covering a car park approach or loading dock entry where the mounting position is fixed but the ideal field of view is uncertain at cable-run time - the 2.7-13.5mm motorized lens lets you finalise coverage after installation without revisiting the mount.
• Good match if: Your site requires after-hours perimeter alerts rather than passive recording - IVS tripwire and intrusion detection let you define virtual boundaries and generate event-triggered alarms without reviewing continuous footage.
• You may need a different model if: Your application requires active subject tracking across a wide area - a PTZ camera with motorised pan-tilt and optical zoom provides the repositioning capability that a fixed-mount bullet camera cannot replicate regardless of lens range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed-mount outdoor bullet where the final field of view cannot be confirmed at rough-in time - the motorized 2.7-13.5mm lens lets you set coverage precisely via software after the camera is already bolted in place.
• You may need a different model if: The site requires the camera to pan and track a subject as they move across a scene - a PTZ camera with motorised pan-tilt and variable zoom handles repositioning that a fixed-mount bullet cannot do regardless of lens range.
• Pairs well with: A Dahua PoE NVR with remote zoom/focus support, allowing centralized lens adjustment across multiple cameras from a single interface after installation is complete.

Common Questions

1. Can the zoom be adjusted without physically touching the camera after it is mounted?

   Yes. The motorized vari-focal lens on the DH-IPC-HFW2431TP-ZAS-27135-S2 can be adjusted remotely via the camera's web interface or a compatible Dahua NVR that supports remote zoom and autofocus commands. After each zoom adjustment, autofocus must be triggered to sharpen the image at the new focal length. This removes the need for a second visit to the install height to fine-tune field of view.

2. What are the confirmed DORI distances, and what do they mean in practice?

   At the wide end (2.7 mm), detection distance is 64 m and identification is 6.4 m. At the tele end (13.5 mm), detection extends to 220 m and identification reaches 22 m. In practice, DORI identification means sufficient detail to distinguish one individual from another - equivalent to face-level recognition. For a car park or loading dock where you need to identify a person at 15-20 m at night, the tele end of this lens provides adequate identification distance within the 60 m IR range, provided the camera is correctly angled and there is no significant IR washout from reflective surfaces.

3. Does this camera work with PoE, and what standard does it use?

   Yes. The camera supports PoE at IEEE 802.3af (standard PoE), meaning a single Cat5e or Cat6 cable carries both power and data up to 100 m. No separate power cable or local power adapter is required at the camera end. Confirm that your switch or NVR PoE port delivers the full 15.4W budget, particularly on runs over 80 m where voltage drop can cause instability.

4. Will this camera work as a standalone recorder without an NVR?

   Yes, with limitations. The onboard Micro SD slot supports cards up to 256 GB, allowing local continuous or event-based recording independent of any NVR. IVS-triggered recordings are stored as separate clips. However, without an NVR you lose centralised playback, multi-camera review, and remote push notifications unless the camera is configured with a separate SMTP or FTP server for event alerts.

5. Does this camera have two-way audio?

   No, not as a self-contained function. The camera has a built-in microphone (confirmed via the 1x audio input specification) for audio monitoring and recording. The audio output port supports connection to an external speaker, but a separate external speaker is required for talk-down capability. There is no built-in speaker confirmed in the specifications, so two-way audio requires additional hardware connected to the audio output.

6. How does Smart H.265+ affect storage requirements compared to standard H.265?

   Smart H.265+ uses scene-adaptive rate control that reduces the bitrate further than standard H.265 by encoding stable areas of the frame at lower bit depth between motion events. On a site where the camera view is largely static for several hours per day - a fence line, a locked yard - the practical storage saving is substantial. This is relevant when sizing a Micro SD card for standalone use or when calculating NVR hard drive capacity across multiple cameras. Stocked by Security Australia as part of the Dahua Lite series, this camera suits multi-camera deployments where NVR storage needs to be kept manageable without reducing resolution.

7. What is the difference between tripwire and intrusion detection on this camera?

   Tripwire triggers an alarm when a subject crosses a defined virtual line in one or both directions - suited to a perimeter fence line or a doorway threshold. Intrusion detection triggers when a subject enters and remains within a defined polygon zone for a configurable dwell time - suited to a restricted area like a plant room or equipment bay. Both are configured through the camera's IVS interface and can be set to trigger recording, alarm output, or network event notifications independently.
