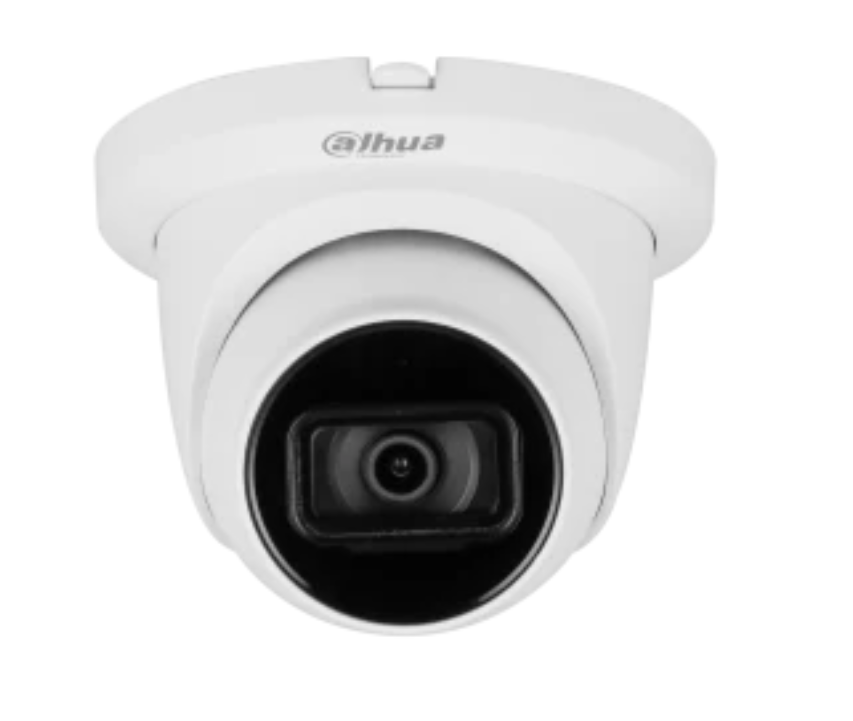

Dahua DH-IPC-HDW5842TM-ASE 8MP IR Fixed-focal Eyeball WizMind Network Camera

Model: Dahua IPC-HDW5842TM-ASE

Who This Is For

When fitting a high-resolution outdoor camera to eaves, soffits, or external walls is the priority, the Dahua IPC-HDW5842TM-ASE delivers 4K image quality in a compact eyeball housing that suits both residential and small commercial installs. The turret form factor keeps the profile low against the mounting surface, which helps in locations where a bulkier bullet camera would look out of place or be easily redirected. WizMind AI on board means the camera actively filters out false alerts from wind-blown trees, animals, and passing headlights, instead flagging genuine human and vehicle events. The built-in microphone, onboard microSD card slot, and PoE power input make this a self-contained unit - single Cat5e or Cat6 cable handles power, video, and audio back to the NVR. Suited to builders, integrators, and property owners who want verified-event recording on approaches, driveways, carparks, and yard perimeters without running multiple cable types.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Fitting eave and soffit cameras on new builds or renovations where 4K detail is specified and the compact eyeball profile suits the architecture better than a protruding bullet housing.
• Small business owners: Monitoring carpark entrances, rear laneways, or side access gates where WizMind AI filtering reduces nuisance alerts from ambient movement overnight.
• Property managers: Specifying outdoor perimeter cameras for apartment complexes or strata properties where IP67 weatherproofing, IK10 vandal resistance, and 4K resolution are required in a single unit.
• Systems integrators: Adding high-resolution perimeter positions to an existing Dahua WizMind NVR system where SMD Plus event filtering feeds directly into smart search and AI-based review tools on the recorder.

Honest Assessment

The IPC-HDW5842TM-ASE does several things genuinely well. The combination of 8MP resolution, WizMind SMD Plus AI classification, and configurable perimeter rules puts meaningful intelligence into a camera that mounts and cables like a standard eyeball. IP67 and IK10 ratings confirm it handles outdoor exposure and deliberate tampering. The single-cable PoE install, onboard microphone, and microSD fallback storage reduce the complexity of the overall install - fewer cable types, fewer separate components. H.265+ compression keeps storage demands manageable at 4K across a multi-camera system. Available through Security Australia, this model suits applications where you want verified human and vehicle events rather than continuous recording of every motion trigger. What it will not do is cover wide open areas requiring long-range surveillance past 50 metres - a bullet camera with extended IR range or a PTZ would be more appropriate there. It also does not offer optical zoom for repositioning coverage after install, so lens selection before mounting is final.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on eaves or soffits at a residential or small commercial site and need 4K resolution with WizMind AI event filtering on a single PoE cable run.
• Good match if: You need a weatherproof outdoor camera with IK10 vandal resistance and onboard microSD fallback storage for locations where NVR connectivity may be intermittent.
• You may need a different model if: Your coverage area extends well beyond 50 metres, involves wide open perimeters requiring repositionable zoom, or demands active deterrence with strobe and audio - a bullet camera with extended IR, a PTZ, or a TiOC active deterrence model would serve those scenarios better. Browse those categories at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K resolution, WizMind AI event filtering, and IK10 vandal resistance in a compact eyeball housing that installs on a single PoE cable run at eaves, soffits, or external walls.
• You may need a different model if: Your site requires IR coverage beyond 50 metres, active deterrence with strobe and audio warnings, or motorised repositioning after installation - a long-range IR bullet, a TiOC active deterrence turret, or a PTZ camera would each be more appropriate for those use cases. All are available at securityaustralia.com.au.
• Pairs well with: A Dahua WizMind-compatible PoE NVR that accepts SMD Plus events and supports AI-based smart search for fast event review across multiple camera positions.

Common Questions

1. Does this camera work without an NVR if I just want local recording?

   Yes. The IPC-HDW5842TM-ASE has a built-in microSD card slot that supports cards up to 256GB, enabling standalone edge recording without a connected NVR. You can configure the camera to record continuously or only on SMD Plus-classified events, which significantly extends the usable card capacity. Remote viewing via the Dahua DMSS app over the network remains available alongside local storage.

2. Will this camera work with a standard 802.3af PoE switch?

   Yes. The IPC-HDW5842TM-ASE is powered by IEEE 802.3af PoE, which is the standard type supported by most PoE switches and NVRs with built-in PoE ports. You do not need a higher-powered 802.3at (PoE+) switch. A single Cat5e or Cat6 cable from the switch or NVR to the camera carries both power and data, with no separate power adaptor required at the camera end.

3. What does WizMind SMD Plus actually do differently from standard motion detection?

   SMD Plus classifies detected movement as either human or vehicle before generating an alert, rather than triggering on any pixel change in the scene. Standard motion detection responds to trees, animals, insects near the lens, and lighting changes. SMD Plus discards those events at the camera level, so your NVR only records and alerts on the object types you specify. This reduces false alert rates significantly on outdoor positions with ambient movement.

4. Does this camera record audio as well as video?

   Yes. The built-in microphone records audio alongside the video stream. Audio is captured in the main stream and stored with the video recording on both the NVR and the local microSD card. Note that audio recording laws vary by state in Australia - in most situations you should inform people that audio is being recorded if the camera covers areas where conversations may be captured.

5. How does 120dB WDR help on a driveway or gate entry?

   120dB Wide Dynamic Range lets the camera handle high-contrast scenes where a very bright area and a dark area exist in the same frame - for example, a sunlit street behind a shaded gate entry. Without WDR, the camera either overexposes the bright background or underexposes the subject. At 120dB, the sensor processes both zones simultaneously, keeping faces and vehicle details visible in the frame regardless of backlighting.

6. Will this camera work with non-Dahua NVRs?

   Partially. The IPC-HDW5842TM-ASE supports ONVIF Profile S, G, and T, which means basic video streaming, motion detection, and PTZ commands will work with most ONVIF-compatible recorders. However, WizMind-specific features - SMD Plus classification, perimeter rule alerts, and face detection metadata - are proprietary to Dahua and require a Dahua NVR or VMS that supports those event types. If AI-filtered event recording is important to your install, a Dahua WizMind NVR is the appropriate pairing. The Security Australia product range includes compatible Dahua NVR options to match.
