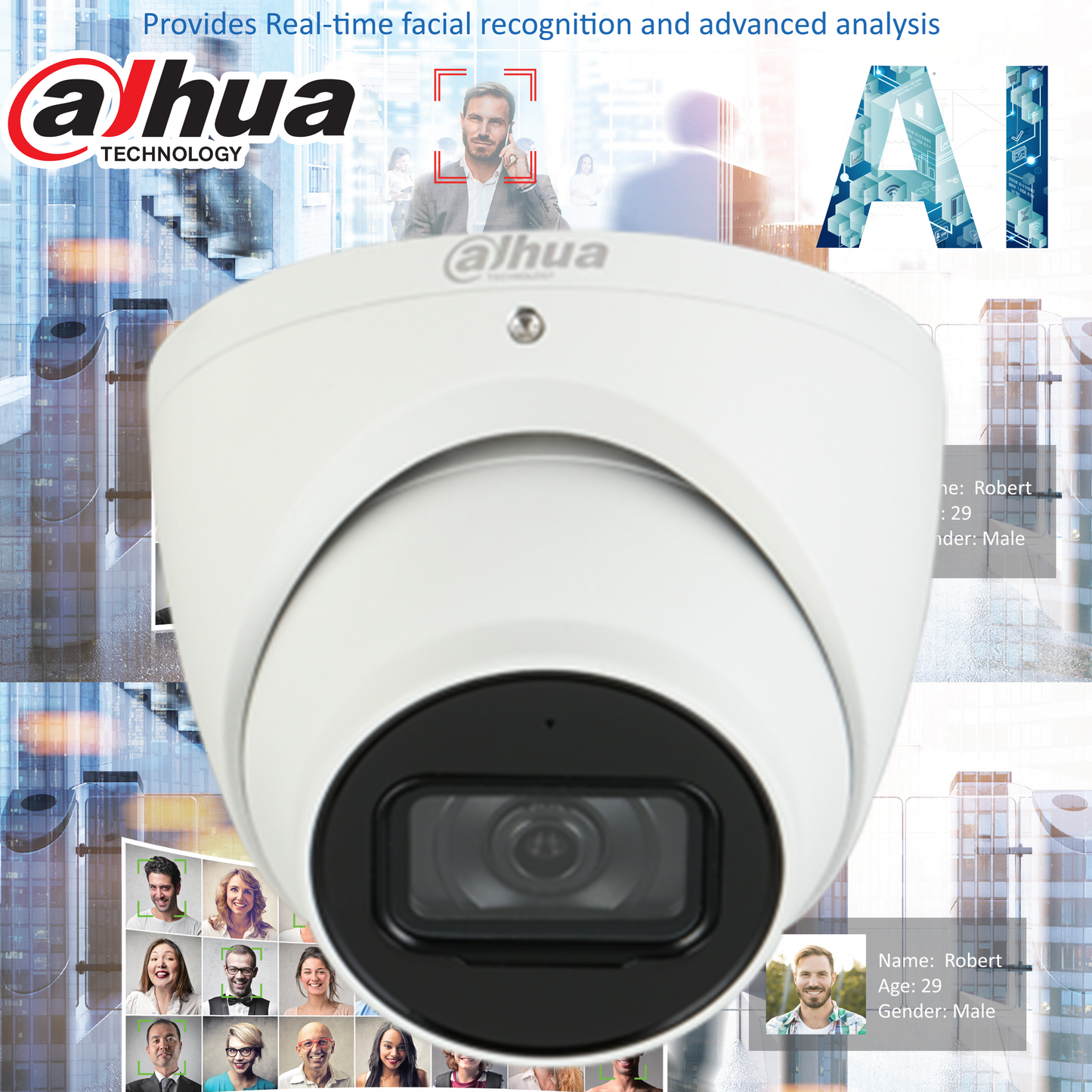

4MP IR Fixed-focal Eyeball WizMind Network Camera
The 4MP IR Fixed-focal Eyeball WizMind Network Camera DH-IPC-HDW5442TM-ASE from Dahua offers advanced security features designed for high-performance surveillance. With a 4-megapixel resolution, it delivers clear and detailed images, ensuring effective monitoring in various environments. The camera is equipped with WizMind technology, which provides intelligent functions like face detection, perimeter protection, and people counting, enhancing security capabilities. Its fixed-focal lens ensures consistent focus, making it ideal for monitoring specific areas with precision.
* The parameters and datasheets below can only be applied to 5442-ASE-S3 series.
Key Features
Code/SKU: DH-IPC-HDW5442TM-ASE
Quick Specs:
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2688 (H) × 1520 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.0007 lux@F1.6 (Color, 30IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | Up to 50 m (164.04 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto;Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Adjustment | Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 2.8 mm: H: 112°; V: 58°; D: 139° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.8 mm: 1.3 m (4.27 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm | 61.5 m (201.77 ft) | 24.6 m (80.71 ft) | 12.3 m (40.35 ft) | 6.2 m (20.34 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 67.6 m (221.78 ft) | 27.0 m (88.58 ft) | 13.5 m (44.29 ft) | 6.8 m (22.31 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm | 96.6 m (316.93 ft) | 38.6 m (126.64 ft) | 19.3 m (63.32 ft) | 9.7 m (31.82 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | SMD 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI SSA | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Sound Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 4 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32 kbps–16384 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 140 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LDC | Yes (only 2.8mm/3.6mm supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Enhancement Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 80 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | SmartPSS Lite; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS;Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel in: wet contact, 5mA 3V–5V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: wet contact, 300mA 12V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE (802.3af)/ePoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 4.3 W (12 VDC); 5.5 W (PoE); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 10%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Inner core: Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 500 g (1.10 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 770 g (1.70 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DH-IPC-HDW5442TMP-ASE-0280B Dahua AI 4MP Starlight+ IP Turret Fixed IR 50m POE
The 4MP IR Fixed-focal Eyeball WizMind Network Camera DH-IPC-HDW5442TM-ASE from Dahua offers advanced security features designed for high-performance surveillance. With a 4-megapixel resolution, it delivers clear and detailed images, ensuring effective monitoring in various environments. The camera is equipped with WizMind technology, which provides intelligent functions like face detection, perimeter protection, and people counting, enhancing security capabilities. Its fixed-focal lens ensures consistent focus, making it ideal for monitoring specific areas with precision. The camera's infrared (IR) capability allows it to capture clear images even in complete darkness, with a range of up to 50 meters. Built with a durable IP67-rated housing, it is resistant to water and dust, making it suitable for both indoor and outdoor use.
The camera supports Smart H.265+ video compression, which reduces bandwidth and storage requirements without compromising image quality. It also includes intelligent video system (IVS) features such as tripwire, intrusion, and abandoned/missing object detection. The camera supports PoE (Power over Ethernet), simplifying installation by transmitting power and data over a single cable. With a wide dynamic range (WDR) of 120dB, it handles challenging lighting conditions effectively, ensuring clear images in both bright and dark areas. The camera also supports two-way audio, allowing for real-time communication. Overall, the DH-IPC-HDW5442TM-ASE is a versatile and reliable surveillance solution for various security applications.
Features
Functions
Face Detection
Dahua Face Detection technology identifies and captures faces in an image. Utilizing a deep learning algorithm, it effectively detects, tracks, and captures faces, selecting the optimal face image for output as a snapshot.
Perimeter Protection
Dahua's Perimeter Protection technology leverages deep learning algorithms to accurately identify humans and vehicles. In restricted areas like pedestrian or vehicle zones, it significantly reduces false alarms from intelligent detection features such as tripwire, intrusion, fast-moving objects, parking detection, loitering detection, and gathering detection.
People Counting
Dahua People Counting technology uses deep learning algorithms to monitor and process moving human targets, providing accurate statistics on the number of people entering, leaving, and present in an area. When integrated with a management platform, it generates reports tailored to your specific needs.
Protection (IP67, Wide Voltage)
IP67: The camera has undergone rigorous testing for dust and water resistance, ensuring dust-proof performance and normal operation even after being submerged in 1 meter of water for 30 minutes.
Wide Voltage: The camera supports a wide input voltage range, allowing for ±30% tolerance (for some power supplies), making it suitable for outdoor environments with unstable voltage conditions.
ePoE
Dahua ePoE technology offers a new solution for long-distance transmission between IP cameras and network switches. It enables more flexible surveillance system designs, enhances reliability, and reduces construction and wiring costs.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
4 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.0007 lux@F1.6 (Color, 30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
Up to 50 m (164.04 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto;Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
2 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm; 3.6 mm; 6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: H: 112°; V: 58°; D: 139° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 1.3 m (4.27 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm |
61.5 m (201.77 ft) |
24.6 m (80.71 ft) |
12.3 m (40.35 ft) |
6.2 m (20.34 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
67.6 m (221.78 ft) |
27.0 m (88.58 ft) |
13.5 m (44.29 ft) |
6.8 m (22.31 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm |
96.6 m (316.93 ft) |
38.6 m (126.64 ft) |
19.3 m (63.32 ft) |
9.7 m (31.82 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
