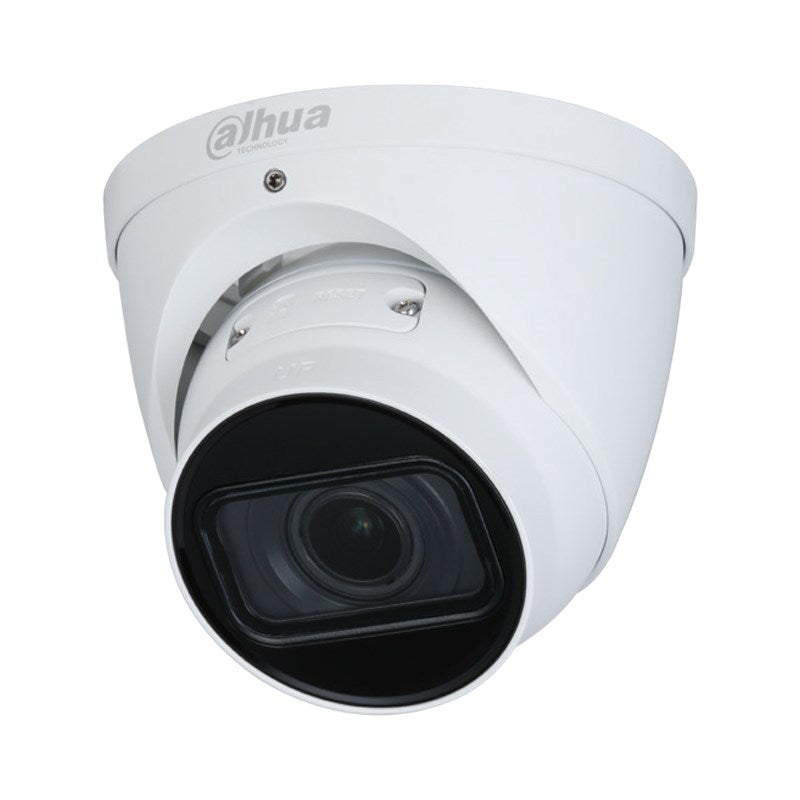

Dahua DH-IPC-HDW2431TP-ZS-S2 4MP Starlight IP Turret Motorised 2.7~13.5mm

Model: DH-IPC-HDW2431TP-ZS-S2

Who This Is For

When getting the field of view right from a fixed mounting point is the priority, the Dahua DH-IPC-HDW2431TP-ZS-S2 solves the problem that fixed-lens turrets cannot. Its 2.7-13.5mm motorised varifocal lens lets installers dial in the exact coverage angle after the camera is mounted - whether that is a wide entry view at 2.7mm or a tighter corridor or car park approach at 13.5mm. With 4MP resolution, Starlight low-light performance down to 0.008 lux, 40m IR, and IP67 weather resistance, it covers both residential eave and soffit installs and small commercial applications where outdoor mounting positions are fixed but coverage requirements vary. IVS tripwire and intrusion detection add a layer of on-camera intelligence without needing a separate analytics server, making this a capable and flexible option for installers who want one model that adapts to multiple site layouts.

What This Camera Actually Does

Who Buys This Model

• Security installers covering varied site layouts: The motorised varifocal lens means one camera model can serve multiple mounting positions across a site - front entry at wide angle, side fence line at medium zoom, rear approach at tighter focal length - without stocking multiple fixed-lens variants.
• Residential property owners with poorly lit outdoor areas: Driveways, side gates, and back yards without strong ambient lighting benefit from the 0.008 lux Starlight sensitivity, which maintains colour detail where standard cameras would produce flat grey IR footage.
• Small business operators monitoring entry points and car parks: The combination of 4MP resolution, 40m IR range, and IVS tripwire detection suits retail car parks, office building entries, and service yard gates where both coverage distance and alert capability matter.
• Strata and property managers specifying outdoor common area coverage: IP67 weatherproofing and the compact turret housing suit eave and soffit mounting on apartment buildings and townhouse complexes where cameras are exposed to weather and need to blend into the structure.

Honest Assessment

The DH-IPC-HDW2431TP-ZS-S2 genuinely earns its place in outdoor installs where focal length flexibility matters. The motorised varifocal lens solves one of the most common on-site problems - a fixed lens that turns out to be too wide or too narrow once the camera is mounted. Paired with Starlight low-light performance and 4MP detail, it handles the majority of residential and small commercial outdoor scenarios without compromise. H.265+ keeps storage requirements down across multi-camera NVR systems, and on-camera IVS reduces false alerts compared to standard motion detection. Available through Security Australia, it suits installers who want a single outdoor turret model that adapts to different jobs. That said, the 40m IR range is suitable for most residential approaches but falls short for long open areas like large loading docks or extended perimeter fencing - an outdoor bullet camera with longer IR throw would serve those scenarios better. There is also no audio capability confirmed on this model.

Before You Buy

Quick Fit Check

• Good match if: You need to cover an outdoor mounting position where the ideal field of view is uncertain until the camera is in place - the motorised 2.7-13.5mm lens lets you dial in exactly the right angle after fixing the camera to the wall or eave.
• Good match if: The area being monitored has low ambient light after dark and standard IR cameras have been producing flat, detail-poor night footage - the 0.008 lux Starlight sensitivity with an F1.5 aperture captures usable colour and detail in very low light conditions.
• You may need a different model if: Your site requires monitoring long open distances beyond 40m - such as large perimeter fences, open yards, or extended approaches - where a long-range outdoor bullet camera with 60m or 80m+ IR would provide adequate illumination and detail at distance.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your install requires a compact outdoor turret where the exact field of view cannot be confirmed until on-site, and Starlight low-light performance is a priority alongside 4MP detail.
• You may need a different model if: Your site has long open approaches exceeding 40m - an outdoor bullet camera with extended IR range will maintain usable night-time detail at those distances that this model cannot reach.
• Pairs well with: A Dahua PoE NVR with remote lens control support, allowing focal length and autofocus to be adjusted across all cameras from a single interface without accessing each camera's IP address individually.

Common Questions

1. Does this camera work on a standard PoE switch or does it need PoE+?

   Standard PoE is sufficient. The DH-IPC-HDW2431TP-ZS-S2 operates on IEEE 802.3af PoE, which delivers up to 15.4W per port. The motorised lens in this model does not draw the higher power required by PoE+ (802.3at) devices, so any 802.3af-compliant PoE switch or NVR with built-in PoE ports will power it correctly over a single Cat5e or Cat6 cable up to 100m.

2. How does the motorised zoom actually work - can I adjust it after installation without climbing a ladder?

   Yes. The zoom and focus are adjusted remotely through the camera's web interface or compatible Dahua NVR software after the camera is physically mounted and powered. You log into the camera or NVR interface, navigate to lens settings, and use the zoom slider to set focal length between 2.7mm and 13.5mm. An autofocus function sharpens the image at the chosen zoom level. Once set, the position is retained without needing further adjustment unless you want to change the field of view.

3. Will this camera work for a driveway that has no external lighting at night?

   Yes, this is one of the scenarios it handles well. The Starlight sensor operates down to 0.008 lux with an F1.5 aperture, which produces colour or near-colour imagery in very low ambient light before switching fully to IR. The 2 x IR LED illuminators extend to 40m in total darkness when no ambient light is present at all, covering the length of most residential driveways and approaches.

4. What is the difference between the DORI detect distances at wide and telephoto, and which one matters for my install?

   The DORI (Detect, Observe, Recognise, Identify) distances change significantly across the zoom range. At wide angle (2.7mm), the detect distance is 64m - meaning a person can be detected as a moving object at that distance, but identification requires them to be much closer (6.4m at wide). At telephoto (13.5mm), the detect distance extends to 220m and identification distance reaches 22m. If you need to identify faces or read detail on subjects at a specific distance, zoom in to the telephoto end to achieve recognition and identification at that range. Wide angle is better suited to situational awareness over a broader area.

5. Does the IVS tripwire detection on this camera work independently, or does it need the NVR to process it?

   The IVS analytics run on the camera itself. Tripwire and intrusion detection are processed by the camera's own chipset and do not require the NVR to handle the analysis. This means alerts and recordings can be triggered by IVS rules even when using edge storage on a MicroSD card without any NVR present, and it reduces processing load on the NVR when one is connected. You configure the rules through the camera's web interface or through compatible Dahua NVR software.

6. Can I use a MicroSD card in this camera as a standalone recorder without an NVR?

   Yes. The camera supports MicroSD cards up to 256GB for local edge recording. It can be configured to record continuously, on a schedule, or triggered by motion or IVS events. This makes it suitable for remote or standalone locations where running a separate NVR is not practical. Note that MicroSD recording is not a replacement for a managed NVR system in multi-camera commercial installs - the Security Australia range includes NVR options if centralised storage and management are required.

7. Does the 120dB WDR help with cameras that face into direct sunlight or bright glare from headlights?

   Yes, that is the primary application for the 120dB WDR spec. Wide dynamic range captures both the brightest and darkest parts of the same scene by combining multiple exposures into a single frame. For cameras facing east or west in morning or afternoon sun, or covering car park entries where headlights shine directly into the lens, WDR prevents the background from being blown out to white while subjects in shadow remain visible. The 120dB rating indicates a wide contrast handling range - sufficient for most direct sun and headlight scenarios encountered in residential and small commercial installs.
