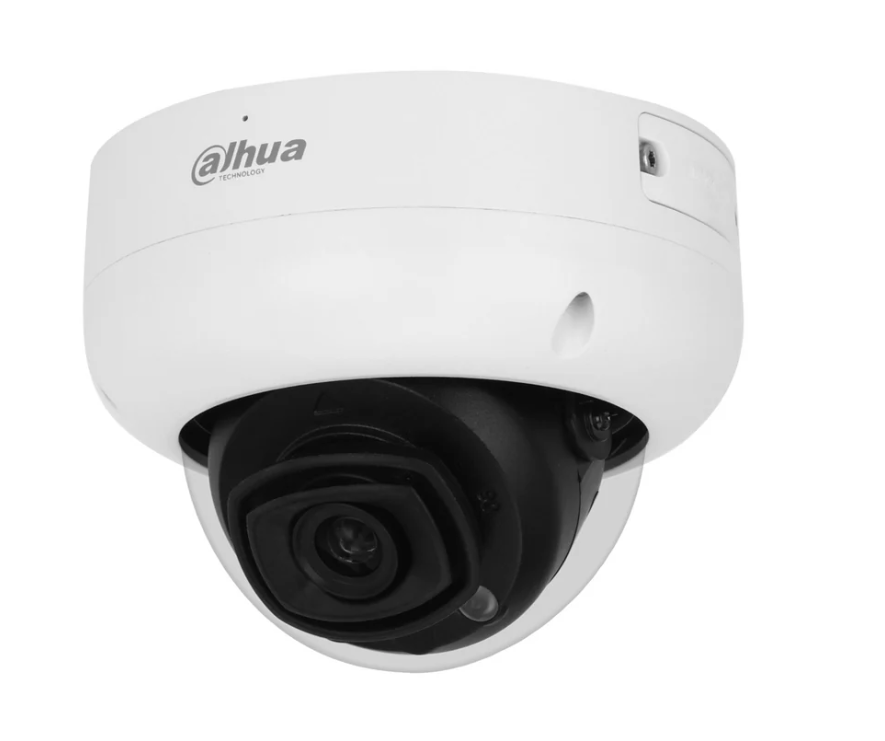

Dahua DH-IPC-HDBW5441R-ASE-HDMI 4MP Hdmi Dome Fixed Camera

Model: DH-IPC-HDBW5441R-ASE-HDMI

Who This Is For

For integrators and business owners who need a camera that feeds a local display directly - without routing footage through an NVR just to show live video on a monitor - the Dahua HDBW5441R-ASE-HDMI delivers exactly that. The built-in HDMI output means a single camera can drive a monitor at a reception desk, retail service counter, childcare viewing area, or building lobby in real time, while still recording to an SD card or connected NVR simultaneously. At 4MP resolution, the image quality holds up on larger screens without appearing soft. The fixed dome housing suits flush ceiling or junction-box ceiling installation, and the 5-series WizMind platform adds SMD Plus AI filtering and perimeter detection on top of the core live-display function. This is a specific-purpose camera for installations where local live monitoring is a design requirement, not an afterthought.

What This Camera Actually Does

Who Buys This Model

• Retail store managers: Need a live camera feed on a monitor behind the service counter so staff can see the entrance or stockroom without a separate screen decoder or NVR output dedicated to that display.
• Childcare centre operators: Require a parent-facing monitor in the reception area showing a live view of a specific room, with HDMI output allowing a direct connection to a wall-mounted display.
• Building lobby managers: Want a fixed dome feeding a reception desk monitor in real time while simultaneously recording to an NVR - the dual-output capability handles both without additional hardware.
• Integrators specifying kiosk or self-service environments: Where a standalone camera-plus-display setup is required and running a full NVR output to the display is not practical or cost-effective.

Honest Assessment

The HDBW5441R-ASE-HDMI does something most IP cameras simply do not: it drives a monitor directly via HDMI while continuing to stream and record over the network. That specific capability makes it genuinely useful for retail counters, childcare reception areas, and lobby displays where a live local view is a functional requirement. The 4MP resolution, SMD Plus AI filtering, onboard audio, and SD card slot are all solid additions that would hold up in any standard surveillance deployment. Available through Security Australia, this is a purposeful product for integrators who have encountered the live-display requirement on a project and needed a clean solution. Where it will not serve as well: if the HDMI output is not a requirement, a standard 5-series WizMind dome will cover the same ground at lower cost. It is also not suited to wide-area or long-distance monitoring - for those applications, a varifocal or motorised zoom dome will give more coverage flexibility. The fixed lens means field of view is set at install time.

Before You Buy

Quick Fit Check

• Good match if: You need a ceiling-mounted dome that outputs live video directly to an HDMI monitor at a reception desk or service counter, without routing through a dedicated decoder or NVR display output.
• Good match if: The installation requires simultaneous live display, network streaming, and local SD card recording from a single camera - particularly in a kiosk, childcare, or lobby environment.
• You may need a different model if: The HDMI output is not required and you are simply looking for a high-performance 4MP dome - a standard WizMind dome without HDMI will be more cost-effective; browse the Dahua 4MP dome range at Security Australia for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation specifically requires a dome camera that outputs live video via HDMI to a local monitor while continuing to record over the network - this is the confirmed differentiating feature of this model.
• You may need a different model if: The live HDMI display is not required and you are simply looking for a high-performance 4MP AI dome - a standard WizMind 5-series dome without HDMI output will cover the same surveillance requirements at a lower price point; the full Dahua 4MP dome range is available at Security Australia.
• Pairs well with: A WizMind-compatible NVR with SMD Plus support to make full use of the AI filtering and perimeter detection rules running on this camera.

Common Questions

1. Does the HDMI output work at the same time as the network stream and SD card recording?

   Yes. The HDMI output, network IP stream, and SD card recording all operate simultaneously. You do not need to choose between them - a single camera installation can feed a local monitor via HDMI, stream to an NVR over the network, and maintain a local SD card backup concurrently. This is the primary reason this model is specified over a standard dome where live local display is a project requirement.

2. Can I play back recorded footage on the HDMI-connected monitor?

   No. The HDMI output on this camera is live view only. It displays the real-time camera feed on a connected monitor but does not support recorded playback through that output. If the installation requires both live view and recorded playback on the same screen, the correct approach is to connect the monitor to an NVR with HDMI output, which handles both functions.

3. Will this camera work with a standard PoE switch or NVR PoE port?

   Yes. This camera supports IEEE 802.3af PoE, meaning it is powered and connected over a single Cat5e or Cat6 cable from a standard PoE switch or PoE NVR port. No separate power supply is required at the camera end. Standard 802.3af budget (15.4W per port) is sufficient - this camera does not require PoE+ (802.3at).

4. Does this camera work for a childcare centre where parents need to see a live room view?

   Yes, this is a well-suited use case. The HDMI output connects directly to a monitor in the reception or waiting area to display a live view of a specified room. The fixed dome housing keeps the camera profile low-profile and ceiling-flush, and IK10 vandal resistance means the housing holds up in environments where children may have access to wall or ceiling fixtures.

5. What does SMD Plus actually do differently from standard motion detection?

   SMD Plus uses onboard AI to classify detected objects as humans or vehicles before triggering an alert. Standard motion detection triggers on any pixel change - wind-blown foliage, insects, changing light conditions. SMD Plus filters those out, meaning the NVR only logs and notifies when a person or vehicle is detected. For retail or lobby environments where false alerts overnight would otherwise be constant, this materially reduces alarm fatigue.

6. Is audio recording included without adding any extra accessories?

   Yes. The built-in microphone (confirmed by the "A" in the ASE model suffix) is integrated into the camera body. Audio is captured and recorded to the NVR or SD card alongside video with no additional microphone, cable, or input device required. This is particularly useful at service counters or points of sale where audio capture is needed for dispute resolution. The team at Security Australia can confirm NVR compatibility for audio recording if needed.

7. Will the fixed lens suit my installation, or do I need a varifocal model?

   It depends on whether you know your required field of view before installation. A fixed lens is set at manufacturing and cannot be adjusted after mounting. If you can confirm the camera-to-subject distance and required coverage width before purchasing - which is straightforward for counter or kiosk placements - the fixed lens is reliable and low-maintenance. If the exact angle is uncertain or the scene may change, a varifocal dome allows angle adjustment at commissioning time.

8. What NVR is required to access the WizMind AI features on this camera?

   A Dahua WizMind-compatible NVR is required to configure and receive SMD Plus classifications and perimeter protection alerts. Standard Dahua NVRs without WizMind support will record the camera's video stream but will not surface the AI event categories in the alert interface. Confirm that the NVR in your system supports WizMind AI when specifying this camera - Dahua's current WizMind NVR range handles this natively.

Downloads & Resources

No downloads available for this product.
