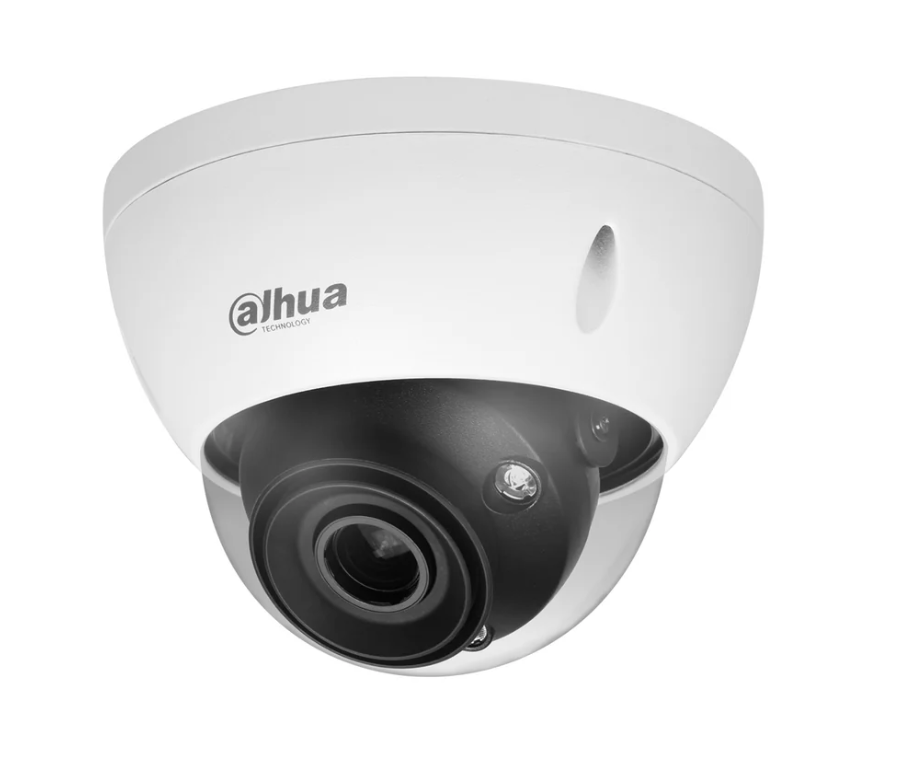

Dahua DH-IPC-HDBW5441E-ZE-HDMI 4MP Hdmi Dome Motorised Camera

Model: DH-IPC-HDBW5441E-ZE-HDMI

Who This Is For

For installers and integrators who need a ceiling-mounted dome with on-site display capability without running everything back through an NVR, the Dahua DH-IPC-HDBW5441E-ZE-HDMI solves a specific problem: the ability to plug directly into a local monitor via HDMI while still streaming over IP to a recorder. That combination suits reception desks, cashier counters, and concierge positions where staff need a live view at the point of installation rather than at a separate monitoring station. The motorised varifocal lens allows the installer to dial in the exact field of view from ground level after mounting, which matters in high-ceiling retail and commercial lobbies where repositioning a fixed-lens camera wastes time and labour. The 4MP sensor and IK10-rated dome housing round out a product built for professional, high-traffic indoor deployments where image detail and physical durability are both non-negotiable.

What This Camera Actually Does

Who Buys This Model

• Retail Integrators: Installing above checkout counters or customer service desks where staff need a direct live view on a nearby monitor via HDMI, while the central NVR continues to record independently.
• Commercial Building Managers: Specifying lobby and reception cameras in buildings with high ceilings where a motorised lens removes the need to re-access the mounting point during commissioning or after a layout change.
• Hospitality and Hotel Security Teams: Deploying cameras in reception areas, gaming floors, or concierge positions where a ceiling-flush dome profile is required and an on-site display connection is operationally useful for front-of-house staff.
• Transport and Transit Facility Operators: Needing IK10-rated cameras in public-access zones such as station concourses, ferry terminals, or bus interchange facilities where physical impact from the public is a documented risk.
• Security Consultants Designing Hybrid Display Systems: Specifying a camera that feeds both a local display point and a centralised IP recording system from a single device, reducing hardware count and cabling complexity on larger commercial projects.

Honest Assessment

The DH-IPC-HDBW5441E-ZE-HDMI is well-suited to professional commercial installs where the HDMI output solves a genuine operational requirement - staff needing a local live view at their workstation without a secondary decoder or monitor-connected NVR. The motorised lens adds meaningful install efficiency on high-ceiling sites, and the IK10 housing is a legitimate differentiator over standard dome cameras in publicly accessible areas. On-camera WizMind AI reduces the load on the recorder and delivers more accurate detection than pixel-based motion alerts.

This camera is not the right choice for purely outdoor perimeter coverage where a weatherproof bullet or turret camera with longer IR throw is more practical. If wide-area coverage from a single point is the priority, a PTZ or multi-sensor panoramic camera available through Security Australia will cover more ground with fewer mounting positions. The HDMI feature adds cost and is unnecessary in back-of-house or purely recorder-managed installs where no local display is needed.

Before You Buy

Quick Fit Check

• Good match if: You need a ceiling dome that outputs live video directly to a local monitor via HDMI - such as at a reception desk or cashier counter - while simultaneously recording over IP to a central NVR.
• Good match if: The install site has ceilings above 3 metres and a fixed-lens camera would require repeated access to adjust the field of view - the motorised varifocal allows remote zoom adjustment after mounting is complete.
• You may need a different model if: The primary requirement is outdoor long-range coverage or wide-area perimeter monitoring - a bullet camera with extended IR or a PTZ camera will serve those scenarios more effectively.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ceiling dome with both local HDMI display output and simultaneous IP recording, combined with on-camera AI analytics and a motorised lens for post-mount adjustment on high-ceiling commercial sites.
• You may need a different model if: The primary use case is outdoor perimeter coverage over a long approach - a bullet or turret camera with extended IR range and weatherproofed housing purpose-built for exterior mounting will perform better in that scenario.
• Pairs well with: A Dahua WizMind-compatible NVR that can receive the IP stream, manage AI event logs, and provide additional storage and remote access without requiring per-channel AI licensing.

Common Questions

1. Can the HDMI output run at the same time as the IP stream to the NVR?

   Yes. The HDMI output and the IP network stream operate simultaneously and independently. The camera sends its live video to a locally connected HDMI display while continuing to stream over the network to a connected NVR or VMS. Connecting a monitor via HDMI does not interrupt recording or remote access in any way.

2. Does the motorised lens need to be adjusted from a laptop, or can it be done through the NVR interface?

   Both options are supported. The motorised zoom and focus can be adjusted through the camera's web interface via a browser, through a compatible Dahua NVR menu, or through the DMSS and DSS software platforms. An installer can complete lens adjustment from ground level once the camera is powered and networked, without re-accessing the mounting point.

3. Will this camera work on a standard PoE switch, or does it need PoE+?

   PoE+ (IEEE 802.3at) is recommended. While the camera supports IEEE 802.3af standard PoE, the combination of the motorised lens mechanism, 4MP sensor, and active HDMI output draws enough power that a PoE+ port provides a reliable margin. Using a standard 15.4W 802.3af port risks intermittent resets or lens motor failures under sustained load, particularly in warm environments.

4. Does the WizMind AI run on the camera itself, or does it require a specific NVR?

   The AI processing runs on the camera itself. WizMind features including perimeter protection, tripwire, intrusion detection, and people counting are handled by the camera's onboard processor. A compatible Dahua NVR can receive and log the AI event metadata, but you do not need an AI-enabled NVR for the detection functions to operate - they work independently of the recorder.

5. Is the IK10 rating confirmed on this dome housing?

   Yes. The DH-IPC-HDBW5441E-ZE-HDMI carries a confirmed IK10 vandal resistance rating. IK10 is the highest classification under the IEC 62262 standard, representing protection against 20 joules of impact energy. This is relevant for installations in public-access areas, transit facilities, and commercial spaces where camera housings may be subject to deliberate or accidental physical contact.

6. Will this camera work for after-hours detection in a low-light environment?

   Yes, within the camera's confirmed 40-metre IR range. The built-in IR illuminators activate automatically in low-light or zero-light conditions and provide monochrome imaging up to 40 metres. For environments where full-colour night imaging is required rather than IR monochrome, a different camera model with white light or full-colour low-light capability would be more appropriate. The team at Security Australia can help identify the right option for specific low-light requirements.

7. What is the focal length range and how does it affect coverage at different ceiling heights?

   The lens covers 2.7mm to 13.5mm. At 2.7mm on a 4MP sensor, the field of view is wide enough for broad lobby or floor coverage from a 4-5 metre ceiling. At 13.5mm, the lens narrows to provide a tighter, longer view useful for corridor monitoring or zooming into a specific entry point. The 5x motorised zoom range gives the installer meaningful flexibility to match the coverage zone to the site layout without changing the camera position.

Downloads & Resources

No downloads available for this product.
